Bristan Monza Tap Cartridge Replacement Valve (Hot) - 1/​2 Inch, 20 Spline Compatible Cartridge

SUMMARY

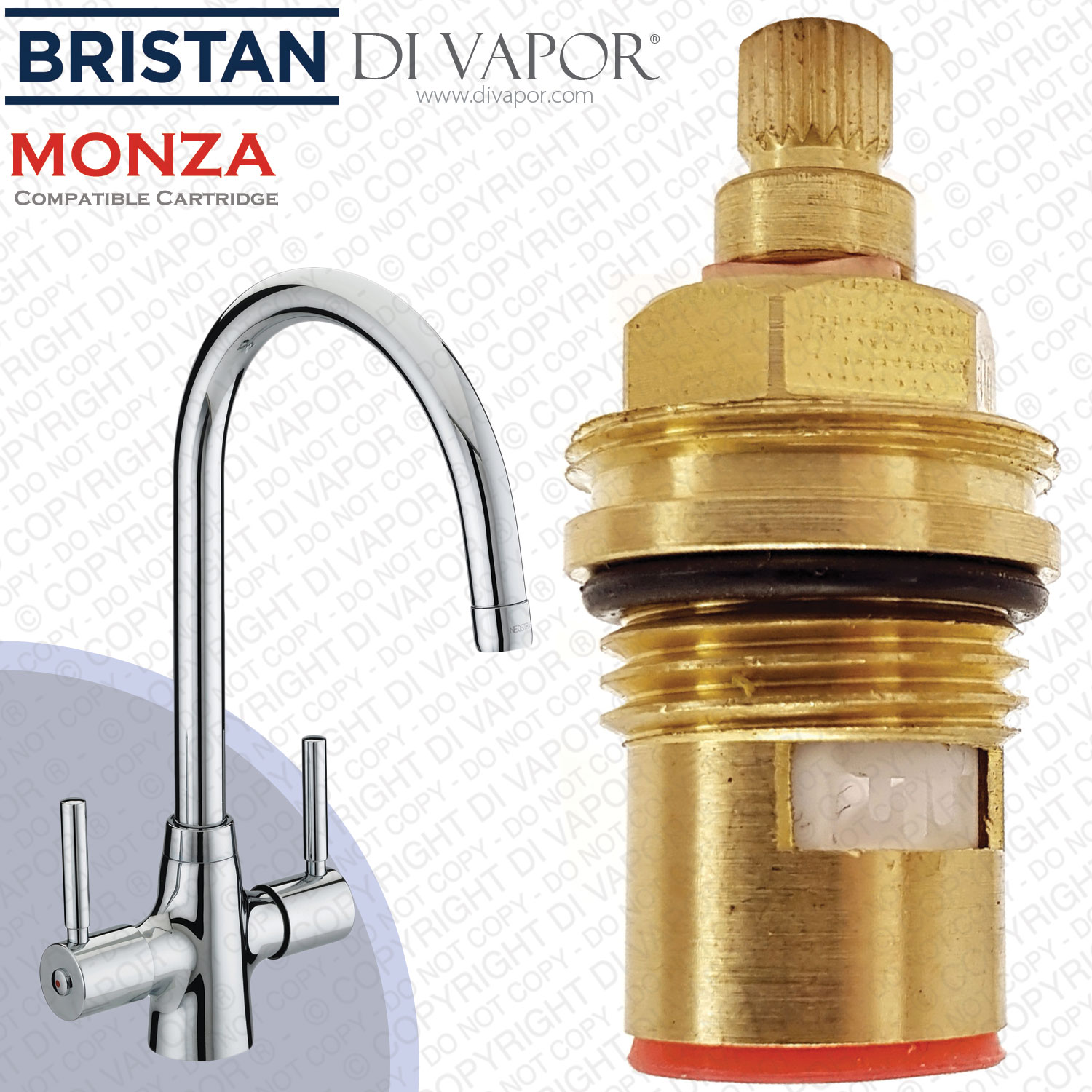

Bristan Monza Tap Cartridge Replacement Valve (Hot) - 1/2 Inch, 20 Spline Compatible Cartridge

This is a hot-side 1/2 inch, 20-spline tap cartridge compatible with selected Bristan Monza kitchen sink mixer taps using the 20-spline valve arrangement. The cartridge controls hot water flow and shut-off through the tap handle.

Bristan Monza taps have been produced with different cartridge arrangements, including 20-spline and 28-spline versions. Count the splines on the original cartridge before ordering and do not select the cartridge from the Monza name alone.

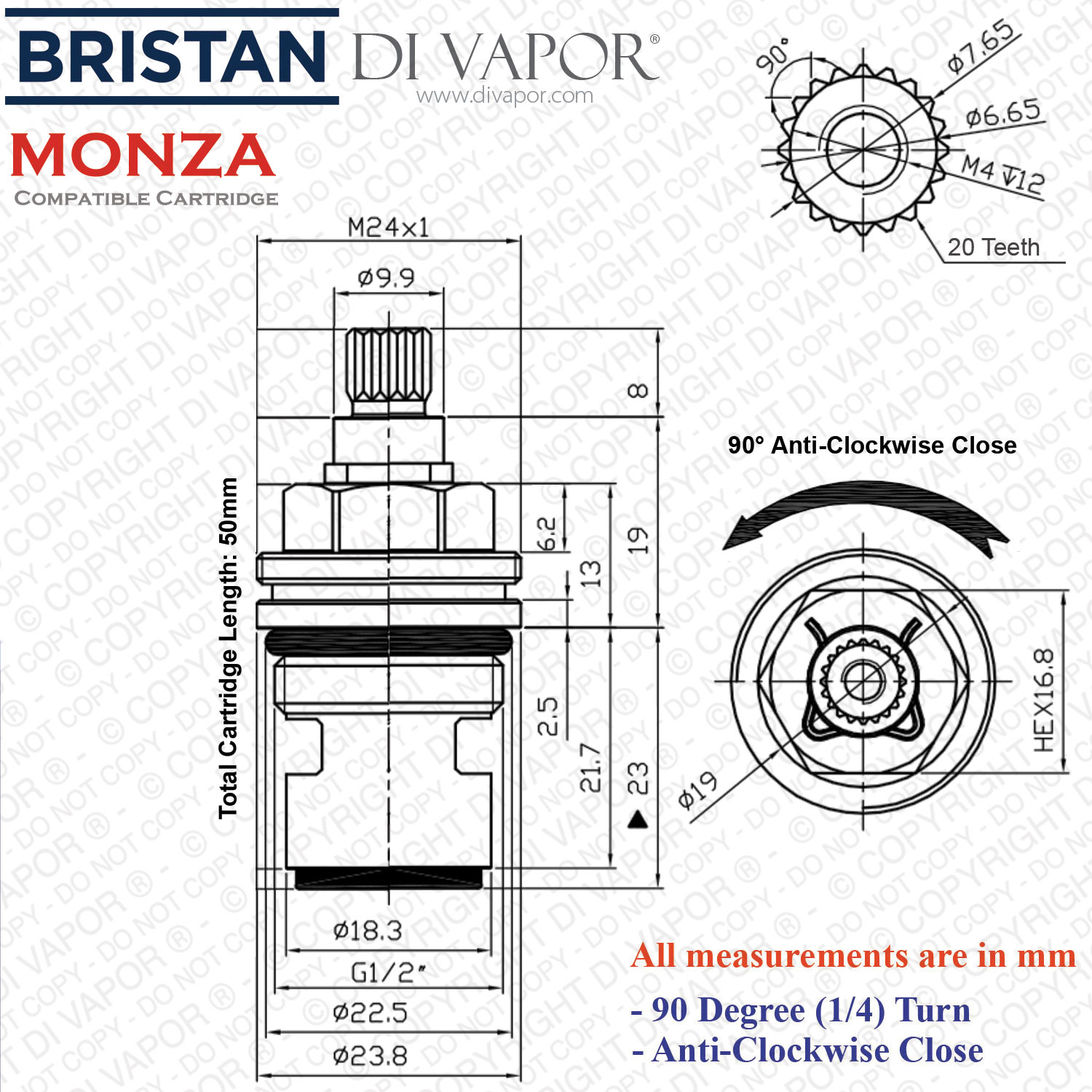

Technical Details

- - Part Number: BR-MN893

- - Part type: hot-side tap cartridge / replacement valve

- - Connection size: 1/2 inch

- - Spline count: 20

- - Position: hot side

- - Fitting type: screw-in cartridge

Before fitting, isolate the hot and cold water supplies, remove the tap handle and existing cartridge, and apply suitable silicone grease to the cartridge O-rings before installation.

Confirmed Compatible Models

- - Bristan MZ SNK EF C Monza Easyfit Sink Mixer Tap - for versions using the 20-spline cartridge arrangement; other revisions use a 28-spline cartridge

Not sure this is the right cartridge? Use the Di Vapor part identification service.

Related Spares You May Need

- - Bristan Monza BR-MN892 Cold Tap Cartridge 1/2 Inch 20 Spline Compatible Cartridge - matching cold-side 20-spline cartridge

- - TACSIL 3g Premium Cartridge Silicone Grease - TAC86 - suitable for lubricating cartridge O-rings during fitting

Alternative 28-Spline Monza Parts

These parts are for Monza taps using the alternative 28-spline cartridge arrangement and should not be ordered as direct substitutes for BR-MN893.

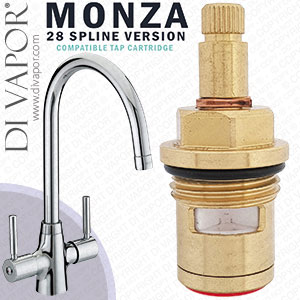

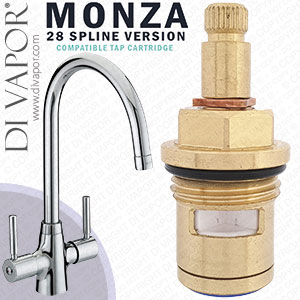

- - Bristan Monza 2998828300 1/2 Inch Ceramic Disc Cartridge Pair - 28 Spline

- - Bristan Monza BR-MN282 Cold Tap Cartridge - 28 Spline Compatible Cartridge

- - Bristan Monza BR-MN283 Hot Tap Cartridge - 28 Spline Compatible Cartridge
