Bristan D40G-9 Ceramic Disc Cartridge for Pisa Valves (J BAS)
Send a photo of your item and we'll help confirm it.
Summary

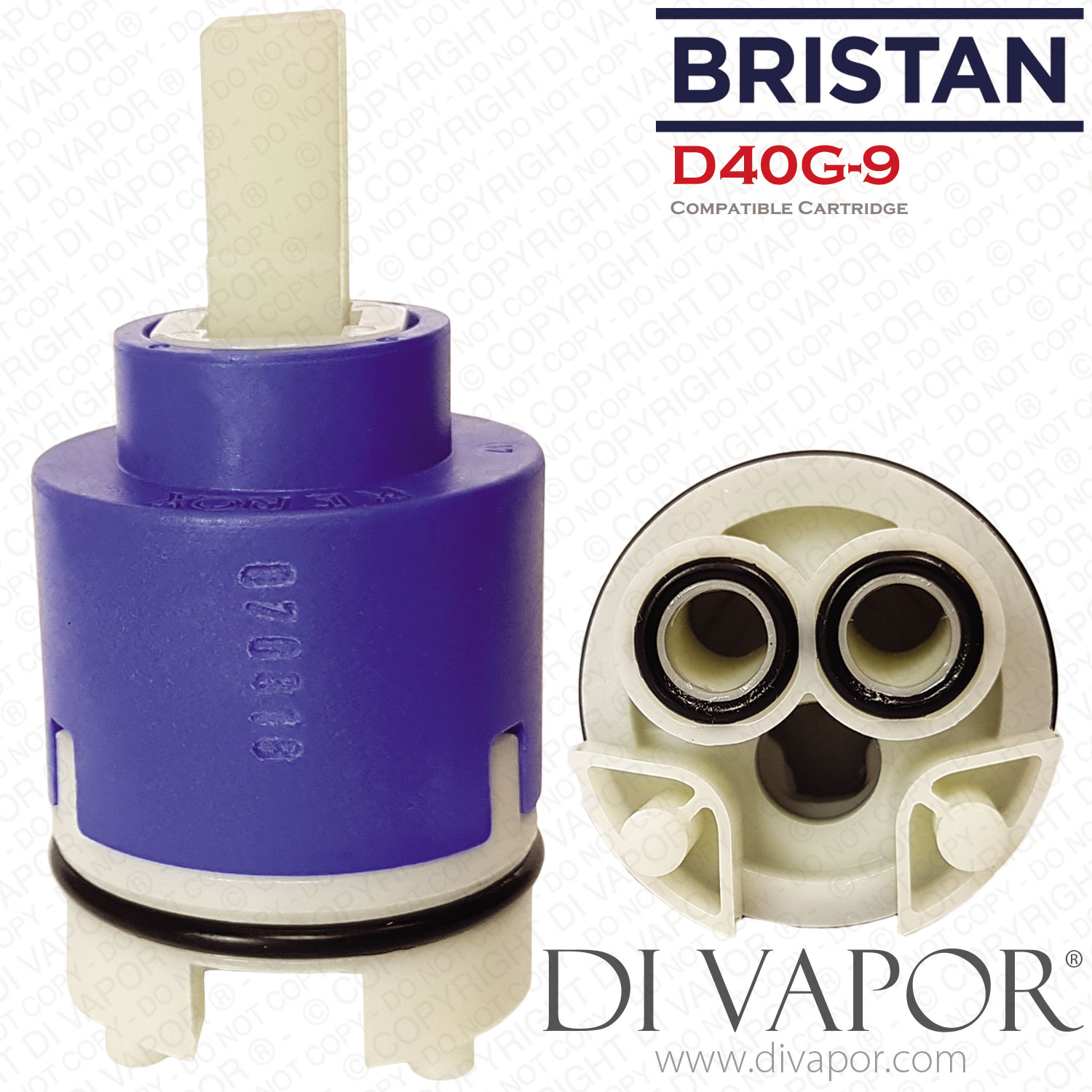

Bristan D40G-9 40mm Ceramic Disc Cartridge for Java Pisa and Hourglass Mixer Taps
The Bristan D40G-9 is a 40mm ceramic disc mixer cartridge used in specific older revisions of Bristan Java Pisa and Hourglass basin and bidet mixer taps. The cartridge sits inside the tap body and controls mixed water flow and temperature through movement of the single lever.
This cartridge should be identified by the original part and the exact tap revision rather than by the 40mm diameter alone. Later revisions of some Bristan Java and Pisa taps use a different cartridge.

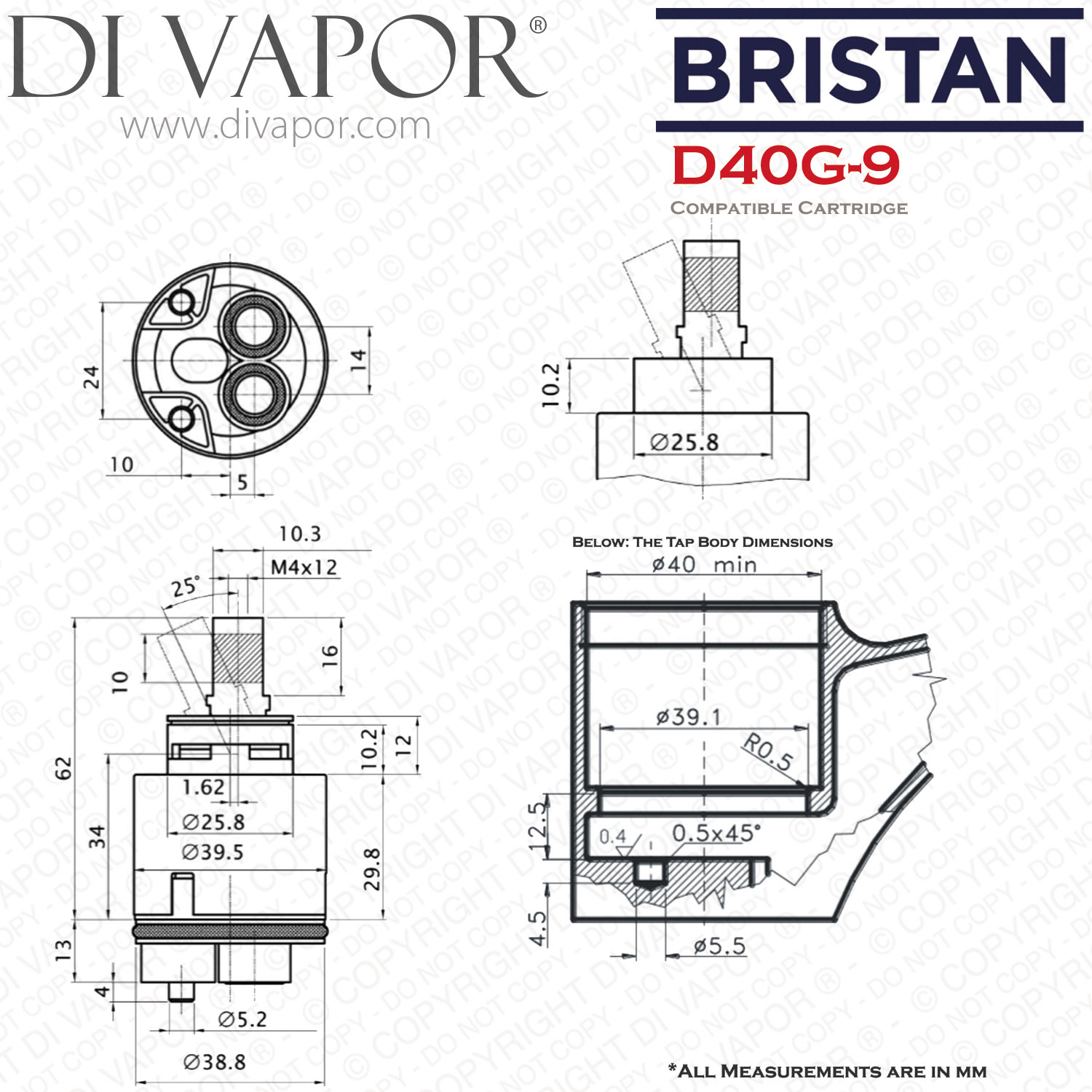

Technical Details
| Part code | D40G-9 |
|---|---|
| Cartridge type | ceramic disc manual mixer cartridge |
| Body diameter | 40mm |
| Barrel diameter | 40mm |
| Total length excluding locating pins | 75mm |
| Distance between locating pins | 18mm centre to centre |
| Top Square Plastic Handle Lever Diameter | 9mm x 9mm |
- Push-in cartridge with locating pins at the base
- Used in selected older Bristan single-lever basin and bidet mixer tap assemblies
Confirmed Compatible Models
- Bristan J BAS C Java Basin Mixer - J BAS C GEN1 - 26/08/2016
- Bristan J BASNW C Java Basin Mixer - J BASNW C GEN1
- Bristan J BASSW C Java Basin Mixer - J BASSW C GEN1 - 31/01/2017
- Bristan J BAS E6 C Java Basin Mixer Eco 6 Litre - J BAS E6 C GEN1 - 25/04/2017
- Bristan J BID C Java Bidet Mixer - J BID C GEN1 - 26/08/2016
- Bristan PS BAS C Pisa Basin Mixer - PS BAS C GEN1 - 10/07/2017
- Bristan MHOU BAS GG Hourglass Basin Mixer with Clicker Waste
Before Ordering
Compare the removed cartridge with the dimensions above and confirm the tap model or revision where possible. Do not select this cartridge from the 40mm body diameter alone because different Bristan cartridges have been used across later revisions of some of these ranges.
If you are unsure which cartridge you need, use the Di Vapor Part Identification Service.
Related Spares You May Need
- Bristan N31-A Cartridge Retaining Nut for J BAS
- Bristan S91 Shroud for J BAS C for 40mm Cartridges
- Bristan 1Z01029NT Fixing Kit for Hourglass & Sail Basin Mixer Chrome
- Bristan BZG10-1/2-300 M10 x 300mm 1/2 BSP Female Flexi Tails - Pair
- Bristan A03-A M24 Flow Straightener
- Bristan SC5-6SN M5 x 6mm Stainless Steel Grub Screw
- Bristan Java H91-C Lever Tap Control Handle
- Bristan P91-B Indice Cap for J BAS C - Sold Individually
- Bristan 210V50010NT-FEU09 M10 x 300mm 15mm Compression Flexible Tails - Pair
