Bristan Artisan 1/2" Hot Ceramic Disc Kitchen Tap Cartridge Valve - 28 Spline Compatible Cartridge - BR-AR892
Send a photo of your item and we'll help confirm it.
Summary

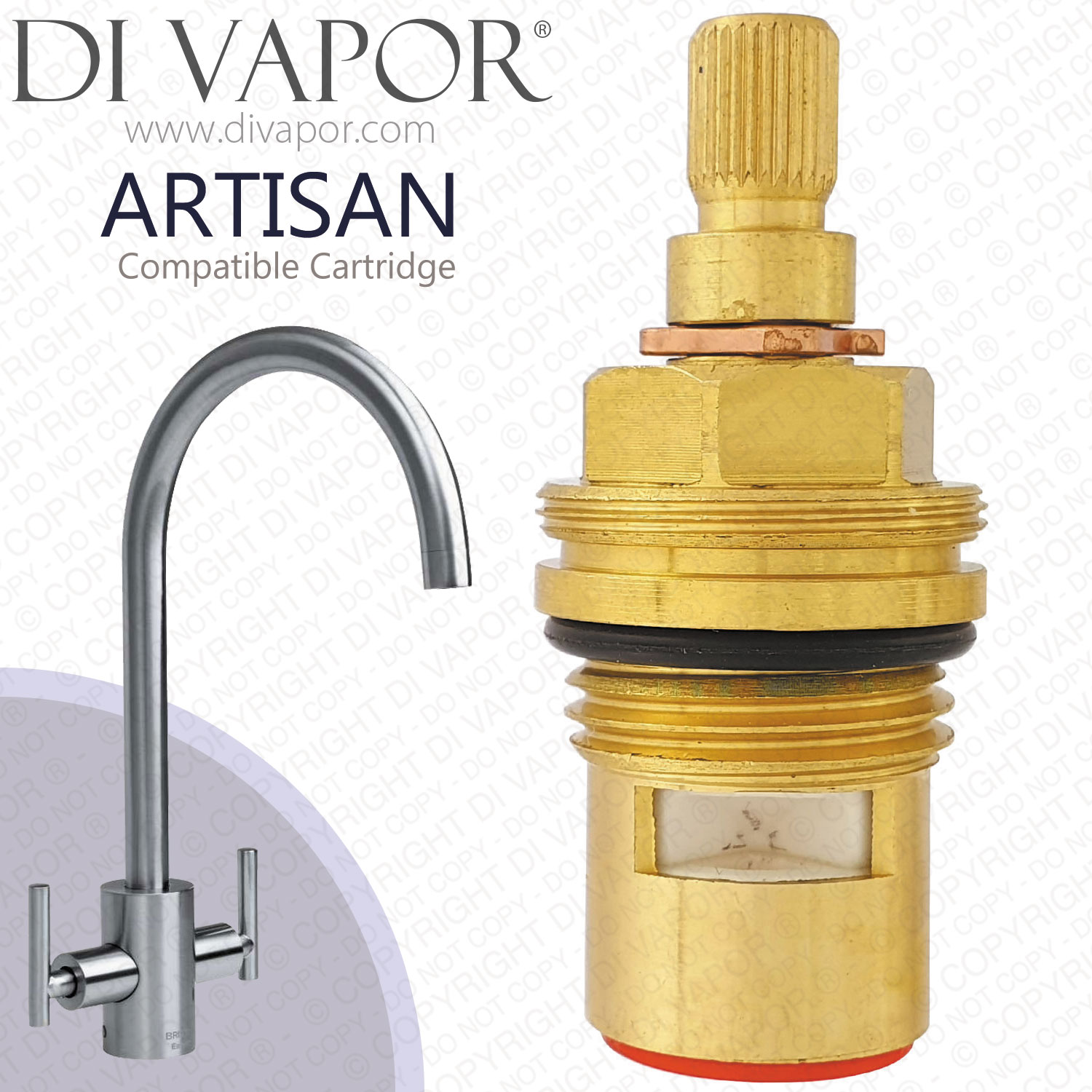

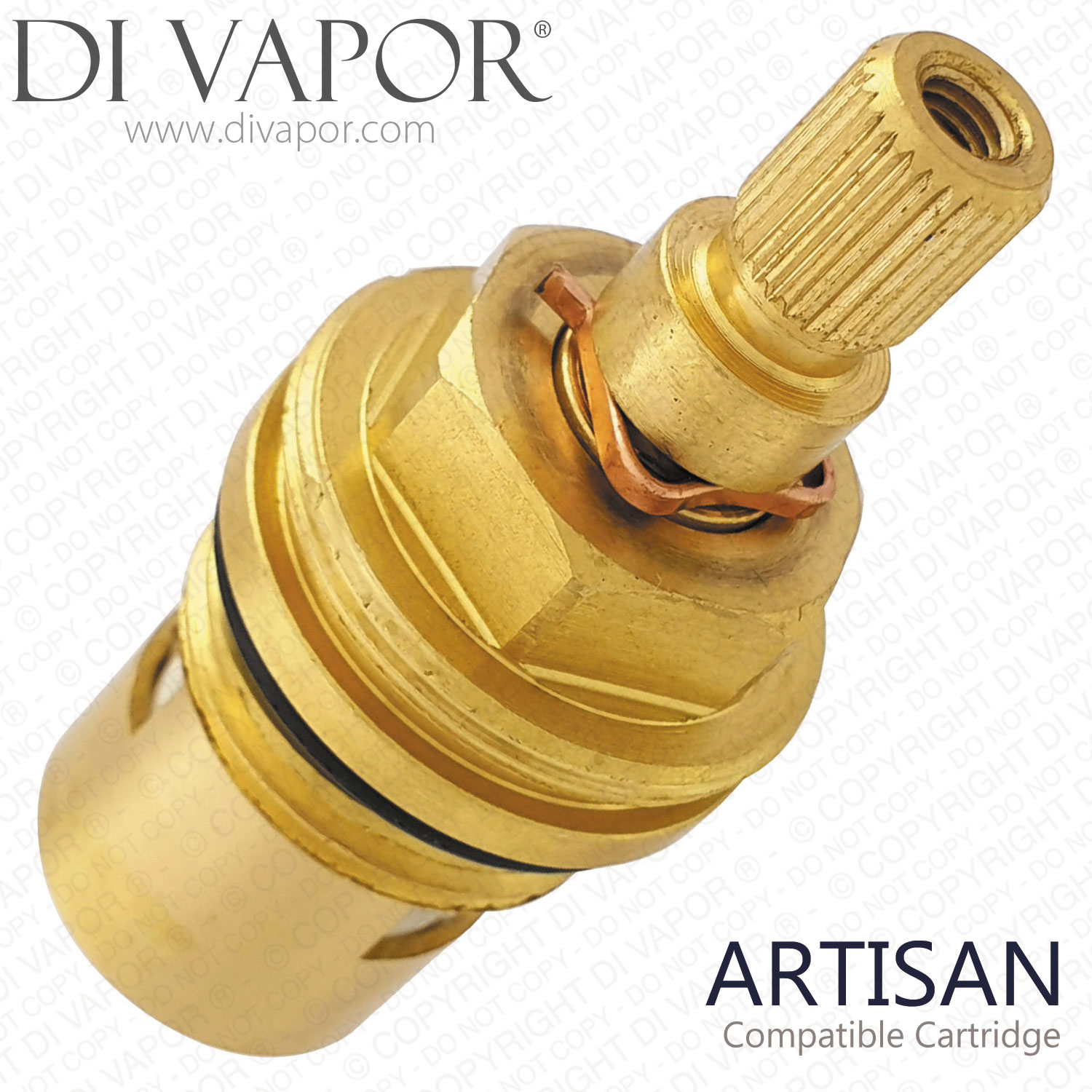

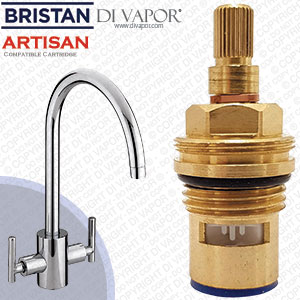

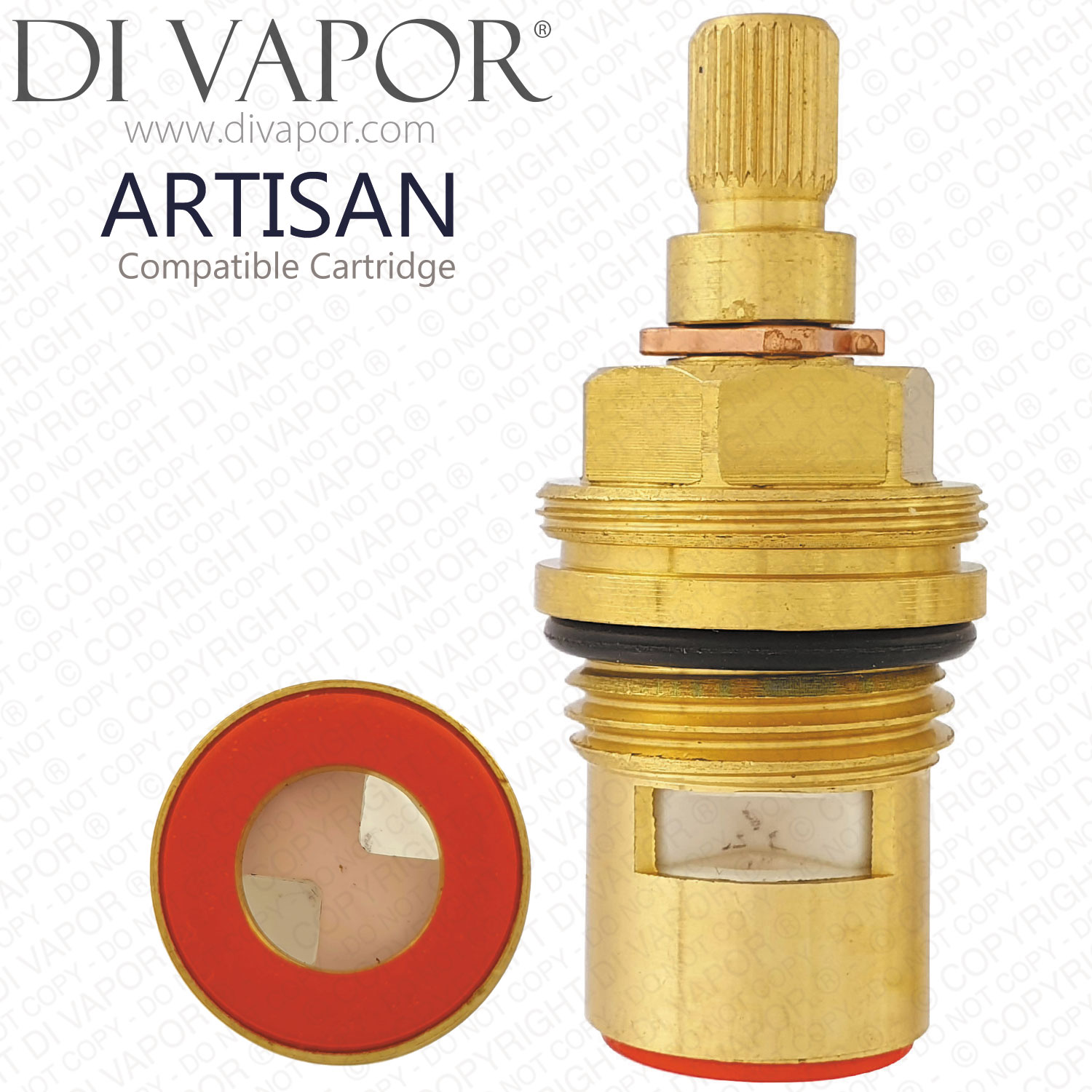

Bristan Artisan 1/2 Inch Hot Ceramic Disc Kitchen Tap Cartridge Valve - 28 Spline Compatible Cartridge - BR-AR892
The BR-AR892 is a hot-side 1/2 inch ceramic disc cartridge compatible for Bristan Artisan kitchen tap applications that use this specific 28-spline cartridge format. It controls hot-water flow through the tap and provides shut-off when the handle is closed.
A worn ceramic disc cartridge can cause water to continue dripping from the tap spout when the tap is turned off. Replacing the correct cartridge restores the internal hot-water flow control and shut-off function.
Technical Details
| Part Number | BR-AR892 |
|---|---|
| Compatible with | Bristan Artisan Kitchen Mixer |
| Side | Hot |
| Cartridge type | Ceramic disc valve cartridge |
| Nominal size | 1/2 inch |

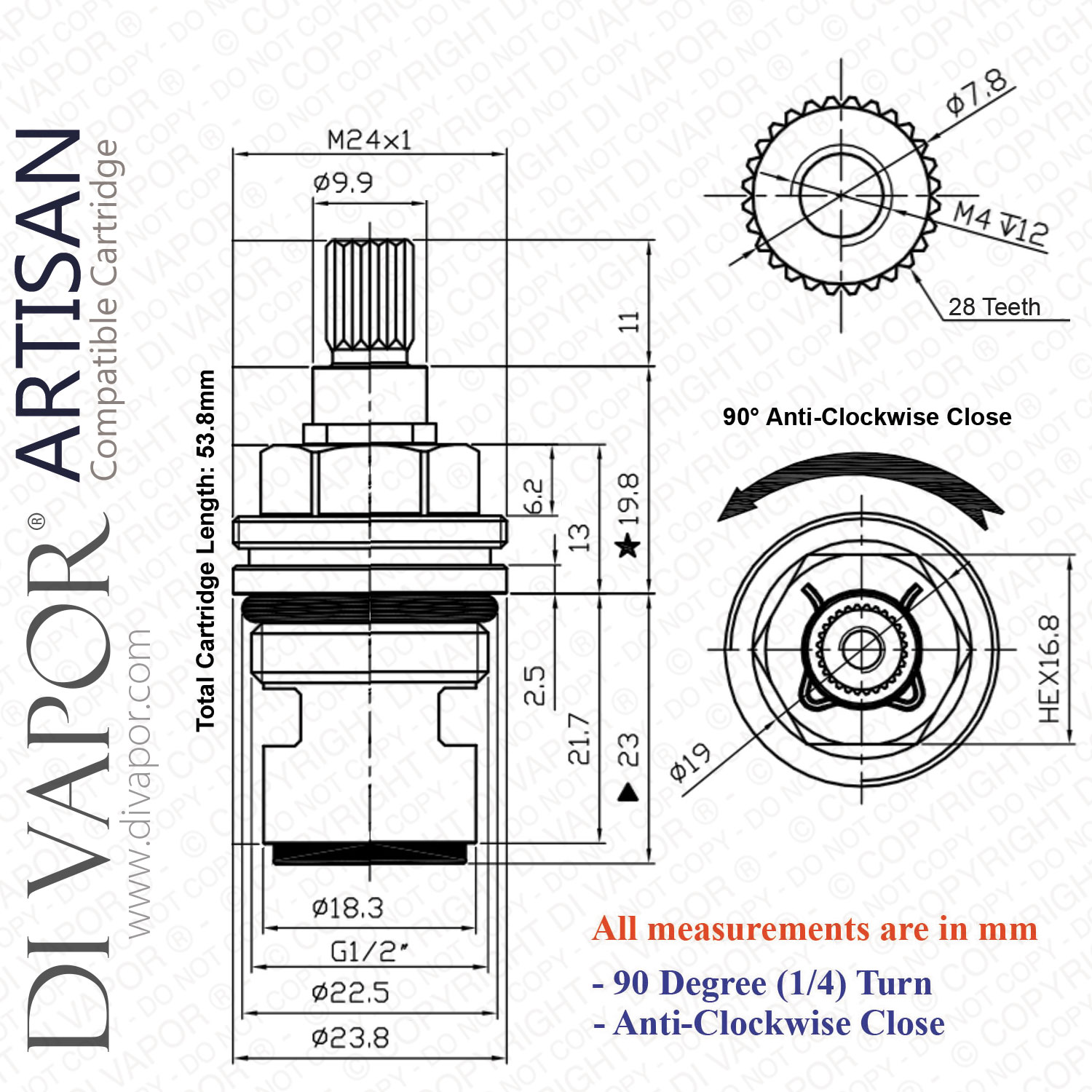

| Total cartridge length | 53.8mm |
| Diameter at widest part | 23.8mm |
| Spline diameter | 7.8mm |
| Spline teeth count | 28 |
| Opening direction | Clockwise |
| Closing direction | Anti-clockwise |
Before Ordering

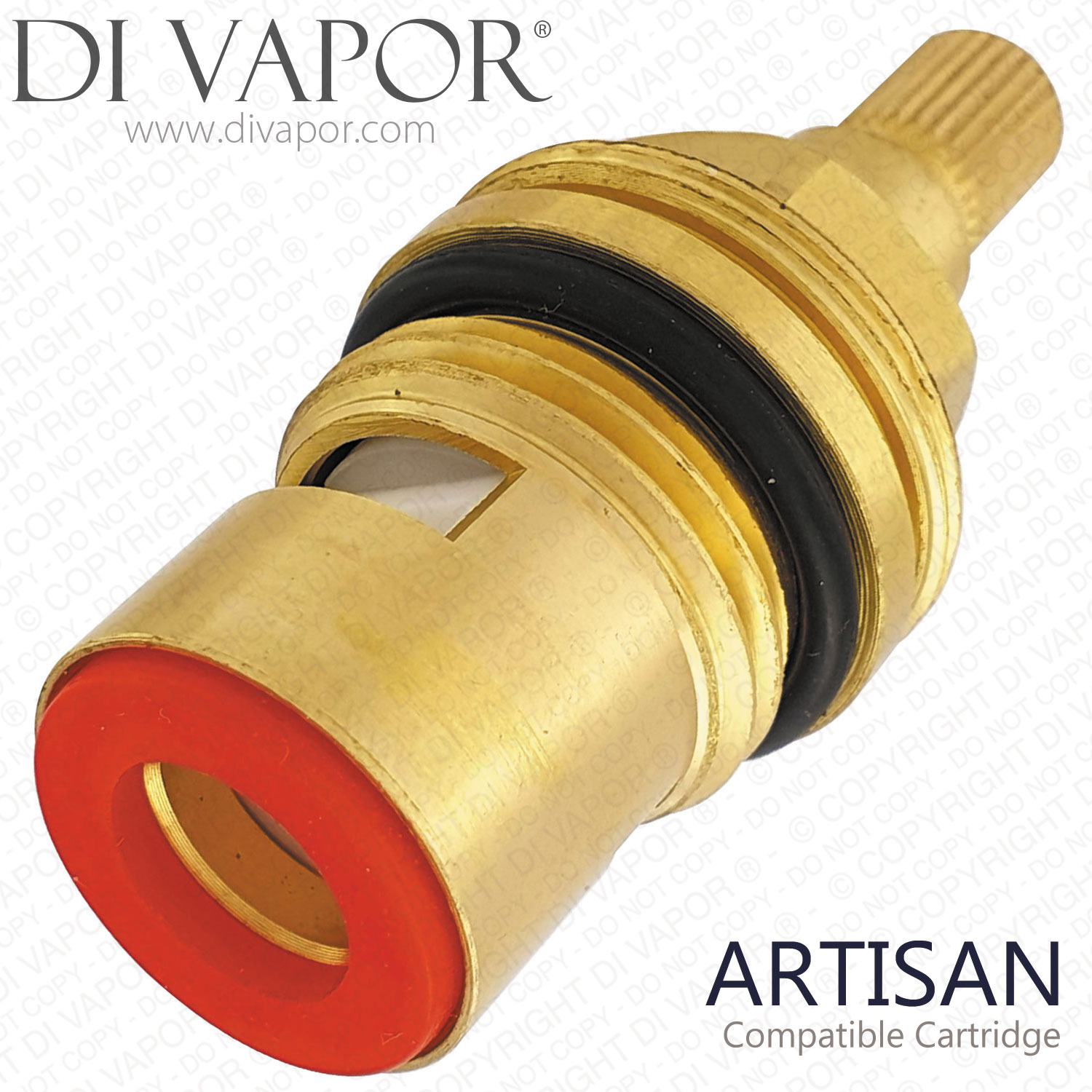

Check the overall length, widest diameter, spline diameter, 28-tooth spline count, red hot-side bottom seal and operating direction against the cartridge being removed. Bristan Artisan taps have used different valve types, so the Artisan name or spline count alone should not be used to identify the correct cartridge.
If you are unsure which cartridge you need, use the Di Vapor Part Identification Service for help.
Related Spares You May Need
- GROHE Premium Plumbers Silicone Grease - 2g - SYNTHESO LM 220 (18007031) - Part Number GR-18007031
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved - Part Number TAC86
Use a thin coating of suitable silicone grease on the cartridge O-ring and bottom seal during fitting to help the seals seat correctly and reduce friction.
