Blanco Max BM5400TB-AB Hot Tap Cartridge, 1/2", 28 Spline - BM5400 Compatible Cartridge
SUMMARY
Blanco Max BM5400TB-AB Hot Tap Cartridge, 1/2", 28 Spline - BM5400 Compatible Cartridge
This Blanco Max BM5400TB-CR hot tap cartridge is a 1/2 inch 28 spline quarter-turn ceramic tap headwork for the hot side of Blanco Max BM5400 twin lever kitchen taps.
The cartridge controls the hot water flow through the tap body and restores shut-off when the existing hot cartridge is worn, leaking, stiff to turn or allowing water to drip from the spout when the tap is turned off.
Technical Details
- - Part Number: BM5400TB-CR
- - Cartridge type: ceramic disc quarter-turn tap cartridge
- - Side: hot
- - Connection size: 1/2 inch
- - Spline count: 28 teeth
- - Operation: 90 degree turn
- - Close direction shown for the hot cartridge: anti-clockwise close

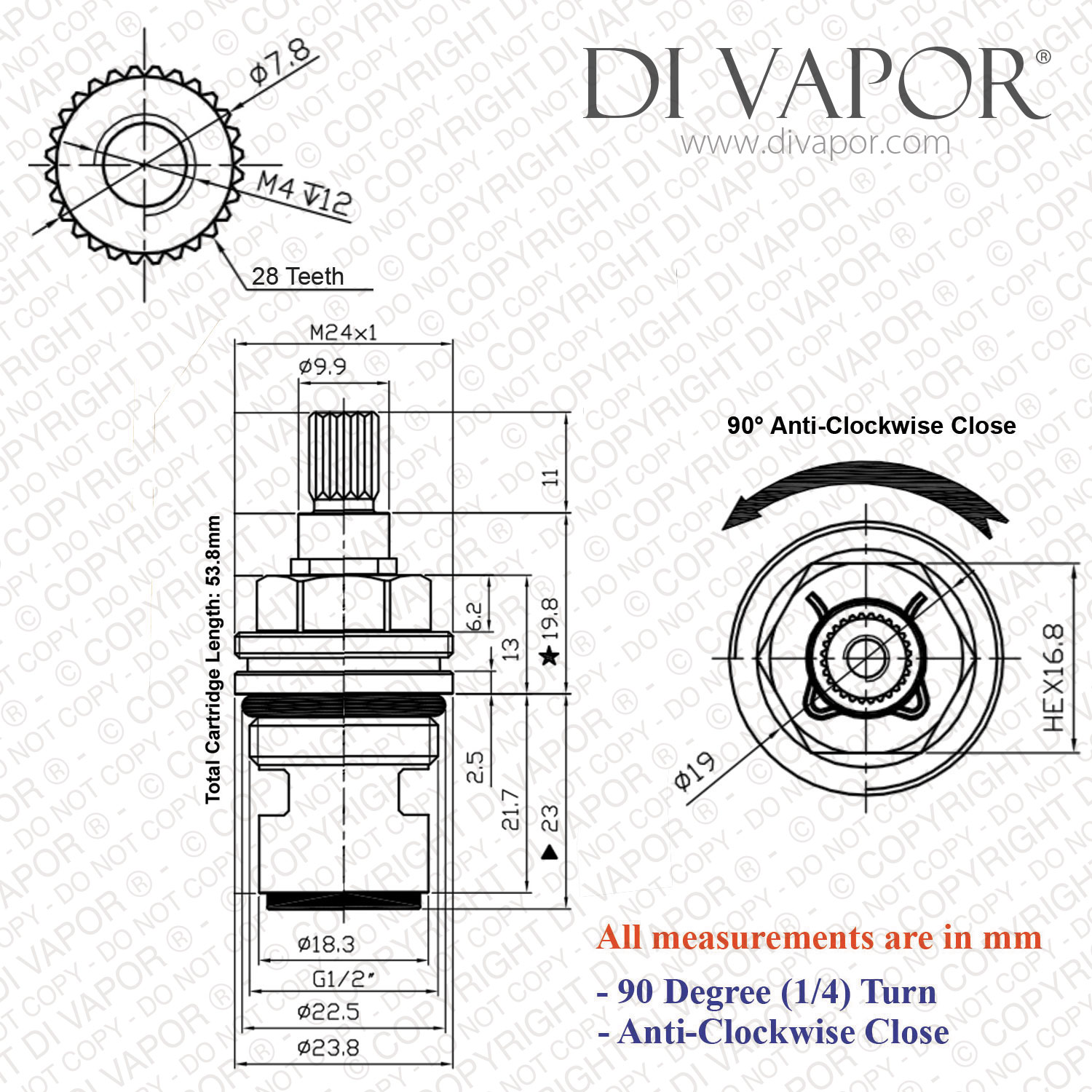

- - Total cartridge length: 53.8mm
- - Spline diameter: 7.8mm
- - Other measured points shown: M4 x 12, M24x1, G1/2 inch, 9.9mm, 18.3mm, 22.5mm, 23.8mm, HEX 16.8 and 19mm
Check the hot side position, 28 spline handle fitment, 1/2 inch thread and cartridge orientation before ordering. Apply a small amount of suitable silicone grease to the o-ring during fitting to help protect the seal and ease installation.
Confirmed Compatible Models
- - Blanco Max BM5400
- - Blanco Max BM5400CH Chrome
- - Blanco Max BM5400BS Classic Stainless
Related Spares You May Need
- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- - Blanco Max BM5400TB-AB Cold Tap Cartridge 1/2 Inch 28 Spline - BM5400 Compatible Cartridge
- - Blanco 02695 Kitchen Tap Aerator - B-02695
- - Blanco 03537-1 Coupling with O-Ring 3537 / 03537 Compatible Spare
