Abode Atlas Aquifier ASCDDV0002 Two Way Cold/​Filter Diverter Valve for Post 2009 Kitchen Tap

SUMMARY

Atlas Aquifier Two Way Cold/Filter Diverter Valve (Post 2009 Model) - ASCDDV0002

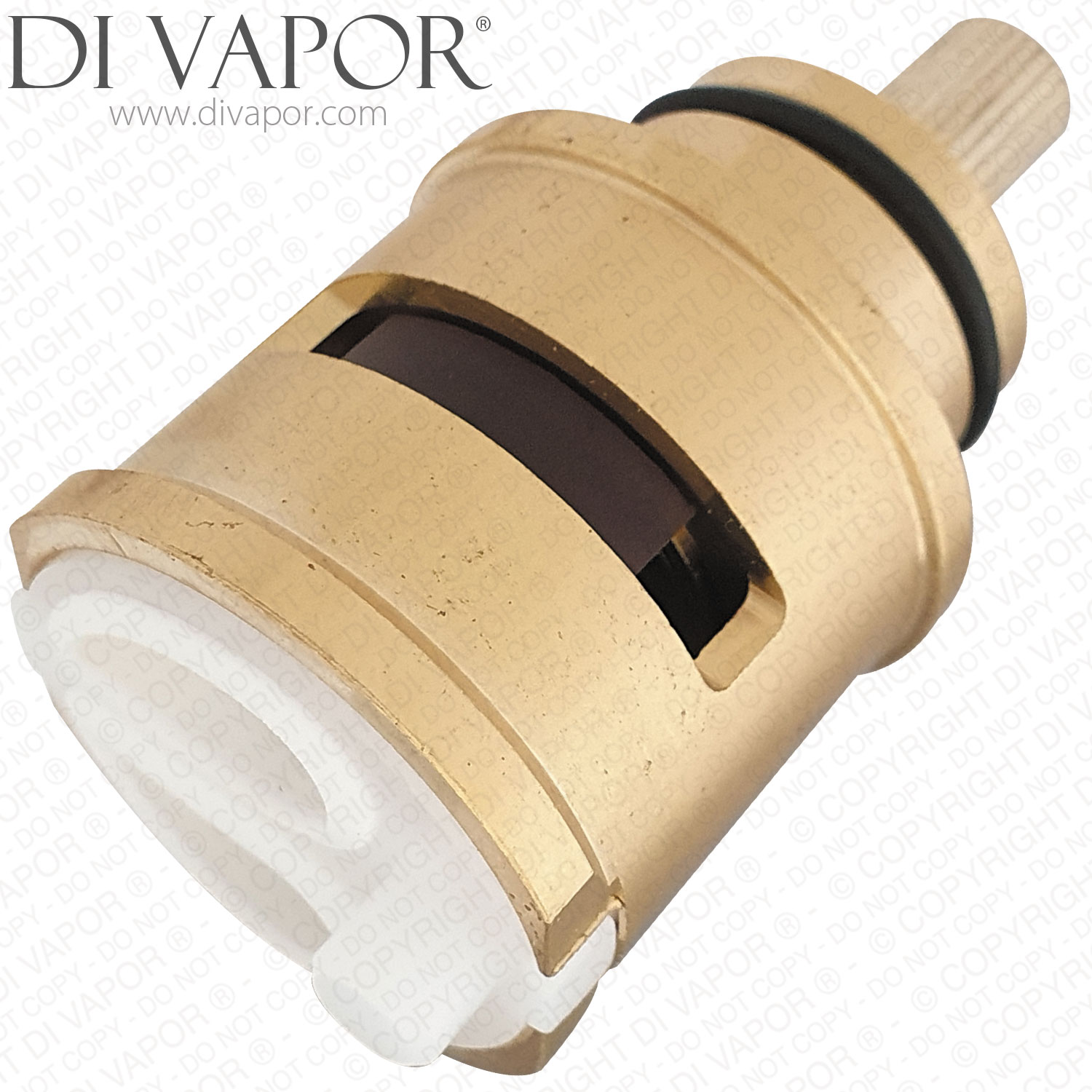

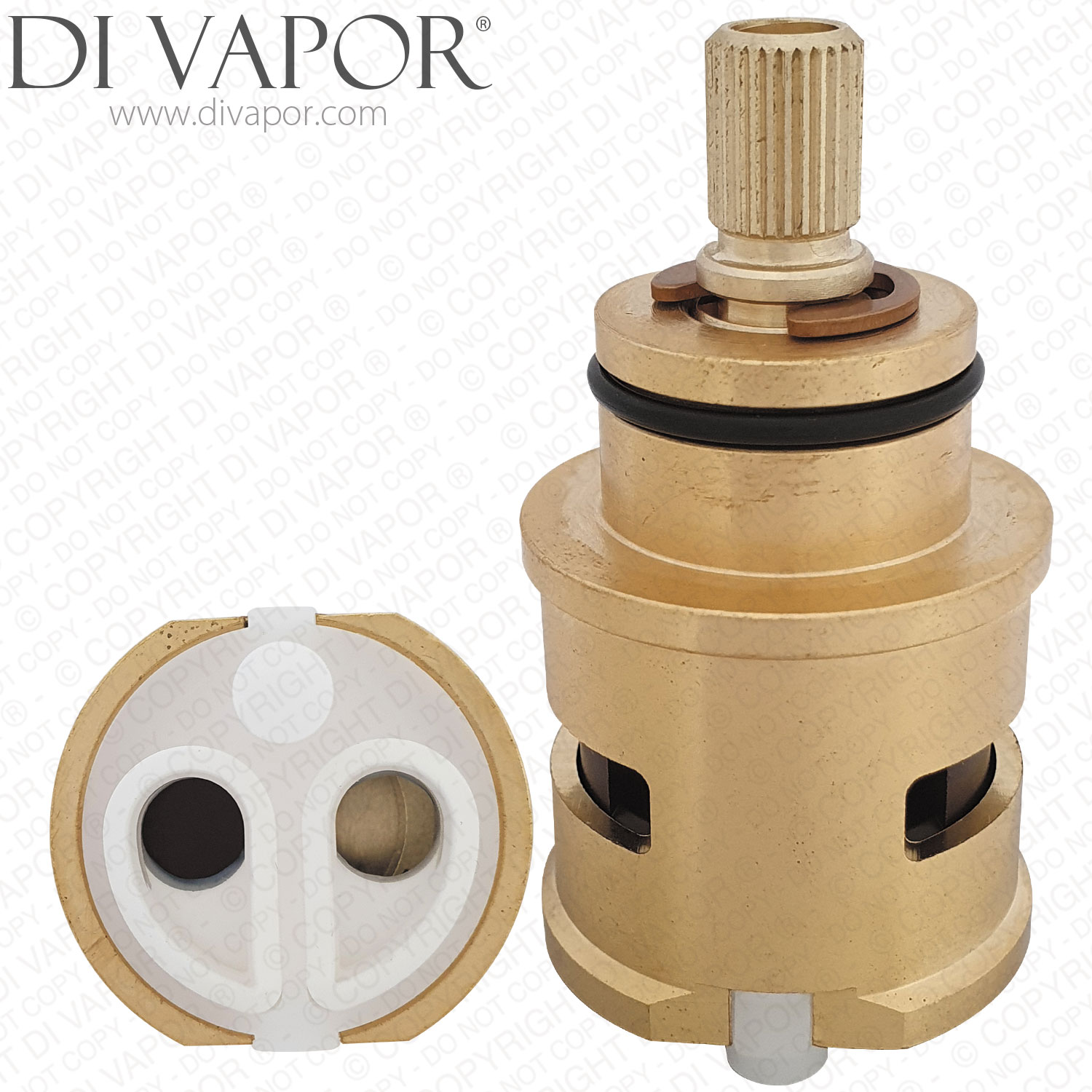

The Abode Atlas Aquifier ASCDDV0002 is a two way cold/filter ceramic disc diverter valve for post-2009 Atlas Aquifier kitchen filter taps. This brass diverter valve controls the cold and filtered water selection on the cold/filter side of the tap.

This is the valve to check where the wording on the cold lever says Cold and Filter or cold & Filter. A failing cold/filter diverter valve can cause water to drip from the end of the tap spout when the tap is turned off or stop the cold and filtered water selection from operating correctly.

Technical Details

- - Part Number: ASCDDV0002

- - Part type: two way cold/filter diverter valve

- - Part designation: Ceramic Disc Diverter HT

- - Application: post-2009 Atlas Aquifier cold/filter tap valve position

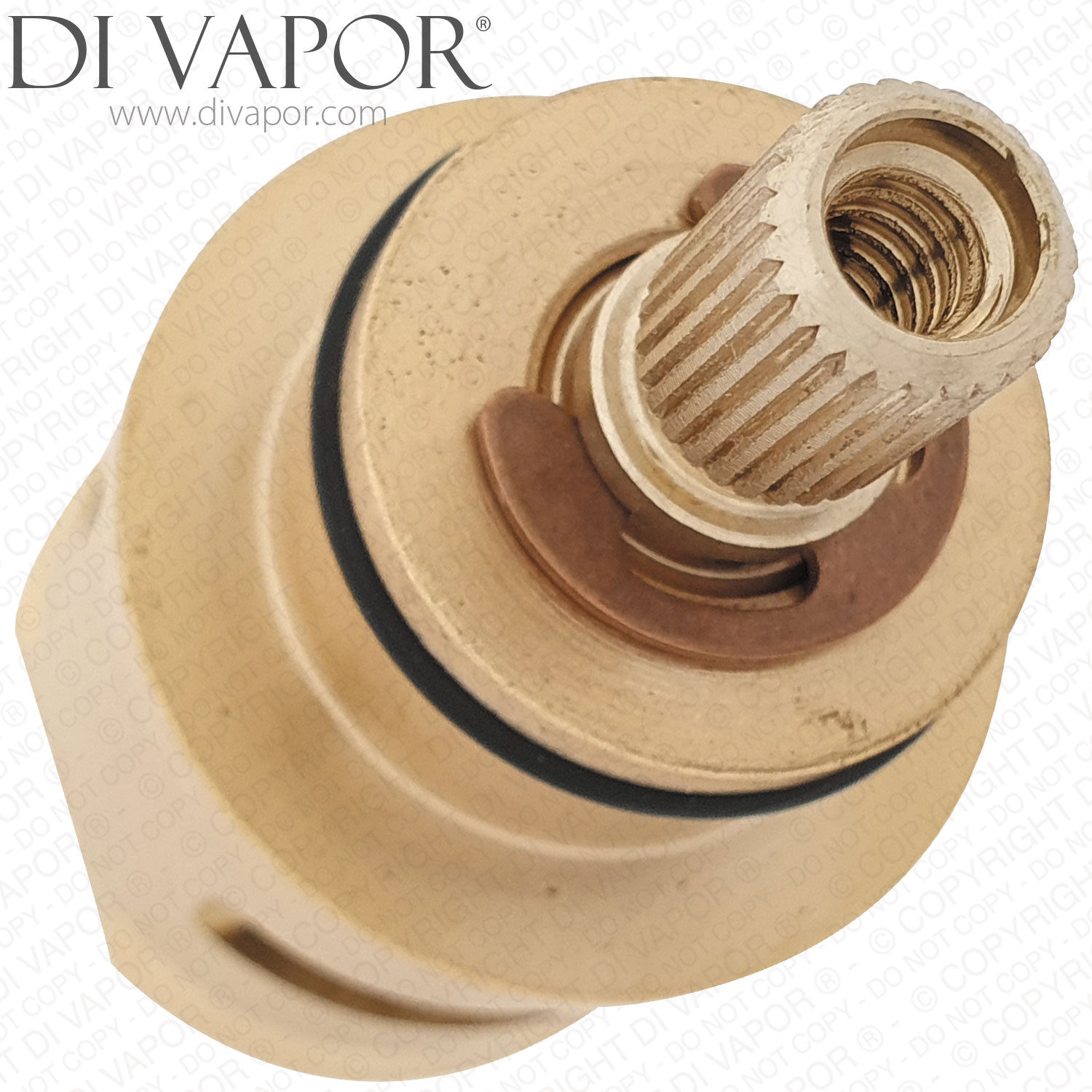

- - Valve connection spline count: 28

- - Finish: brass

- - Overall height: 51mm

- - Upper valve height: 27mm

- - Top stem section height: 13mm

- - Lower body width / body footprint : 27x29mm

- - Splined spindle width: 7.8mm

- - Associated valve cover hex key reference: ASVC2004

Before You Order Check

Check the tap is an Atlas Aquifier post-2009 model and confirm the cold lever wording before ordering. Do not select this part for a pre-2009 Atlas Aquifier tap or for the separate ASDV3 / ASCDDV0003 diverter used on different Abode models.

Installation Notes

Isolate the hot and cold supplies before starting work and drain any residual water from the tap. The cold/filter handle is removed by loosening the underside grub screw with a 2mm A/F allen key. Remove the valve housing carefully, protect the finish from tool marks, clean debris from the chamber and align the locating peg on the new valve with the tap body before reassembly. Use silicone grease on the O-rings and bottom seals when fitting the new diverter valve.

Confirmed Compatible Models

- - Atlas Aquifier post-2009 tap models where the cold lever reads Cold and Filter or cold & Filter

- - Abode AT2004 Atlas Aquifier Water Filter Monobloc in Brushed Nickel Spare Parts

- - Abode AT2099 Atlas Aquifier Water Filter Monobloc in Matt Black Spare Parts

- - Abode AT2098 Atlas Aquifier Water Filter Monobloc in Brushed Brass Spare Parts

Related Spares You May Need

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved

- - Abode Atlas Aquifier Brushed Nickel Aerator

- - Atlas Aquifier AT2003/4VP Valves Pair (Post 2009 Model) - Compatible Spare

- - Abode Atlas Aquifier Cold Kitchen Tap Cartridge Compatible Spare - AD8381

- - Abode Atlas Aquifier Hot Kitchen Tap Cartridge Compatible Spare - AD8382

For uncertain tap identification, compare the removed valve with the spline count, dimensions and cold lever wording before ordering, or use the Di Vapor part identification service.
