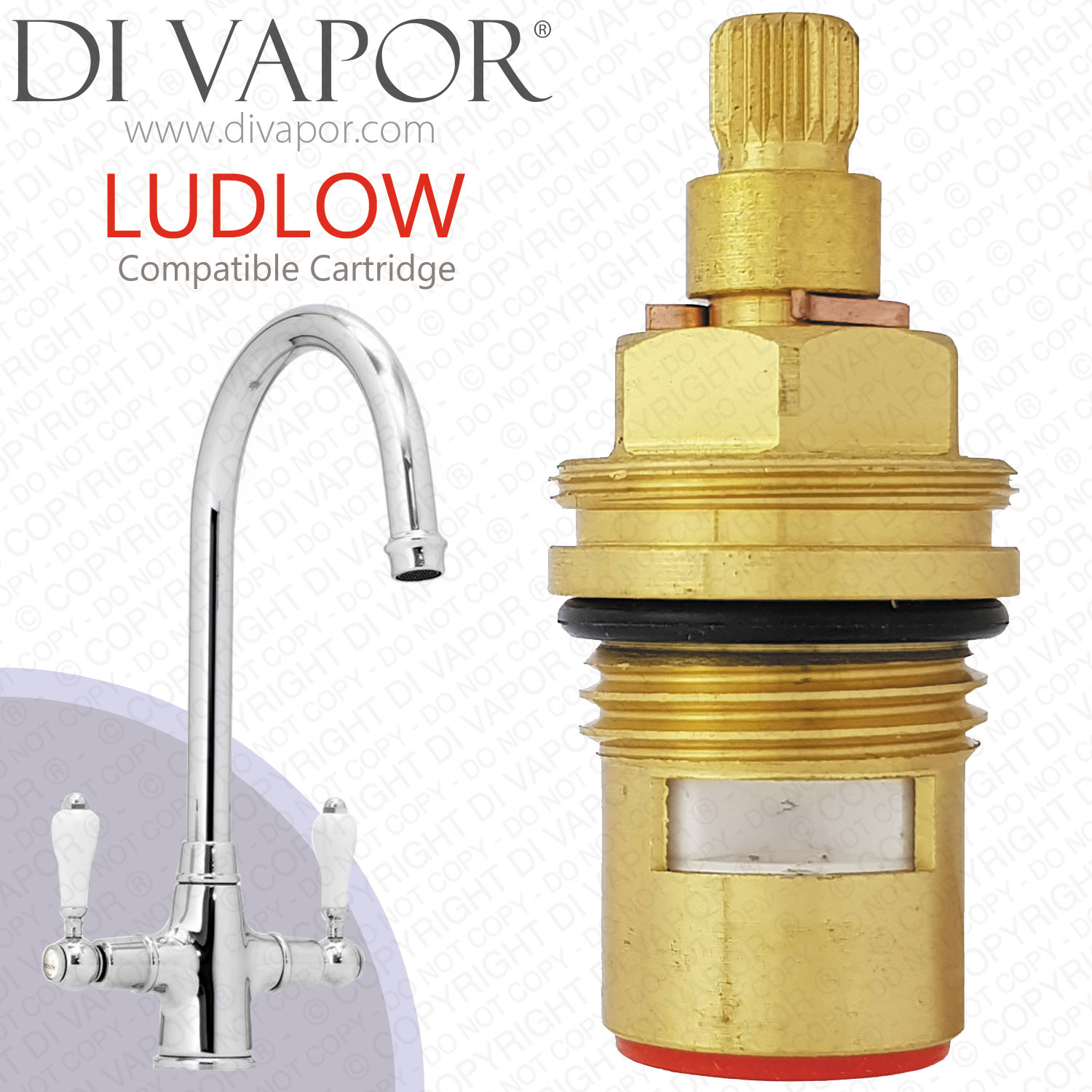

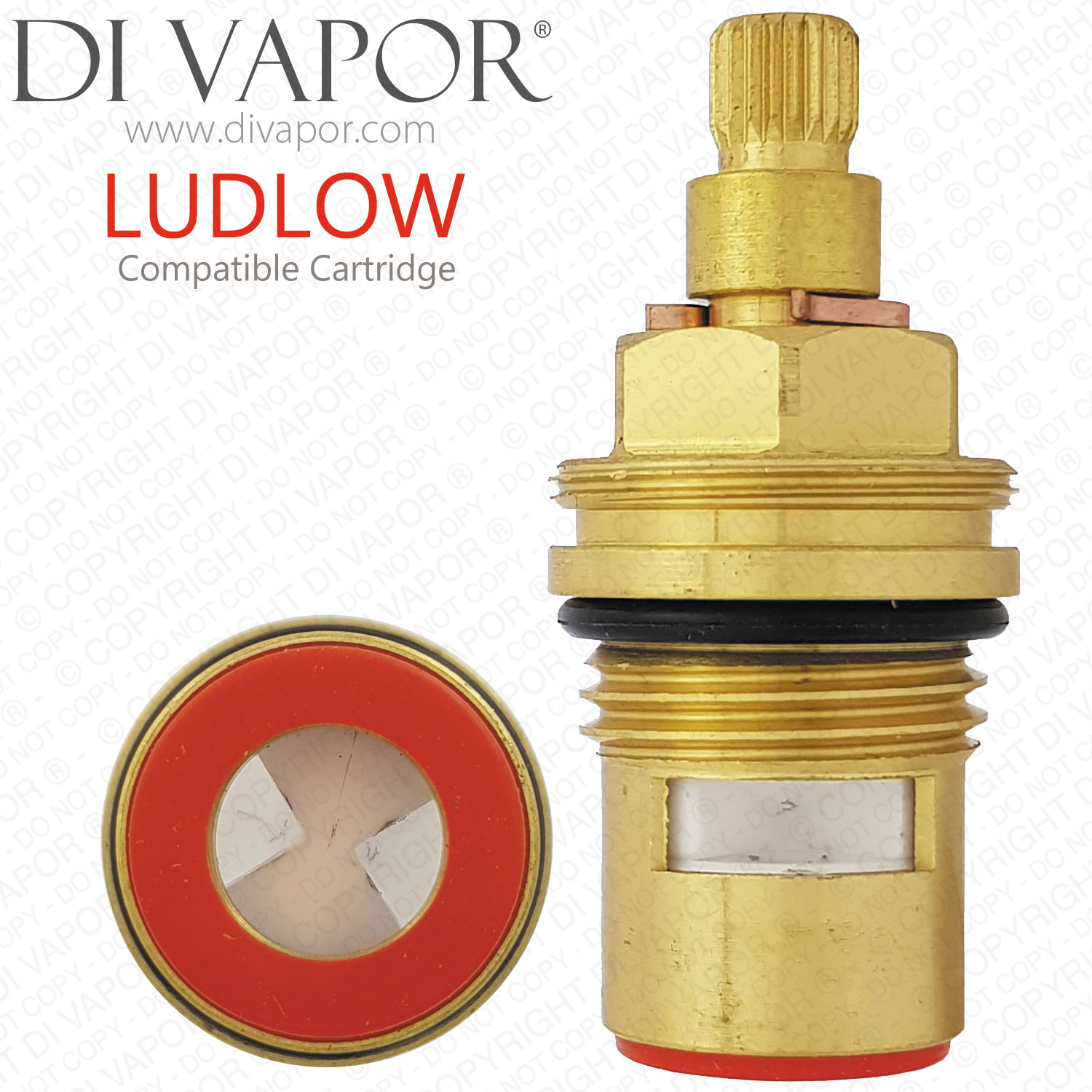

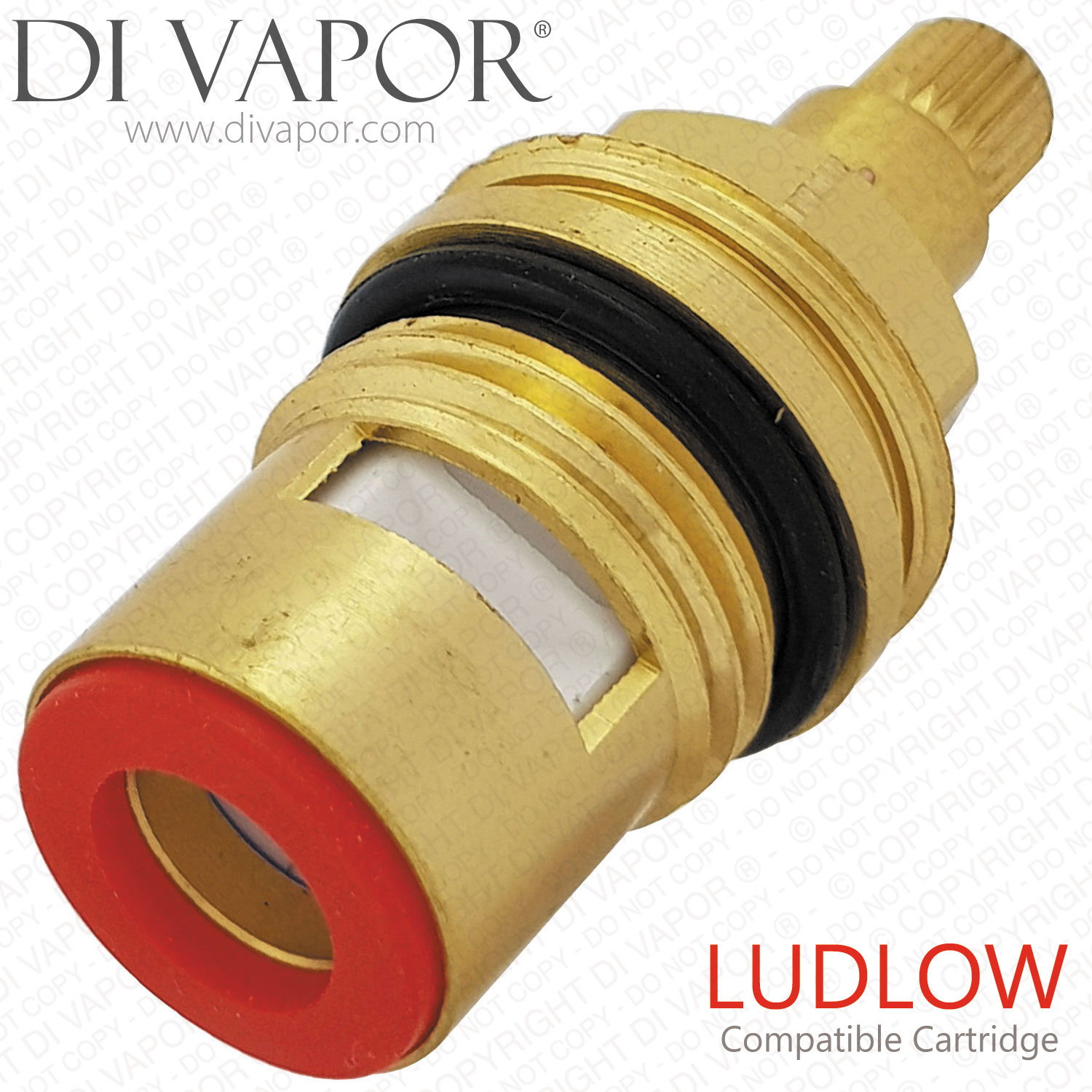

Abode Ludlow Monobloc Hot Kitchen Tap Cartridge Compatible Spare (AT1026)
Send a photo of your item and we'll help confirm it.
Summary
Abode Ludlow Monobloc Hot Kitchen Tap Cartridge Compatible Spare (AT1026). For AT1026, AT1216. ASCDV0001 Fits models AT2005,AT2006, AT2008.
Abode Ludlow Monobloc Tap Cartridge Spare Part Measurements and Other Information
Measurements:
| Total length (from top to bottom of cartridge) | 52mm (5.2cm) |
|---|---|
| Diameter at widest part | 23.8mm (2.38cm) |

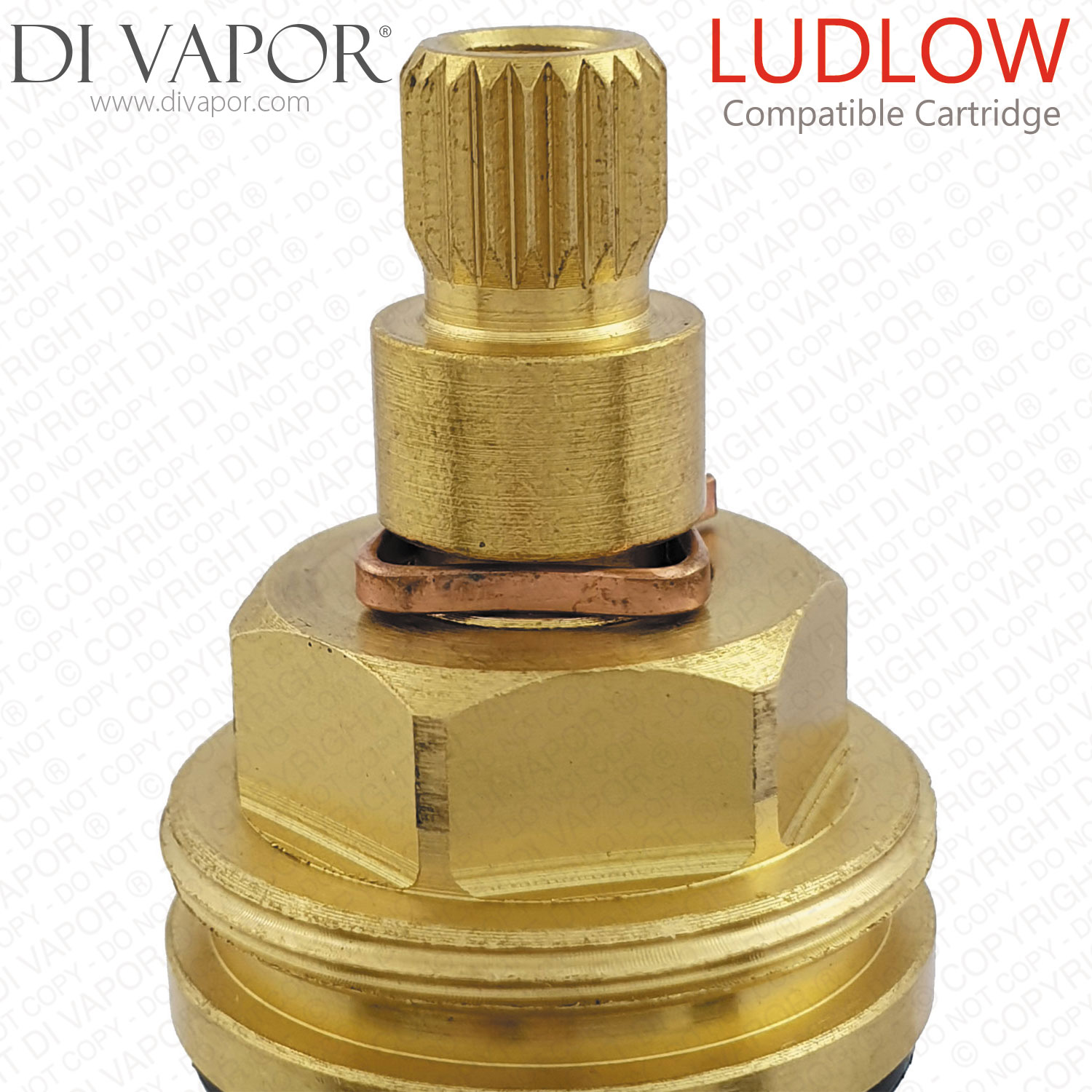

| Diameter of spline | 7.65mm |
| Spline teeth count | 20 |
Other information:
| Bottom seal colour | Red (Hot) |
|---|---|
| Close and open direction | Anti-clockwise close (Clockwise open) |

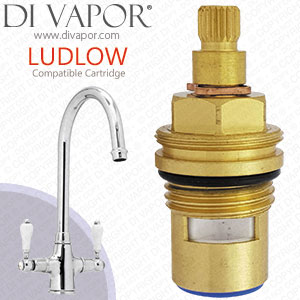

| Cold valve compatible cartridge | AD8299 (Please visit to see the cartridge measurements in diagram form and FAQs.) |
| Original spare part number | ASCDV0001 |
Fitting the Abode Ludlow Monobloc Tap Cartridge
Replacing the cartridge in the Abode Ludlow Monobloc is a fairly straightforward process. Prior to starting the repair please ensure that the tap’s water supplies are turned off.
1. Remove the decorative indice that is stamped with “Abode”. With the indice out, you can now see the retaining screw.
2. Use a screwdriver to undo the retaining screw of the handle.
3. Pull the handle to remove it from the tap valve.
4. The valve cover or shroud can be removed by hand. Turn it anti-clockwise to remove.
5. Use a 17mm spanner to remove the faulty Abode Ludlow Monobloc tap cartridge. The faulty cartridge can be kept as a future reference.
6. Apply silicone lubricant for plumbing on the O-ring of the replacement cartridge for Abode Ludlow. This will make it easier for the cartridge to seat and seal properly in the valve. (Please see the last section of the page for the apt plumber’s grease.)
7. Insert the cartridge in the tap valve seat and restore the valve cover and handle.
8. Restore the tap’s water supply and check if cartridge installation is a success.
We have an extensive, in-stock range of kitchen tap spares for taps from:
Please contact us should you have questions or need help in tap valve spare identification. Our super friendly UK spares experts will be more than happy to respond to you.
