Abode Fluid Monobloc Kitchen Tap Cartridge Compatible Spare Hot Ceramic Valve Insert

SUMMARY

Abode Fluid Monobloc Kitchen Tap Cartridge Compatible Spare Hot Ceramic Valve Insert

This kitchen tap spare part known by code 3308R / ASCDV0009.

Tap Spares 101: Abode Fluid Monobloc Tap Cartridge

The Abode Fluid Monobloc tap valve insert is a versatile compatible part. This spare part can be used in taps from different manufacturers, even unbranded ones. So, how will you figure out if you’re going to purchase the correct part? Please read this short guide to cartridge identification.

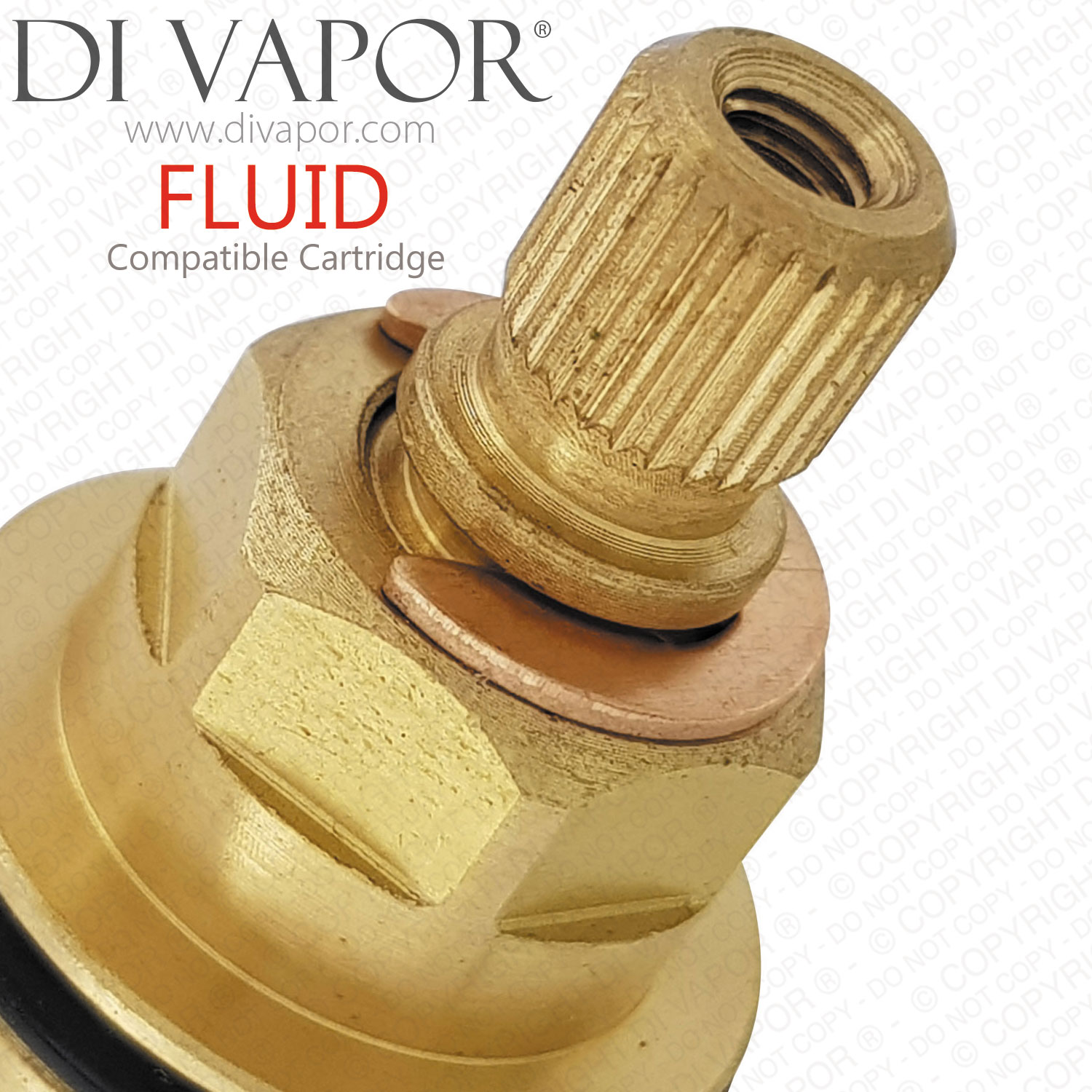

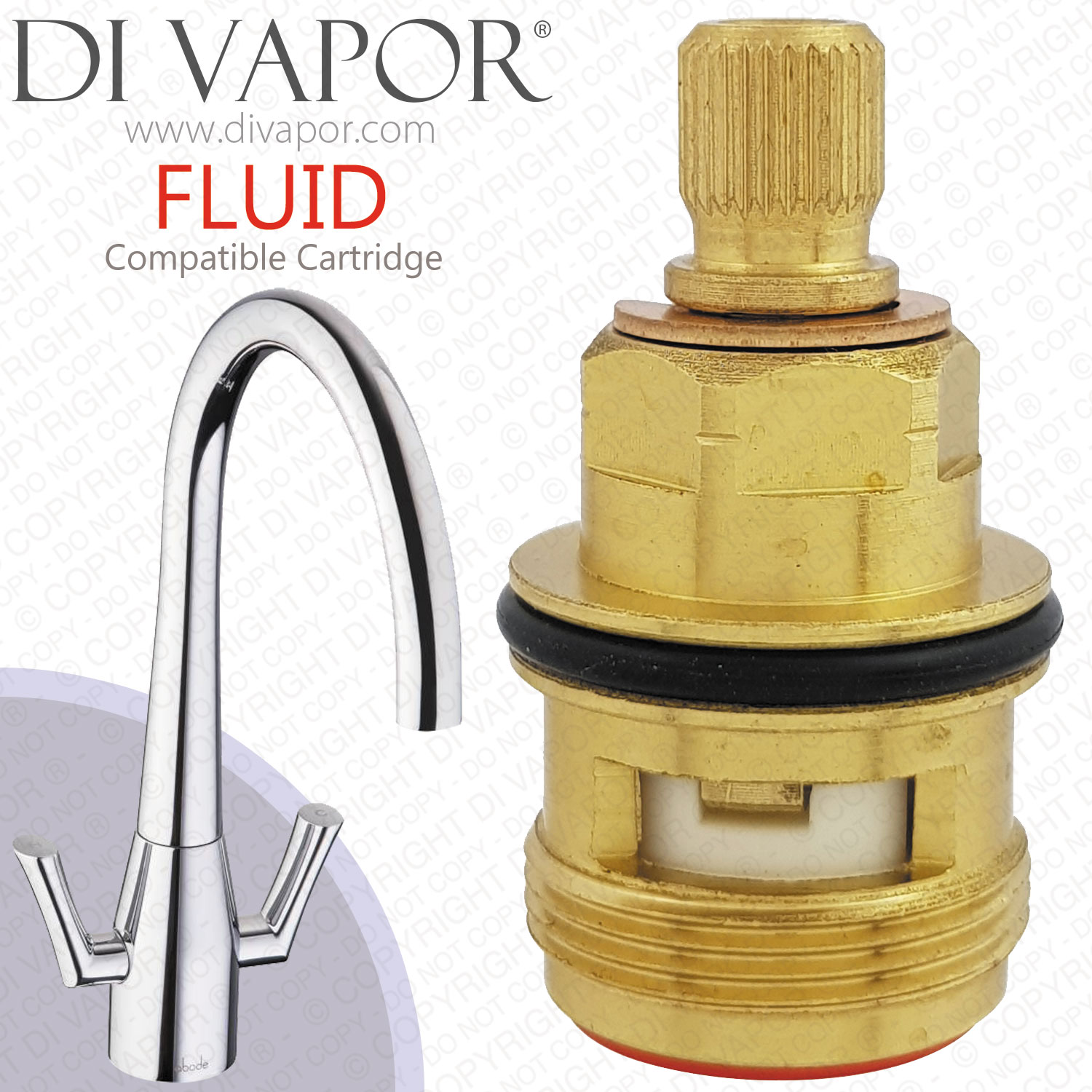

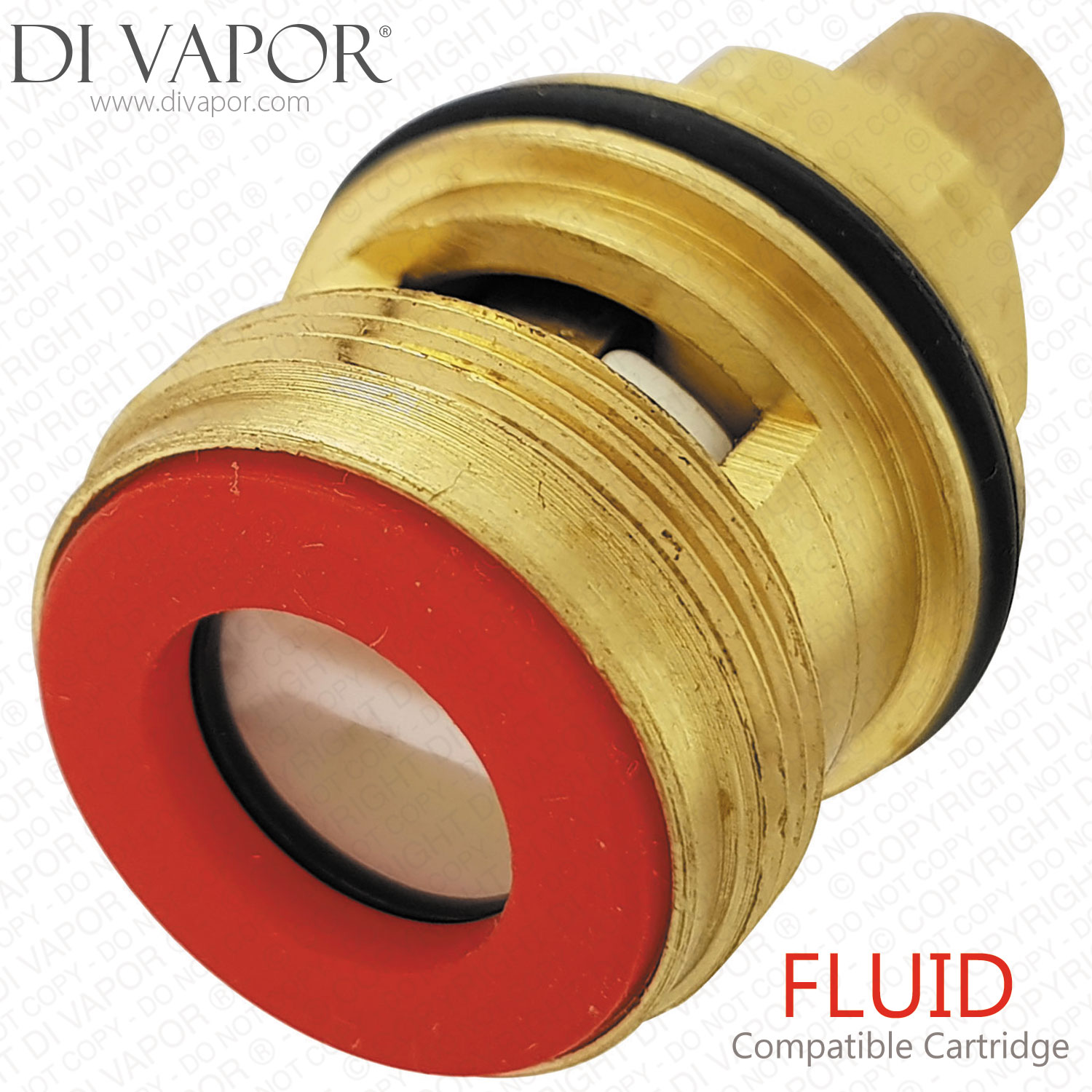

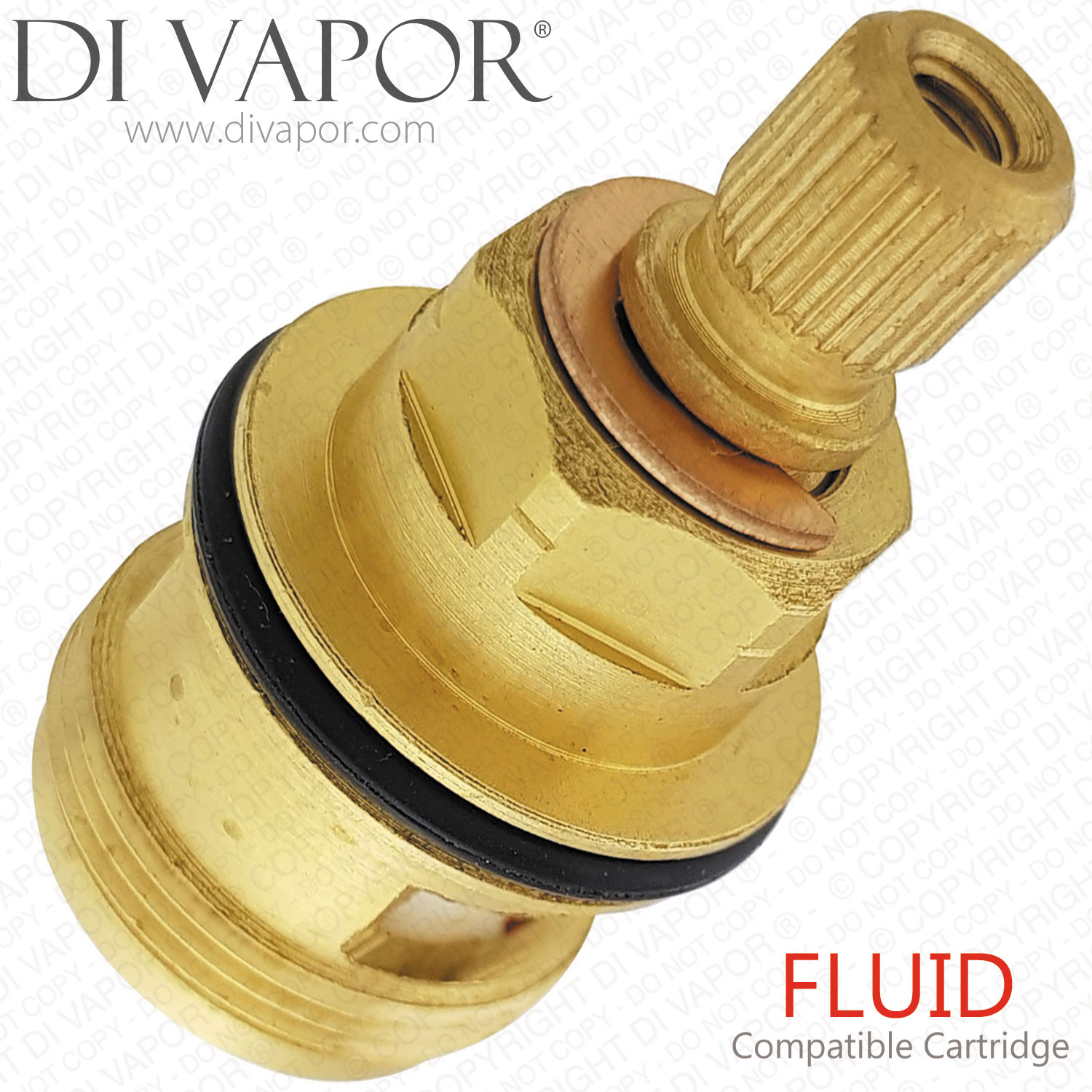

The Abode Fluid Monobloc replacement tap cartridge sits on the hot side of the tap. It is a ceramic disc, quarter turn valve which opens clockwise and closes anti-clockwise. It has a threaded brass barrel. The O-ring and red bottom seal of the replacement kitchen tap cartridge effectively prevents water from leaking out.

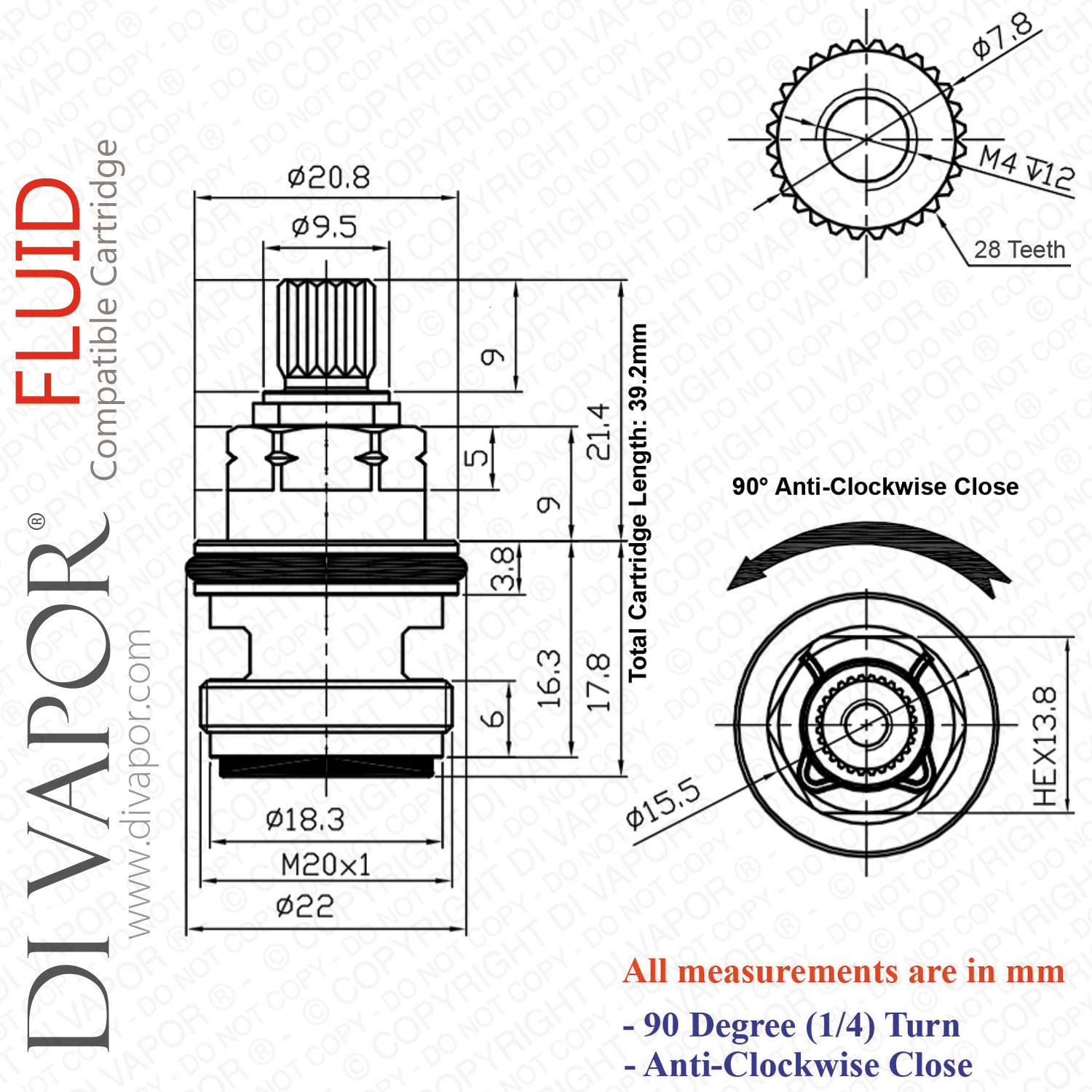

Abode Fluid Monobloc Tap Insert Measurements
Cartridge Length: 39.2mm
Diameter at Widest Part: 22mm
Diameter at Bottom Part: 18.3mm
Diameter at Splines: 7.8mm
Spline Teeth Count: 28

As taps come in different specifications and designs, measurements are important in determining a match for spare parts. Use a ruler to measure the Abode Fluid Monobloc tap cartridge you intend to replace and compare it against the dimensions of this compatible hot valve.

If you prefer, we will gladly assist you in tap spares identification. You can contact us via:
+ Find a Part free service page
+ or WhatsApp (07754 173340).
Di Vapor is your friendly UK spares experts!
We are looking forward to serving your spares needs.


Compatibility Information
Compatible with: Abode
Tap Model: Fluid Monobloc
Other Codes: 3308R and ASCDV0009
Cold Tap Valve: AD8315 (Please visit the page for the spare part basic questions and answers.)

Spare Part Help: Abode Fluid Monobloc Tap Cartridge Hot Insert Installation

Before proceeding to replace the cartridge of the Abode Fluid Monobloc tap, please close the water supply to prevent unnecessary scalding or cold shock. Installing the cartridge can take just a few minutes.

1. A retaining screw is found under the tap handle. Loosen the screw with a 2mm Allen key until the handle can be removed from the tap body.

2. Once the handle is removed, you can now see the top of the Abode Fluid Monobloc tap cartridge. Use a 12mm spanner against the nut of the tap cartridge and turn it anti-clockwise. This will remove the cartridge from the tap seat.

3. Load the Abode Fluid Monobloc replacement cartridge in the tap seat. Screw it in with your hand and tighten with the spanner. Please remember to not overdo the tightening.

4. Reinstall the tap handle and redo the retaining screw.
