1/2" Ceramic Disc Cartridge - 50mm - 20 Spline - Cold Side - BV3932
Send a photo of your item and we'll help confirm it.
Summary

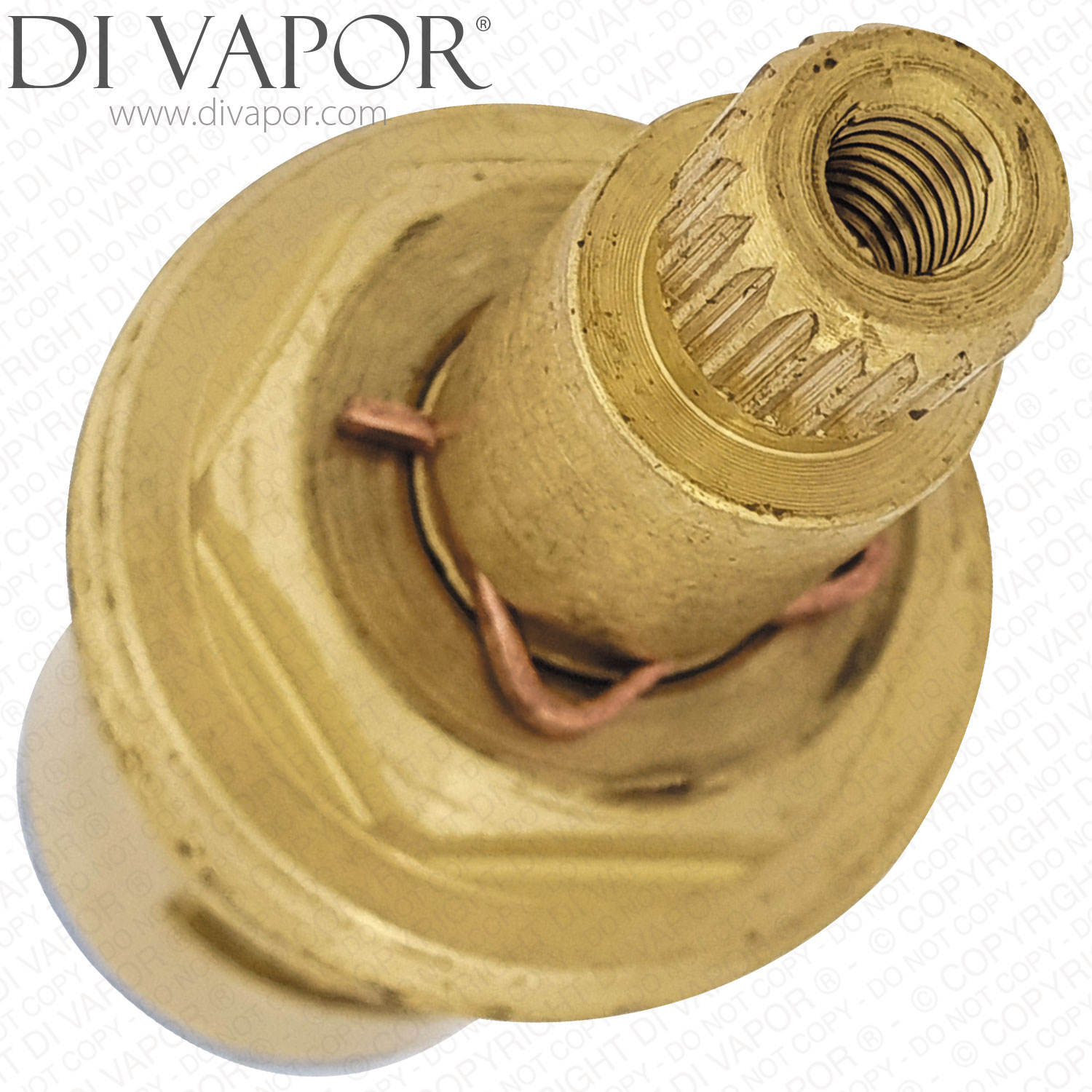

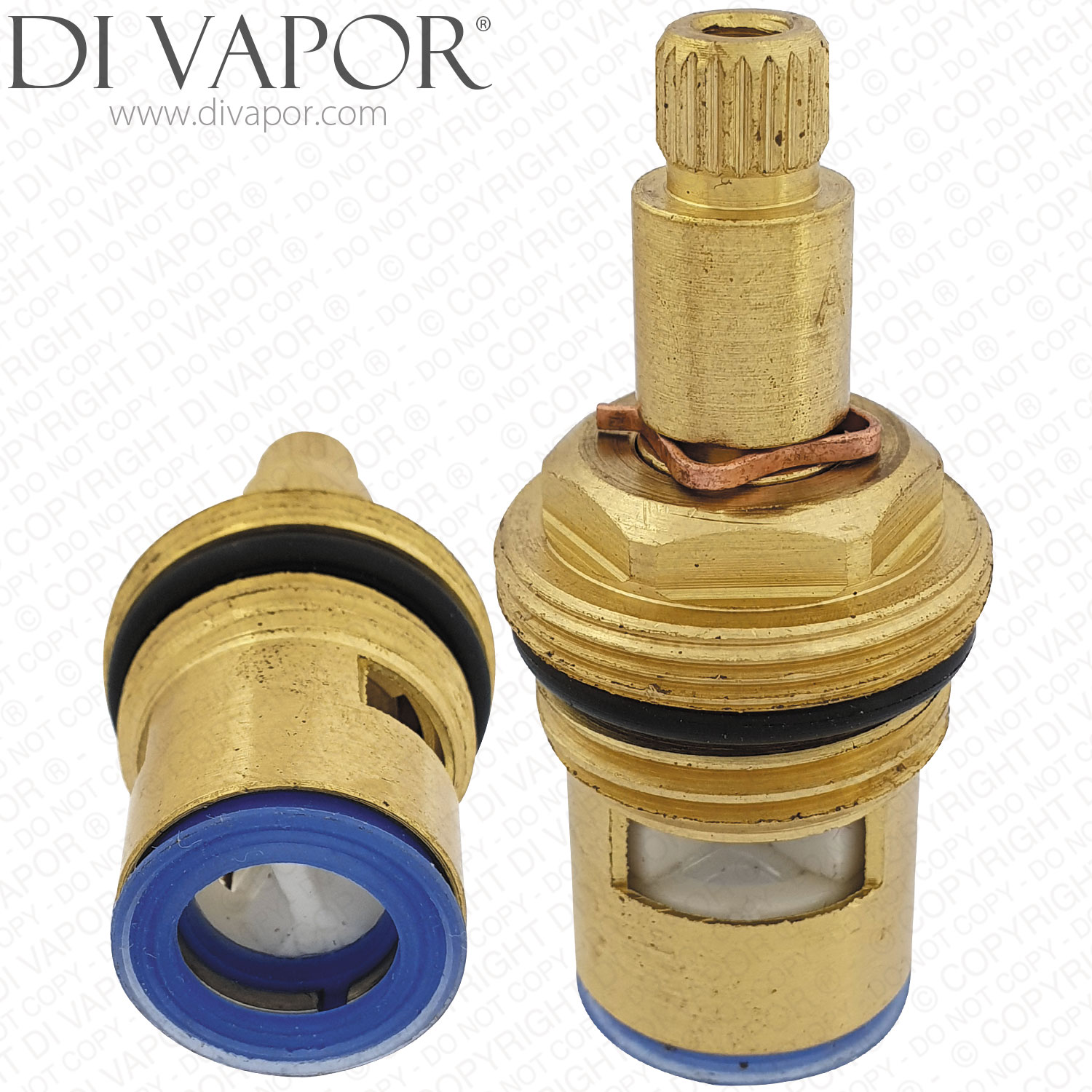

1/2 Inch Ceramic Disc Cartridge - 50mm - 20 Spline - Cold Side - BV3932. The design of the cartridge has changes whereby the nut is not higher up the cartridge, different to the photo.
This replacement brass ceramic disc cartridge is for 1/2 inch tap valves. Please take note of the measurements given and compare it with the faulty cartridge you have.
Cartridge Technical Information
| Length | 50mm |
|---|---|
| Diameter at bottom | 17.8mm |
| Diameter at top flange thread | 23.5mm |
| Spline teeth/notches | 20 |
| Cartridge material | Brass and ceramic |
| Bottom seal colour | Blue (Cold) |
| Hot side cartridge | BV3933 |
If you have questions about this ceramic disc tap valve or need assistance in identifying the spare parts you need for tap repair:
+ Please pop us a message via our Find a Part free service.
+ You can also chat us up on WhatsApp (contact number: 07754 173340).
Di Vapor's friendly spares experts are looking forward to attending to your queries.
We will be glad to help with your spares needs!
