Grohe Minta Single-Lever Sink Mixer (1/2 Inch) - 2001 to 2007 - Spare Parts 32917000 GEN1
Send a photo of your item and we'll help confirm it.
Summary

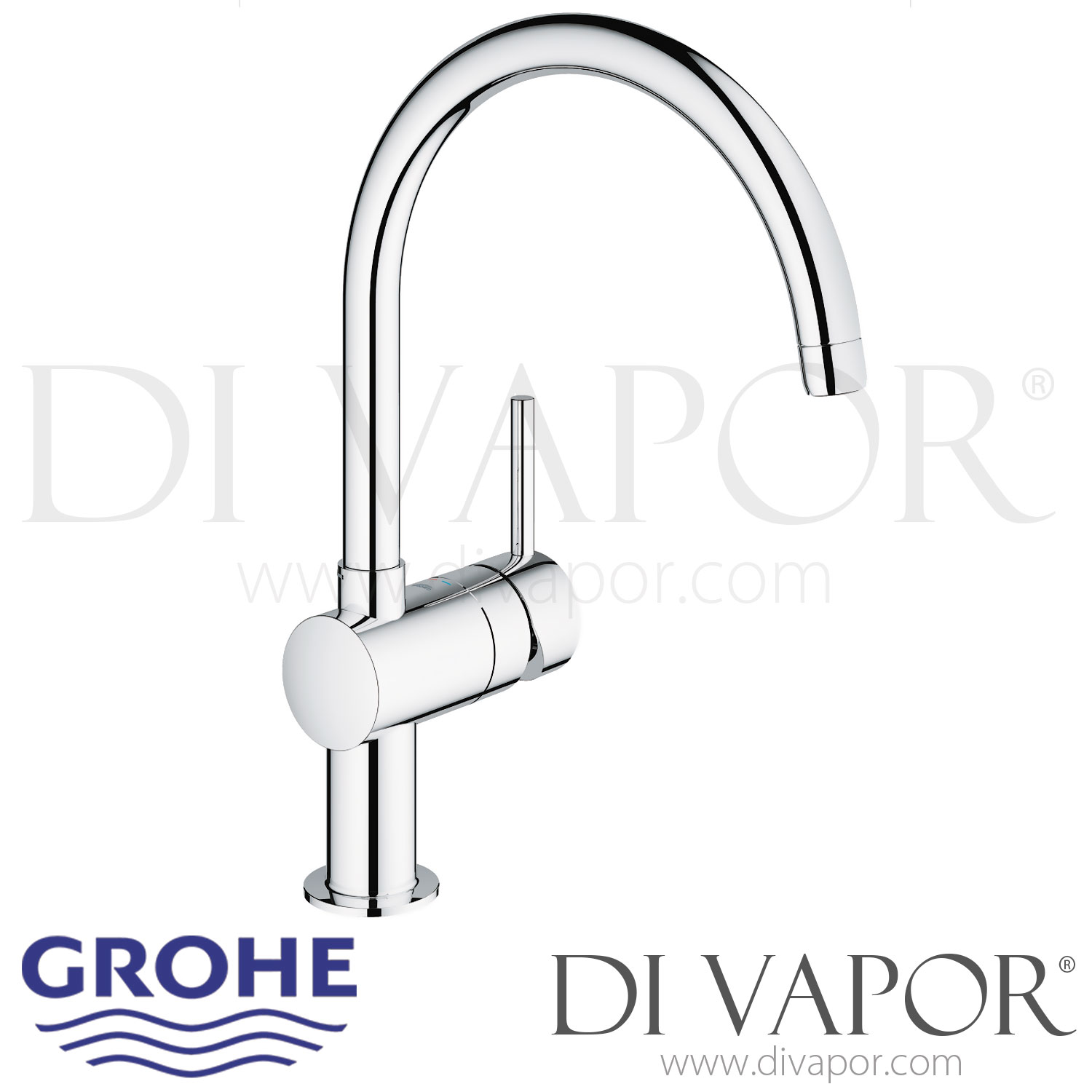

Spare parts for the Grohe Minta 32917000 GEN1 single-lever sink mixer 1/2 inch covering the 2001-2007 Di Vapor generation. This chrome kitchen tap uses a single lever to control water flow and temperature and is fitted with a swivel C-spout.

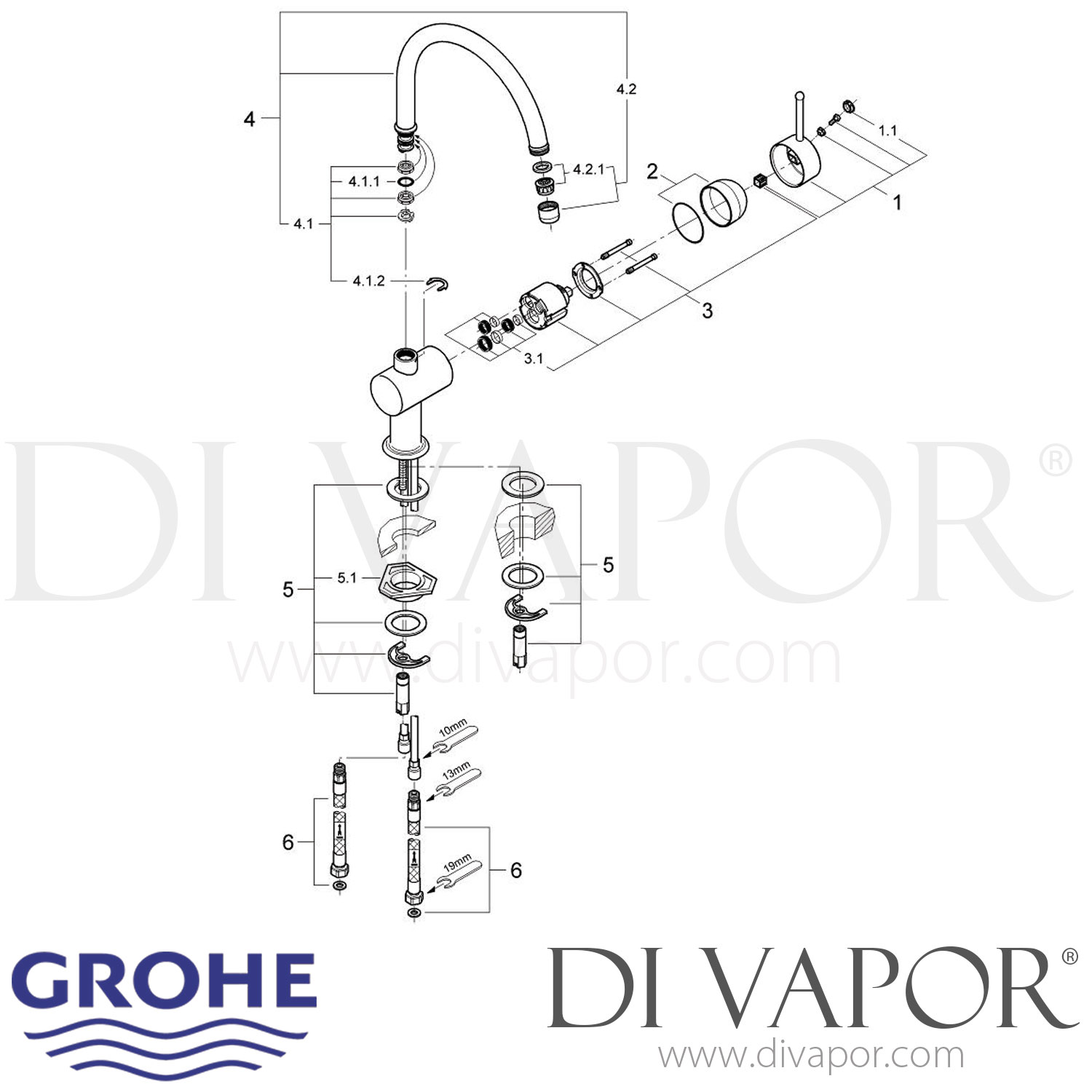

The main service components include the 46mm ceramic cartridge, outlet mousseur and shank mounting kit. These Grohe tap spares are useful when servicing the operating mechanism, outlet or fixing assembly without replacing the complete mixer.
Technical Details
| Brand | Grohe |
|---|---|
| Range | Minta |
| Category | Kitchen tap |
| Product code | 32917000 |
| Di Vapor generation | GEN1 |
| Generation period | 2001-2007 |
| Type | Single-lever sink mixer 1/2 inch |
| Finish | Chrome |
| Spout | Swivel C-spout |
| Cartridge type | 46mm ceramic cartridge |
| Spout swivel settings | 0 degrees / 150 degrees / 360 degrees |
| Connection size | G3/8 |

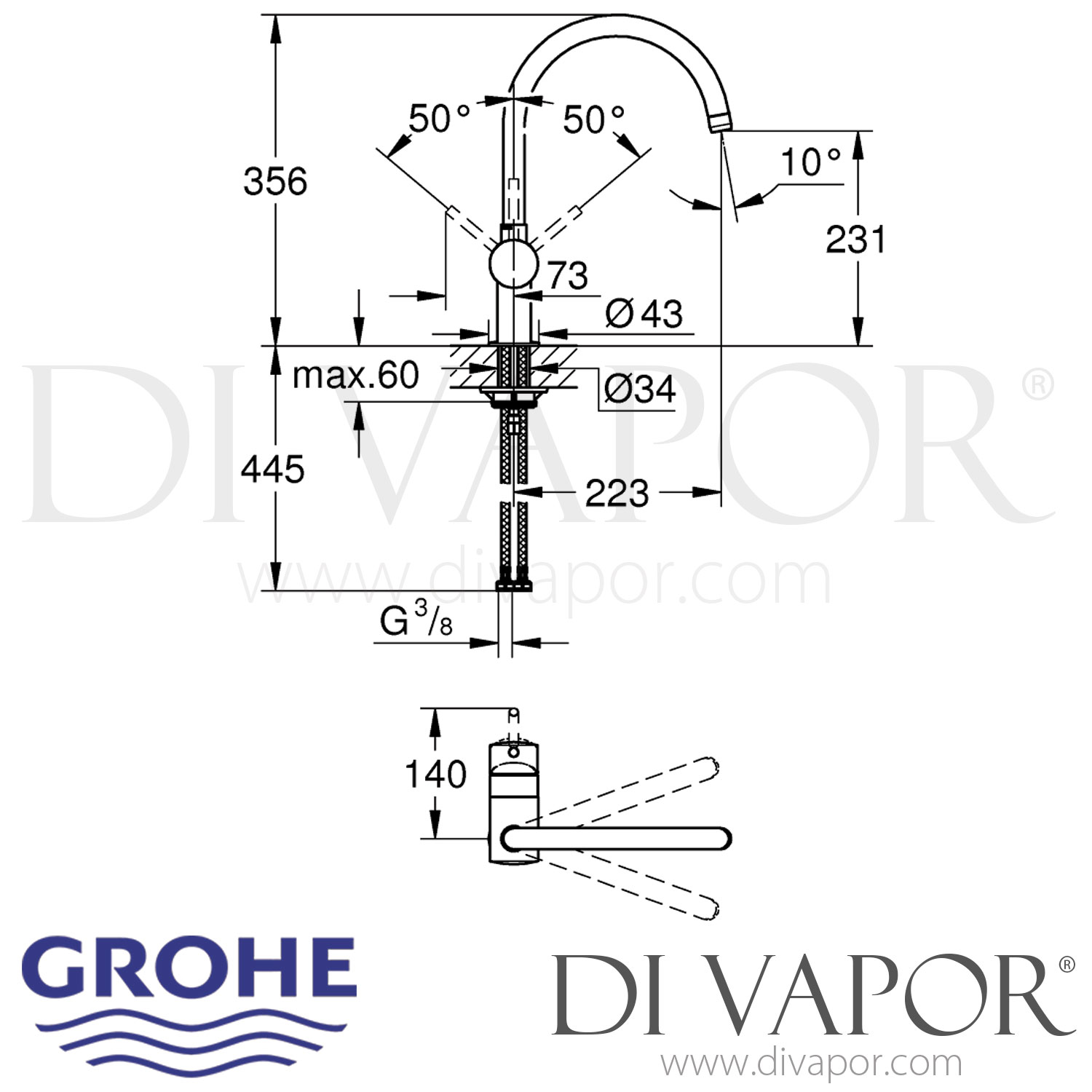

| Approximate overall height | 356mm |
| Spout projection | 223mm |
| Outlet height | 231mm |
| Maximum mounting surface thickness | 60mm |
| EAN | 4005176230950 |
