Grohe 32917000 Minta Single-Lever Sink Mixer (1/2 Inch) Spare Parts
Send a photo of your item and we'll help confirm it.
Summary
Tap Spares for Grohe 32917000 Minta Single-Lever Sink Mixer 1/2 Inch
Year: 2007 - Present (June 2021)

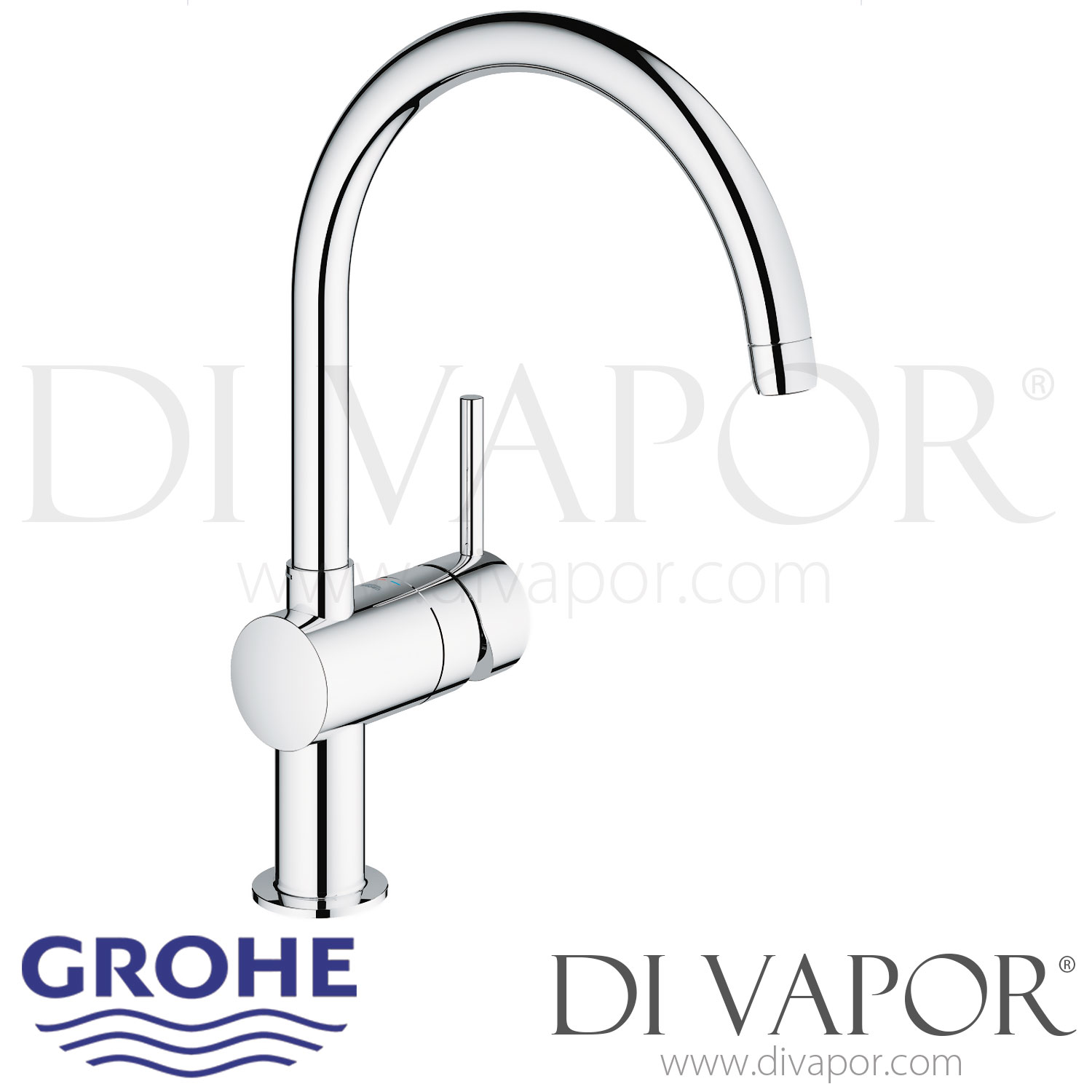

Grohe 32917000 is a Minta single-lever sink mixer with a high C-shaped swivel spout for kitchen sink installations. This spare-parts page covers the 32917000 version used from 2007 onwards and provides the principal service components for maintaining the mixer.

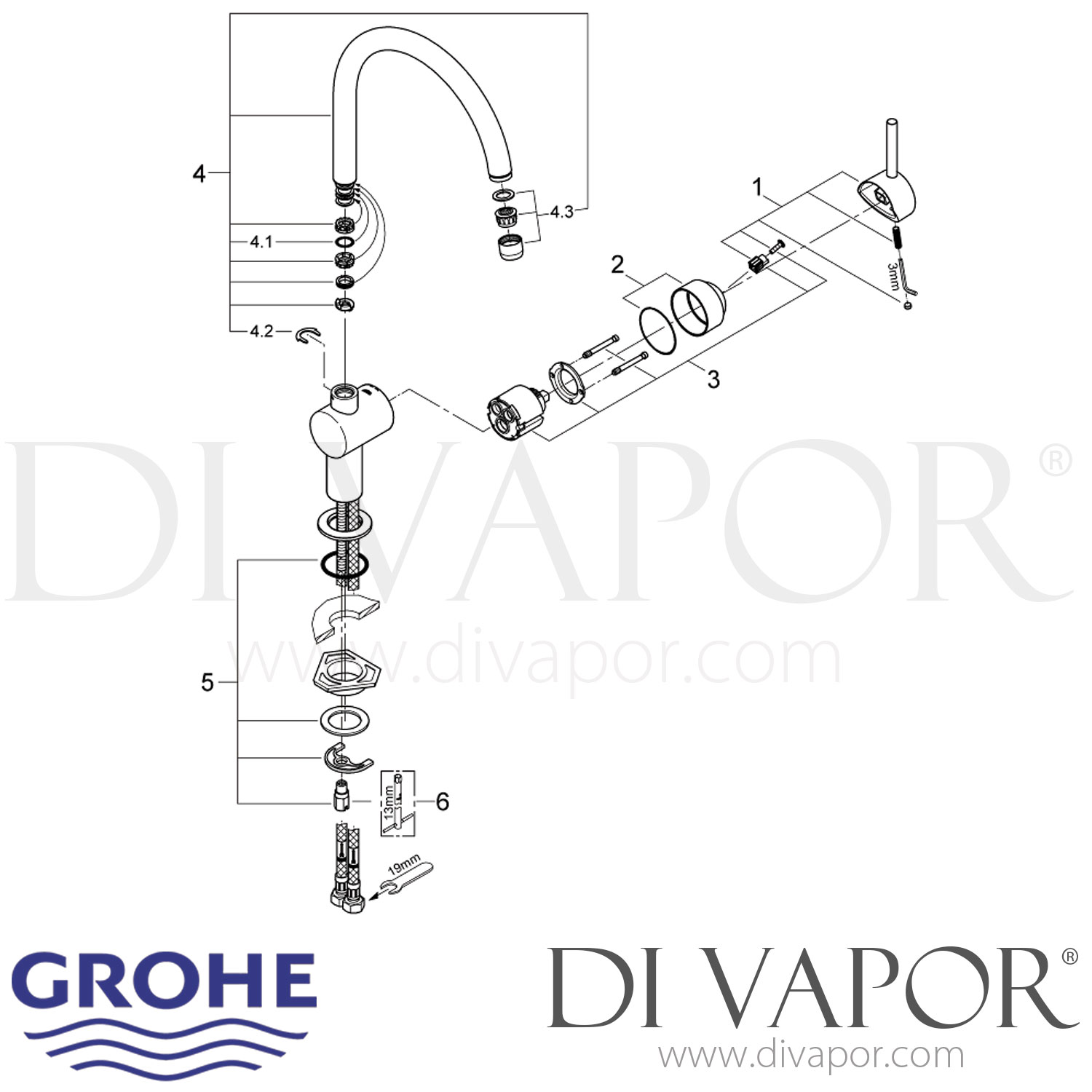

The mixer uses a 46mm ceramic cartridge to control water flow and temperature. Other serviceable parts include the outlet mousseur and the mounting bracket that secures the mixer to the worktop or sink. These Grohe spare parts allow individual worn components to be serviced without replacing the complete tap.
Technical Details
| Brand | Grohe |
|---|---|
| Range | Minta |
| Category | Kitchen tap |
| Product code | 32917000 |
| Type | Single-lever sink mixer 1/2 Inch |
| Period | 2007 onwards |
| Finish | Chrome |
| Spout | High C-shaped tubular swivel spout |
| Spout swivel settings | 0 degrees / 150 degrees / 360 degrees |
| Cartridge | 46mm ceramic cartridge |
| Maximum flow rate | 11.5 litres/min at 3 bar |
| Supply connections | G3/8 |

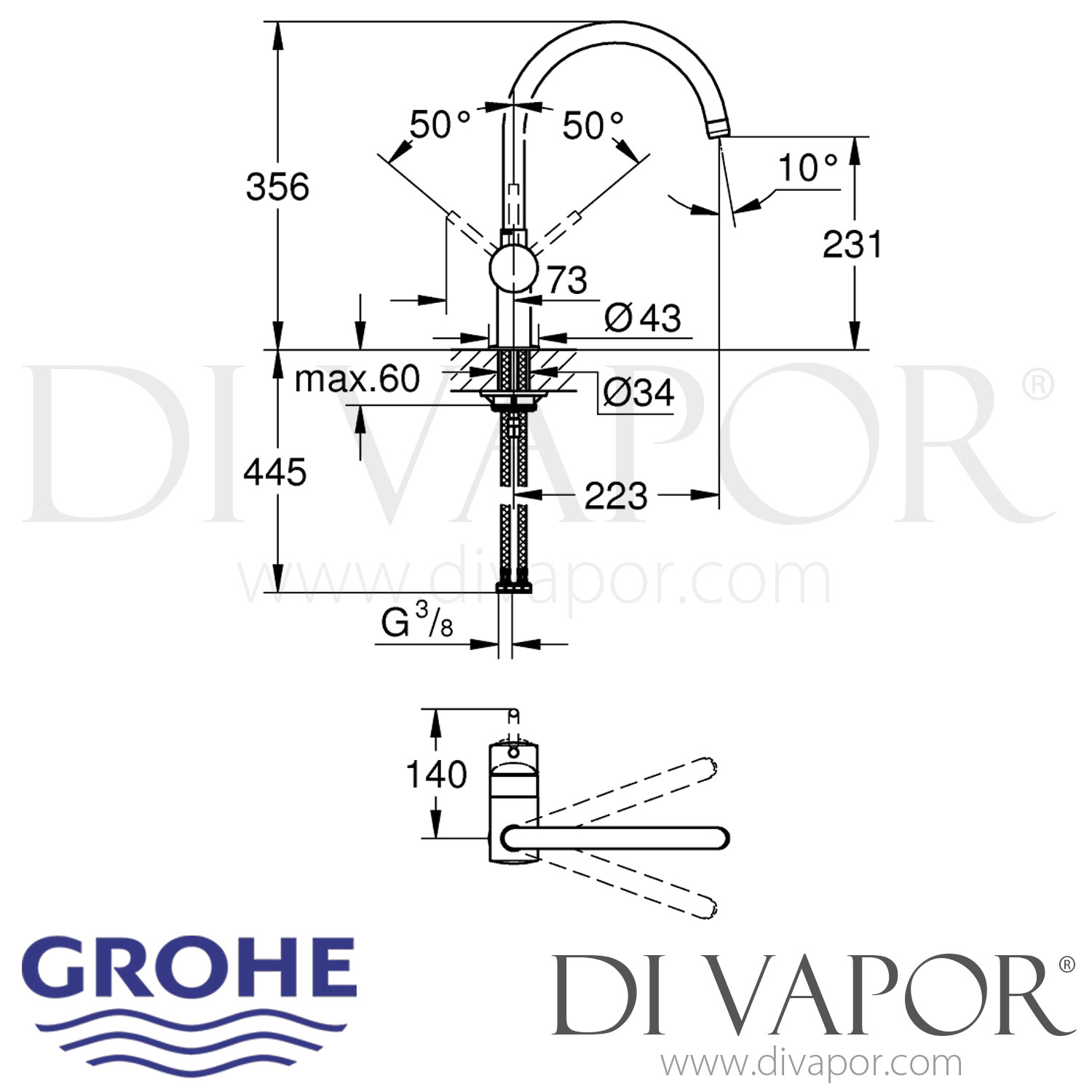

| Overall height | approximately 356mm |
| Spout outlet height | approximately 231mm |
| Spout reach | approximately 223mm |
| Maximum mounting surface thickness | 60mm |
| Mounting hole | approximately 34mm diameter |
| EAN | 4005176230950 |
Before You Order Check
Check the product code and installation period of your Minta mixer before ordering parts. Earlier 32917000 mixers from 2001 to 2007 have a separate spare-parts generation page, so identifying the approximate installation date helps ensure the correct breakdown is used.
