Grohe Eurosmart Cosmopolitan Single-Lever Sink Mixer - 2011 to 2013 - Tap Spare Parts 30193000 GEN1

SUMMARY

Tap Spares for Grohe Eurosmart Cosmopolitan Single-Lever Sink Mixer

Code: 30193000

Year: 2011 - 2013

Spare parts for the Grohe 30193000 GEN1 Eurosmart Cosmopolitan single-lever kitchen sink mixer tap manufactured from August 2011 to July 2013. This chrome deck-mounted mixer uses a single control lever to regulate the hot and cold water flow and temperature.

The mixer is fitted with a 35mm Grohe SilkMove ceramic cartridge and a medium-height tubular swivel spout. Worn internal parts can cause stiff lever movement, poor temperature control, reduced flow, an uneven outlet stream or water continuing to drip from the spout after the tap is closed.

Technical Details

- - Brand: Grohe

- - Range: Eurosmart Cosmopolitan

- - Category: Kitchen tap

- - Product code: 30193000

- - Generation: GEN1

- - Production period: August 2011 to July 2013

- - Product type: Single-lever sink mixer 1/2 inch

- - Installation type: Single-hole deck-mounted mixer

- - Finish: Chrome

- - Cartridge: 35mm Grohe SilkMove ceramic cartridge

- - Spout type: Medium-height swivel tubular spout

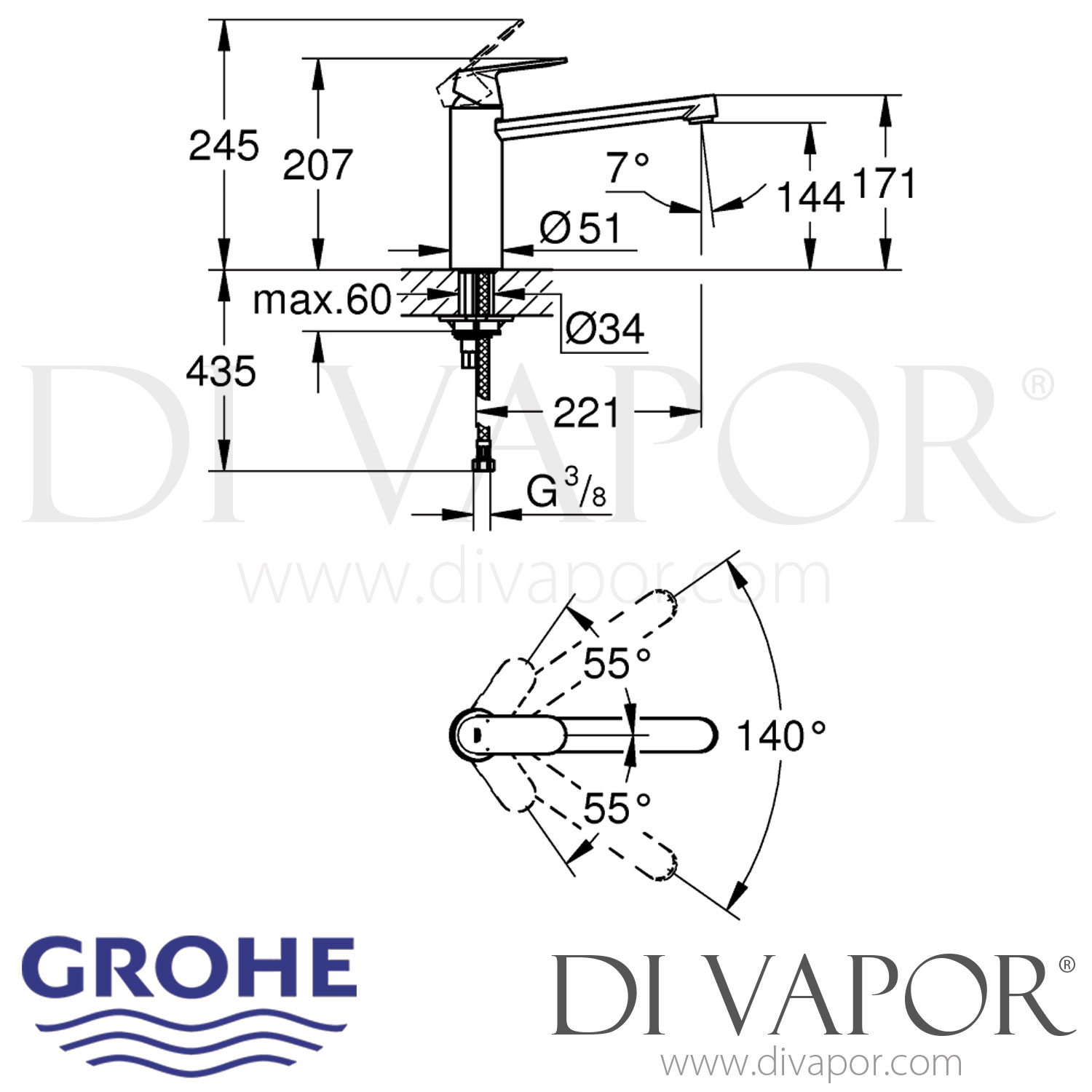

- - Spout swivel range: 140 degrees

- - Overall tap height: 245mm

- - Outlet height: 144mm

- - Spout projection: 221mm

- - Tap body diameter: 51mm

- - Mounting bore reference: 34mm

- - Maximum mounting-surface thickness: 60mm

- - Flexible hose connection size: G 3/8

- - Maximum flow rate: 12 litres per minute at 3 bar

This GEN1 configuration uses Grohe ring 46759000. The later spare-parts configuration lists screw ring 46815000 from July 2013. These codes should not be treated as interchangeable without confirming the production generation of the installed tap.

Before You Order Check

Check that the mixer code is 30193000 and that the installed tap is the GEN1 version produced from August 2011 to July 2013. Compare the required spare code and the existing component before ordering because later 30193000 mixers use a different retaining-ring arrangement.
