Grohe Eurosmart Cosmopolitan Single-Lever Sink Mixer (1/​2 Inch) Spare Parts 31481001 GEN1

SUMMARY

Spare parts for the Grohe 31481001 GEN1 Eurosmart Cosmopolitan single-lever sink mixer 1/2 inch, covering the 2017-2020 configuration. This kitchen mixer uses a high tubular swivel spout, pull-out dual spray and a 35 mm ceramic lever cartridge.

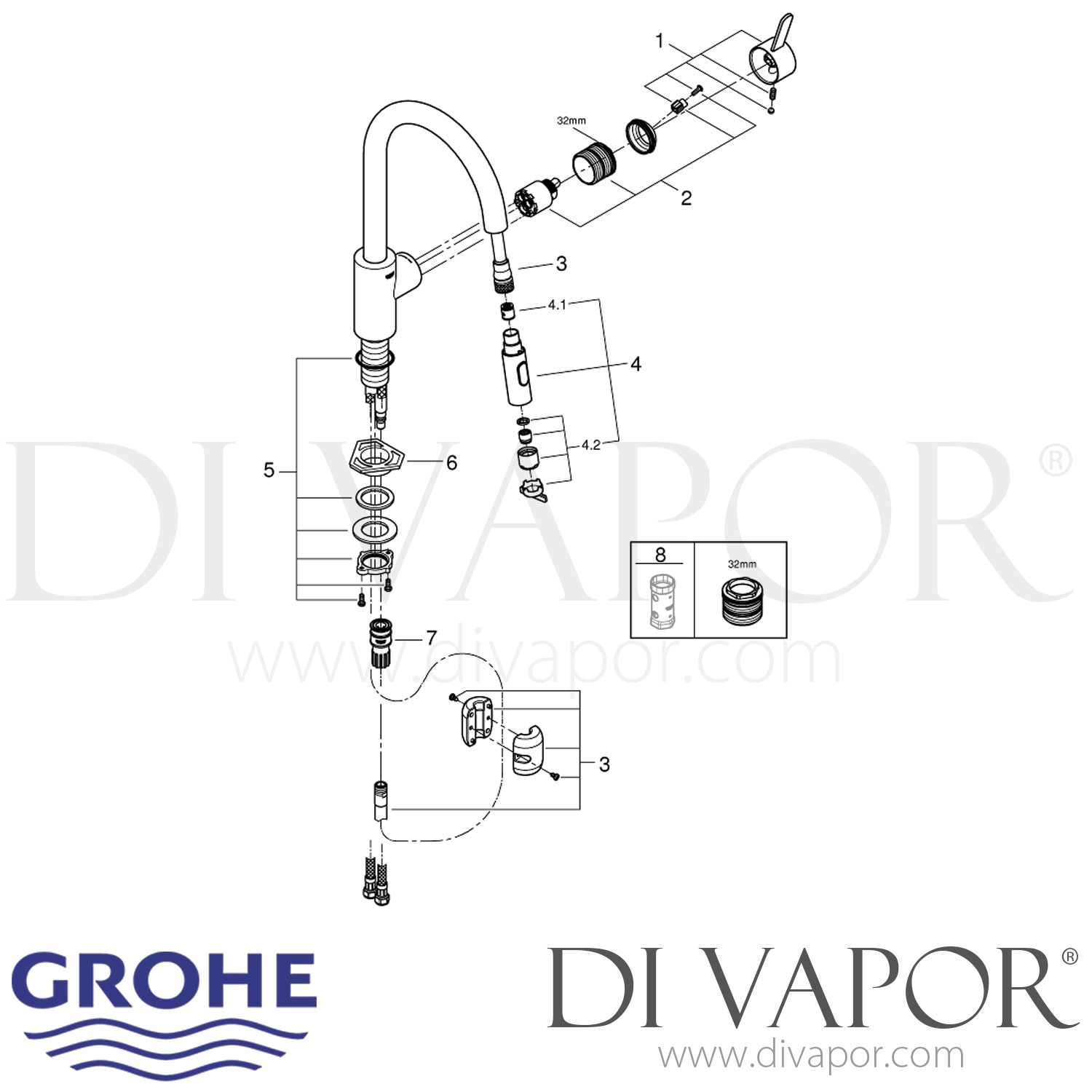

The GEN1 spare arrangement includes the operating cartridge, pull-out hose and non-return valve, together with the mounting assembly used to secure the mixer. Check the tap model code and production period before ordering because spare-part arrangements can differ between production periods.

Technical Details

- - Brand: GROHE

- - Range: Eurosmart Cosmopolitan

- - Category: Kitchen tap

- - Model code: 31481001

- - Generation: GEN1

- - Production period: 2017-2020

- - Installation: Single-hole sink mixer

- - Cartridge: 35 mm GROHE SilkMove ceramic cartridge

- - Spout: High tubular spout with 360 degree swivel

- - Outlet: Pull-out dual spray with laminar spray and SpeedClean shower jet

- - Overall mixer height: 381 mm

- - Spout outlet height: 188 mm

- - Spout projection: 223 mm

- - Mixer base diameter: 51 mm

- - Required mounting hole: 34 mm

- - Maximum worktop or deck thickness: 60 mm

- - Water connections: G3/8 flexible connection hoses

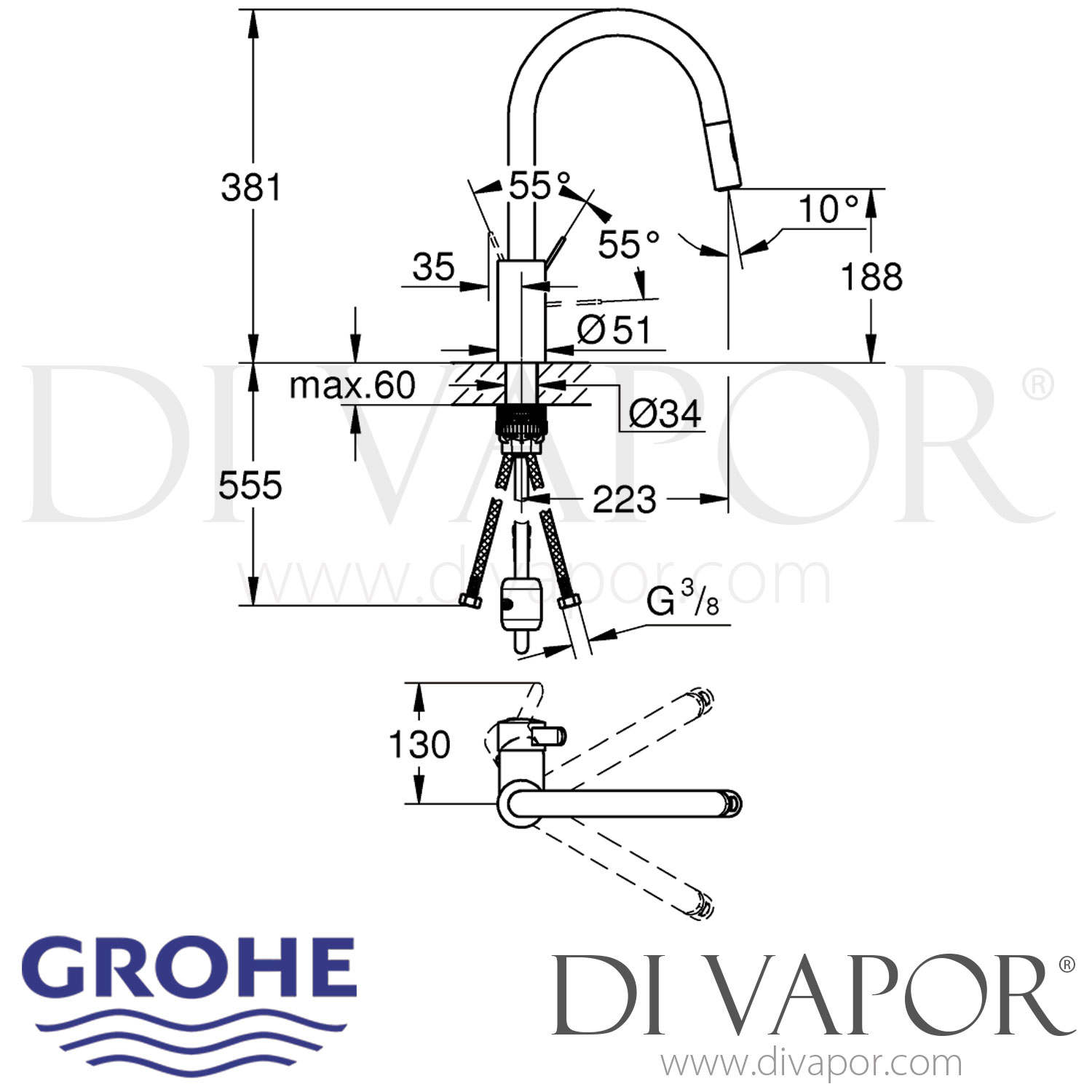

- - Pull-out extension shown on the technical drawing: 350 mm

Other Versions

- - Grohe 31481001 Eurosmart Cosmopolitan Single-Lever Sink Mixer from 2020 - Present (June 23, 2021)

Before You Order Check

Confirm that the mixer is Grohe model 31481001 and matches the 2017-2020 GEN1 configuration. Checking the model code and production period is important where different spare-part arrangements have been used during the life of the same mixer model.
