Grohe Eurosmart Cosmopolitan Single-Lever Sink Mixer (1/2 Inch) - 2010 to 2017 - Spare Parts 31170000 GEN1
Send a photo of your item and we'll help confirm it.
Summary

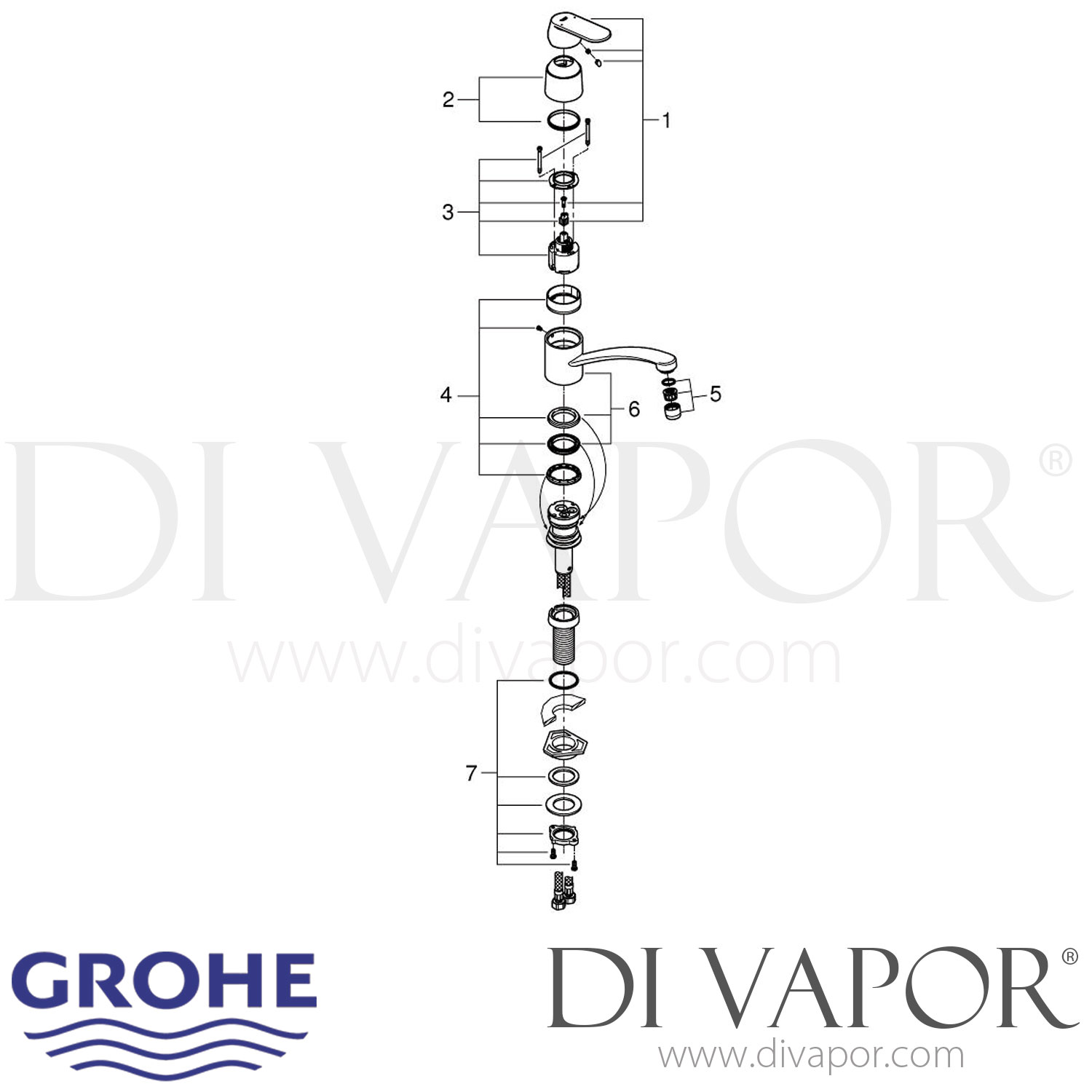

Spares for Grohe Eurosmart Cosmopolitan Single-Lever Sink Mixer 1/2 Inch
| Code | 31170000 |
|---|---|
| Year | 2010 - 2017 |

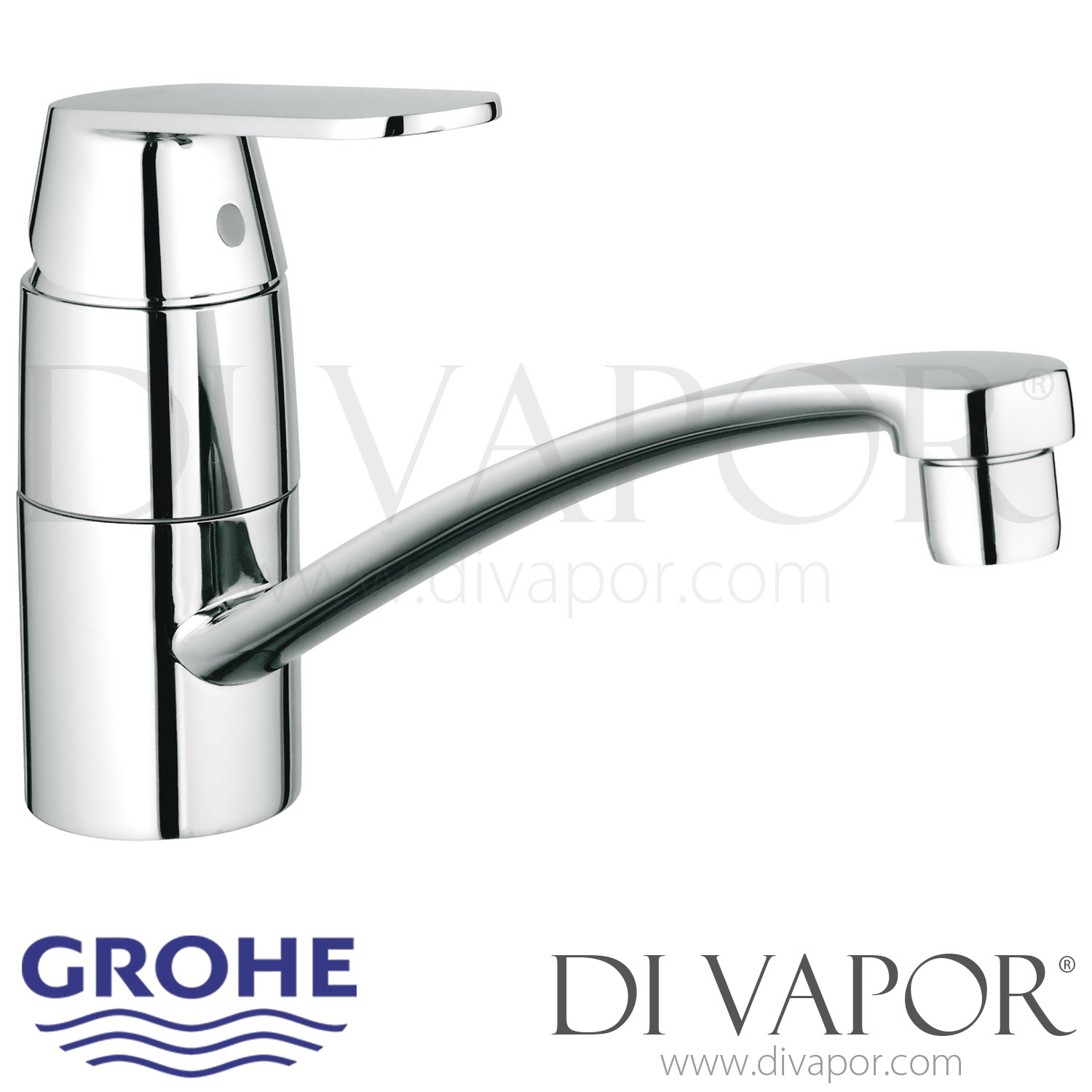

The GROHE 31170000 Eurosmart Cosmopolitan is a single-lever kitchen sink mixer with a low swivel spout and a lift-out pre-window mounting arrangement. This spare-parts page covers the GEN1 configuration manufactured from April 2010 to December 2017.
The mixer uses a 46mm ceramic cartridge to control the water flow and temperature. A worn cartridge can cause stiff lever movement, poor temperature control or water dripping from the spout when the tap is turned off. The outlet is fitted with an M22 x 1 mousseur to aerate the water and produce a smoother stream with less splashing.
Technical Details
| Brand | GROHE |
|---|---|
| Range | Eurosmart Cosmopolitan |
| Category | Kitchen tap |
| Product code | 31170000 |
| Generation | GEN1 |
| Manufacturing period | April 2010 to December 2017 |
| Operation | Single lever |
| Installation type | Single-hole deck mounting |
| Application | Pre-window kitchen sink installation |
| Spout type | Low tubular swivel spout |
| Spout swivel range | 140 degrees |
| Cartridge | GROHE 46048000 46mm ceramic cartridge |
| Outlet | GROHE 13928000 female M22 x 1 mousseur |

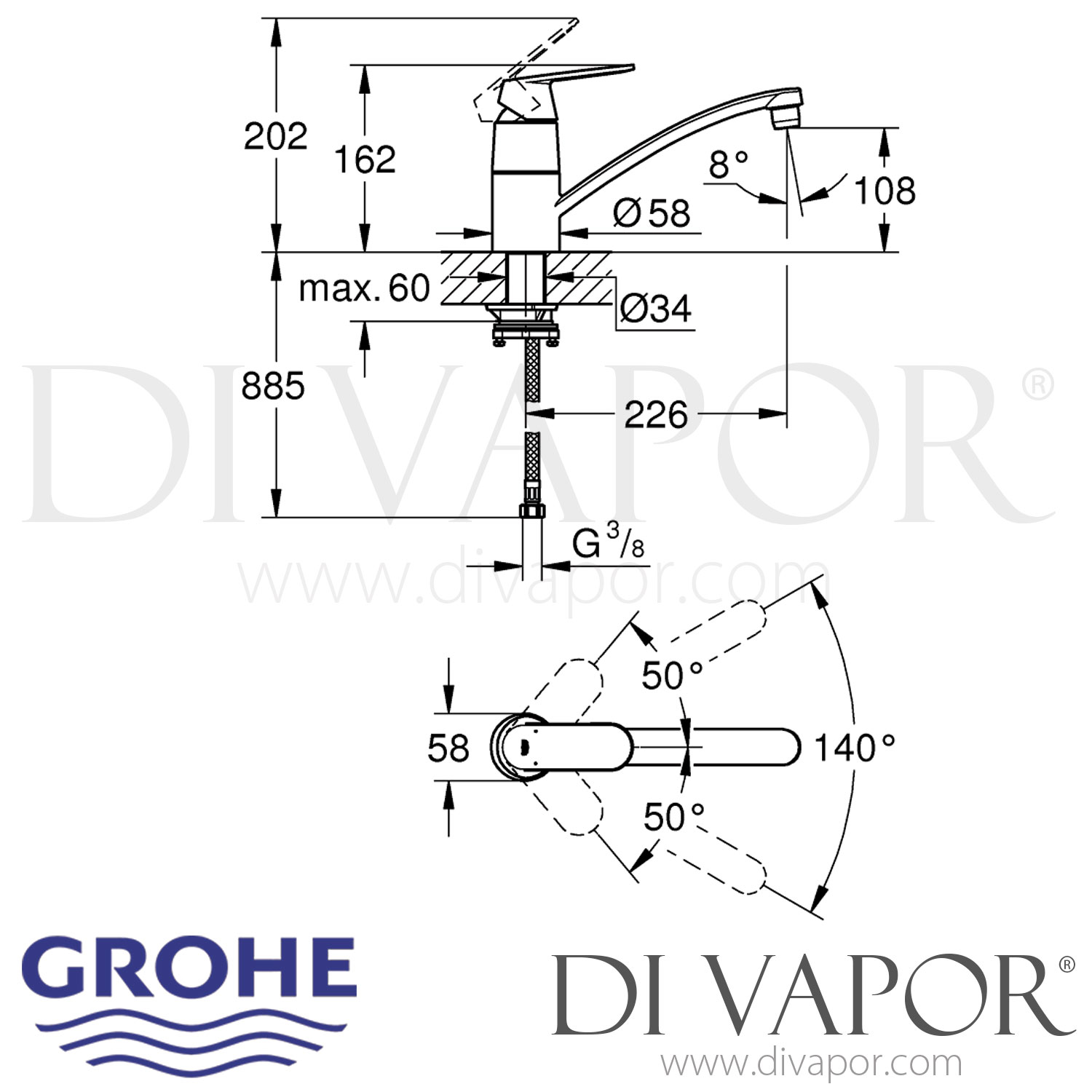

| Approximate overall mixer height | 202mm |
| Approximate spout projection | 226mm |
| Approximate outlet height above the mounting surface | 108mm |
| Approximate required tap-hole diameter | 34mm |
| Maximum worktop thickness | 60mm |
| Supply connection size | G 3/8 |
| Approximate flexible hose length | 450mm |
| Approximate flow rate at 3 bar | 12.5 litres per minute |
| Minimum flow pressure | 0.5 bar |
| Recommended operating pressure | 1 to 5 bar |
| Maximum operating pressure | 10 bar |
| Maximum hot-water inlet temperature | 80 degrees C |
| Recommended hot-water temperature | 60 degrees C |
| Finish | Chrome |
The mixer is not suitable for use with unpressurised storage heaters. The hot and cold supplies should have similar pressures, and a pressure-reducing valve should be fitted where static pressure exceeds 5 bar.
Other Available Valve Generations
The spare-parts configuration changed during December 2017. Check the existing components and installation date before ordering because later-generation mounting parts should not be assumed to fit the GEN1 mixer.
Before You Order Check
Confirm that the mixer code is 31170000 and that the installed tap uses the April 2010 to December 2017 GEN1 spare-parts configuration. Compare the existing cartridge, mousseur and mounting arrangement with the parts being replaced before ordering.
GROHE 46048000 GRO46048 46mm SilkMove Ceramic Cartridge for Single-Lever MixersGROHE 46048000 is a 46mm GROHE SilkMove ceramic cartridge used to control water flow and temperature in selected single-lever bath, shower, basin, sink, kitchen and concealed mixers. It is also referen...
The fitting size for Grohe 13928000 Mousseur Aerator / Grohe Flow restrictor 13928000 (Grohe part number 13928000) is: Female thread M22 x 1. That means it screws into a M22 x 1 male threaded spout/tap outlet standard faucet aerator size on many Grohe basin and sink mixers. Gro...
