Grohe 31170000 Eurosmart Cosmopolitan Single-Lever Sink Mixer (1/2 Inch) Spare Parts
Send a photo of your item and we'll help confirm it.
Summary

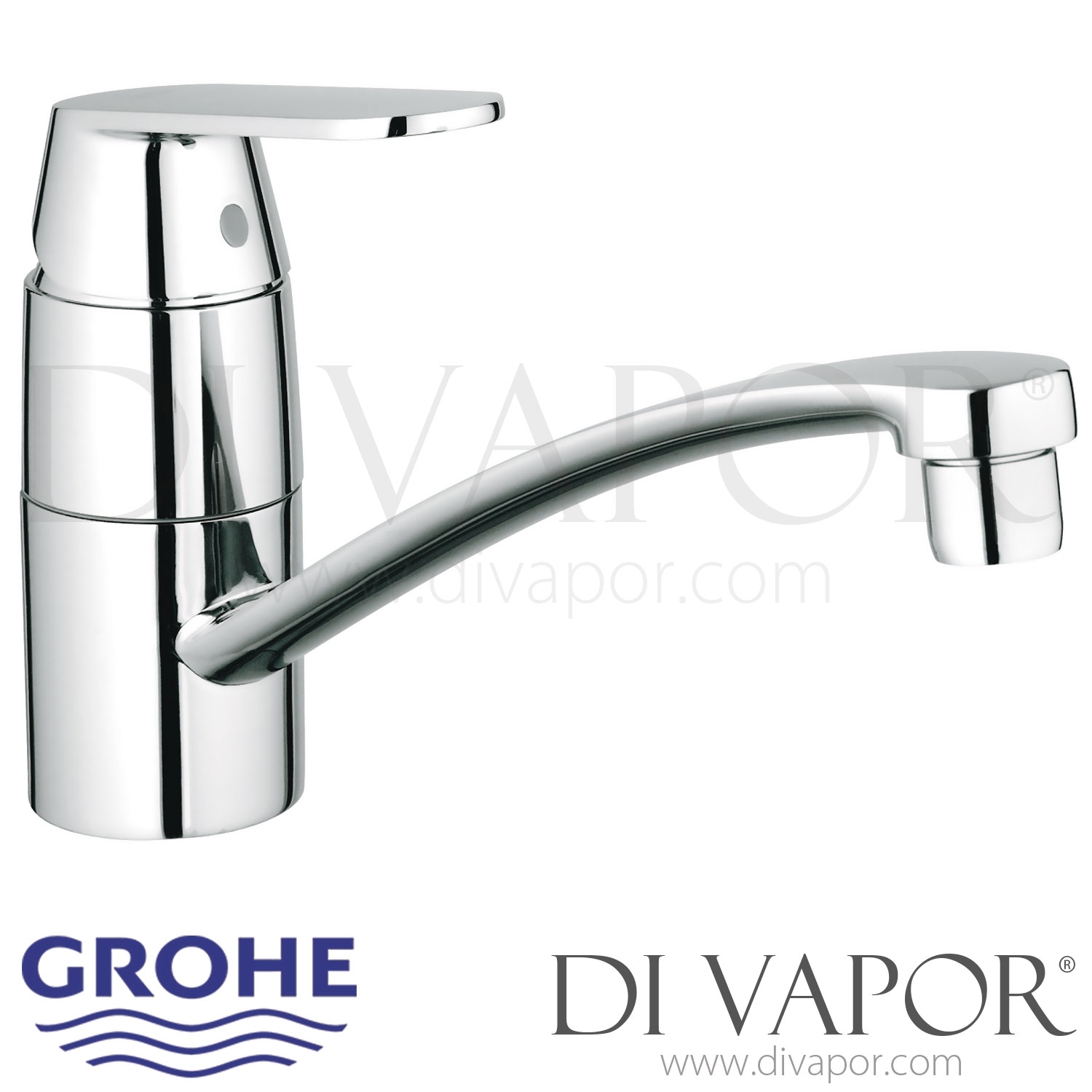

Spares for Grohe 31170000 Eurosmart Cosmopolitan Single-Lever Sink Mixer 1/2 Inch
Year: 2017 - Present (Checked on June 2021)
Grohe 31170000 is an Eurosmart Cosmopolitan single-lever sink mixer for kitchen installations. This spare-parts page covers the 2017-present valve generation and provides the identified service components for maintaining the mixer.
The tap uses a 46mm ceramic mixer cartridge to control water flow and mixed-water temperature. Its low tubular swivel spout and lift-out body are designed for installation at sinks positioned in front of a window, allowing the mixer body to be raised from its mounting socket when clearance is required.
Technical Details
| Brand | Grohe |
|---|---|
| Model code | 31170000 |
| Range | Eurosmart Cosmopolitan |
| Category | Kitchen tap |
| Product type | Single-lever sink mixer 1/2 inch |
| Valve generation | 2017-present |
| Finish | Chrome |
| Cartridge type | 46mm ceramic single-lever mixer cartridge |
| Installation | Single-hole deck mounting with flexible connection hoses |
| Spout type | Low tubular spout with 140-degree swivel movement |
| Window installation | Lift-out mixer body with a fixed mounting socket approximately 30mm high |
| Minimum window clearance | Approximately 60mm |

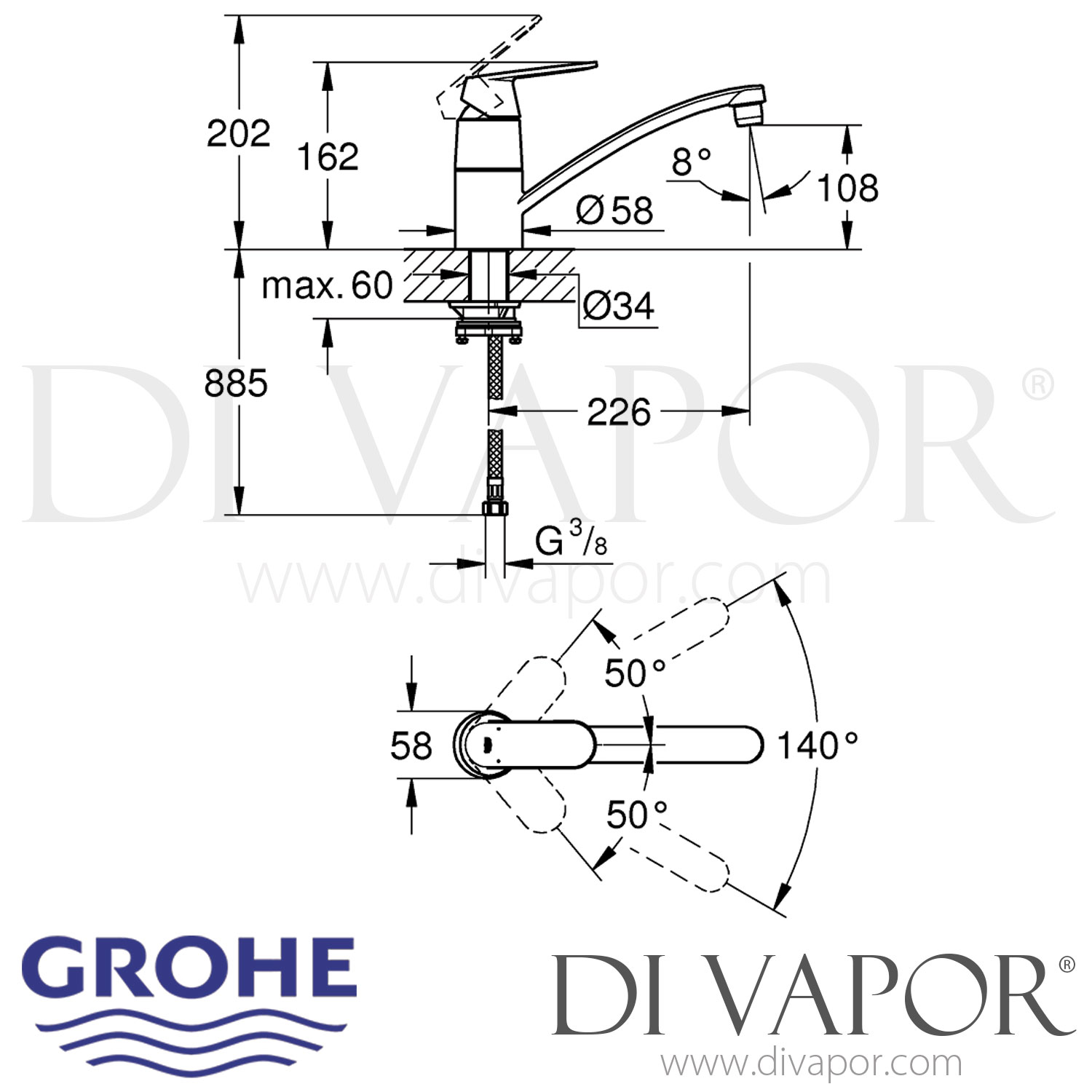

| Approximate overall height | 202mm |
| Approximate spout reach | 226mm |
| Approximate outlet height | 108mm |
| Approximate tap-hole diameter | 34mm |
| Maximum mounting thickness | 60mm |
| Flexible hose connections | G3/8 |
Other Available Valve Generations
The earlier 2010-2017 generation uses a different shank fastening assembly from the 2017-present version. Mounting components must therefore be matched to the production period and existing assembly.
Before You Order Check
- Confirm that the mixer code is 31170000 and identify its production generation before ordering generation-sensitive mounting parts.

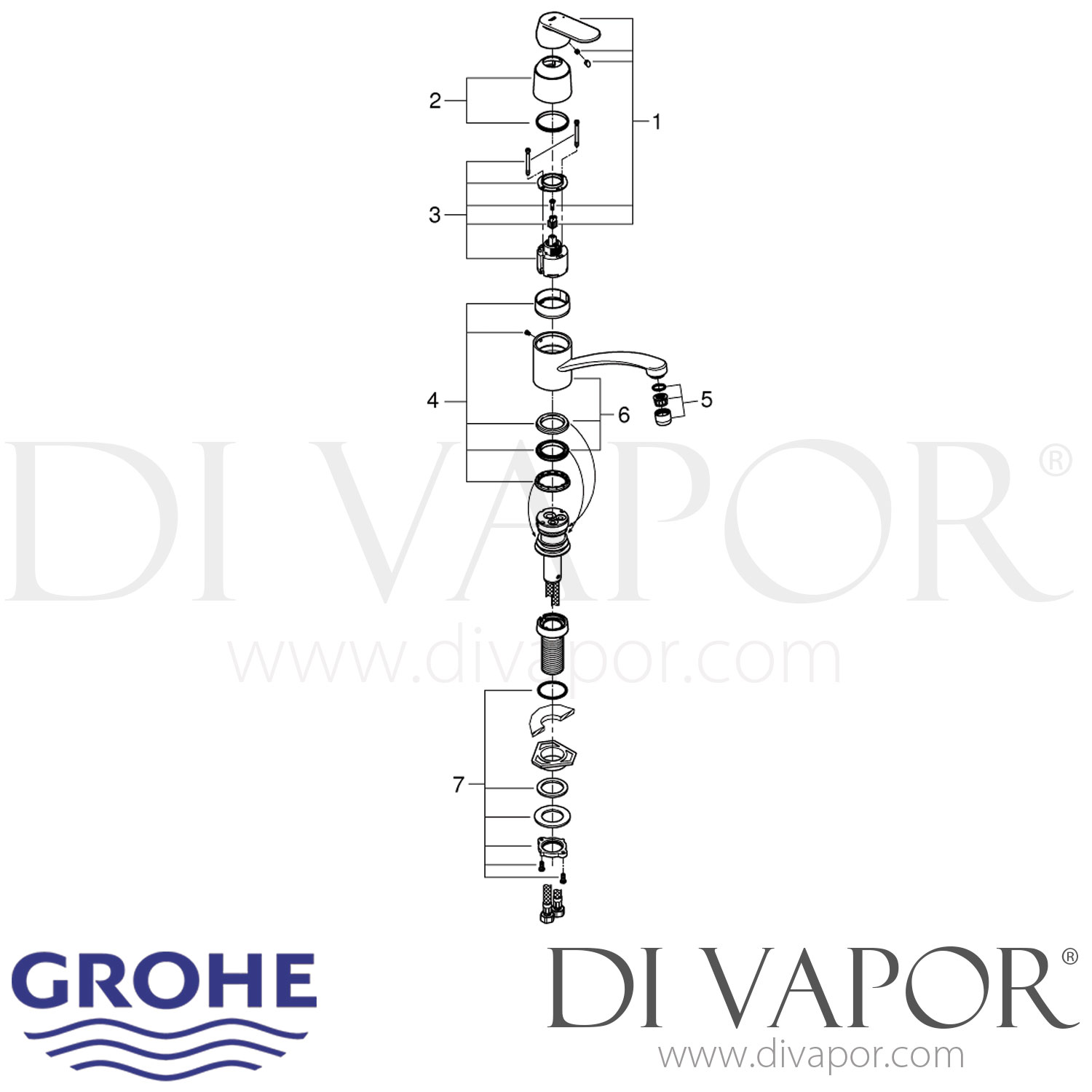

- Compare the existing cartridge, mousseur or mounting assembly with the product photographs, dimensions and part codes.
- Isolate the hot and cold water supplies before dismantling or servicing the mixer.
GROHE 46048000 GRO46048 46mm SilkMove Ceramic Cartridge for Single-Lever MixersGROHE 46048000 is a 46mm GROHE SilkMove ceramic cartridge used to control water flow and temperature in selected single-lever bath, shower, basin, sink, kitchen and concealed mixers. It is also referen...
The fitting size for Grohe 13928000 Mousseur Aerator / Grohe Flow restrictor 13928000 (Grohe part number 13928000) is: Female thread M22 x 1. That means it screws into a M22 x 1 male threaded spout/tap outlet standard faucet aerator size on many Grohe basin and sink mixers. Gro...
