Grohe Eurodisc Cosmopolitan Single-Lever Sink Mixer - 2010 to 2013 - Tap Spare Parts 33770002 GEN1
Send a photo of your item and we'll help confirm it.
Summary

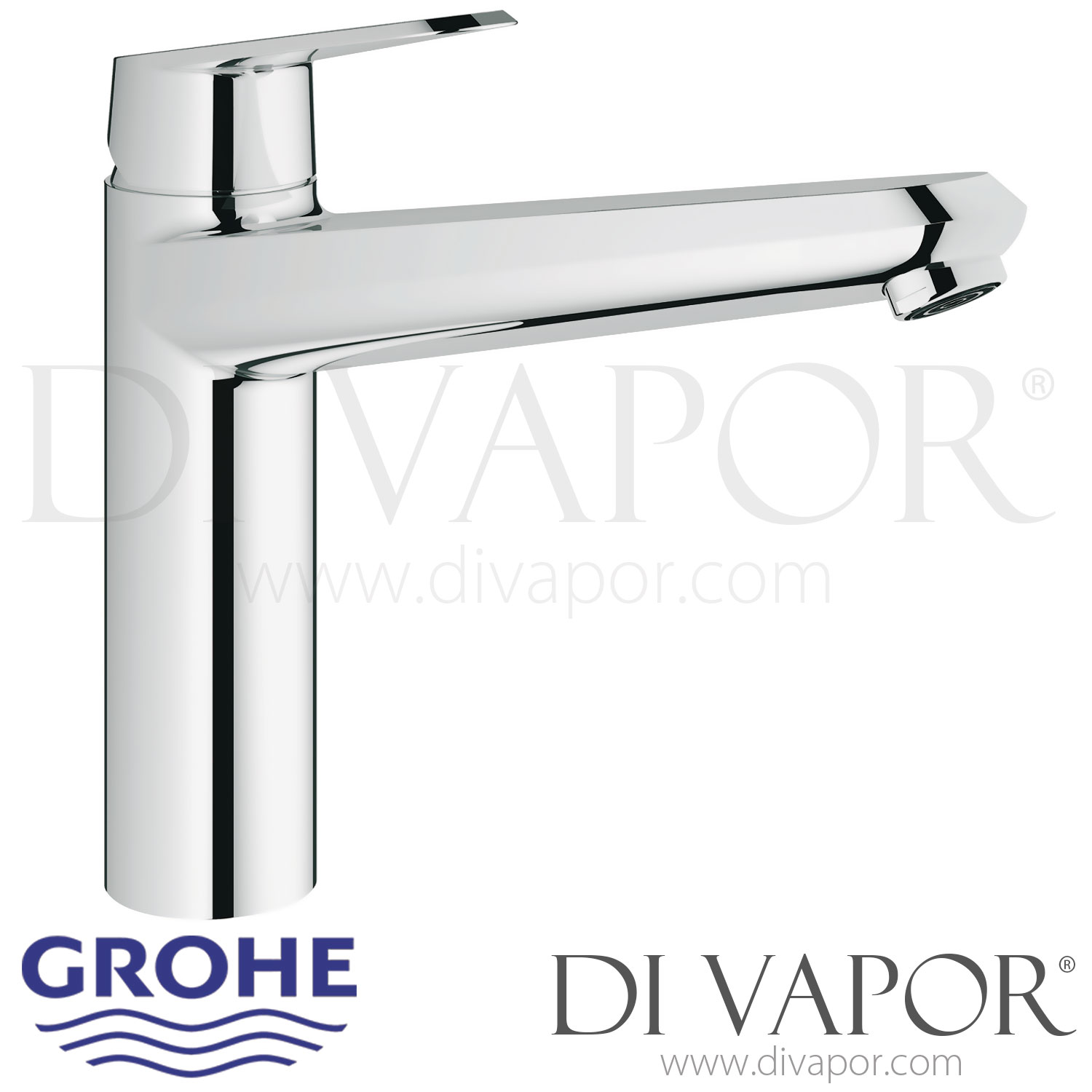

Spares for Grohe 33770002 Eurodisc Cosmopolitan Single-Lever Sink Mixer from 2010 to 2013

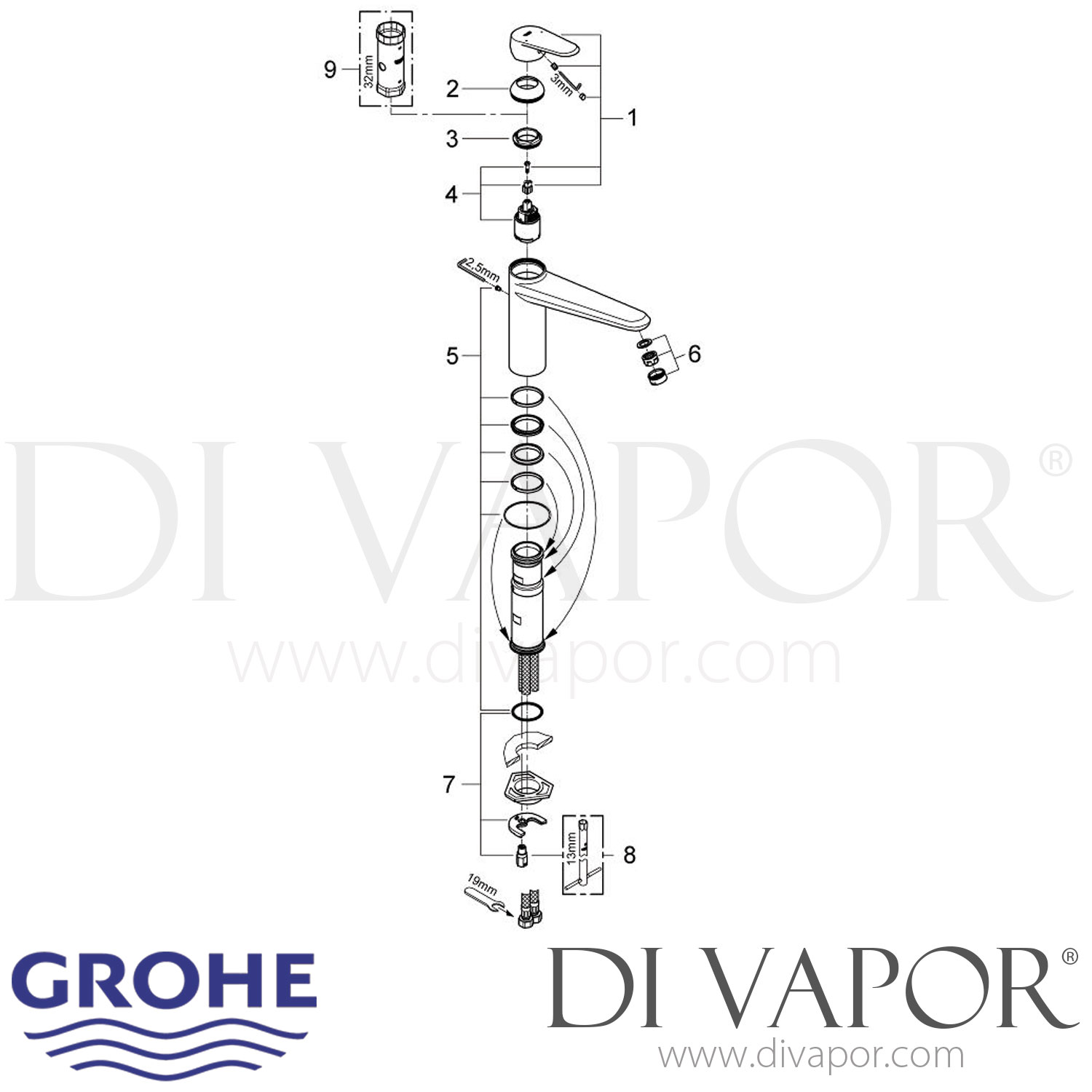

Grohe Eurodisc Cosmopolitan 33770002 GEN1 spare parts for the chrome single-lever sink mixer supplied from 2010 to 2013. This kitchen tap uses a single-lever control with a GROHE SilkMove 35 mm ceramic cartridge and a cast swivel spout, with the parts below identified for servicing this version of the mixer.
The 33770002 mixer combines flow and temperature control through the ceramic lever cartridge, while the mousseur regulates and shapes the outlet stream. The mounting assembly secures the mixer to the sink or worktop. These verified Grohe spare parts provide key service components for repairing and maintaining the 2010 to 2013 version of the tap.
Technical Details
| Brand | GROHE |
|---|---|
| Range | Eurodisc Cosmopolitan |
| Category | Kitchen tap |
| Product code | 33770002 |
| Tap generation | GEN1 |
| Production period | 2010 - 2013 |
| Finish | Chrome |
| Mixer type | Single-lever sink mixer 1/2 inch |
| Cartridge | GROHE SilkMove 35 mm ceramic cartridge |
| Spout | Cast swivel spout |
| Spout swivel range | 140 degrees |

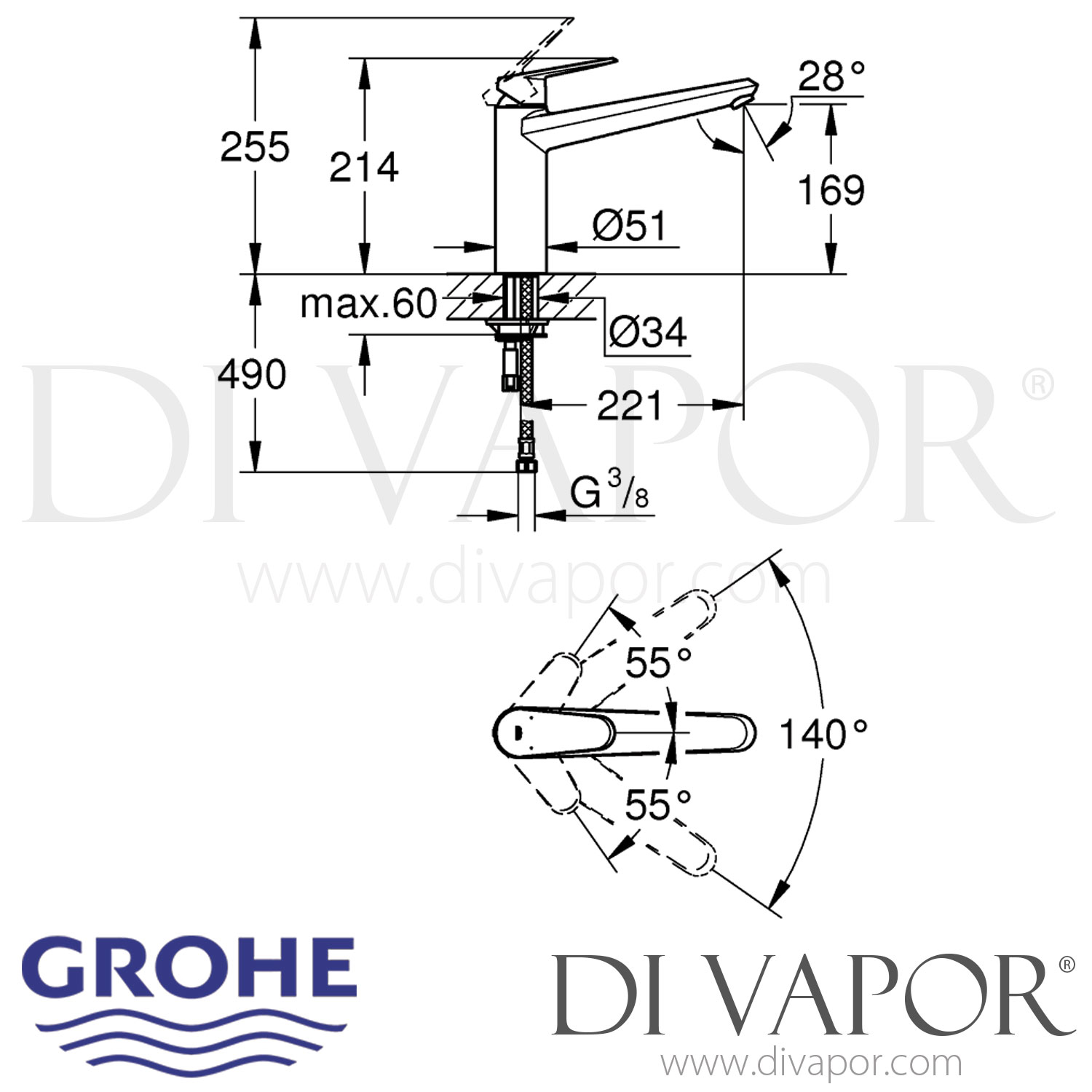

| Overall height | 255 mm |
| Outlet height | 169 mm |
| Spout projection | 221 mm |
| Mounting reference | 34 mm |
| Maximum mounting thickness | 60 mm |
| Connections | Flexible connection hoses with G 3/8 connections |
| Minimum flow pressure | 0.5 bar |
| Recommended flow pressure | 1 - 5 bar |
| Maximum operating pressure | 10 bar |
| EAN | 4005176888137 |
Before You Order
Check that the mixer is GROHE Eurodisc Cosmopolitan code 33770002 and that the installation corresponds to the 2010 to 2013 GEN1 version before selecting individual Grohe spares. Parts used on other production periods or visually similar Eurodisc Cosmopolitan mixers should not be assumed to be the same.
