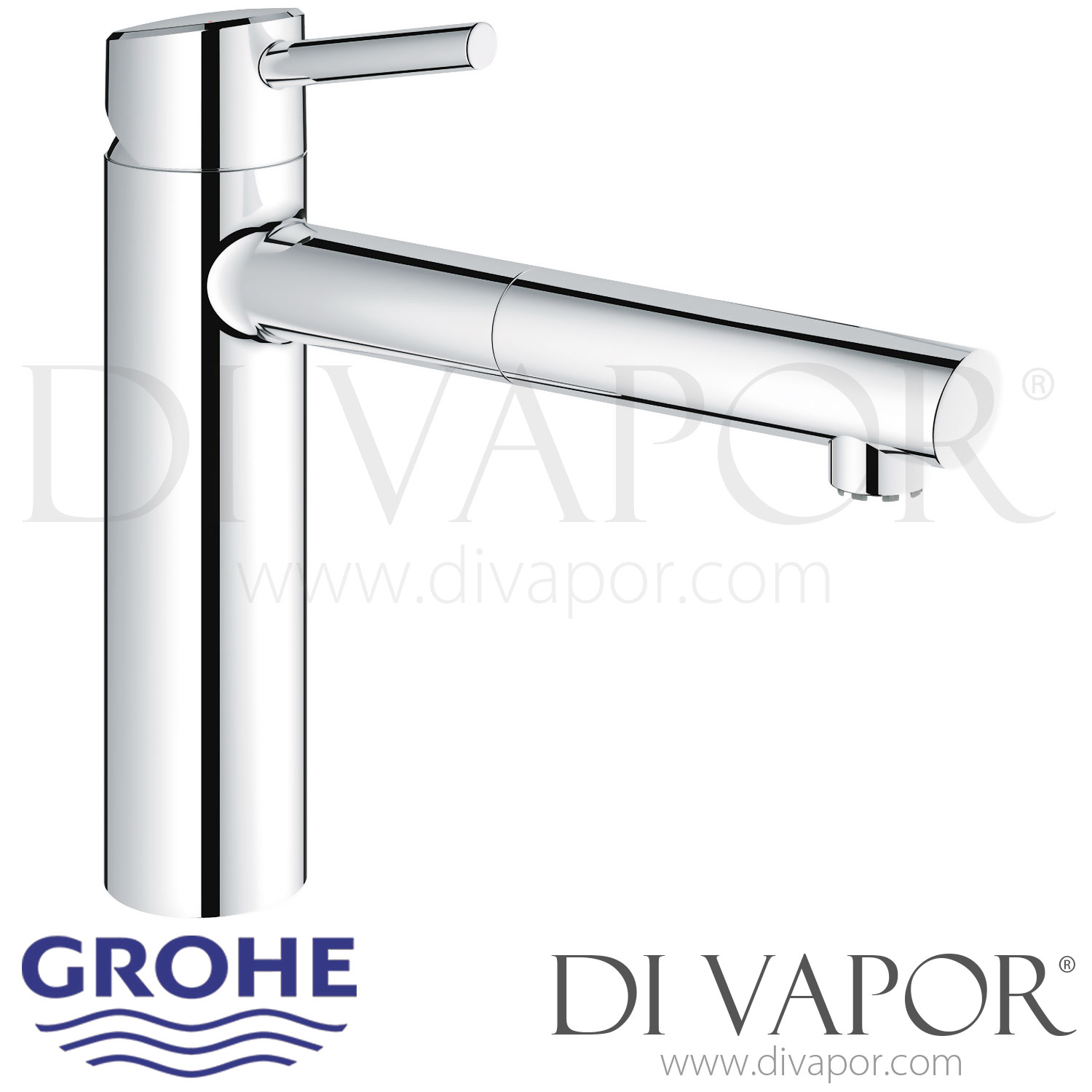

Grohe Concetto Single-Lever Sink Mixer - 2010 to 2013 - Spare Parts 31214001 GEN1
Send a photo of your item and we'll help confirm it.
Summary

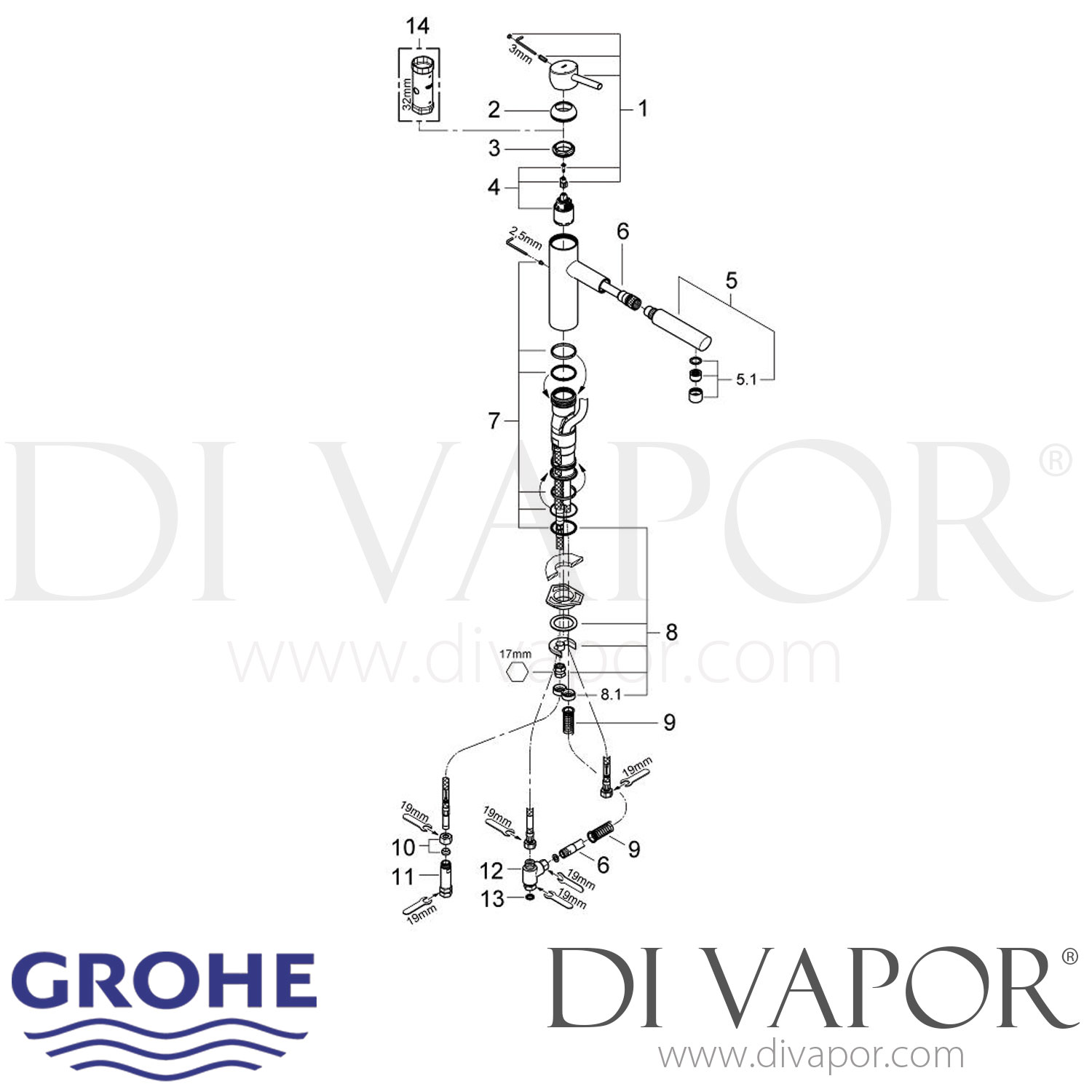

Grohe Concetto 31214001 GEN1 is the 2010 to 2013 generation of the Concetto low-pressure single-lever sink mixer, designed as a kitchen tap for use with an unpressurised storage heater. This page identifies the Grohe spare parts confirmed for this specific generation, helping to avoid confusion with later versions that use the same 31214001 base model code.
The mixer uses a 35 mm low-pressure ceramic single-lever cartridge to control water flow and temperature. It also features a medium-height swivel spout and pull-out laminar outlet. A worn cartridge can cause dripping from the spout when the tap is turned off, stiff or loose lever movement, or poor control of water flow and temperature.

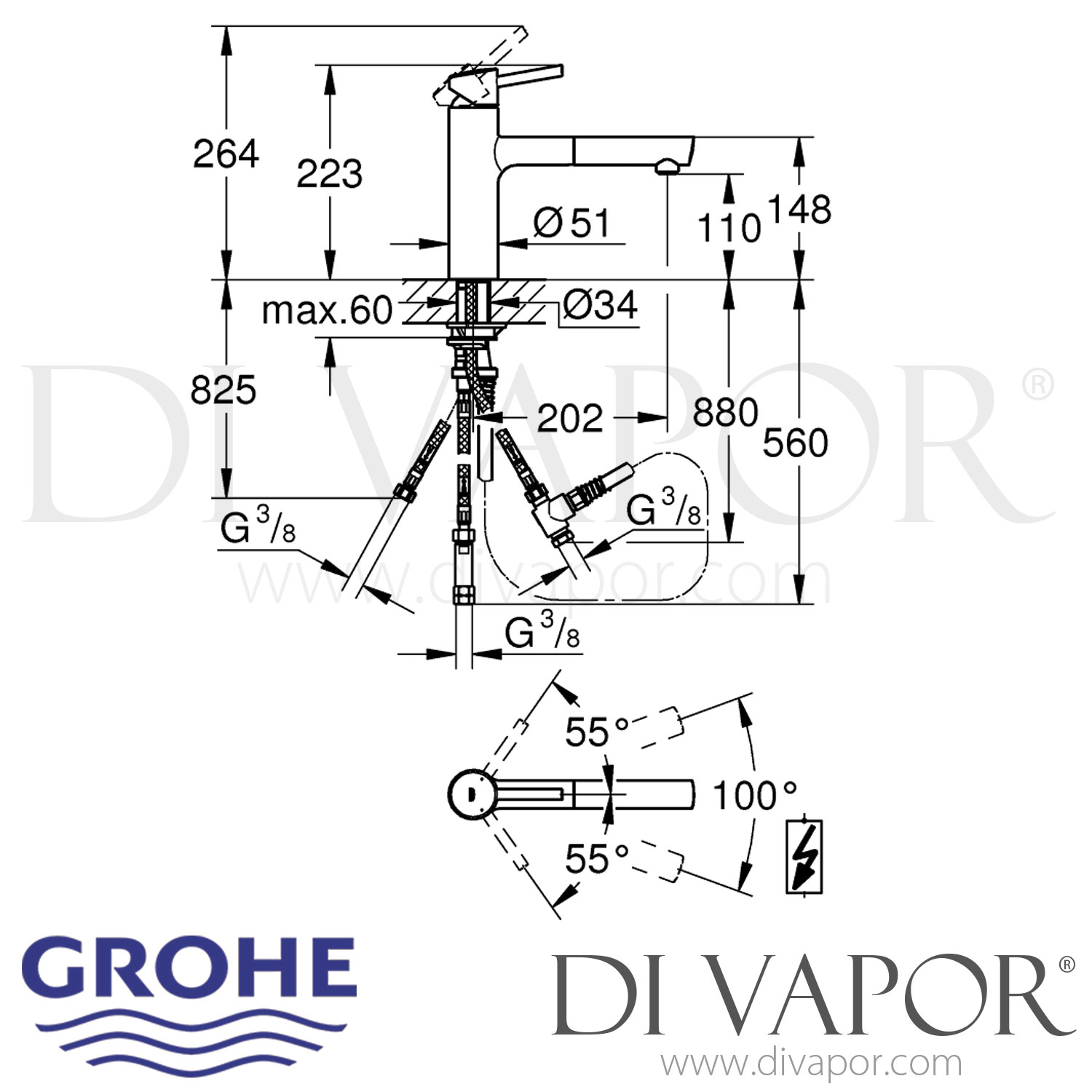

Technical Details
| Brand | Grohe |
|---|---|
| Range | Concetto |
| Category | Kitchen tap |
| Model code | 31214001 |
| Generation | GEN1 |
| Production period | 2010 to 2013 |
| Water system | low-pressure open-system installation for an unpressurised storage heater |
| Installation | single-hole deck mounting |
| Finish | chrome |
| Cartridge size | 35 mm |
| Confirmed cartridge code | 46558000 |
| Spout | medium-height swivel cast spout with pull-out laminar outlet |
| Spout swivel range | 100 degrees |
| Spout projection | 202 mm |
| Outlet height | 110 mm |
| Overall height with lever raised | 264 mm |
| Mixer body diameter | 51 mm |
| Required mounting hole | 34 mm |
| Maximum deck thickness | 60 mm |
| Hose connections | G 3/8 |
- Maximum hot-water temperature stated in the installation instructions: 70 C
- EAN: 4005176891090
Installation and Operation Note
This mixer is intended for an unpressurised storage-heater system. Expansion water may drip from the outlet while the heater is warming, which is normal for this type of installation. Additional outlet restrictions should not be fitted unless they are specified for the water-heater system.
Before You Order
Check that your mixer is model 31214001 and belongs to the 2010 to 2013 GEN1 period. The same 31214001 base code is also used for a later generation of the tap, so do not assume that every internal component is interchangeable between generations. Check the existing cartridge and its part code before ordering.
Other Available Generations
- Grohe 31214001 Concetto Single-Lever Sink Mixer Spare Parts - later generation recorded from 2013
Grohe 46558000 is a 35mm low-pressure single-lever tap cartridge used in selected Grohe basin and sink mixers.It restores control of water flow and temperature inside the mixer body. A worn cartridge can cause dripping from the spout when the tap is turned off, a stiff or loose l...
