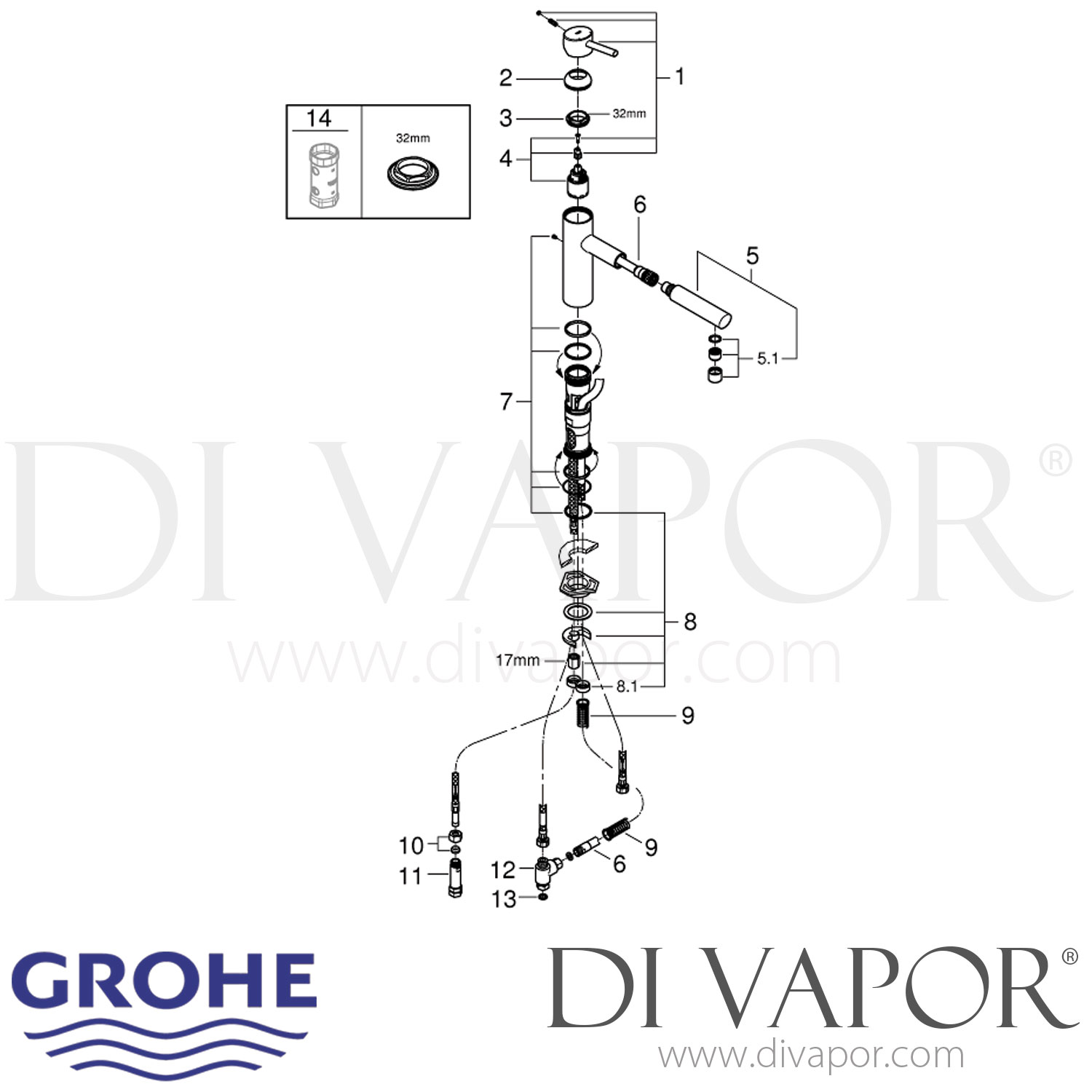

Grohe 31214001 Concetto Single-Lever Sink Mixer Spare Parts
Send a photo of your item and we'll help confirm it.
Summary

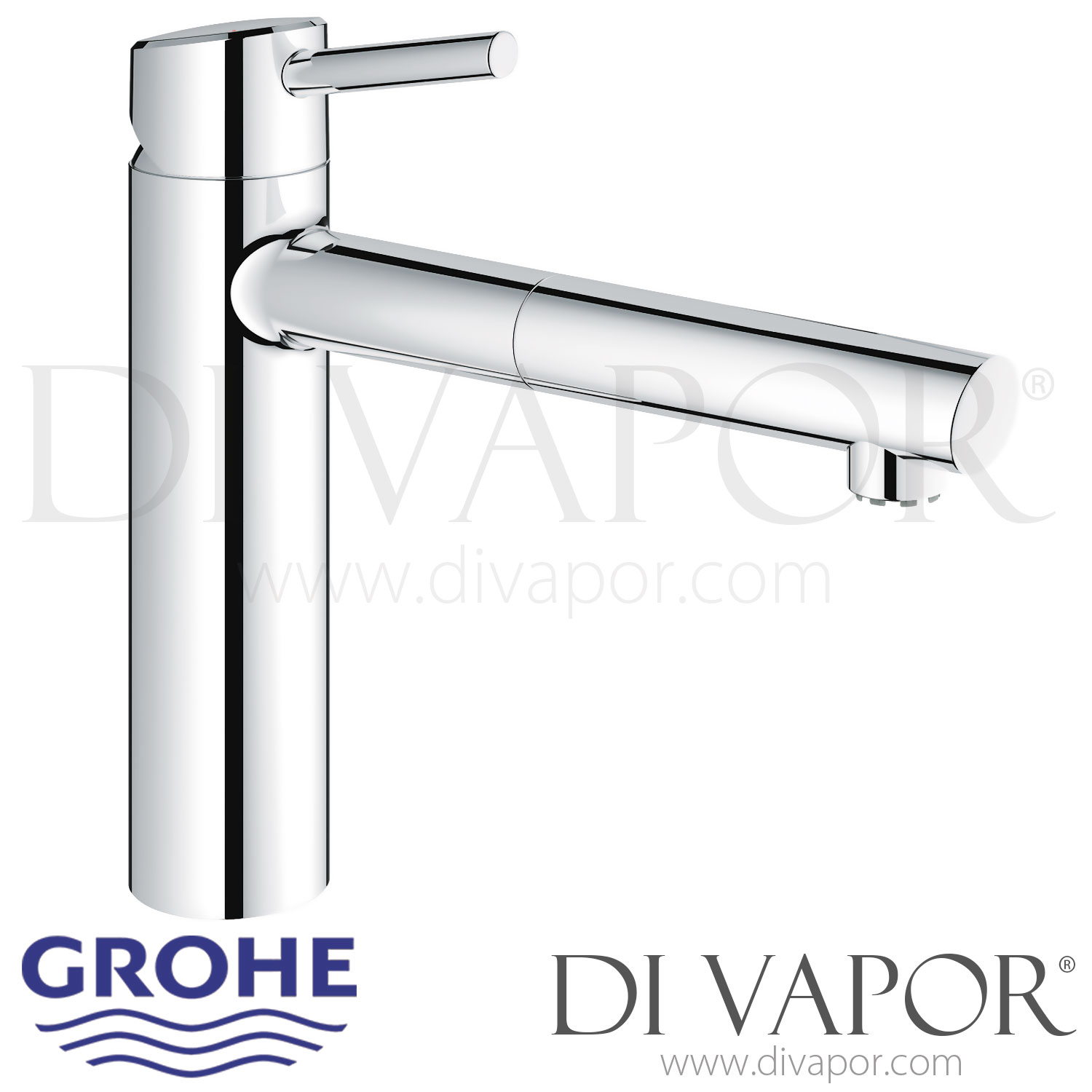

Spare parts for the Grohe 31214001 Concetto low-pressure single-lever kitchen sink mixer, covering the 2013 onward configuration shown this spares page. This chrome mixer is designed for use with an open, unpressurised storage water heater and features a pull-out outlet with a medium-height swivelling spout.
The mixer uses a low-pressure internal arrangement to control water flow and temperature while protecting the connected open storage heater. Correct identification is important when selecting Grohe spare parts, as the earlier 2010 to 2013 version of the same 31214001 model is catalogued separately.
Technical Details
| Brand | Grohe |
|---|---|
| Range | Concetto |
| Category | Kitchen tap |
| Product code | 31214001 |
| Type | Low-pressure single-lever sink mixer with pull-out outlet |
| Finish | Chrome |
| Water system | Open, unpressurised storage water heater |

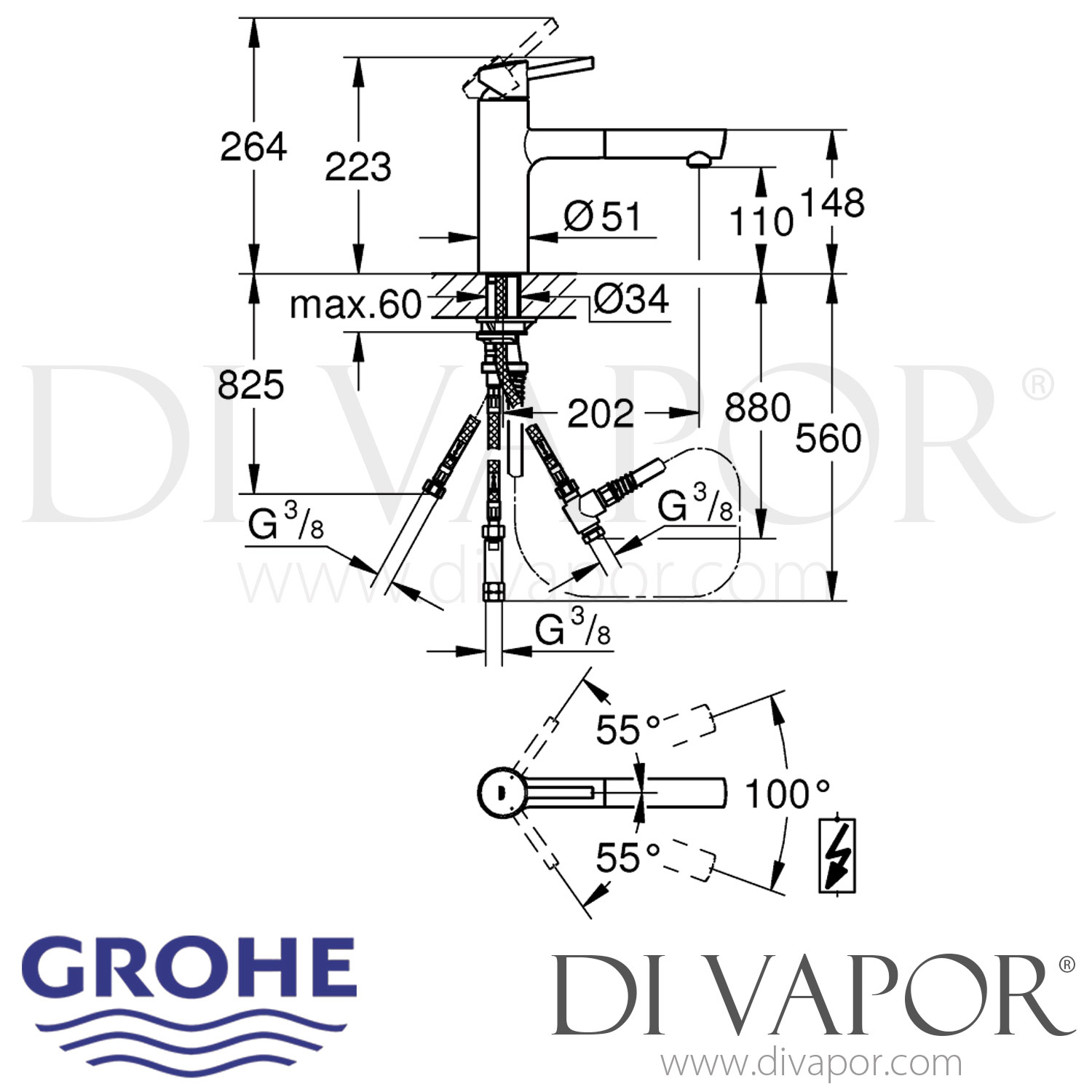

| Overall mixer height | 264 mm |
| Mixer body diameter | 51 mm |
| Required mounting bore | 34 mm |
| Maximum mounting surface thickness | 60 mm |
| Spout outlet height above mounting surface | 110 mm |
| Height to top of spout body | 148 mm |
| Connection size | G 3/8 |
| Spout swivel range | 100 degrees |
| Maximum hot-water temperature | 70 degrees C |
| EAN | 4005176891090 |
Low-Pressure Mixer Operation
This mixer is intended specifically for an open storage water heater. Water may drip from the spout as the stored water heats and expands, which is a normal part of the open-vent operating principle. The outlet must not be restricted with unsuitable downstream fittings because the spout provides the expansion path required by the storage heater.
Before You Order Check
Confirm the mixer code 31214001 and check which generation is installed before ordering. Visually similar Concetto mixers should not be used as the sole basis for identifying internal parts.
Other Available Generations
Grohe 46558000 is a 35mm low-pressure single-lever tap cartridge used in selected Grohe basin and sink mixers.It restores control of water flow and temperature inside the mixer body. A worn cartridge can cause dripping from the spout when the tap is turned off, a stiff or loose l...
