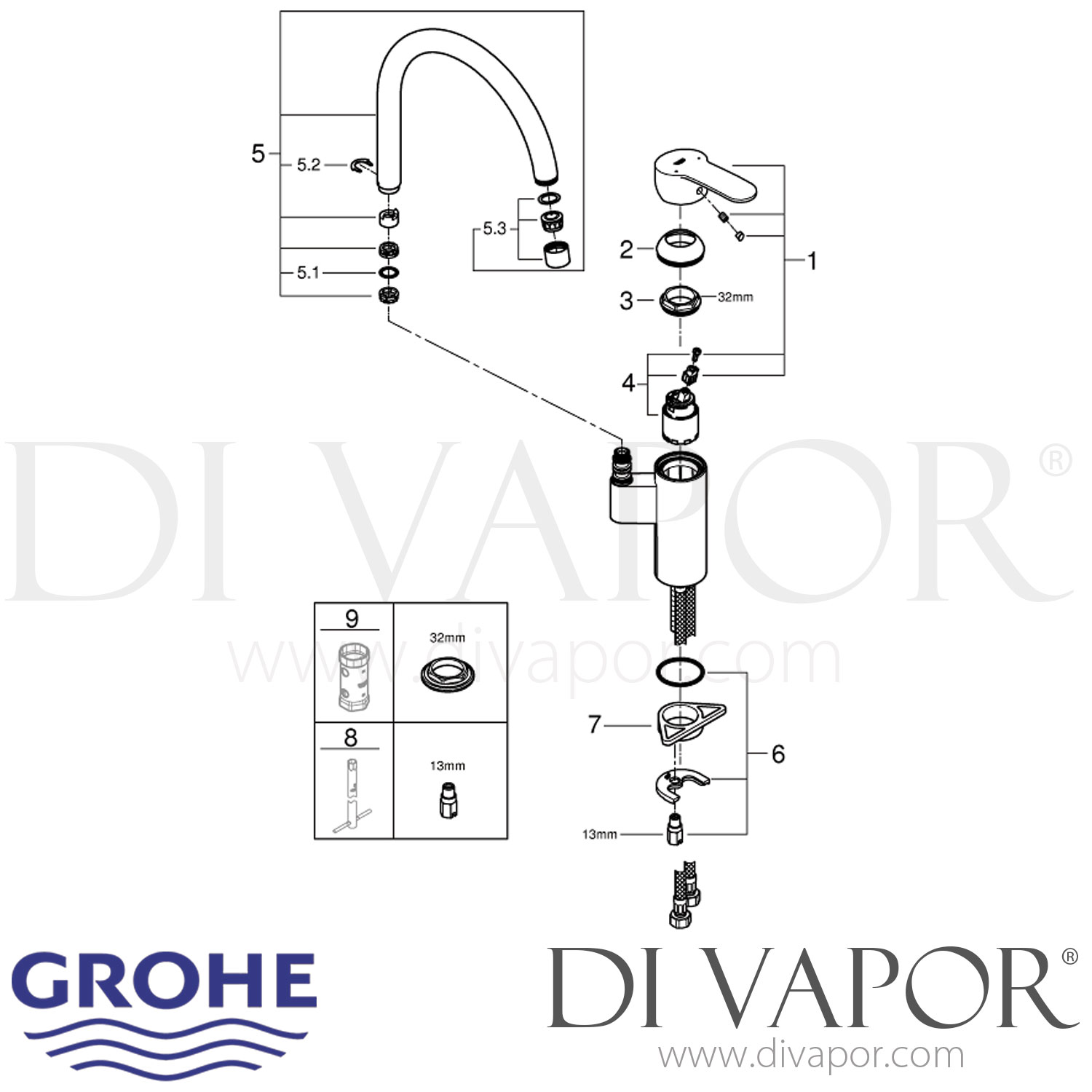

Grohe 30221002 Eurostyle Cosmopolitan Single-Lever Sink Mixer (1/​2 Inch) Spare Parts

SUMMARY

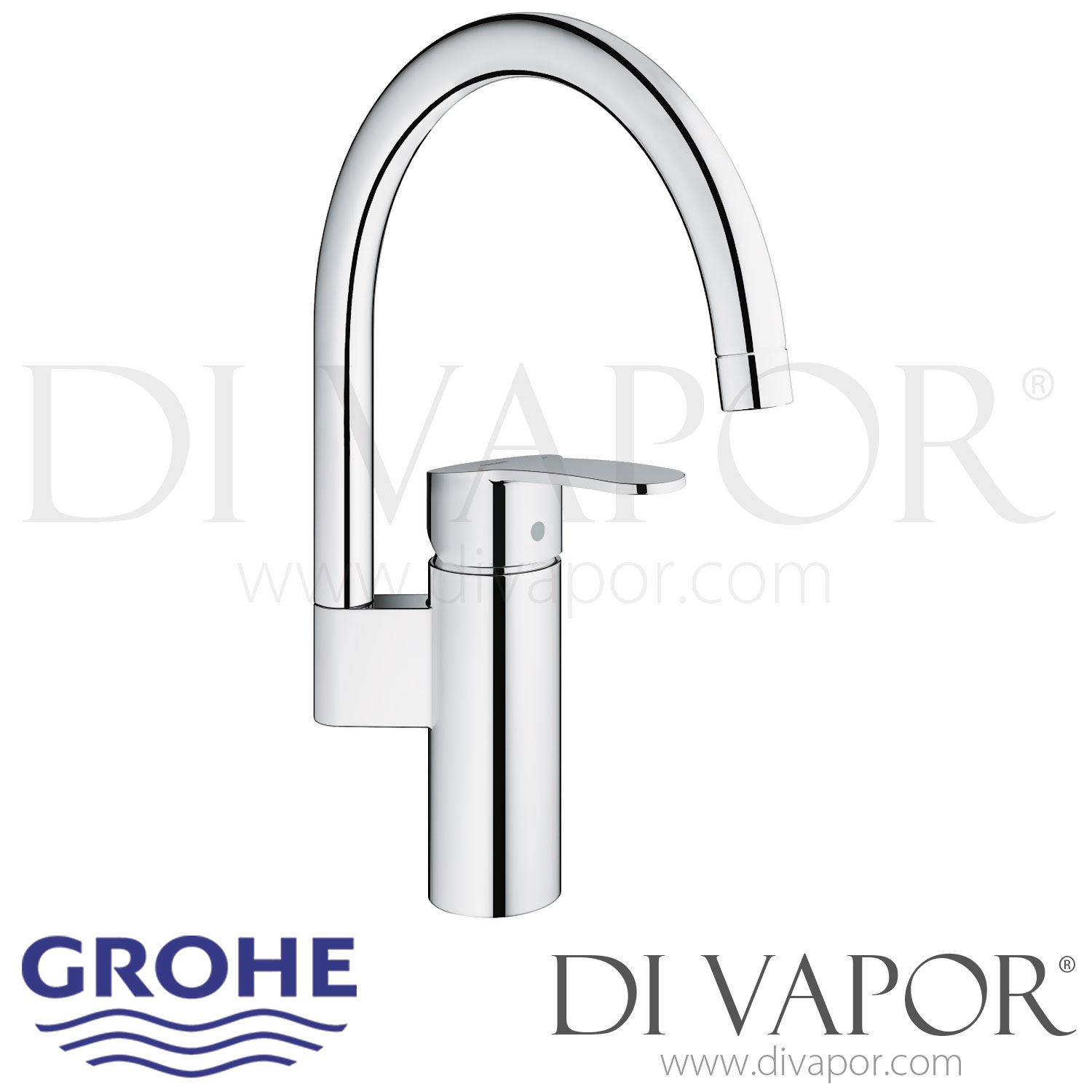

Spare parts for the Grohe 30221002 Eurostyle Cosmopolitan single-lever sink mixer 1/2 inch, a high-spout kitchen tap designed for single-hole installation. The mixer uses a single lever to control both water flow and mixed-water temperature.

The 30221002 uses a 35mm Grohe SilkMove ceramic cartridge and has an adjustable swivel spout that can be set to 0, 150 or 360 degrees. These Grohe tap spares can be used when servicing the internal flow-control mechanism or the mounting arrangement securing the mixer to the sink or worktop.

Technical Details

- - Brand: Grohe

- - Range: Eurostyle Cosmopolitan

- - Category: Kitchen tap

- - Product code: 30221002

- - Type: Single-lever sink mixer 1/2 inch

- - Finish: Chrome

- - Installation: Single-hole installation

- - Spout: High swivel tubular spout

- - Swivel range: Adjustable to 0 degrees, 150 degrees or 360 degrees

- - Cartridge: 35mm Grohe SilkMove ceramic cartridge

- - Flow control: Adjustable flow-rate limiter

- - Temperature control: Integrated temperature limiter

- - Connections: Flexible connection hoses

- - EAN: 4005176984235

Servicing and Fault Checking

- - A worn 35mm ceramic cartridge can cause dripping from the spout when the tap is turned off, stiff or loose lever movement, or reduced control of water flow and temperature.

- - The mounting bracket secures the mixer beneath the sink or worktop and should be checked if the tap body has become loose at the installation surface.

- - Before you order check the mixer code is 30221002 and compare the required component with the existing part before dismantling the tap.
