Grohe 30199000 Eurosmart Single-Lever Sink Mixer (1/​2 Inch) Spare Parts

SUMMARY

Tap Spares for Grohe 30199000 Eurosmart Cosmopolitan Single-Lever Sink Mixer 1/2 Inch

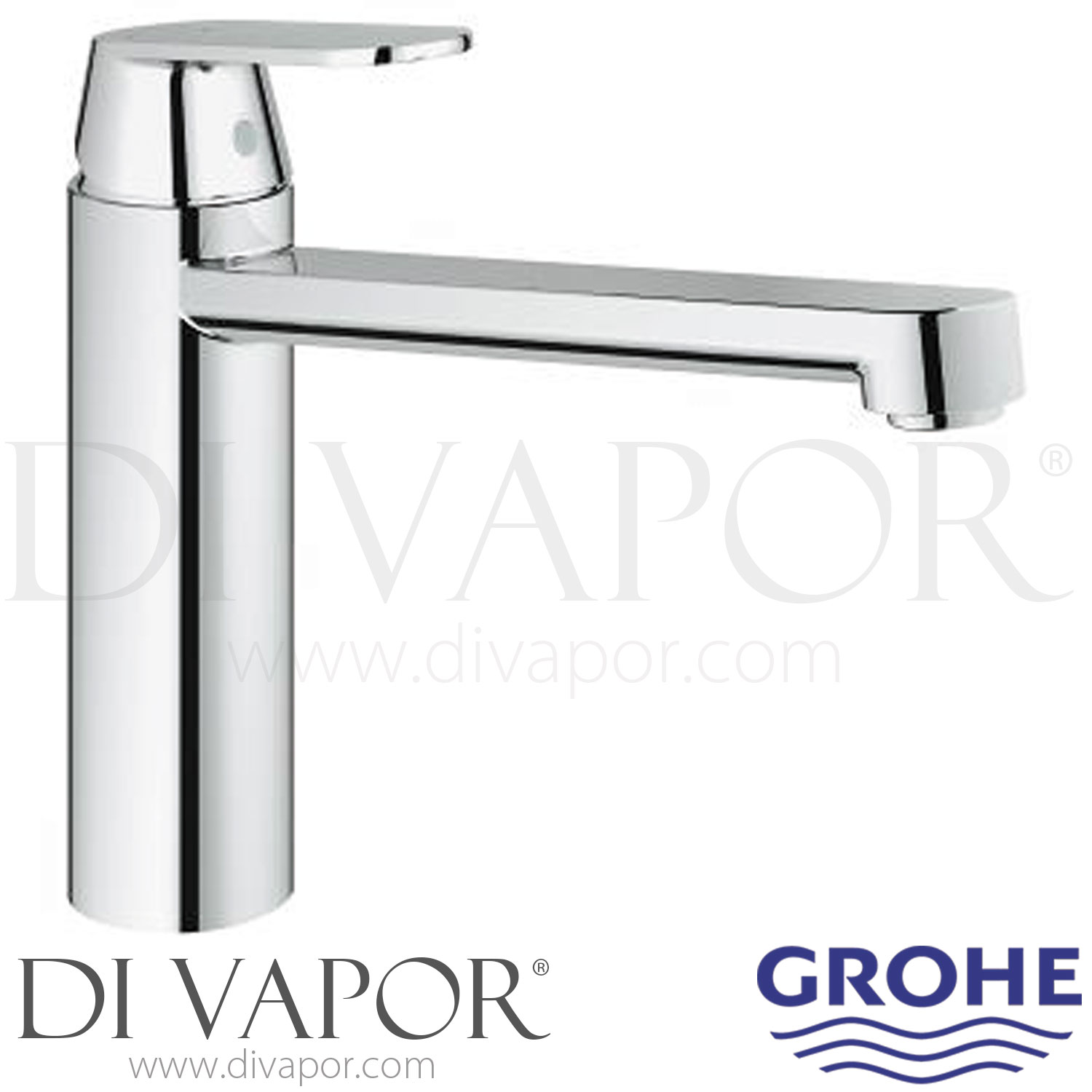

The Grohe 30199000 Eurosmart Cosmopolitan spare-parts page covers components used to service the chrome single-lever sink mixer with a medium-height swivel tubular spout. The mixer is designed for single-hole deck mounting and uses one lever to control the water temperature and flow.

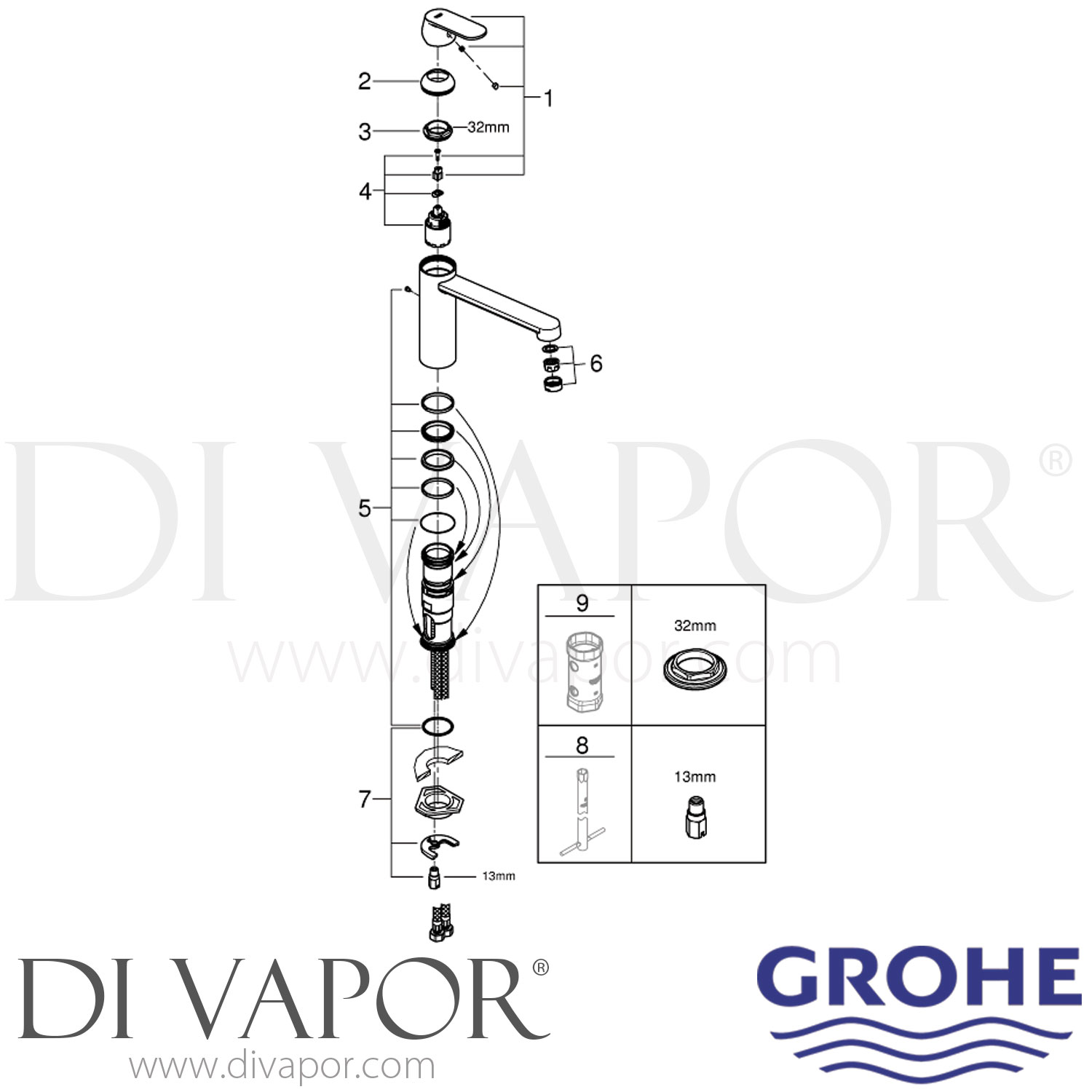

The service schedule for 30199000 applies from October 2012 onwards. Its internal 35 mm ceramic cartridge controls the mixed water supply, while the adjustable flow limiter and Eco-Override-Stop resistance point help manage water use. Common service requirements include replacing a restricted aerator, securing a loose mixer with a new mounting kit or accessing the cartridge during maintenance.

Technical Details

- - Range: Grohe Eurosmart Cosmopolitan

- - Category: Kitchen tap

- - Model code: 30199000

- - Product type: Single-lever sink mixer 1/2 Inch

- - Finish: Chrome

- - Installation: Single-hole deck-mounted monobloc

- - Cartridge: 35 mm ceramic cartridge

- - Spout: Medium-height swivel tubular spout

- - Spout swivel range: 140 degrees

- - Overall height: 245 mm

- - Outlet height: 144 mm

- - Spout projection: 221 mm

- - Required mounting hole: 34 mm diameter

- - Maximum mounting surface thickness: 60 mm

- - Flexible supply connection: G3/8

- - Maximum flow rate: Approximately 11.5 l/min at 3 bar

- - Spare-parts period: October 2012 onwards

Before You Order Check

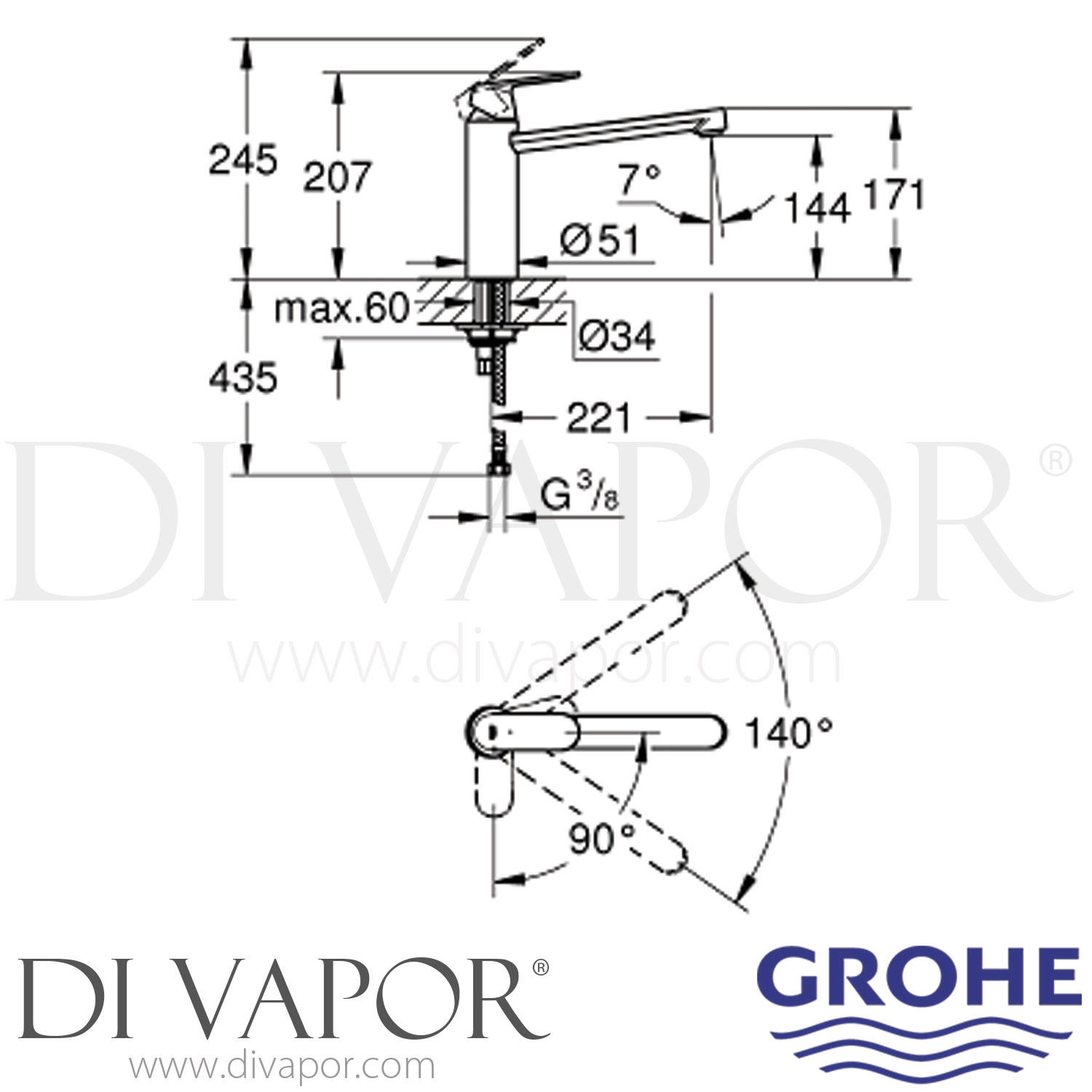

Confirm that the mixer is marked 30199000 and compare the required component with the installed part before ordering. The 1/2 Inch wording forms part of the Grohe product designation, while the dimensional drawing shows G3/8 flexible supply connections. Shut off both water supplies before removing the lever, cartridge, aerator or mounting components.
