DXD 320 ES Pump
DXD 320 ES PumpDXD 320 ESDXD 320 ES Spa PumpDXD 320 ES Hot Tub Water PumpDXD 320 ES Pump

DXD 320ES 1.5kW 2.0HP/0.5HP 2 Speed Pump for Hot Tub | Spa | Whirlpool Bath | Swimming Pools

Part Number: DXD-320ES
Out of stock - Ask a Question now

SALE: £218.56

You save: £191.33 (47%)
Price includes VAT
Stock Arrival Notification
-- or --
Request Stock Date
Wrong Item? Click to see More
Product description

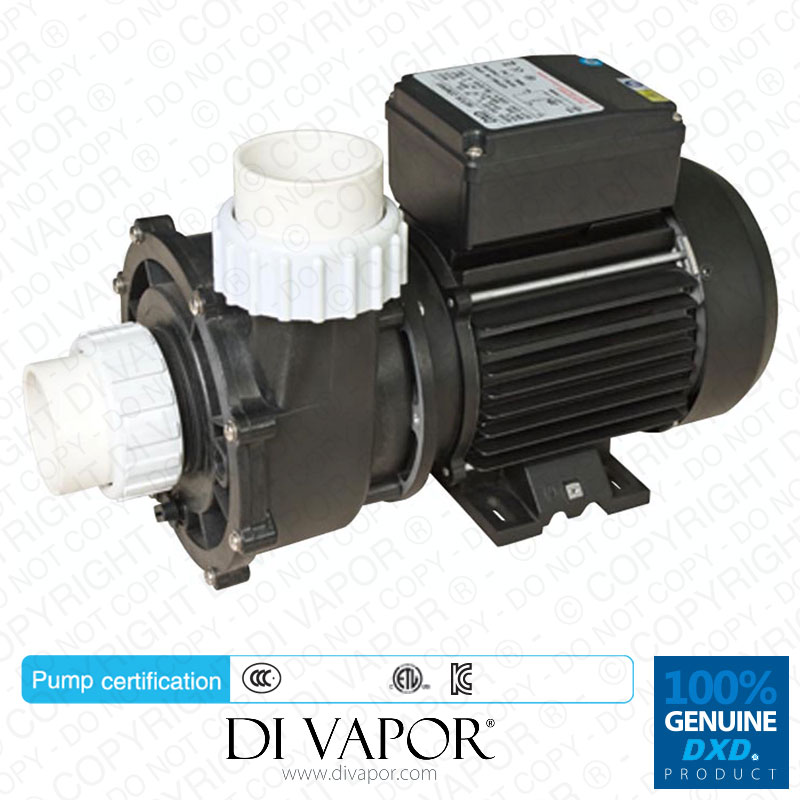

This is a DXD 320 ES pump which is used on hot tubs, pools and whirlpool baths. This is a suitable replacement for DXD model 320ES pumps. This is a 2 speed pump which means that it has two settings, 2.0HP and a less powerful 0.5HP.

The pump comes with two white union connectors (measurements below), which can be seen in product images.

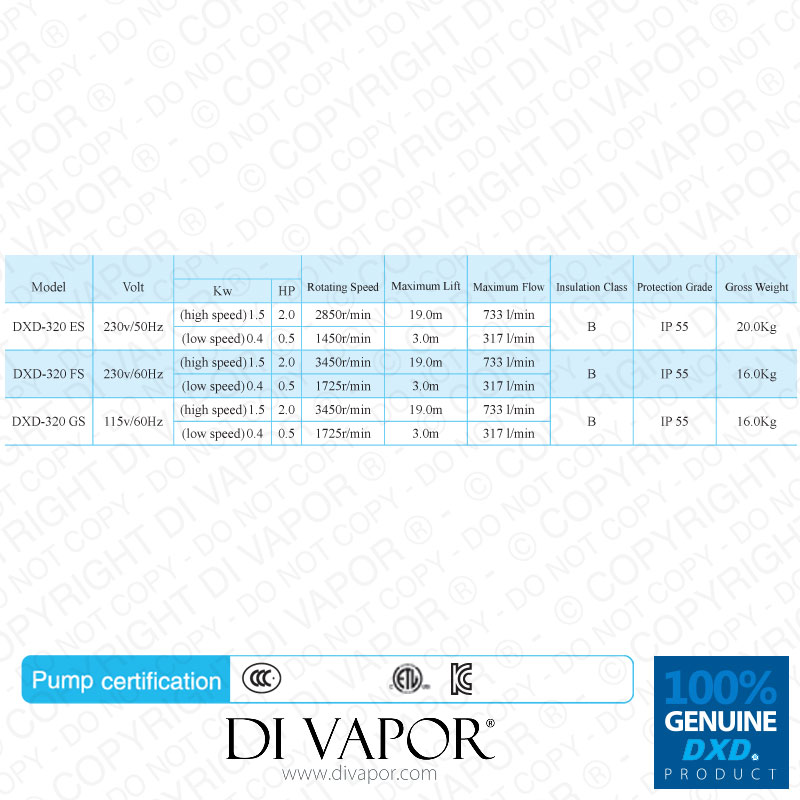

DXD 320 ES Technical Information

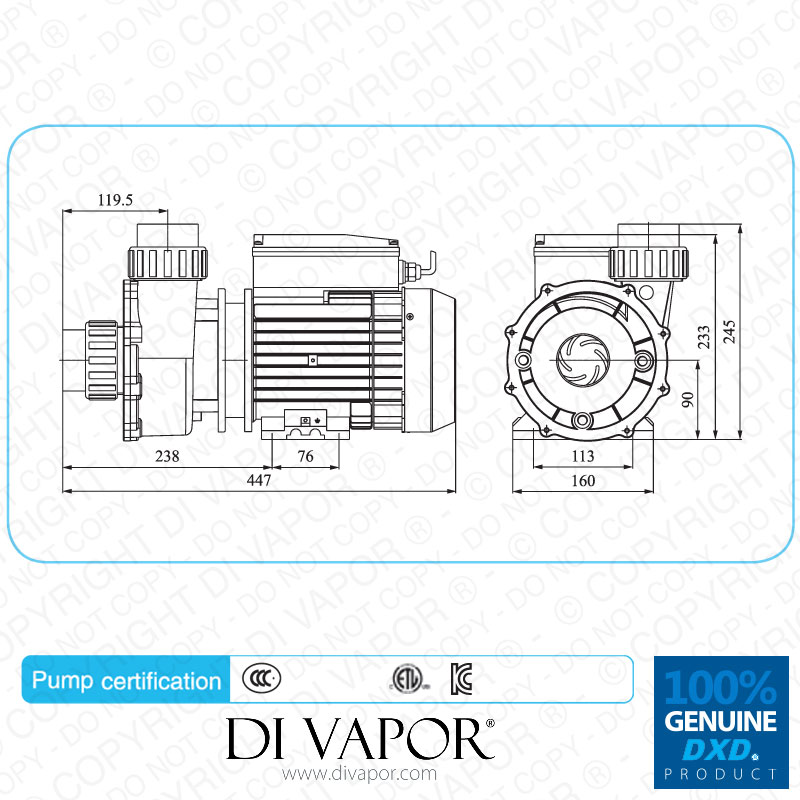

Diameter of the Female Pump Union Connector That Connects to the Water Pump: 55.5mm / 2.185" inches (2 and 3/16" inches)

Diameter of the Two Threaded Connectors on the Pump: 62.5mm / 2.46" inches (2 and 29/64" inches)

Horse Power (HP): 2.0 HP and 0.5 HP
Power: 1.5 kW (or 1500 watts)
Volts: 230V / 50 Hz
Protection Grade: IP 55

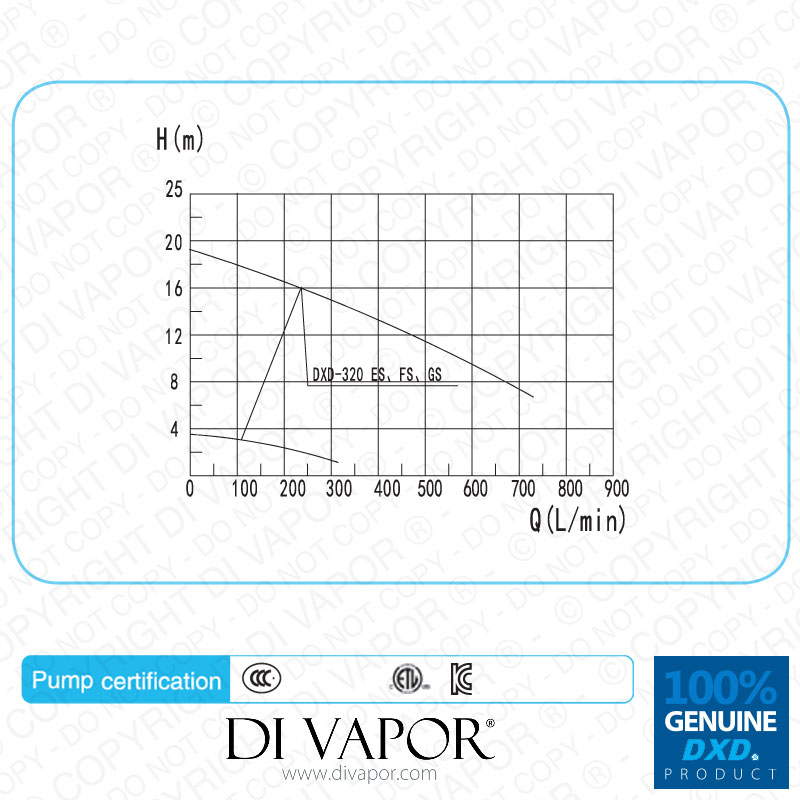

Maximum Lift (i.e. the maximum height the pump can pump water to): 19.0m (for the 2.0HP Setting), 3.0m (for the 0.5HP setting)
Impeller Rotation Speed (RPM): 2850 (for the 2.0HP Setting), 1450 (for the 0.5HP setting)
Maximum Water Flow (Litres Per Minute): 733 for the 2.0HP Setting), 317 (for the 0.5HP setting)
Insulation Class: B
Gross Weight: 20.0 kg
Pump Union Connector: 2 1/2" inch to 2" inch connector (click here to see further information on this pump union)

Can be used in a swimming pool as well as a spa.

We deliver the DXD 320 ES pump worldwide.
