DXD 315A 1.10kW 1.5HP 4.0-5.0A Water Pump for Hot Tub | Spa | Whirlpool Bath
Send a photo of your item and we'll help confirm it.
Summary

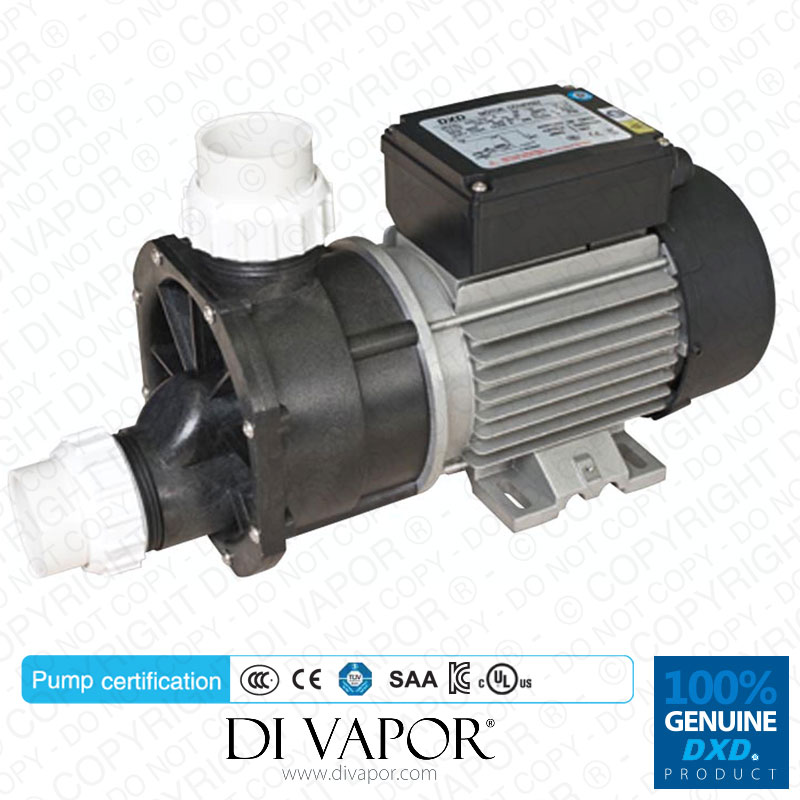

This is a DXD 315 A pump which is used on hot tubs, pools and whirlpool baths. This is a suitable replacement for DXD model 310A pumps.
The pump comes with two white union connectors (measurements below), which can be seen in product images.

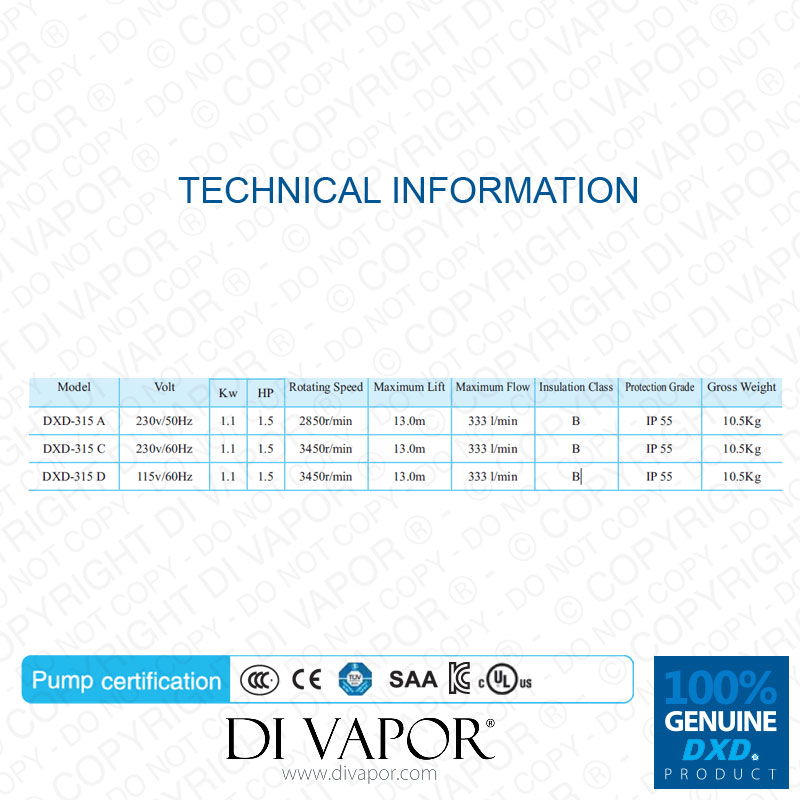

DXD 315 A Technical Information

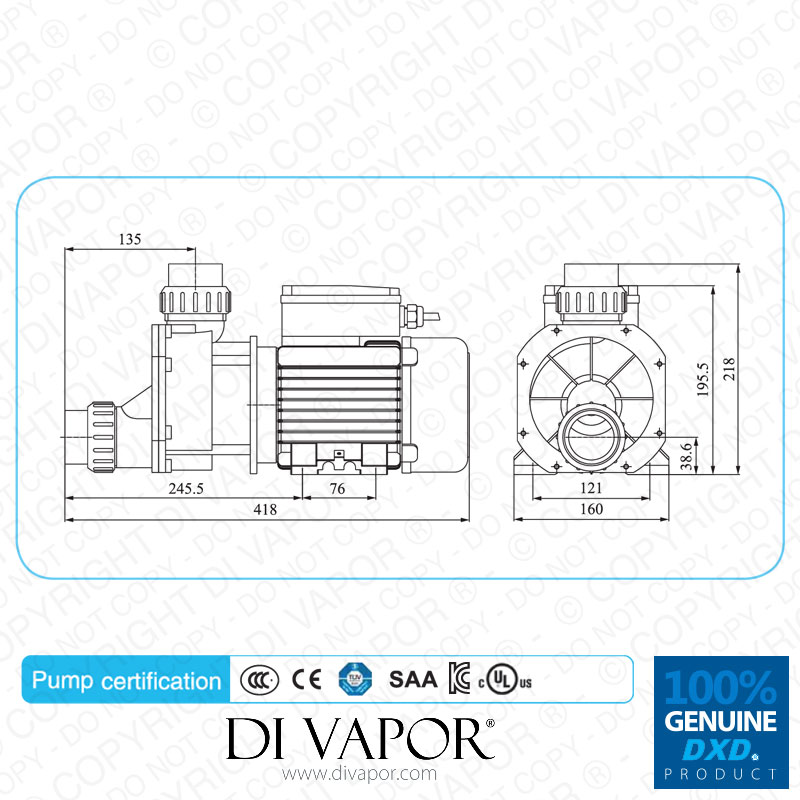

Diameter of the Female Pump Union Connector That Connects to the Water Pump: 55.5mm / 2.185" inches (2 and 3/16" inches)
Diameter of the Two Threaded Connectors on the Pump: 62.5mm / 2.46" inches (2 and 29/64" inches)
| Horse Power (HP) | 1.5 HP |
|---|---|
| Amps (A) | 4.0 to 5.0 Amps |
| Power | 1.1 kW (or 1100 watts) |
| Volts | 230V / 50 Hz |
| Protection Grade | IP 55 |
Maximum Lift (i.e. the maximum height the pump can pump water to): 12.0m
| Impeller Rotation Speed (RPM) | 2850 |
|---|---|
| Maximum Water Flow (Litres Per Minute) | 342 |
| Insulation Class | B |
| Gross Weight | 9.6 kg |
| Pump Union Connector | 2 1/2" inch to 2" inch connector (click here to see further information on this pump union) |
Can be used in a swimming pool as well as a spa.
We deliver the DXD 315 A pump worldwide.
