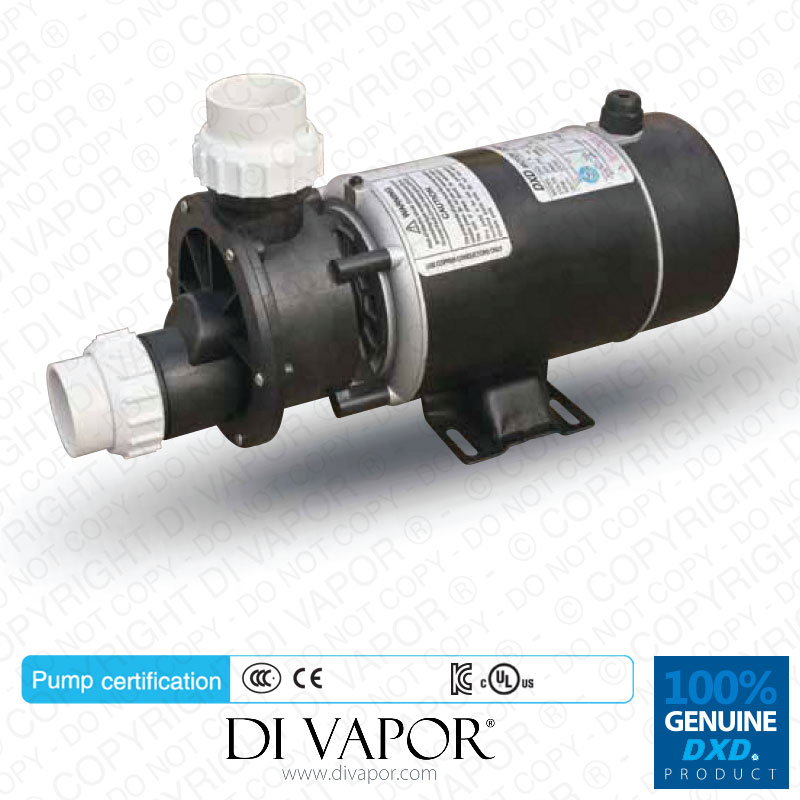

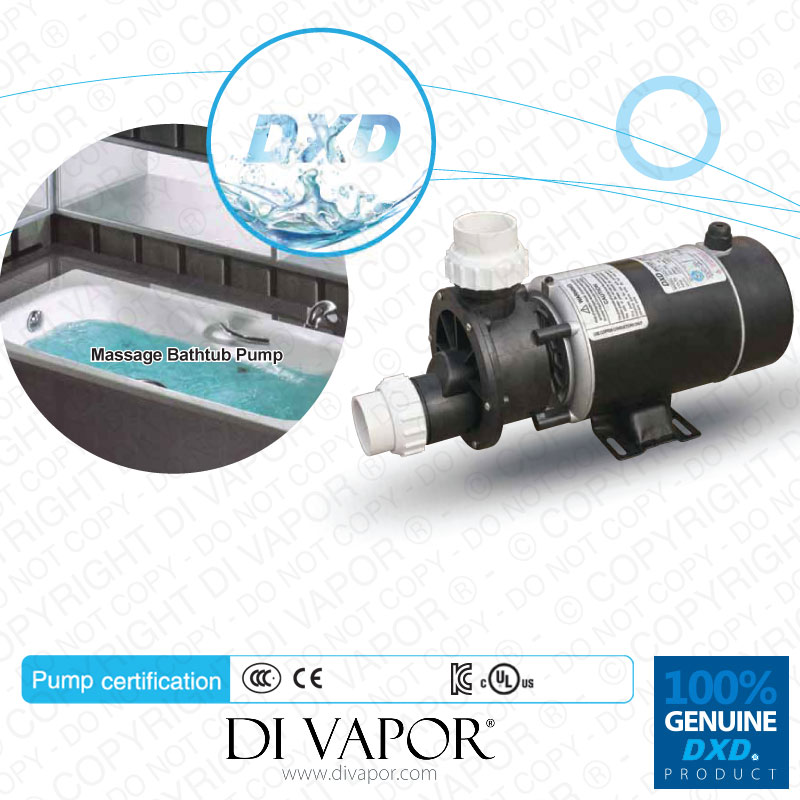

This is a DXD 1 A motor water pump which is used on hot tubs, pools and whirlpool baths. This is a suitable replacement for DXD model 1 A pumps.
The pump comes with two white union connectors (measurements below), which can be seen in product images.

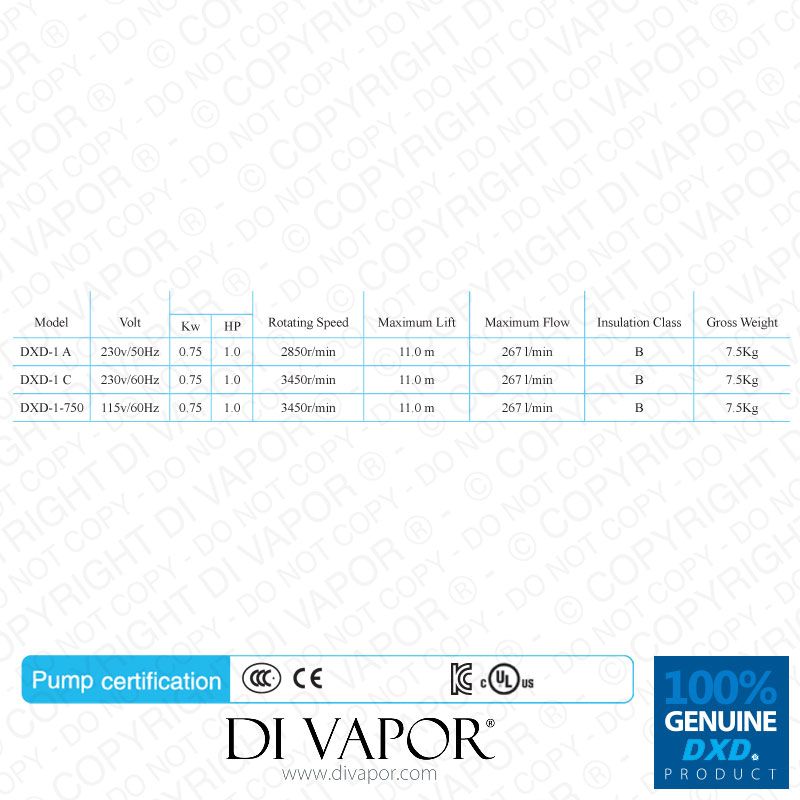

DXD 1 A Technical Information

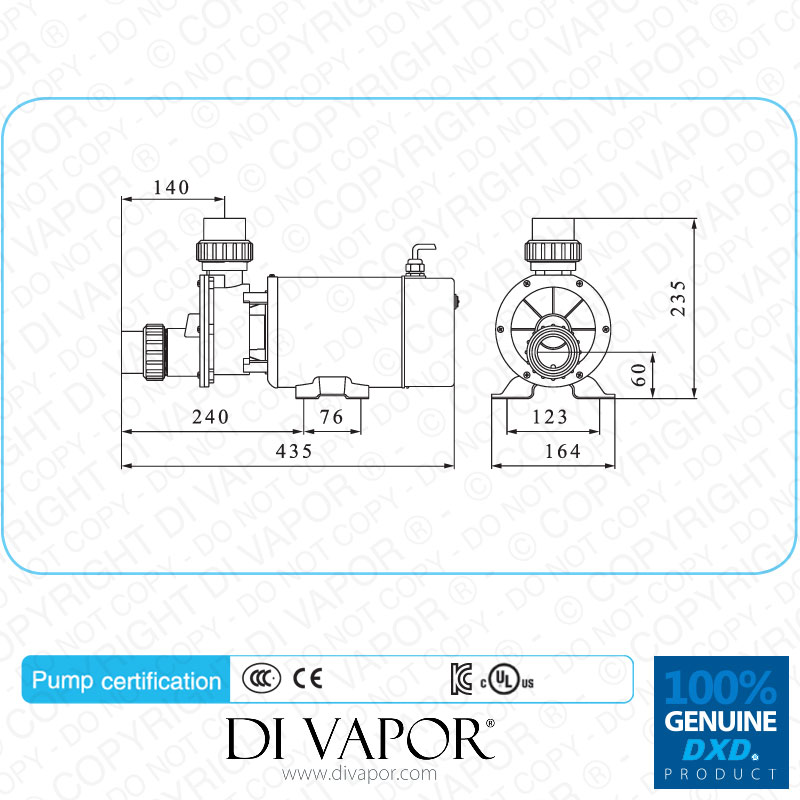

Diameter of the Female Pump Union Connector That Connects to the Water Pump: 55.5mm / 2.185" inches (2 and 3/16" inches)
Diameter of the Two Threaded Connectors on the Pump: 62.5mm / 2.46" inches (2 and 29/64" inches)
Horse Power (HP): 1.0 HP
Power: 0.75 kW (or 750 watts)
Volts: 230V / 50 Hz
Protection Grade: IP 55

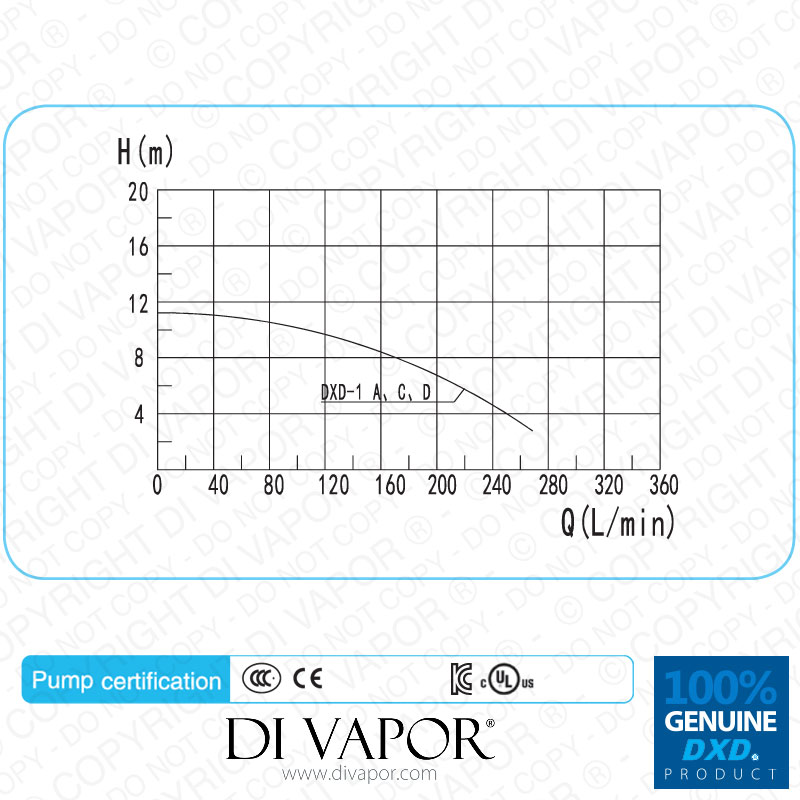

Maximum Lift (i.e. the maximum height the pump can pump water to): 11.0 metres
Impeller Rotation Speed (RPM): 2850
Maximum Water Flow (Litres Per Minute): 267
Insulation Class: B
Gross Weight: 7.5 kg
Pump Union Connector: 2 1/2" inch to 2" inch connector (click here to see further information on this pump union)
Can be used in a swimming pool as well as a spa.
We deliver the DXD 1 A pump worldwide.
