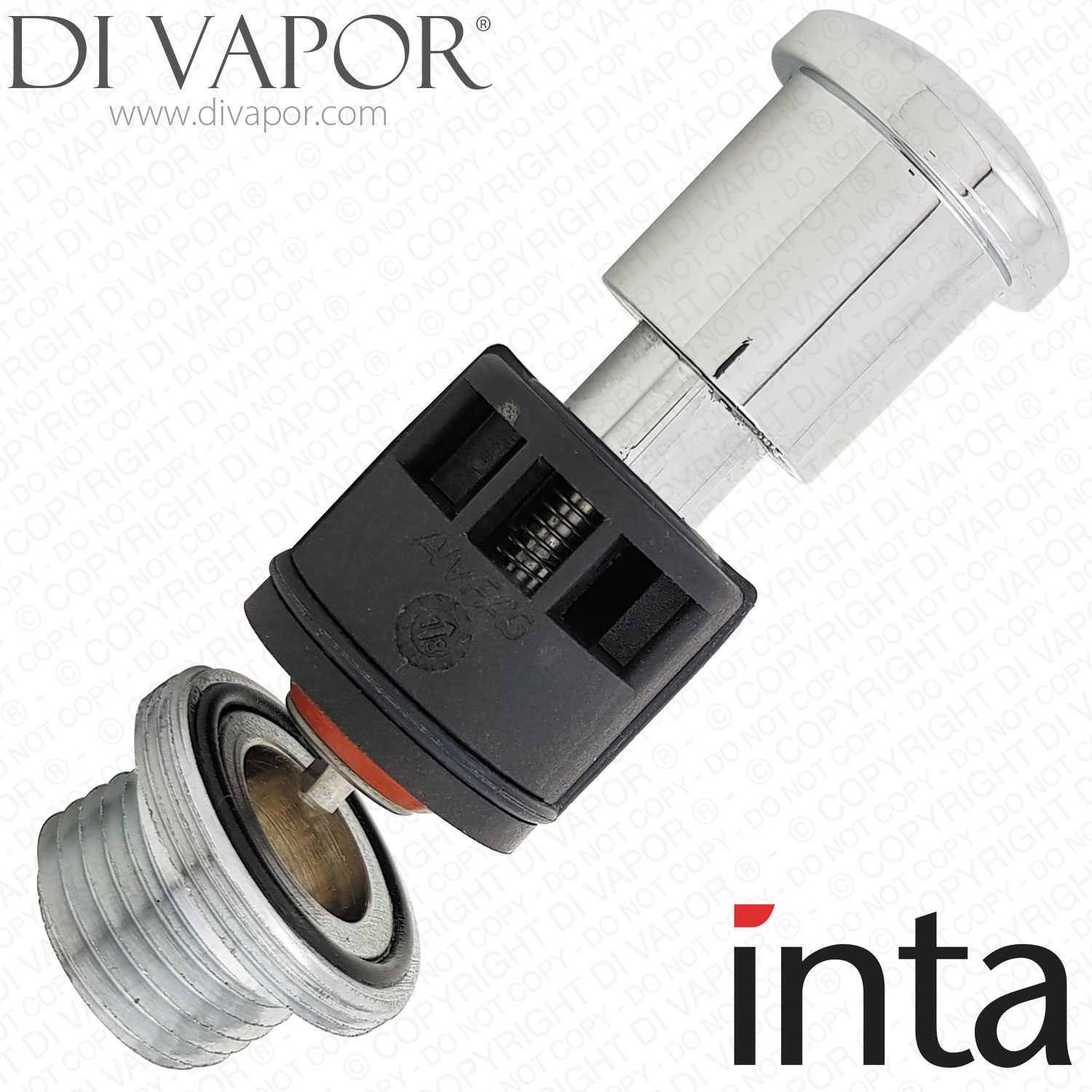

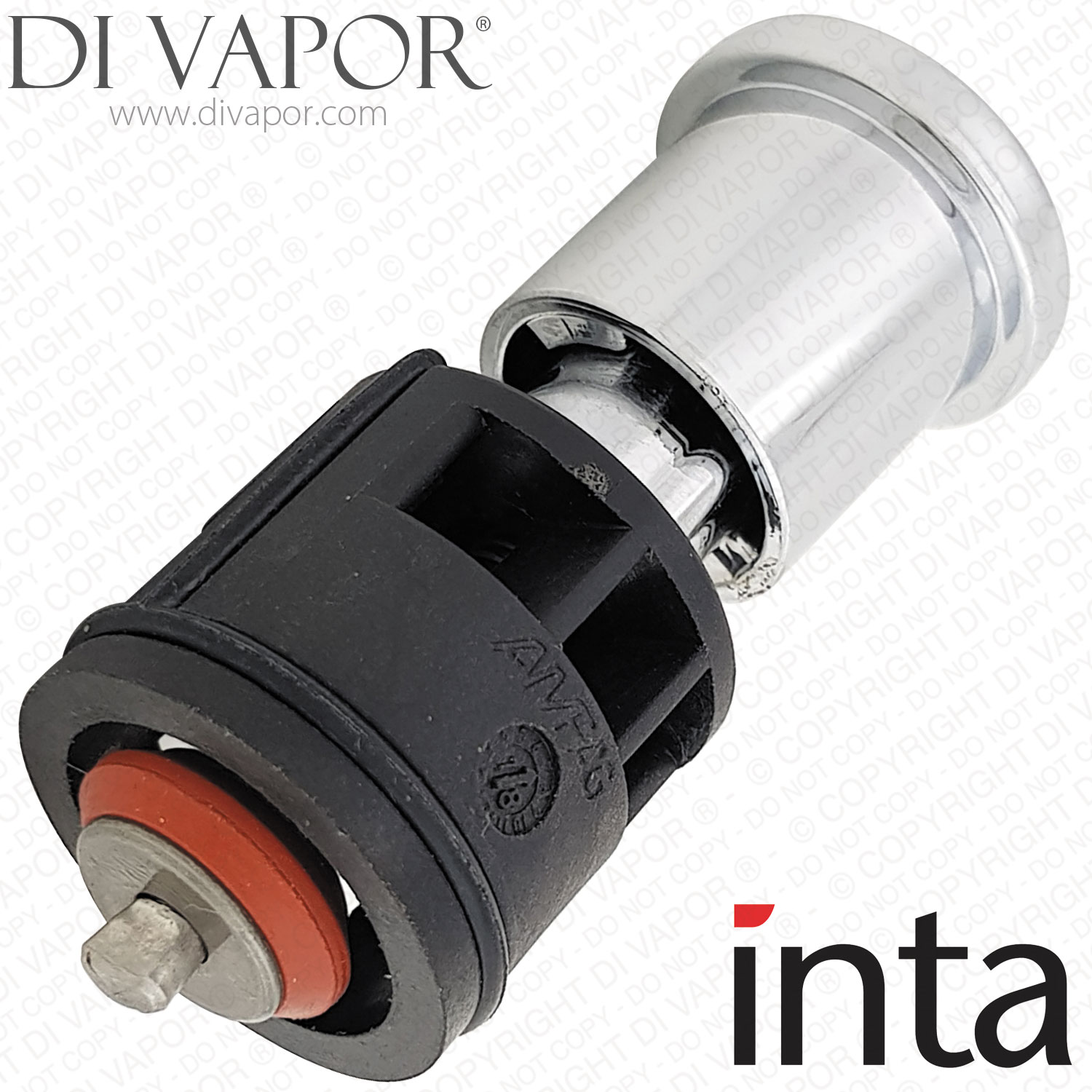

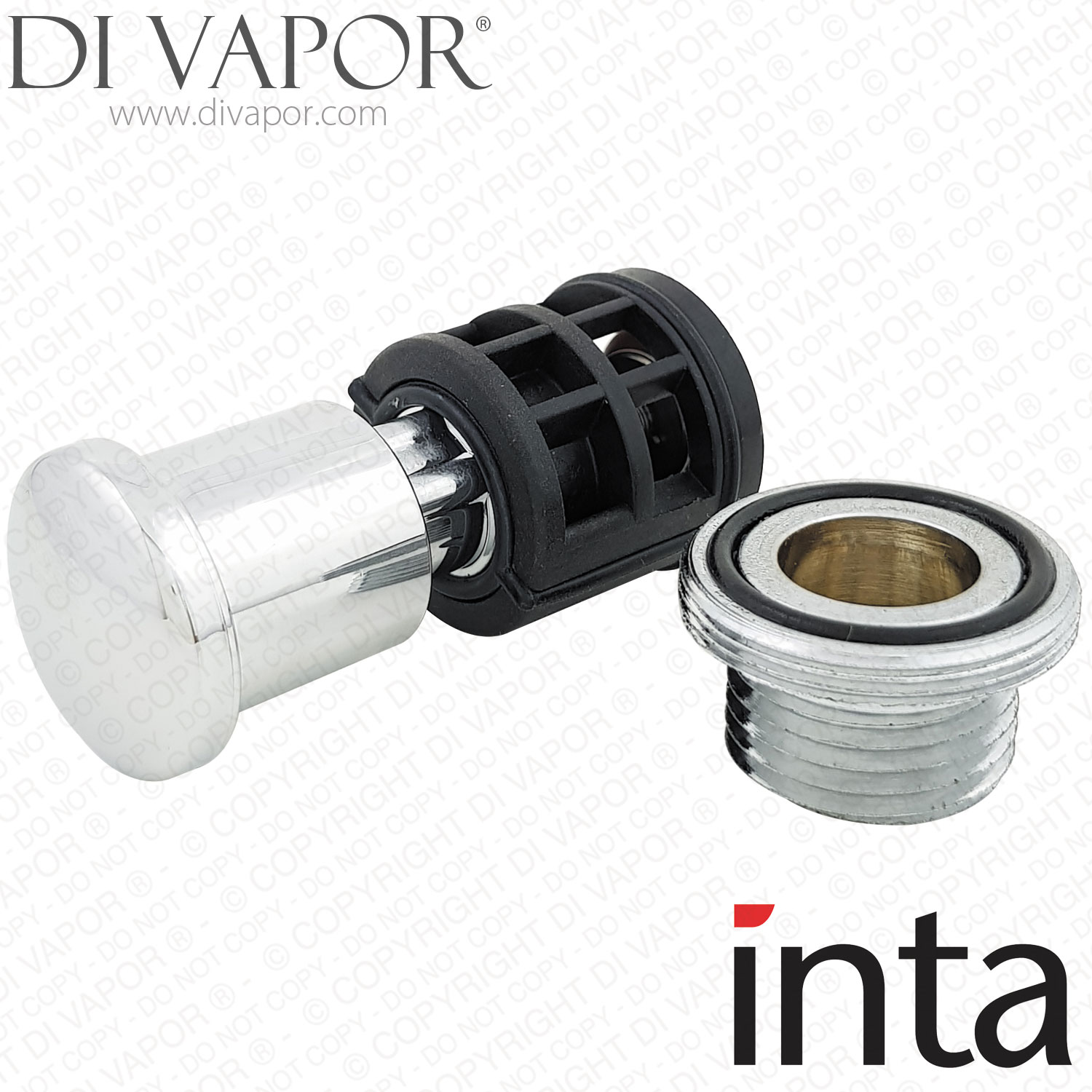

INTA 05GD03CP Bath Diverter Cartridge in Chrome (05.GD.03.CR)

SUMMARY

The INTA 05GD03CP is a chrome bath shower mixer diverter cartridge assembly used to control outlet selection on selected Inta thermostatic bath shower mixer valves. It is also shown with the code variant 05.GD.03.CR and the Di Vapor Part Number IN-05GD03CP.

This diverter assembly directs mixed water between the bath outlet and the shower outlet. It should be checked when the bath shower mixer no longer diverts cleanly, passes water from the unselected outlet, has a loose or unreliable diverter action, or continues to drip from the shower head or bath spout after shut-off where the diverter is no longer sealing correctly.

Technical Details

- - Part code: 05GD03CP

- - Code variant shown: 05.GD.03.CR

- - Di Vapor Part Number: IN-05GD03CP

- - Part type: bath shower mixer diverter cartridge assembly

- - Finish: chrome

- - Function: diverts mixed water between bath and shower outlets on the matching thermostatic bath shower mixer

- - No verified cartridge dimensions are published for this product so match by part code and mixer model before ordering

Confirmed Compatible Models

- - Inta 910000CP Ion Thermostatic Bath Shower Mixer Spare Parts

- - Inta TL30014CP Telo Thermostatic Bath Shower Mixer with Flexible Slide Rail Kit Spare Parts

- - Inta TL30010CP Telo Thermostatic Bath Shower Mixer Wall Mounted Spare Parts

Before You Order Check

- - Confirm the original part code 05GD03CP or 05.GD.03.CR against the diverter removed from the mixer or the spare-parts diagram before ordering

- - Check that the issue is with the diverter outlet selection rather than the thermostatic cartridge or flow cartridge

- - Isolate the hot and cold supplies before removal and use suitable silicone grease on diverter O-rings and bottom seals during installation

Related Spares You May Need

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved

- - Inta 10017 Thermostatic Cartridge for Ion | Mio | Deluge | Optimo Thermostatic Bar

- - Inta VT.01 Flow Cartridge
