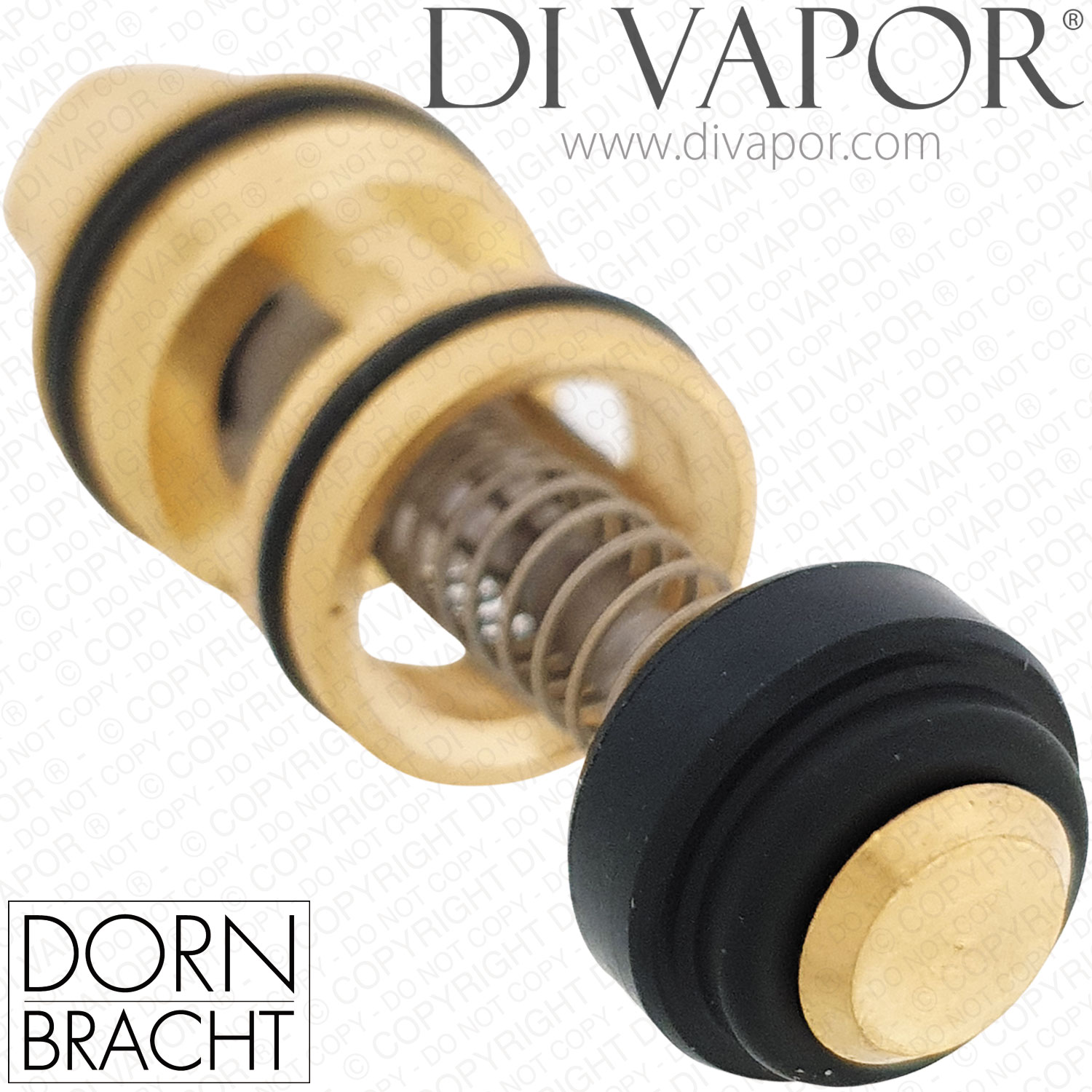

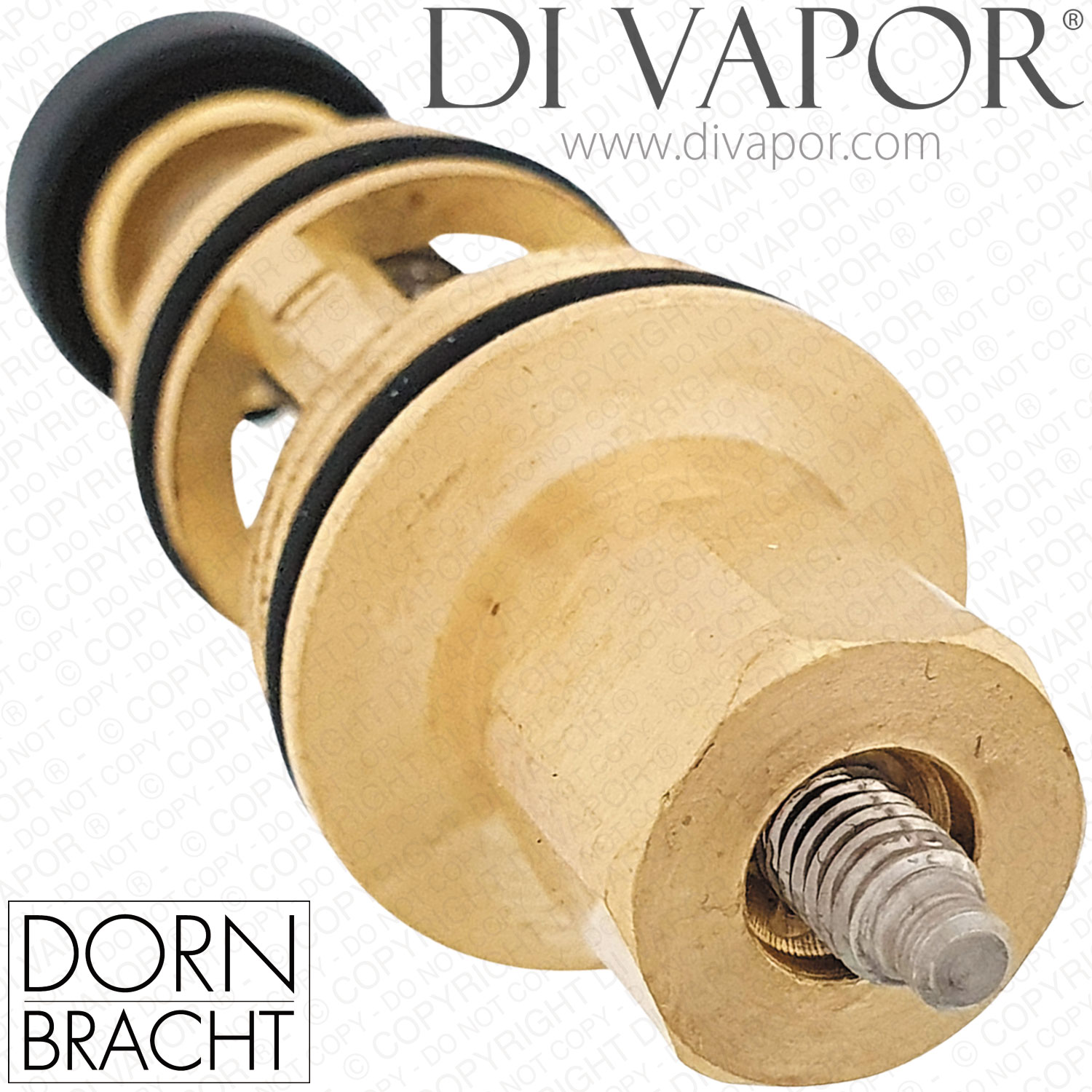

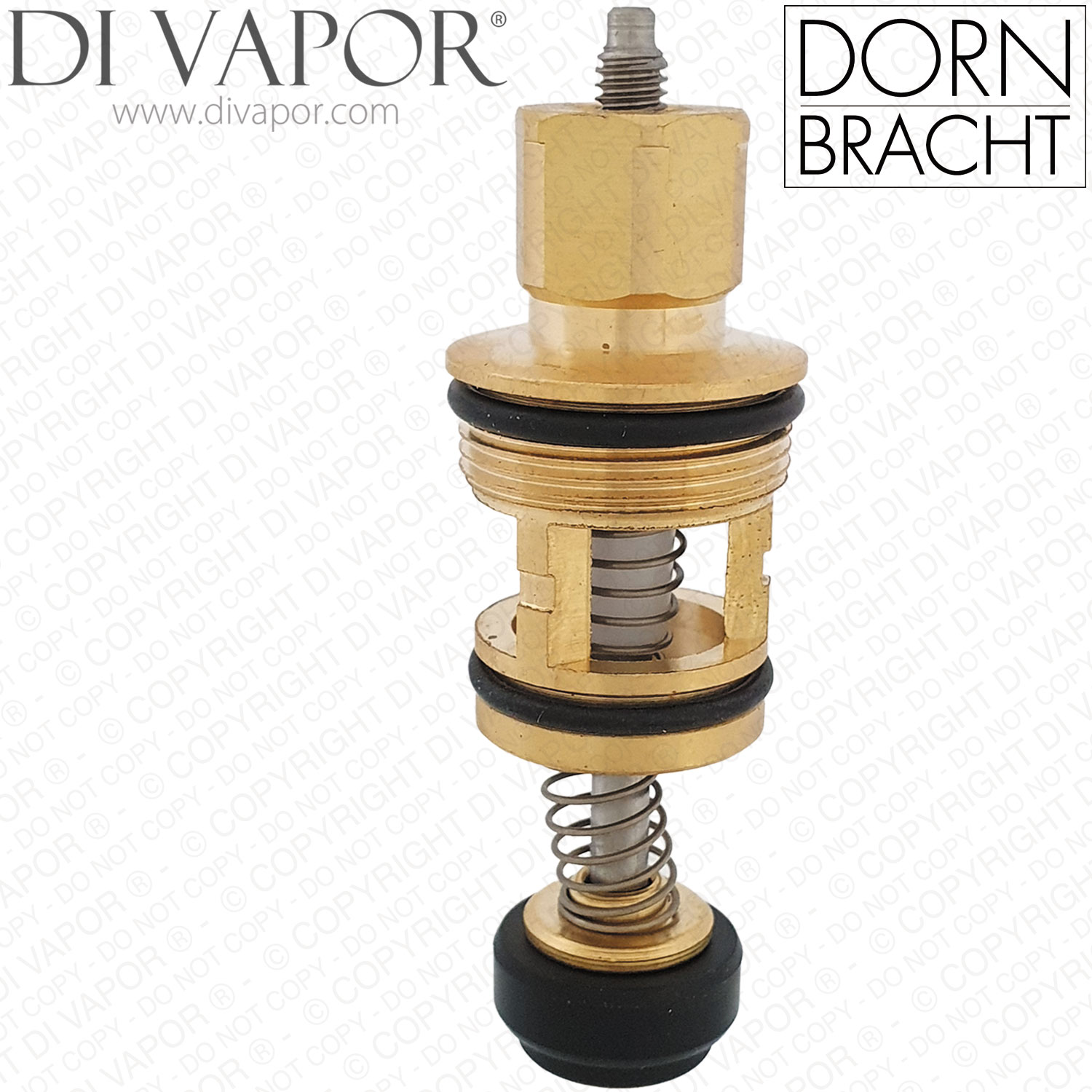

Dornbracht 9021340810090 Diverter
SUMMARY
Dornbracht 9021340810090 is a diverter used in selected Dornbracht concealed single-lever bath and shower mixer assemblies. The manufacturer parts format is also shown as 90 21 34 081 00 90.
This diverter controls outlet selection on mixer valves with more than one outlet. Check this part when the valve no longer transfers cleanly between outlets, when the diverter control is stiff, or when water leaks between the bath and shower outlets.
Technical Details
- - Total length: 62.44mm
- - Thread diameter: 18.8mm
- - Top thread diameter for knob: 4mm
- - Di Vapor Part Number: 9021340810090
- - Manufacturer code format: 90 21 34 081 00 90
Pre-Order Check
Compare the old diverter code, overall length, thread diameter and knob thread before ordering. Do not order from one measurement alone because Dornbracht concealed mixers and pressure balance valves use several different diverter and cartridge assemblies.
Confirmed Compatible Models
Dornbracht TARA / META 36 120 660 concealed single-lever mixer with diverter family
- - Dornbracht Series Specific Concealed Single-Lever Mixer with Diverter - Matte Black 36 120 660-33
Dornbracht IMO / Series Specific 36 120 670 concealed single-lever mixer with diverter family
- - Dornbracht Series Specific Concealed Single-Lever Mixer with Diverter - Platinum 36 120 670-08
Dornbracht VAIA 36 120 809 concealed single-lever mixer with diverter family
- - Dornbracht Vaia Concealed Single-Lever Mixer with Diverter - Brushed Platinum 36 120 809-06
- - Dornbracht Vaia Concealed Single-Lever Mixer with Diverter - Platinum 36 120 809-08
- - Dornbracht Vaia Concealed Single-Lever Mixer with Diverter - Brushed Dark Platinum 36 120 809-99
Dornbracht LISSE 36 120 845 concealed single-lever mixer with diverter family
- - Dornbracht LISSE Concealed Single-Lever Mixer with Diverter - Brushed Platinum 36 120 845-06
- - Dornbracht LISSE Concealed Single-Lever Mixer with Diverter - Matte Black 36 120 845-33
- - Dornbracht Series Specific 36 915 660 pressure balance valve with diverter family
- - Dornbracht Series Specific 36 915 670 pressure balance valve with diverter family
- - Dornbracht VAIA 36 915 809 pressure balance valve with diverter family
- - Dornbracht YAMOU 36 915 831 pressure balance valve family
- - Dornbracht YARRE 36 915 832 pressure balance valve family
- - Dornbracht LISSE 36 915 845 pressure balance valve with diverter family
- - Dornbracht YARRE 36 120 832 concealed single-lever mixer with diverter family
- - Dornbracht CL.1 25 963 979 single-lever bath mixer with cascade spout for free-standing assembly with hand shower set family
Fitting Note
Use a suitable silicone grease on the diverter cartridge o-rings and bottom seals during installation. Recheck the valve body for scale, debris or damaged seals before fitting the new diverter.
Related Spares You May Need
- - Dornbracht 9015050390090 40mm Lever Cartridge
- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
