GROHE 38736000 Dual Flush Valve Set
Send a photo of your item and we'll help confirm it.
Summary

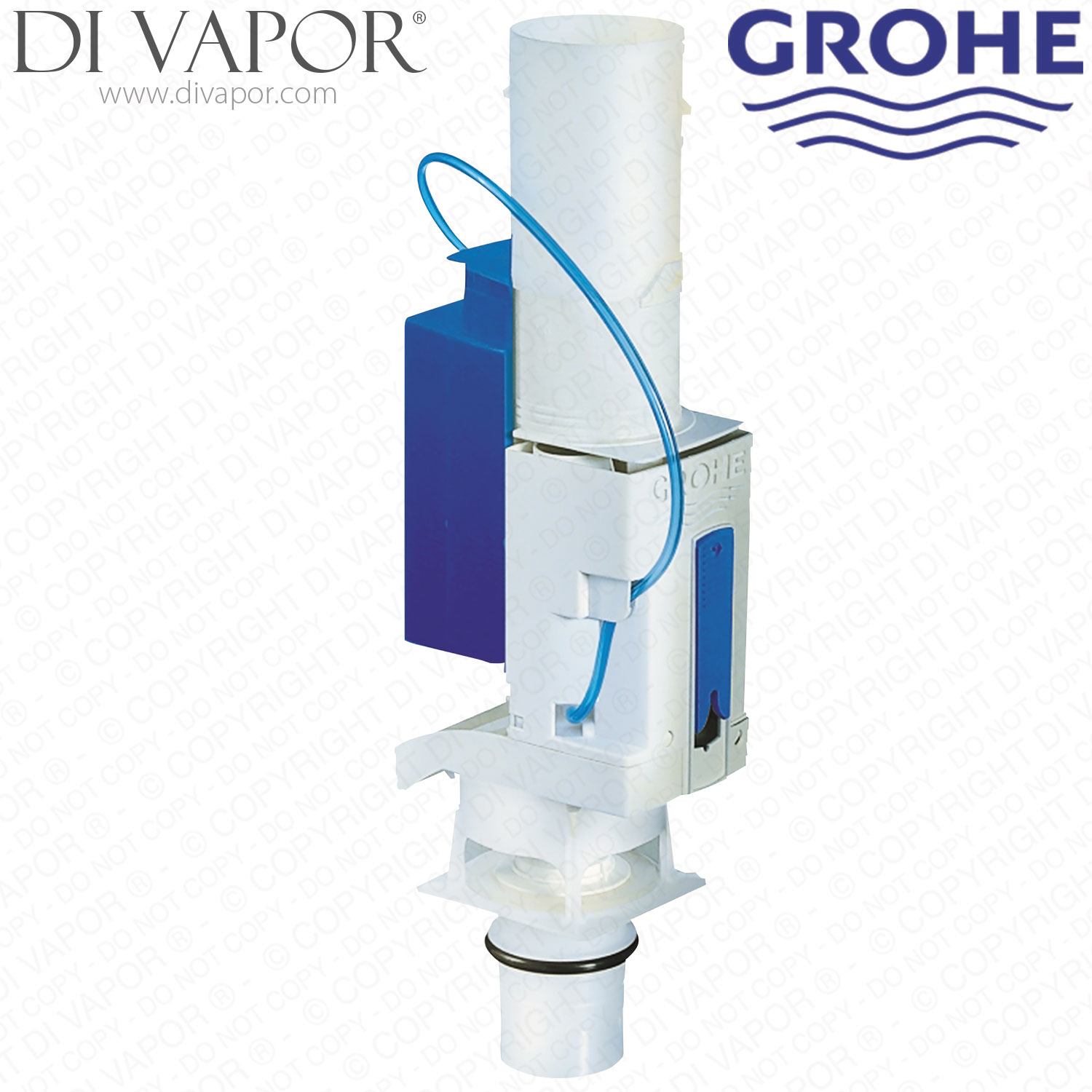

The GROHE 38736000 dual flush valve set is a toilet cistern spare used in GROHE concealed cistern flushing systems. It is the GROHE 38 736 000 retro-fit dual flush set for GD 2 cistern applications and includes the AV1 dual flush discharge valve and valve seat.
This valve set controls the cistern flush release and helps restore correct dual flush operation where the existing flush valve is worn, damaged or no longer sealing correctly. Common symptoms of a faulty flush valve can include weak flushing, inconsistent dual flush operation or water passing into the toilet pan after the flush has finished.
Technical Details
| Brand | GROHE |
|---|---|
| Main code | 38736000 |
| Code variant | 38 736 000 |
| Part Number | GR-38736000 |
| Part type | dual flush valve set / retro-fit dual flush set |
| Valve type | AV1 dual flush discharge valve |
| Flush volume | 6 - 9 litres adjustable |

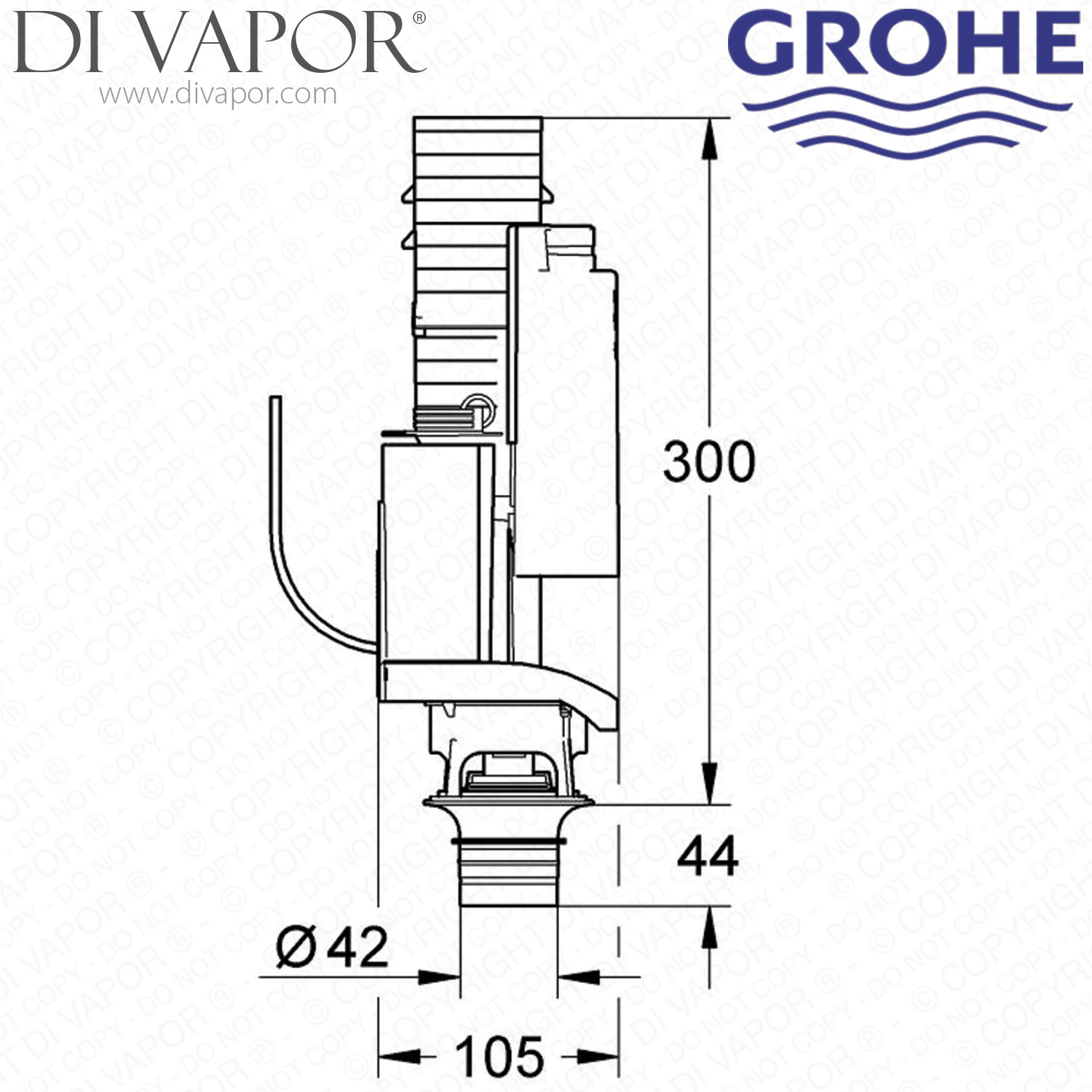

| Approximate valve height shown on GROHE drawing | 300mm |
| Outlet shown on GROHE drawing | Ø42mm |
| Includes | dual flush discharge valve AV1 and valve seat |
| Does not include | wall plate or actuation plate |
Confirmed Compatible Models
- GROHE GD 2 flushing cistern
- GROHE Flushing Cistern GD 2 38661000 / 38 661 000
- GROHE Rapid SL WC Cistern 38528000 / Rapid SL 38528
Before You Order Check
Check the cistern model, existing valve shape and GROHE code before ordering. This part should not be selected by diameter or height alone, as cistern generation and actuation type can affect the correct spare required.
