Grohe 32836000 Eurosmart Cosmopolitan Single-Lever Bath Mixer (1/​2 Inch) Spare Parts

SUMMARY

Spares for Grohe 32836000 Eurosmart Cosmopolitan Single-Lever Bath Shower Mixer

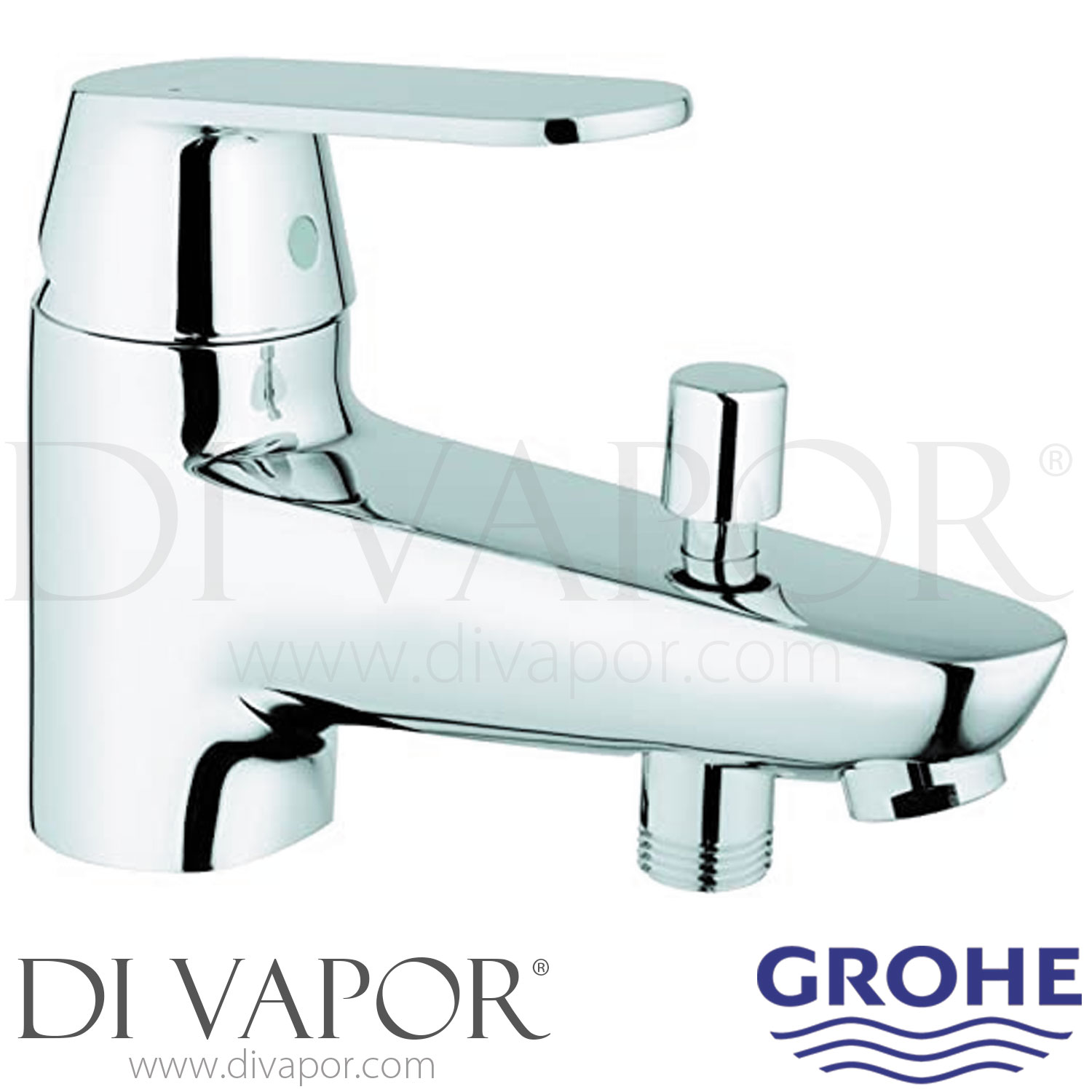

GROHE 32836000 is a Eurosmart Cosmopolitan single-lever bath shower mixer for single-hole deck installation. The chrome mixer controls mixed hot and cold water to the bath spout and shower outlet and uses an automatic bath/shower diverter.

The mixer uses a 46 mm ceramic mixer cartridge, GROHE code 46588000, together with a separate diverter mechanism. When servicing 32836000, identify whether the fault is with the main mixing cartridge, diverter, diverter control knob or shower-outlet non-return valve before ordering parts.

Technical Details

- - Range: Grohe Eurosmart Cosmopolitan

- - Category: Bath shower mixer

- - Model code: 32836000

- - EAN: 4005176874758

- - Finish: Chrome

- - Installation: Single-hole deck-mounted

- - Main cartridge: 46 mm ceramic cartridge - GROHE 46588000

- - Diverter: Automatic bath/shower diverter

- - Shower outlet: G1/2 with integrated non-return valve

- - Supply hose connections: G3/8

- - Bath spout projection: 146 mm

- - Shower outlet centre projection: 106 mm

- - Mounting hole: 34 mm diameter

- - Maximum mounting surface thickness: 30 mm

- - Flexible connection hose length: 450 mm

Before You Order Check

Confirm the mixer model number is 32836000 and identify the faulty service position before ordering. The main mixer cartridge specified for this model is GROHE 46588000; cartridge diameter alone should not be used to identify the correct part. A diverter fault can affect switching between the bath spout and shower outlet, while a worn non-return valve can affect backflow protection at the shower connection.
