Grohe 32833000 Eurosmart Cosmopolitan Single-Lever Bath Mixer (1/​2 Inch) Spare Parts

SUMMARY

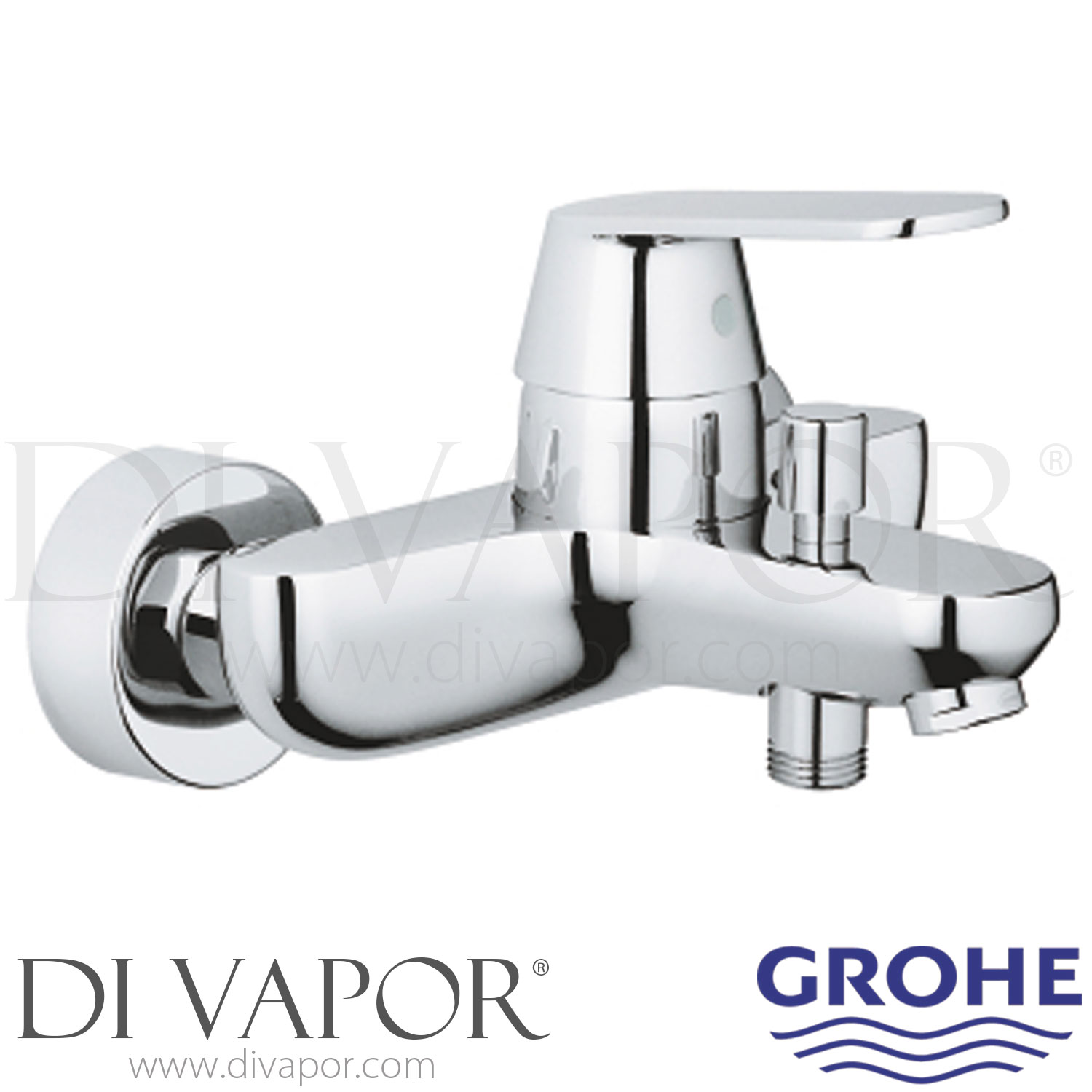

Grohe spares for the Grohe 32833000 Eurosmart Cosmopolitan single-lever bath shower mixer, a wall-mounted 1/2 inch mixer with a chrome finish. The mixer uses a single metal lever to control water flow and temperature, together with an automatic diverter for switching between the bath outlet and shower connection.

The mixer uses the Grohe SilkMove 46588000 46 mm ceramic cartridge for flow and temperature control. When the mixer is shut off, the diverter arrangement returns the outlet selection to the bath position. The shower connection incorporates a non-return valve to help protect against backflow.

Technical Details

- - Brand: Grohe.

- - Range: Grohe Eurosmart Cosmopolitan.

- - Category: Bath shower mixer.

- - Model code: 32833000.

- - Installation: Wall-mounted exposed mixer.

- - Finish: Chrome.

- - Control: Single lever.

- - Main ceramic cartridge: 46588000.

- - Cartridge diameter: 46 mm.

- - Bath and shower selection: Automatic diverter.

- - Connection centres: 150 mm, with +/-15 mm adjustment.

- - Wall connections: G1/2.

- - Shower outlet: G1/2.

- - Escutcheon diameter: 70 mm.

- - Approximate projection: 163 mm.

- - Approximate height: 138 mm.

- - Outlet angle: 20 degrees.

- - Minimum flow pressure: 0.5 bar.

- - Recommended flow pressure: 1 to 5 bar.

- - Maximum operating pressure: 10 bar.

- - Approximate bath flow rate at 3 bar: 20 l/min.

- - Approximate shower flow rate at 3 bar: 18 l/min.

- - Maximum hot water temperature: 80 degrees C.

- - Recommended hot water temperature: 60 degrees C.

Before you order check

Confirm that the mixer code is 32833000 before selecting replacement Grohe spares. The main ceramic cartridge specified for this mixer is 46588000. The model-specific diverter knob is 64309000, and it should not be confused with visually similar Grohe diverter controls used on other mixers.
