Grohe 32831000 Eurosmart Cosmopolitan Single-Lever Bath Mixer (1/2 Inch) Spare Parts
Send a photo of your item and we'll help confirm it.
Summary
Grohe Spares for 32831000 Eurosmart Cosmopolitan Bath Shower Mixer

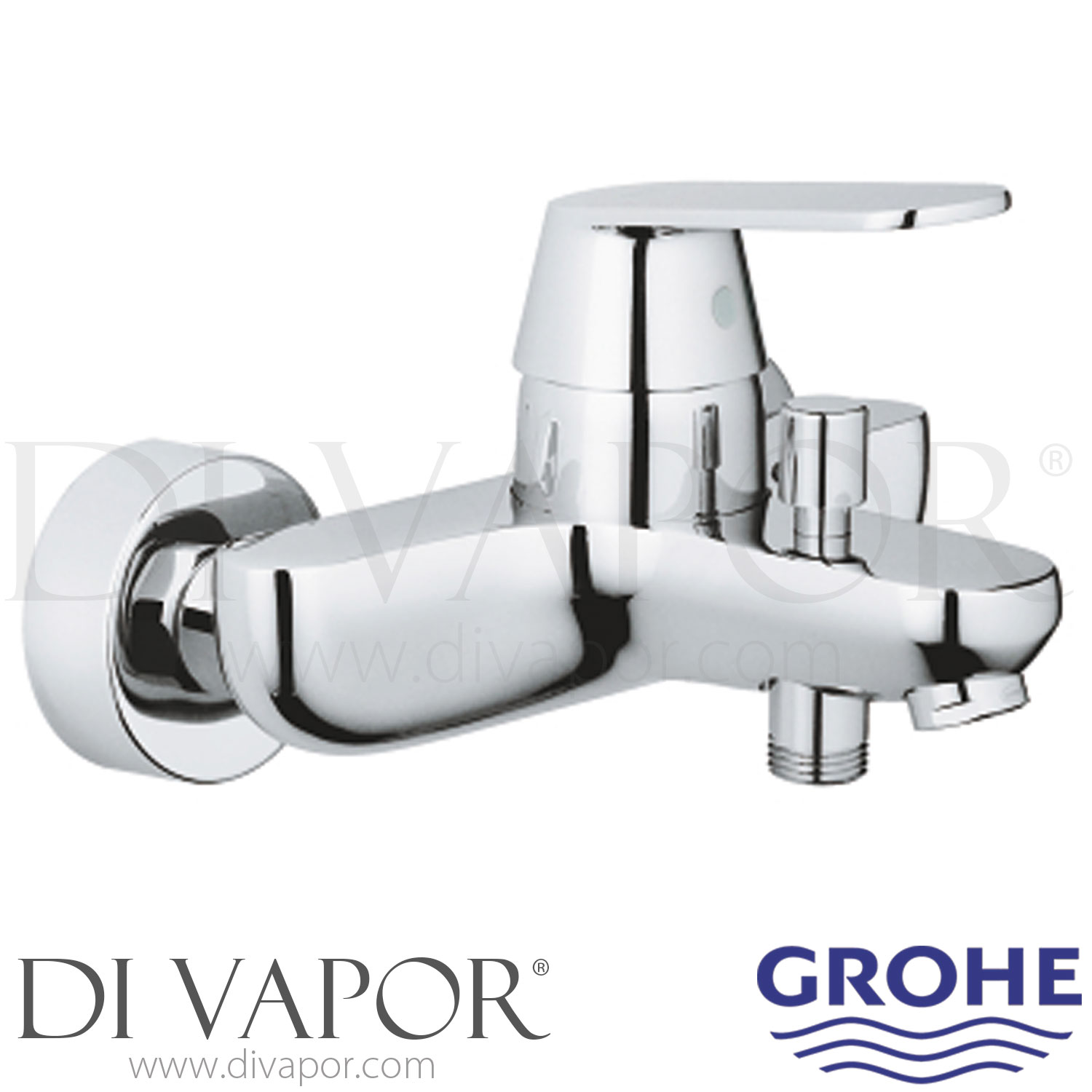

GROHE 32831000 Eurosmart Cosmopolitan is a wall-mounted single-lever bath shower mixer in chrome with a 1/2 inch shower outlet. The mixer controls water flow and temperature through a single lever and uses an automatic diverter to switch the mixed water supply between the bath outlet and shower connection.

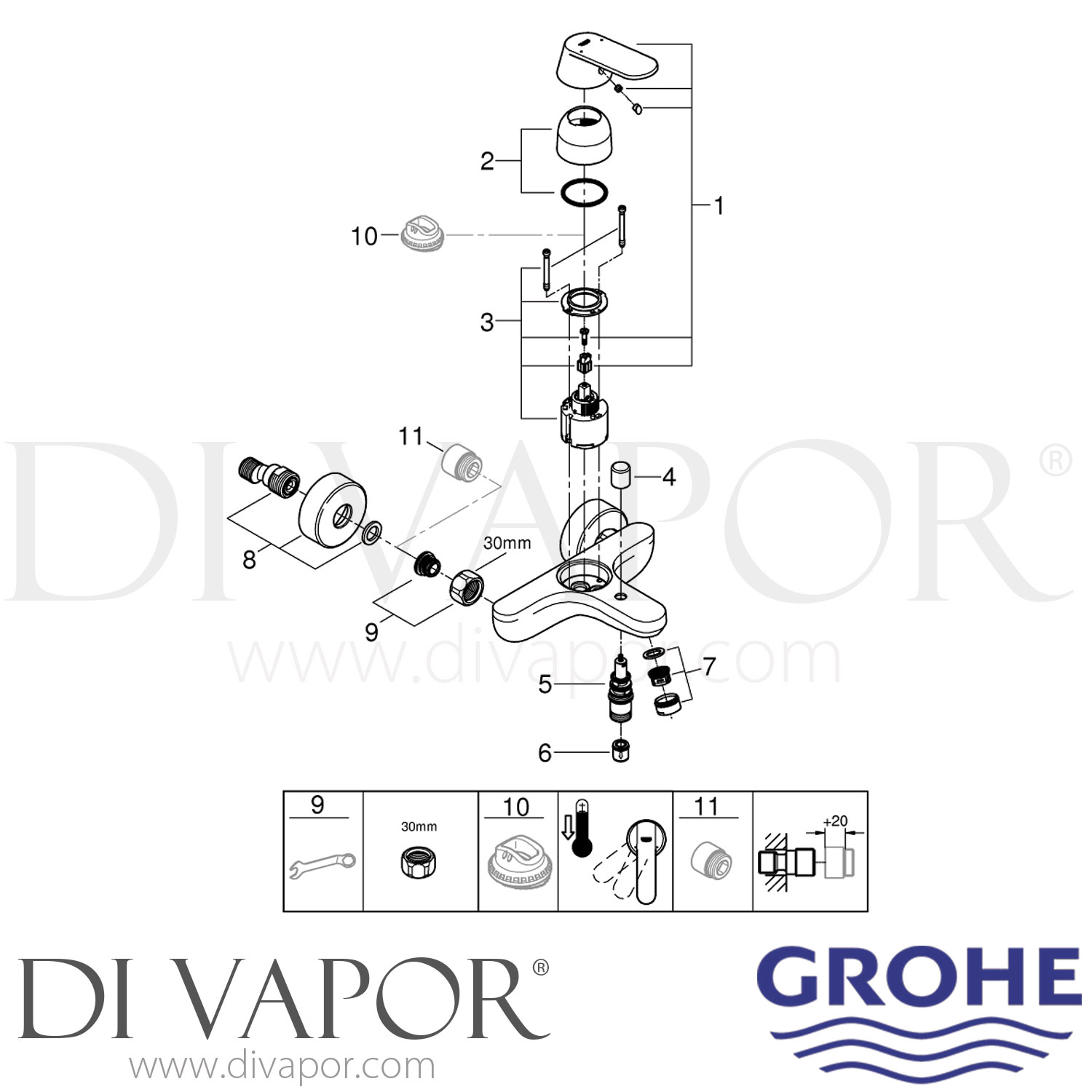

The mixer uses a 46 mm ceramic cartridge for flow and temperature control. Serviceable components include the main cartridge, diverter mechanism, diverter control knob and non-return valve. Common service symptoms can include dripping or poor shut-off from cartridge wear and incomplete switching between the bath and shower outlets when the diverter mechanism is worn.
Technical Details
| Range | Grohe Eurosmart Cosmopolitan |
|---|---|
| Category | Bath shower mixer |
| Article number | 32831000 |
| EAN | 4005176874703 |
| Installation | Wall-mounted exposed mixer |
| Operation | Single lever |
| Finish | Chrome |
| Cartridge | 46 mm ceramic cartridge |
| Diverter | Automatic bath/shower diverter |
| Shower connection | G 1/2 inch |
| Supply connections | G 1/2 inch via S-unions |
| Supply centres | 150 mm nominal with 15 mm adjustment |
| Overall projection | 163 mm |
| Wall to shower outlet centre | 124 mm |
| Escutcheon diameter | 70 mm |
| Outlet angle | 20 degrees |
| Bath outlet | Mousseur |
| Backflow protection | Integrated non-return valve at the shower outlet |
- Adjustable flow-rate limiter with minimum flow adjustable to approximately 2.5 l/min
Before you order check
Check the mixer article number and identify the component causing the fault before ordering. The 32831000 uses separate service parts for the ceramic mixing cartridge and the bath/shower diverter, so symptoms at the lever and symptoms when changing outlets can require different components.
GROHE 46048000 GRO46048 46mm SilkMove Ceramic Cartridge for Single-Lever MixersGROHE 46048000 is a 46mm GROHE SilkMove ceramic cartridge used to control water flow and temperature in selected single-lever bath, shower, basin, sink, kitchen and concealed mixers. It is also referen...
GROHE 65655000 Automatic Bath and Shower Diverter Cartridge ChromeThe GROHE 65655000 is a chrome automatic diverter cartridge used within selected single-lever bath mixers, thermostatic bath mixers, floor-mounted bath fillers and bath/shower systems. It directs mixed water betwee...
Grohe 08565000 Non-Return Valve for Selected Mixers and Shower SystemsGROHE 08565000 is a non-return valve used in selected GROHE mixers, shower systems, shower outlets and pull-out spray assemblies. The valve allows water to pass in the intended direction while helping to preven...
