Grohe 32700001 Concetto Single-Lever Bath Shower Mixer Spare Parts

SUMMARY

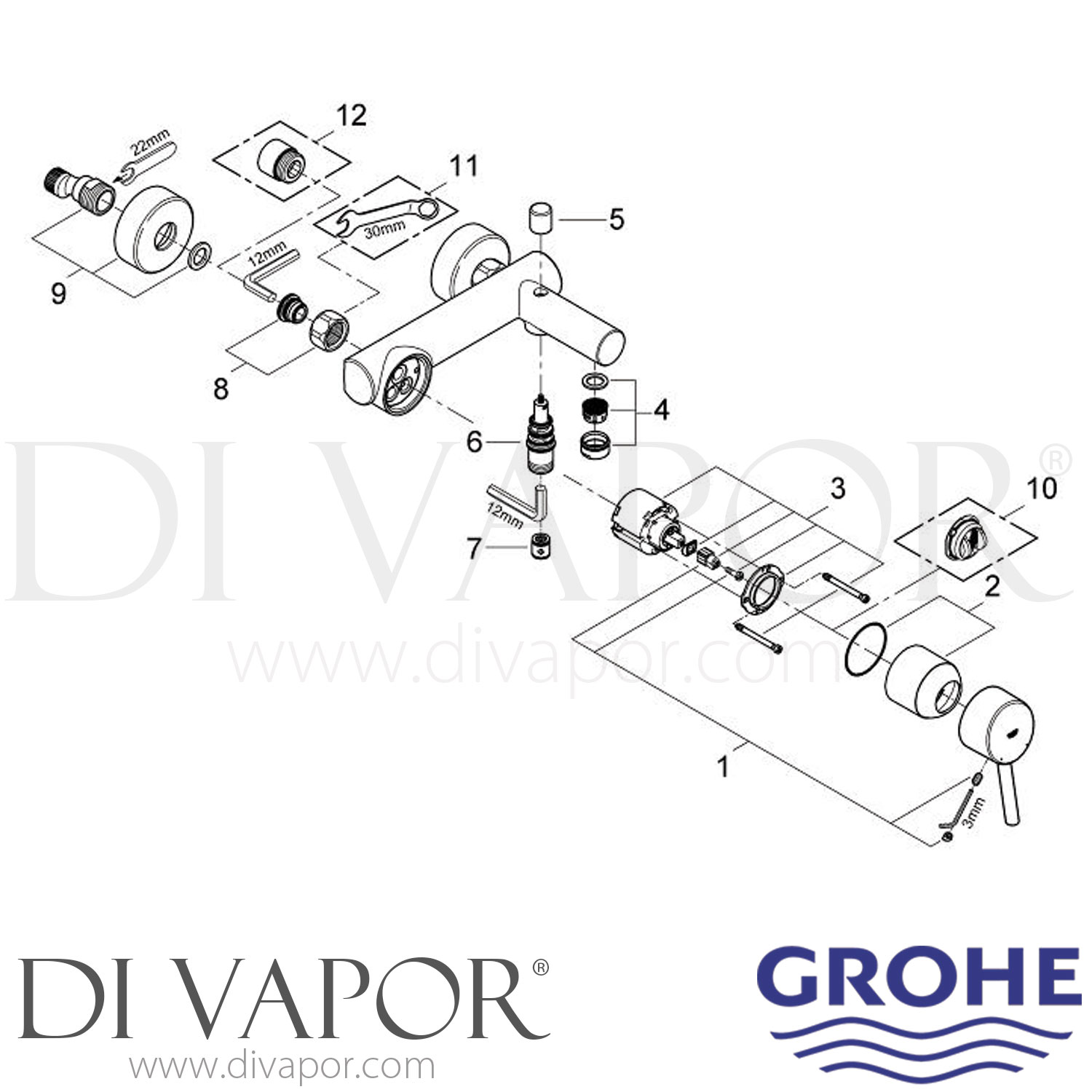

Spares for Grohe 32700001 Concetto Single-Lever Bath Shower Mixer

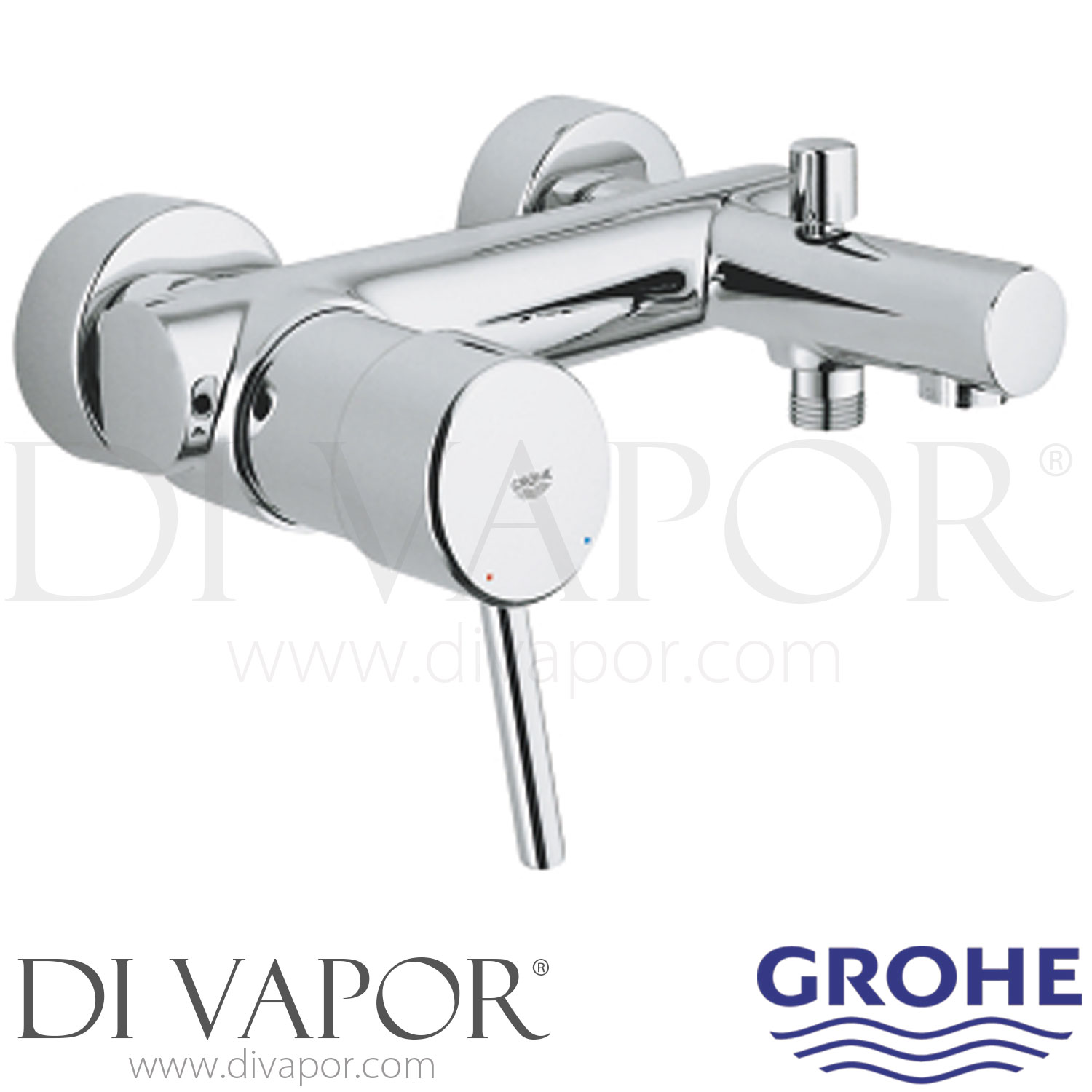

The Grohe 32700001 Concetto is a wall-mounted single lever bath shower mixer with a chrome finish, designed to control both water flow and temperature from a single metal lever. The mixer uses an automatic bath-to-shower diverter, allowing water to be directed between the bath outlet and connected shower fitting.

The valve incorporates a 46 mm ceramic cartridge, an adjustable flow-rate limiter, a mousseur bath outlet and non-return protection within the shower outlet. When servicing this mixer, the exact 32700001 article number should be checked before ordering Grohe spare parts, as other Concetto bath shower mixer variants can use different internal components.

Technical Details

- - Brand: GROHE

- - Range: Concetto

- - Category: Bath shower mixer

- - Article number: 32700001

- - Installation: Wall mounted

- - Control: Single metal lever

- - Cartridge: 46 mm ceramic cartridge

- - GROHE service cartridge code: 46588000

- - Diverter: Automatic bath/shower diverter

- - Flow control: Adjustable flow-rate limiter

- - Minimum flow setting: 2.5 l/min

- - Shower outlet: Integrated non-return valve

- - Connections: S-unions

- - Nominal connection size: 1/2 inch

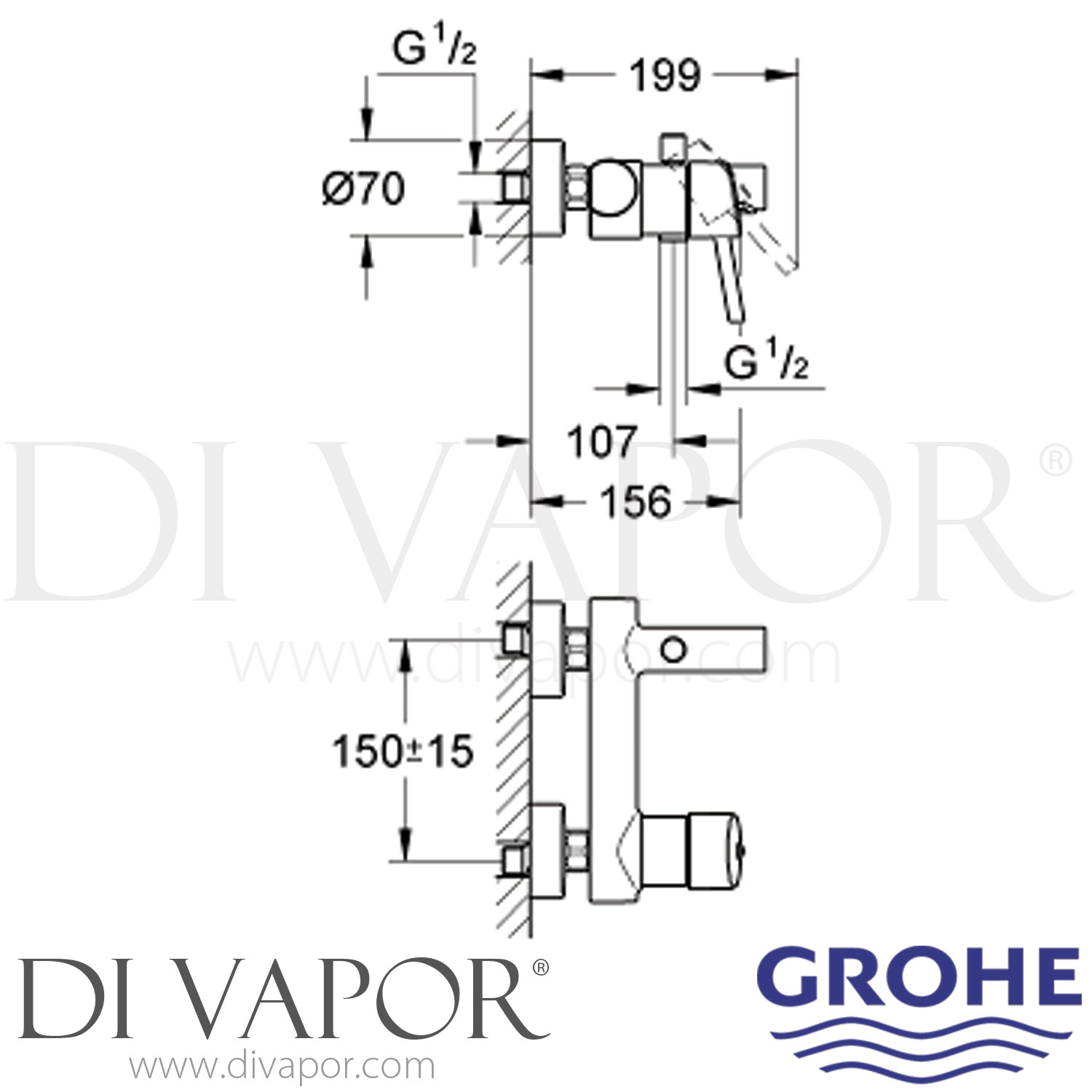

- - Wall centres: 150 mm nominal, adjustable by approximately +/-15 mm

- - Mixer projection: 199 mm

- - Spout projection: 107 mm

- - Escutcheon diameter: approximately 70 mm

- - Finish: Chrome

- - EAN: : approximately 70 mm

- - Finish: Chrome

- - EAN: 4005176887994

Before You Order

Check that the existing mixer is marked or identified as GROHE article 32700001 before selecting replacement components. Similar-looking Concetto mixers can have different cartridges, diverters and handles, so the mixer article number and the removed component should be compared carefully.
