Grohe 32212001 Concetto Single-Lever Bath Shower Mixer Spare Parts

SUMMARY

Spares for Grohe 32212001 Concetto Single-Lever Bath Shower Mixer

Grohe 32212001 is a Concetto wall-mounted single lever bath shower mixer with shower set, designed to control hot and cold water at the bath while providing automatic diversion to the shower outlet. This spares page covers verified service components used with the 32212001 mixer and its shower set.

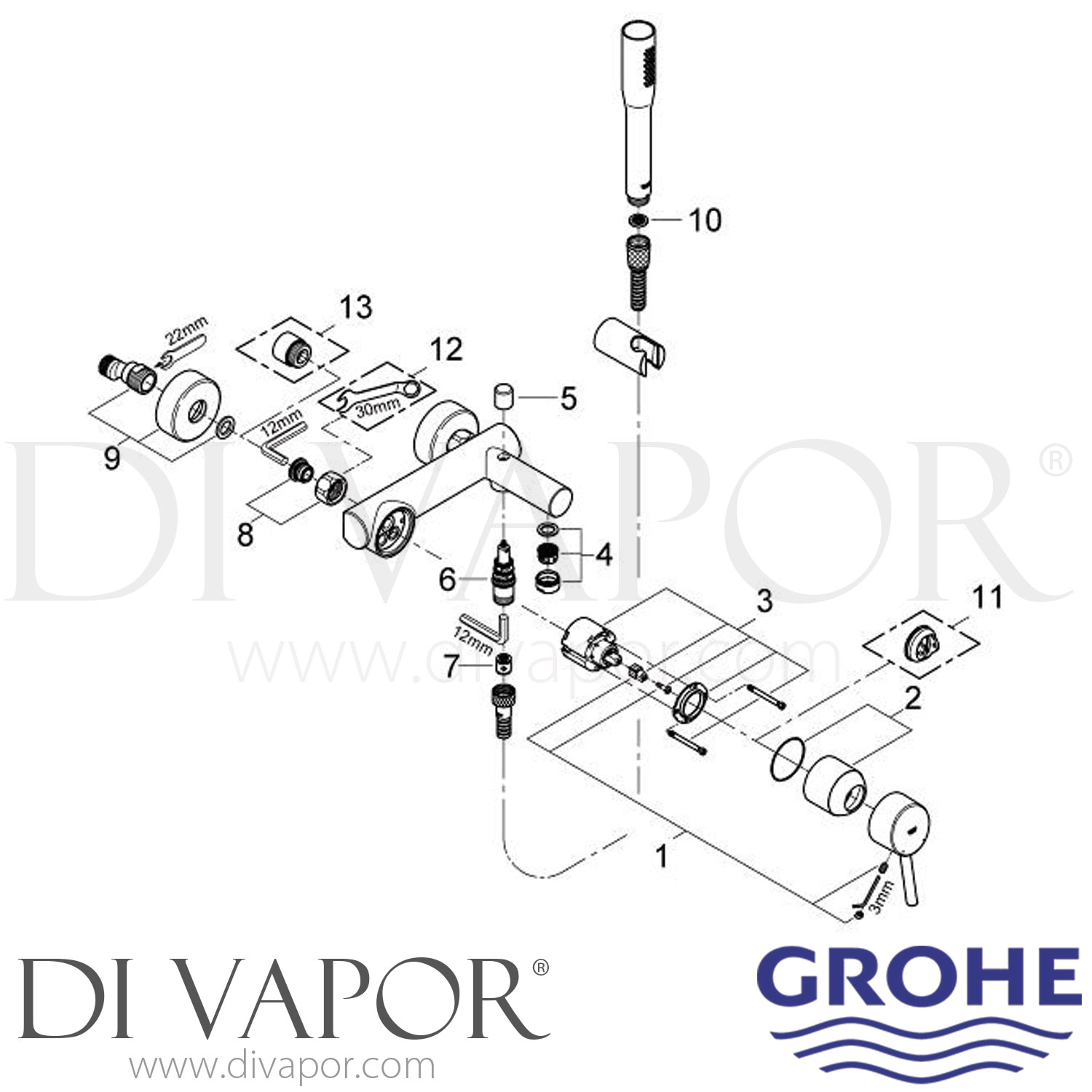

The mixer uses a 46 mm GROHE SilkMove ceramic cartridge to control water flow and temperature, together with an automatic bath/shower diverter. The verified Grohe spare parts below cover the main cartridge, diverter components, non-return valve and shower hose used when servicing this model.

Technical Details

- - Brand: GROHE

- - Range: Concetto

- - Category: Bath shower mixer

- - Product code: 32212001

- - Installation: Wall-mounted

- - Operating control: Single lever

- - Mixer cartridge: 46 mm GROHE SilkMove ceramic cartridge

- - Flow control: Adjustable flow rate limiter

- - Diverter: Automatic bath/shower diverter

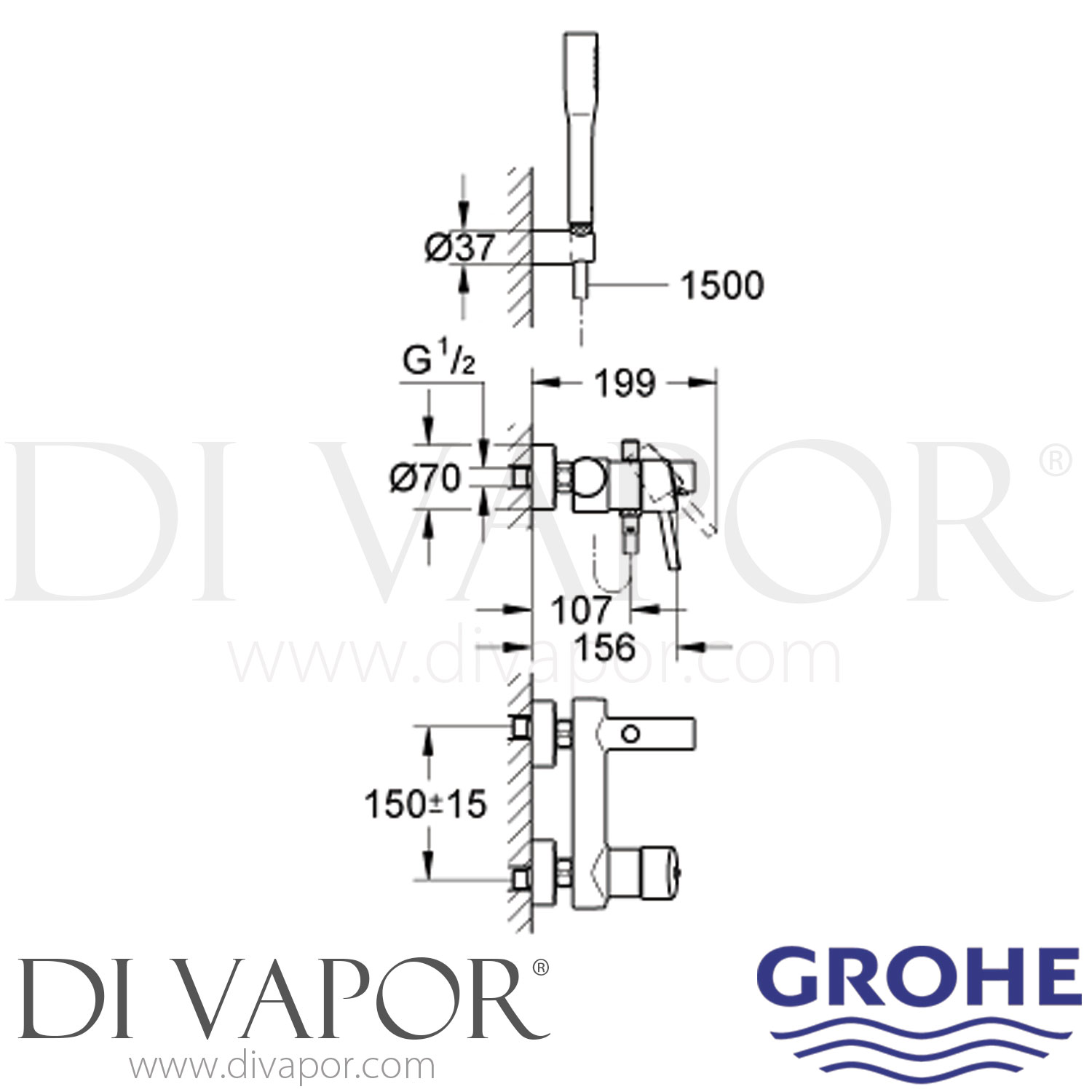

- - Inlet centre spacing: 150 +/- 15 mm

- - Mixer projection: 199 mm

- - Wall rosette diameter: 70 mm

- - Shower outlet connection: G 1/2

- - Non-return protection: Integrated non-return valve at the shower outlet

- - Shower hose length: 1500 mm

- - Shower hose connection: 1/2" x 1/2" conical connection

- - Minimum flow pressure: 0.5 bar

- - Recommended flow pressure: 1-5 bar

- - Maximum operating pressure: 10 bar

- - Maximum hot water inlet temperature: 80°C

- - Finish: Chrome

- - EAN: 4005176889035

Common Service Checks

- - Dripping from the bath spout or shower outlet when the mixer is turned off can indicate wear in the 46048000 ceramic cartridge

- - Difficulty switching between the bath and shower outlets can indicate wear or damage around the 65655000 diverter or 64309000 diverter knob

- - A damaged, restricted or leaking shower hose can be serviced using the verified 28151000 1500 mm hose

Before You Order

Check that the mixer is GROHE Concetto model 32212001, then compare the existing component code with the required spare before ordering. Several GROHE mixer components can appear visually similar, so matching both the mixer model and spare code helps reduce ordering errors.
