Grohe 33561002 Eurostyle Cosmopolitan Single-Lever Basin Mixer (1/2 Inch) S-Size Tap Spare Parts
Send a photo of your item and we'll help confirm it.
Summary

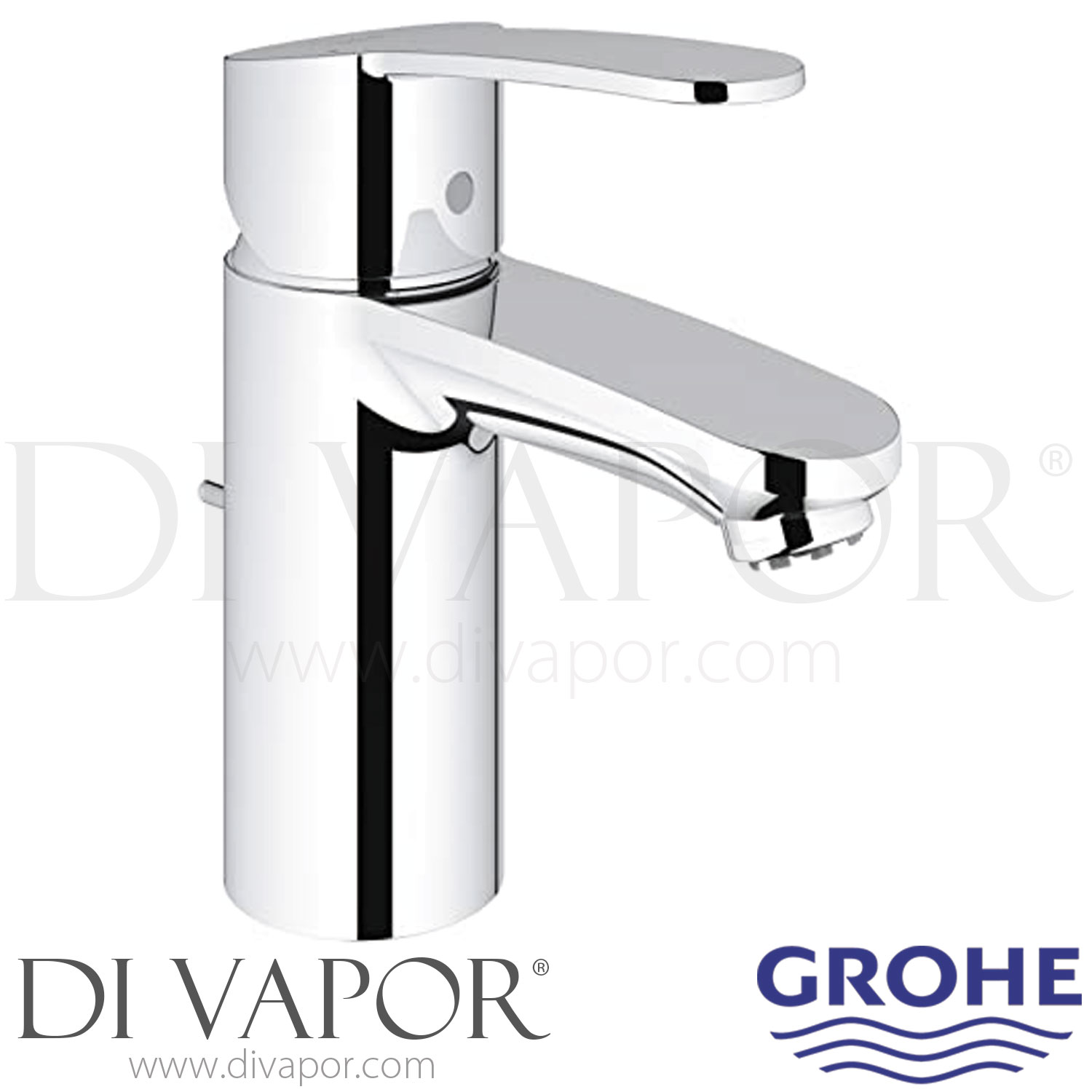

Spare parts for the Grohe 33561002 Eurostyle Cosmopolitan low-pressure single-lever basin mixer in S-Size. This chrome single-hole basin mixer is designed for use with an open or unpressurised storage water heater and uses dedicated low-pressure components.

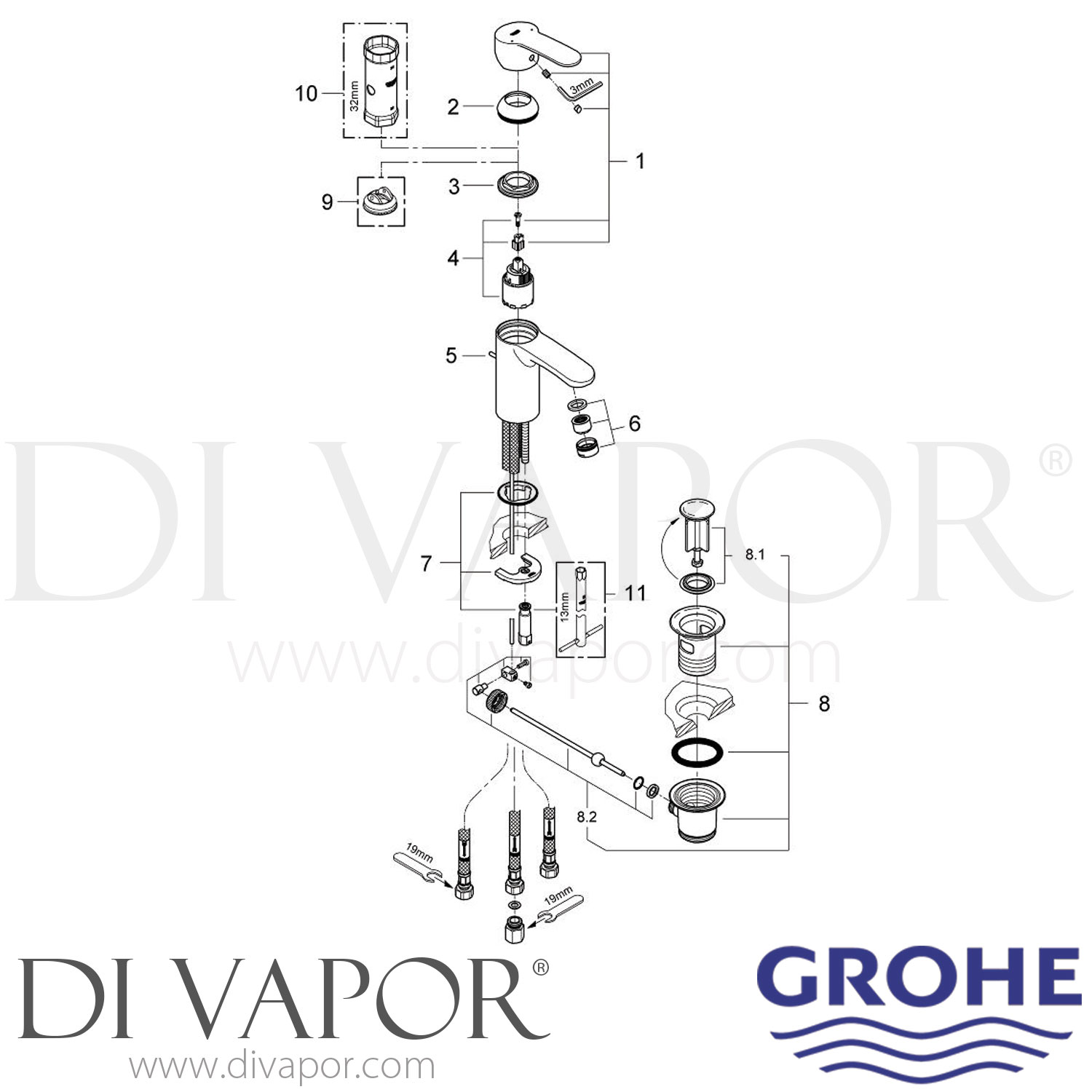

This page helps identify Grohe tap spare parts for the 33561002 mixer, including the 35 mm low-pressure ceramic cartridge, screw coupling, waste operating rod and service spanner. Correct identification of the low-pressure version is important because visually similar Eurostyle and Eurostyle Cosmopolitan mixers can use different internal parts.
Technical Details
| Brand | Grohe |
|---|---|
| Range | Eurostyle Cosmopolitan |
| Category | Basin mixer |
| Product code | 33561002 |
| Size | S-Size |
| Pressure type | Low-pressure for an open or unpressurised storage water heater |
| Installation | Single-hole basin installation |
| Finish | Chrome |
| Lever | Metal |
| Cartridge | 35 mm GROHE SilkMove low-pressure ceramic cartridge 46558000 |
| Flow control | Adjustable flow-rate limiter with a minimum setting of approximately 2.5 l/min |
| Flexible connection thread | G 3/8 |
| Waste | Pop-up waste set 1 1/4 inch |
| Tap height | 157 mm |
| Spout outlet height | 84 mm |
| Spout projection | 103 mm |
| Base diameter | 50 mm |
| Mounting hole diameter | 34 mm |
| Maximum deck thickness | 30 mm |
| Maximum hot-water temperature | 80 C |
| EAN | 4005176886379 |
Before You Order Check
Confirm that the mixer is marked 33561002 and that it is the low-pressure version intended for an open or unpressurised water heater before selecting replacement components.
If the tap drips continuously when turned off, has a stiff or loose lever, or gives poor control of flow and temperature, the 46558000 cartridge may require attention. Water released from the spout while an open water heater is warming can be normal expansion discharge and should not automatically be diagnosed as a cartridge fault.
GROHE 46460000 Screw Coupling Cartridge Headnut for Single-Lever MixersGROHE 46460000 is a screw coupling and cartridge-retaining headnut used around the single-lever cartridge assembly in specified GROHE basin, bidet, bath, shower, kitchen, GROHE Blue and GROHE Red mixers. It is...
Grohe 46558000 is a 35mm low-pressure single-lever tap cartridge used in selected Grohe basin and sink mixers.It restores control of water flow and temperature inside the mixer body. A worn cartridge can cause dripping from the spout when the tap is turned off, a stiff or loose l...
GROHE 19332000 34mm and 32mm Socket Box Spanner for Tap and Shower CartridgesGROHE 19332000 is a double-ended tubular socket box spanner for servicing selected GROHE tap cartridges and thermostatic shower mixer assemblies. Its two differently sized hexagonal ends are used for the...
