Grohe 3220410E Concetto Single-Lever Basin Mixer (1/2 Inch) S-Size Tap Spare Parts
Send a photo of your item and we'll help confirm it.
Summary
Spares for GROHE 3220410E Concetto Single-Lever Basin Mixer 1/2 Inch S-Size Tap

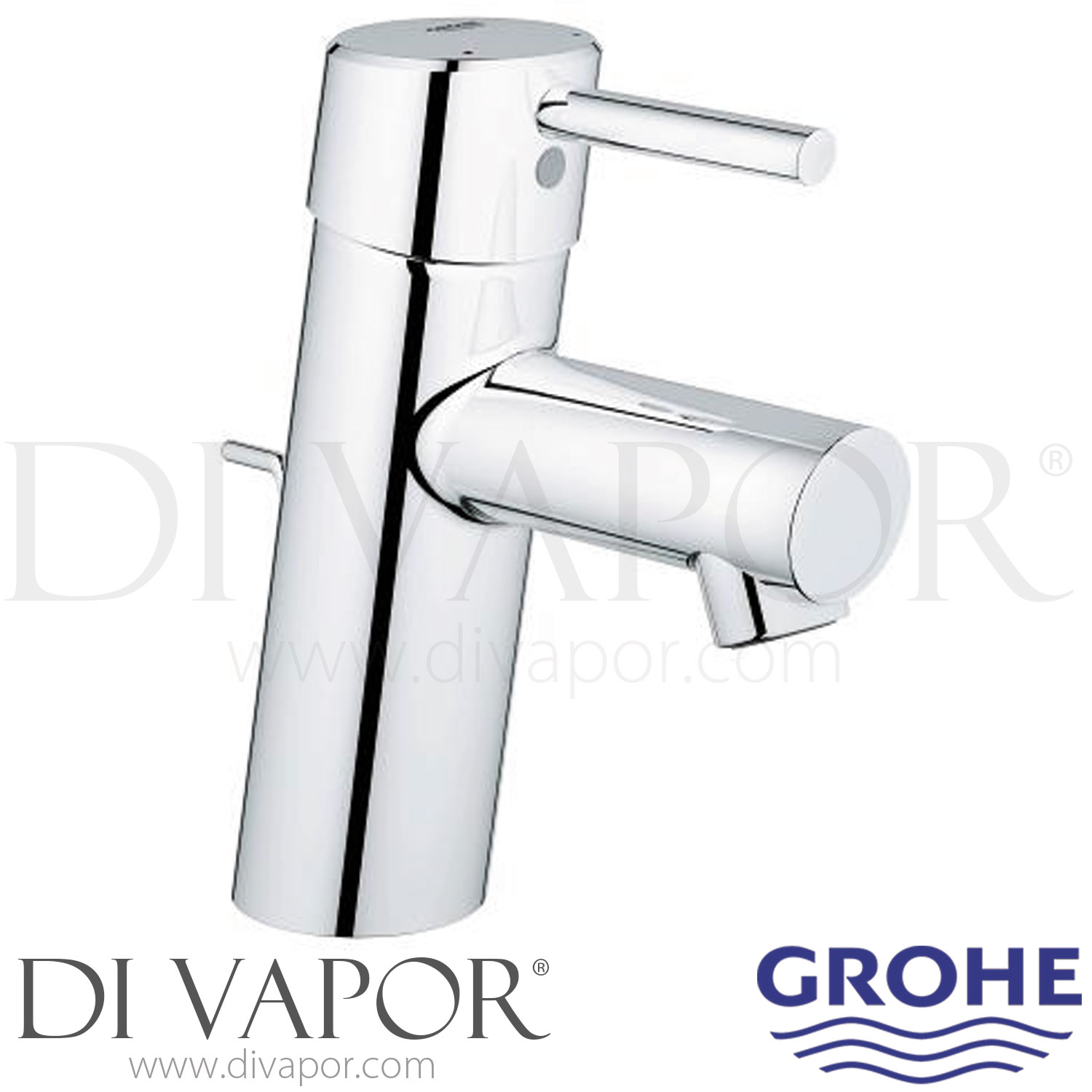

The GROHE 3220410E Concetto is a single-lever S-Size basin mixer for monobloc basin installation. It uses a metal lever to control water flow and temperature through an internal 28 mm ceramic cartridge.

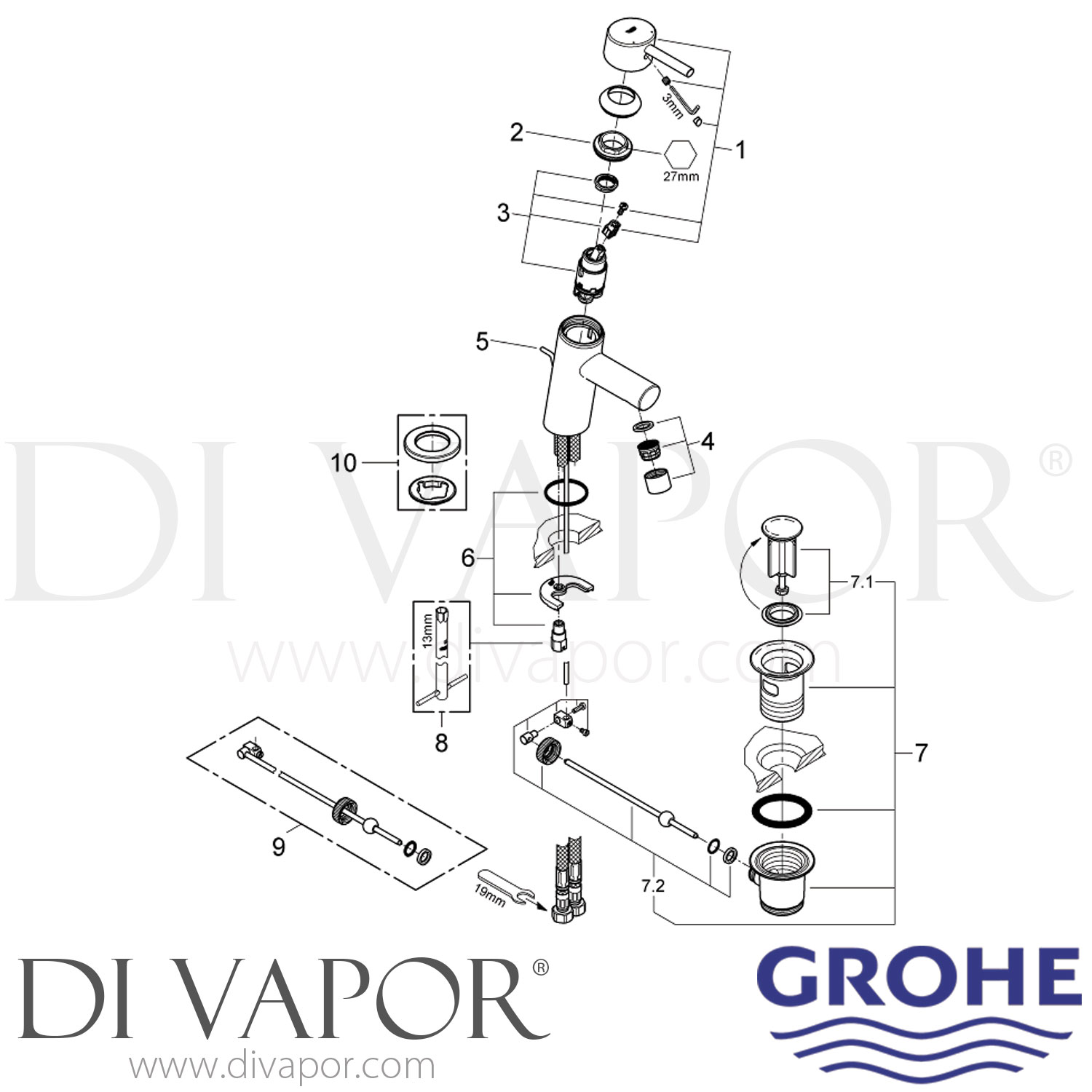

The mixer incorporates flexible connection hoses, a pop-up waste control and the GROHE FastFixation installation system with centring support. These Grohe spares cover the principal control, mounting and waste-linkage components available for servicing the 3220410E mixer.
Technical Details
| Brand | GROHE |
|---|---|
| Range | Concetto |
| Category | Basin mixer |
| Product code | 3220410E |
| EAN | 4005176887345 |
| Size | S-Size |
| Installation | Monobloc |
| Control | Metal single lever |
| Cartridge | 28 mm ceramic cartridge with GROHE SilkMove |
| Temperature limiter | Yes |
| Finish | Chrome |
| Mousseur | GROHE SpeedClean |
| Waste | Pop-up waste set 1 1/4 inch |
| Supply connections | G 3/8 |

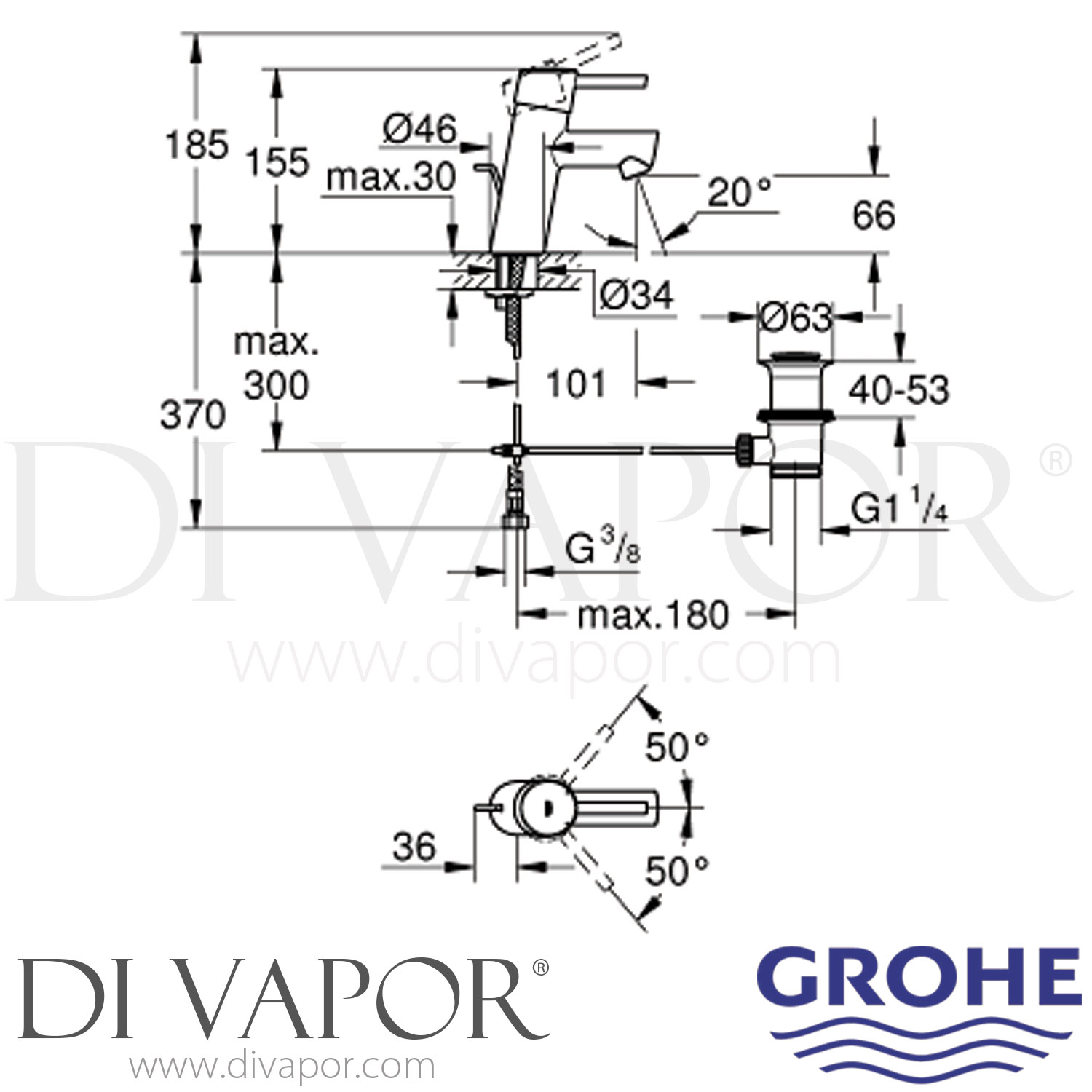

| Approximate tap height | 155 mm |
| Approximate spout projection | 101 mm |
| Approximate outlet height | 66 mm |
| Maximum mounting-surface thickness | 30 mm |
Before you order check
Check the full mixer code 3220410E and the exact code of the part being replaced. Other Concetto basin mixer variants can use different specifications, so the complete product and spare-part numbers should be matched rather than relying on appearance alone.
GROHE 46753000 Concetto Chrome Lever Handle for Basin and Bidet MixersGROHE 46753000 is a metal operating lever with a StarLight Chrome finish for the specified Concetto single-lever basin and bidet mixers. It is the external tap handle, separate from the internal ceramic mixing ...
GROHE 46580000 28 mm SilkMove Ceramic Cartridge with Temperature Limiter for Single-Lever MixersThis is a genuine Grohe 46580000 cartridge replacement used to replace faulty cartridges in the aforementioned valves.FAQ - - Question: My tap is constantly dripping. If I replace th...
GROHE 46249000 Shank Mounting Kit for Basin Bidet Bath and Kitchen MixersGROHE 46249000 is a shank mounting kit used to secure selected deck-mounted GROHE taps and mixers to the basin, bidet, bath or worktop mounting surface. GROHE spare-parts documentation also describes 4624900...
Grohe 07341000 350mm Horizontal Rod for PUW WasteThe Grohe 07341000 is a 350mm horizontal operating rod used in PUW waste control systems. It connects the tap mechanism to the basin waste linkage.FunctionThe rod enables mechanical operation of the waste plug. Incorrect length or ...
