Grohe 23870003 Plus Basin Mixer (1/​2 Inch) S-Size Tap Spare Parts

SUMMARY

Tap Spares for Grohe 23870003 Plus Basin Mixer 1/2 Inch S-Size

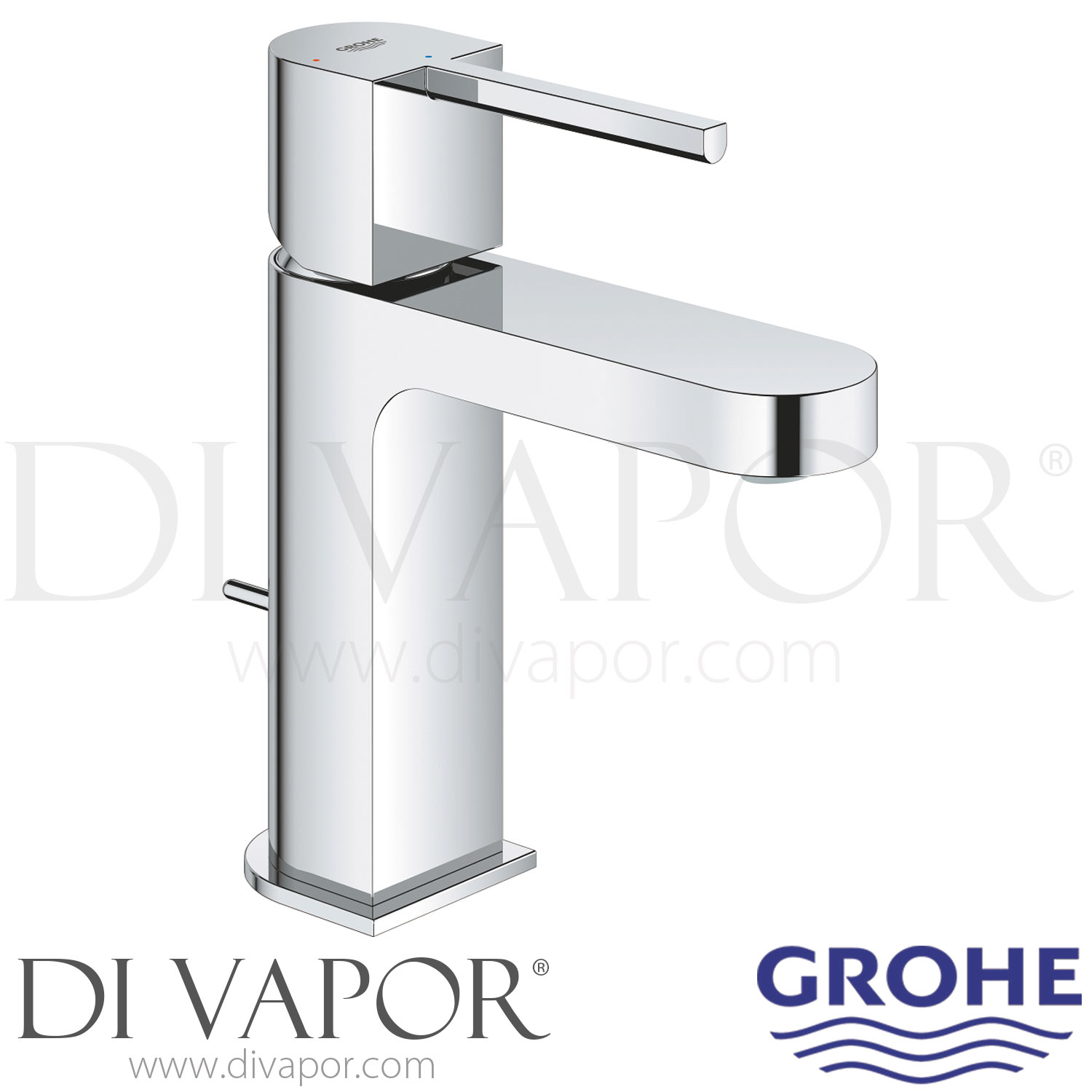

The GROHE 23870003 Plus single lever basin mixer 1/2 inch S-Size is a chrome basin mixer for single-hole installation, with lever-operated flow and temperature control and an integrated pop-up waste arrangement. This page brings together the verified service components available for maintaining the 23870003 mixer.

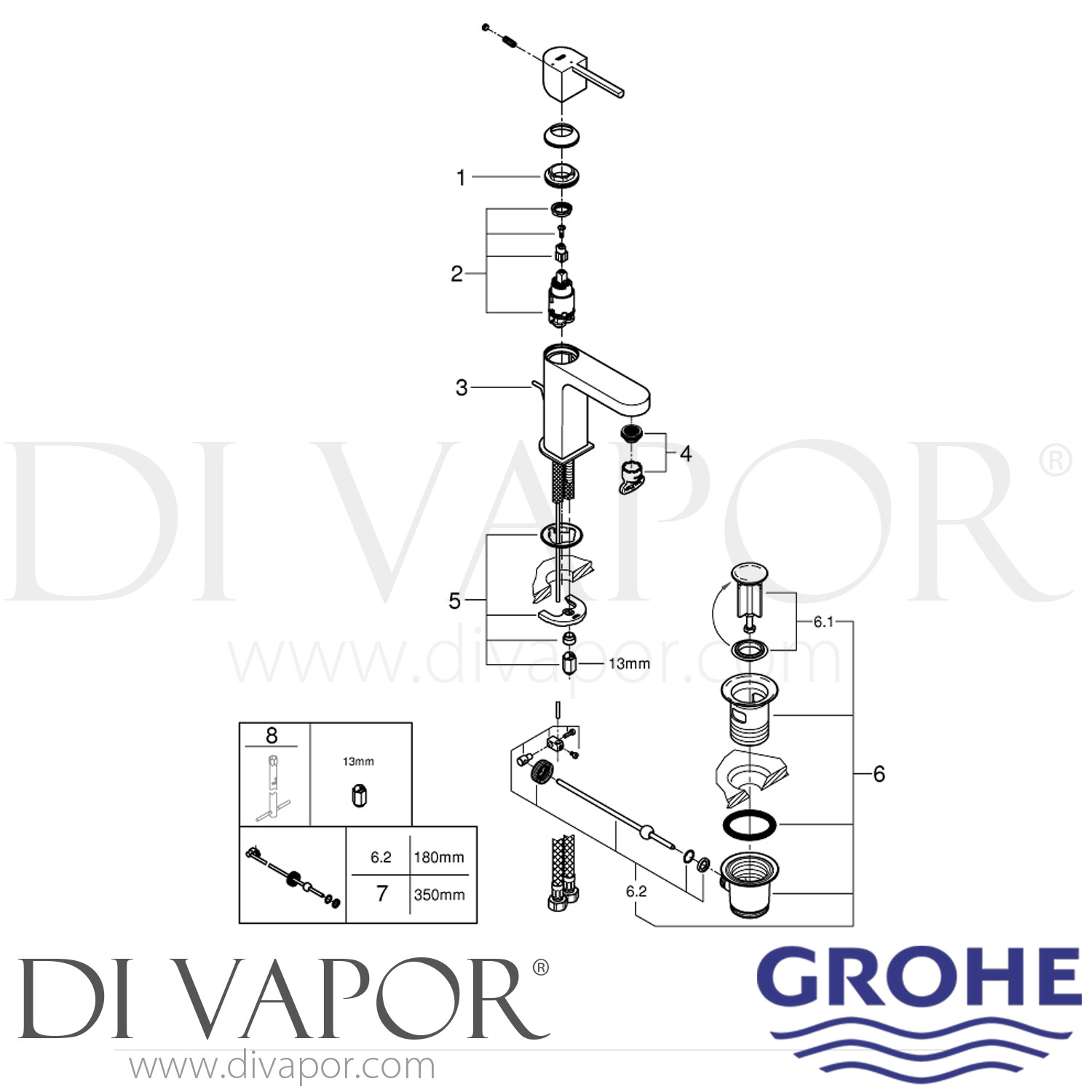

The mixer uses a 28 mm GROHE SilkMove ceramic cartridge, an adjustable GROHE AquaGuide mousseur, flexible connection hoses and the FastFixation Plus mounting system. For routine servicing, the verified Grohe spare parts below cover the mixer cartridge and the horizontal waste-linkage rods currently available.

Technical Details

- - Brand: GROHE

- - Range: Plus

- - Category: Basin mixer

- - Model code: 23870003

- - Mixer type: Single lever basin mixer 1/2 inch

- - Size: S-Size

- - Finish: Chrome

- - Cartridge: 28 mm GROHE SilkMove ceramic cartridge

- - Installation: Single-hole basin installation with FastFixation Plus

- - Water connections: G3/8

- - Pop-up waste connection: G1 1/4

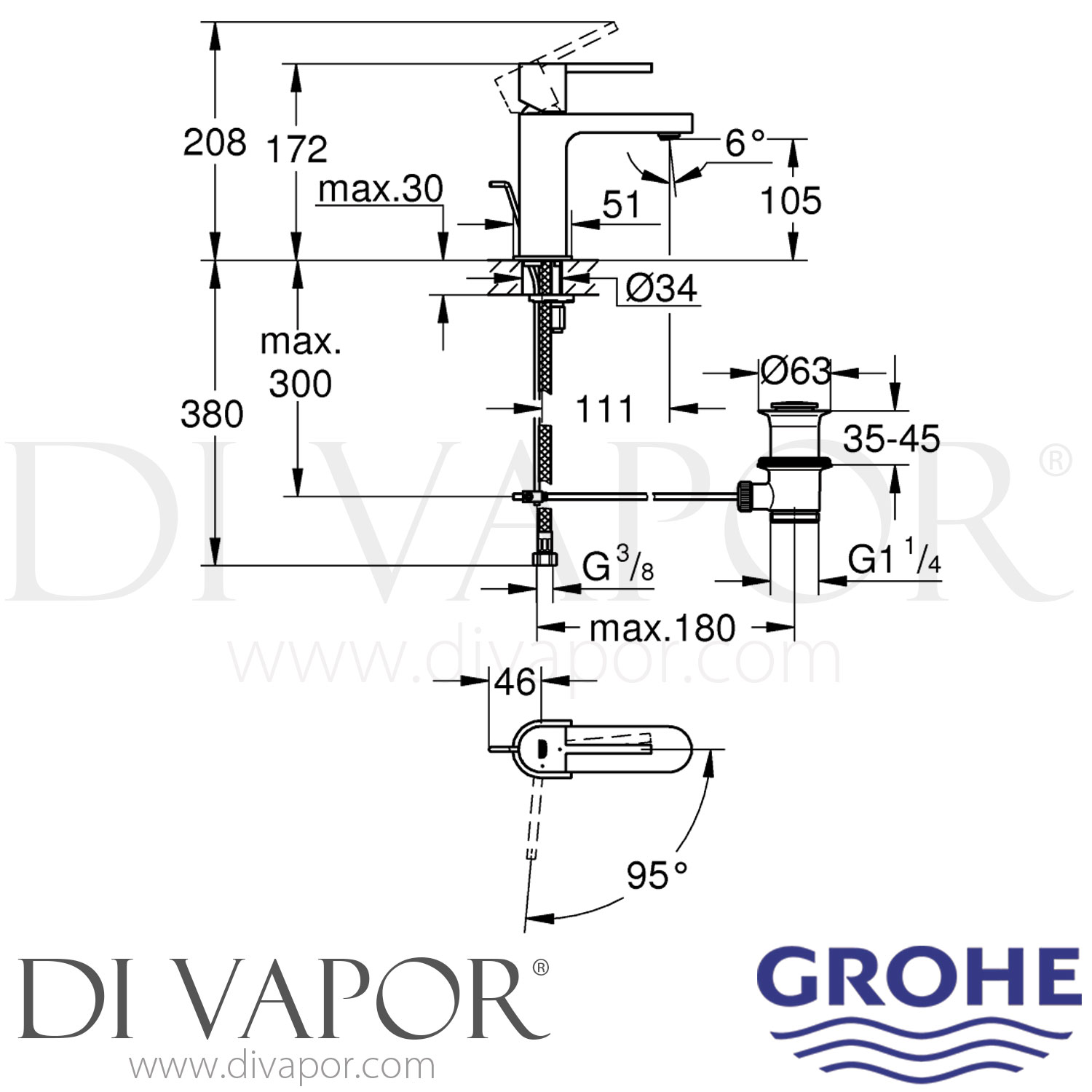

- - Mixer height: 172 mm

- - Spout projection: 111 mm

- - Outlet height: 105 mm

- - Required mounting hole: 34 mm diameter

- - Maximum mounting-surface thickness: 30 mm

- - EAN: 4005176529719

Before You Order

- - Check that the mixer model number is 23870003 before selecting replacement parts

- - When replacing a waste rod, compare the existing rod length and linkage arrangement with the required replacement before ordering

- - Identify whether the service issue is within the ceramic cartridge or the pop-up waste linkage so that the correct component is selected
