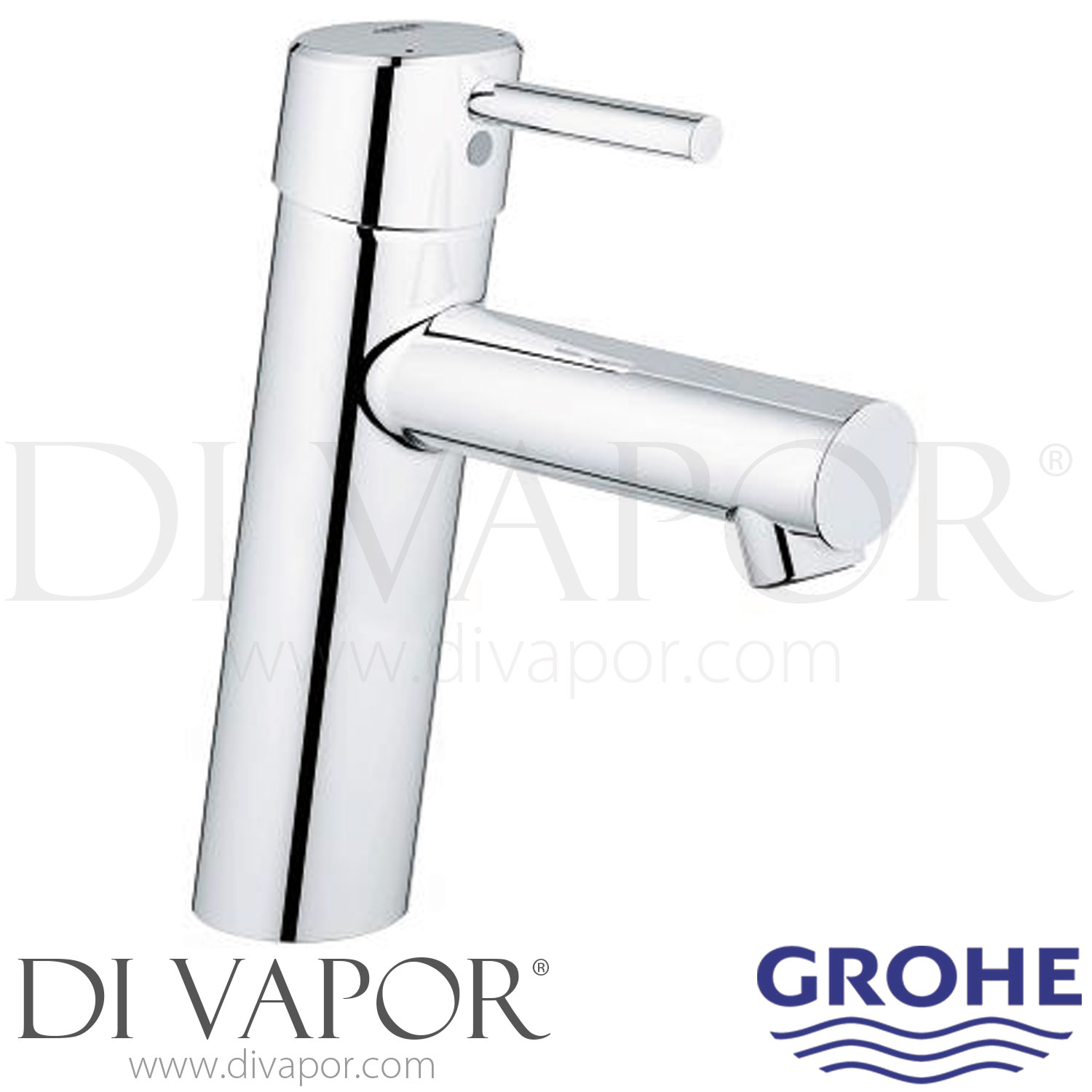

Grohe 23451001 Concetto Single-Lever Basin Mixer (1/2 Inch) M-Size Tap Spare Parts
Send a photo of your item and we'll help confirm it.
Summary
Spare parts for the GROHE 23451001 Concetto single-lever basin mixer 1/2 inch M-Size in chrome. This single-hole basin mixer uses a 28 mm ceramic cartridge to control water flow and temperature through the single operating lever.

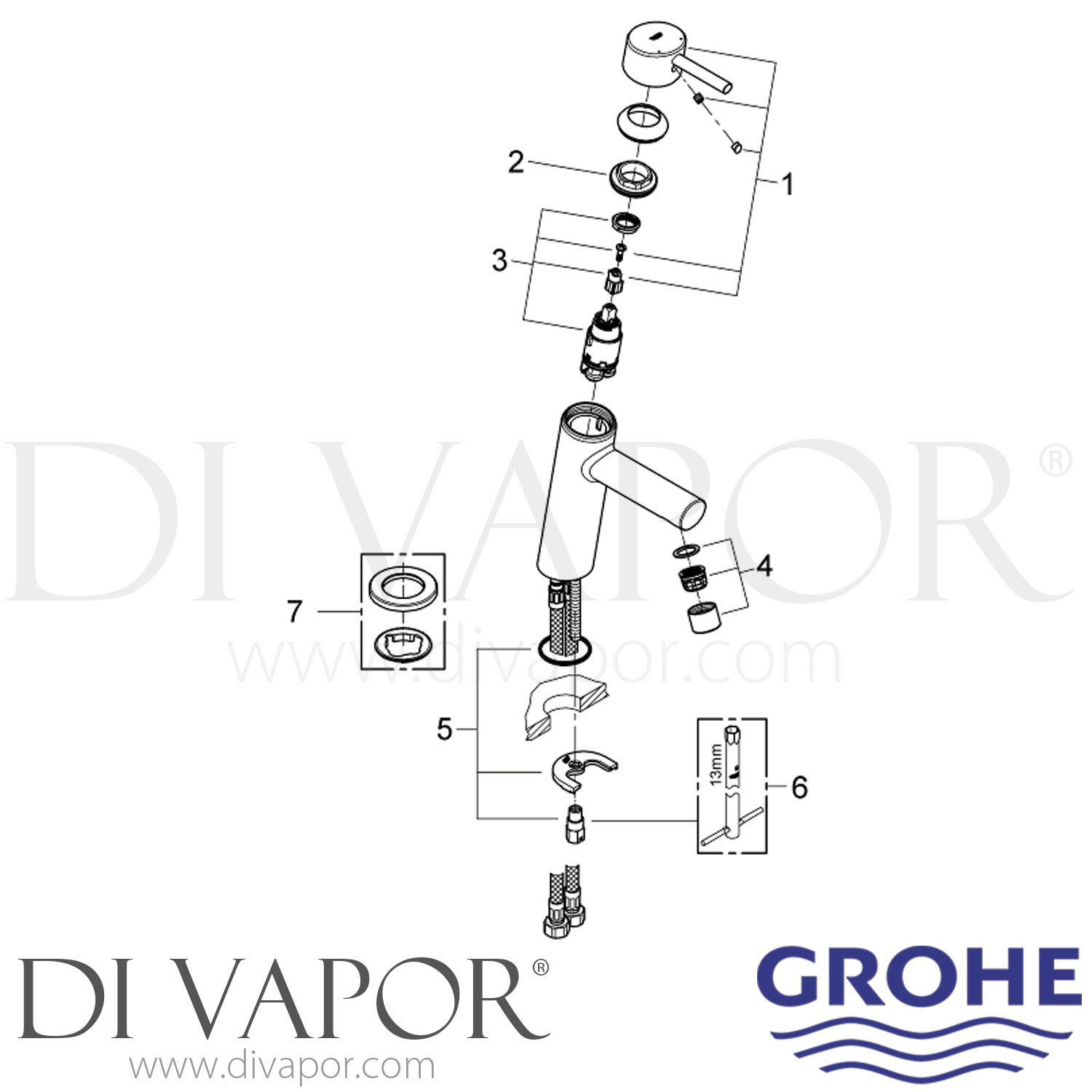

The 23451001 is fitted with a metal lever, temperature limiter, flexible connection hoses and a water-saving outlet. Grohe spares available for servicing this mixer include the operating handle, ceramic cartridge and basin mounting bracket.
Technical Details
| Brand | GROHE |
|---|---|
| Range | Concetto |
| Category | Basin mixer |
| Product code | 23451001 |
| EAN | 4005176998799 |
| Size | M-Size |
| Finish | Chrome |
| Installation | Single-hole basin installation |
| Cartridge | 28 mm ceramic cartridge |
| Supply connections | G 3/8 |
| Minimum recommended pressure | 1.0 bar |
| Maximum flow rate | 5 l/min at 3 bar |

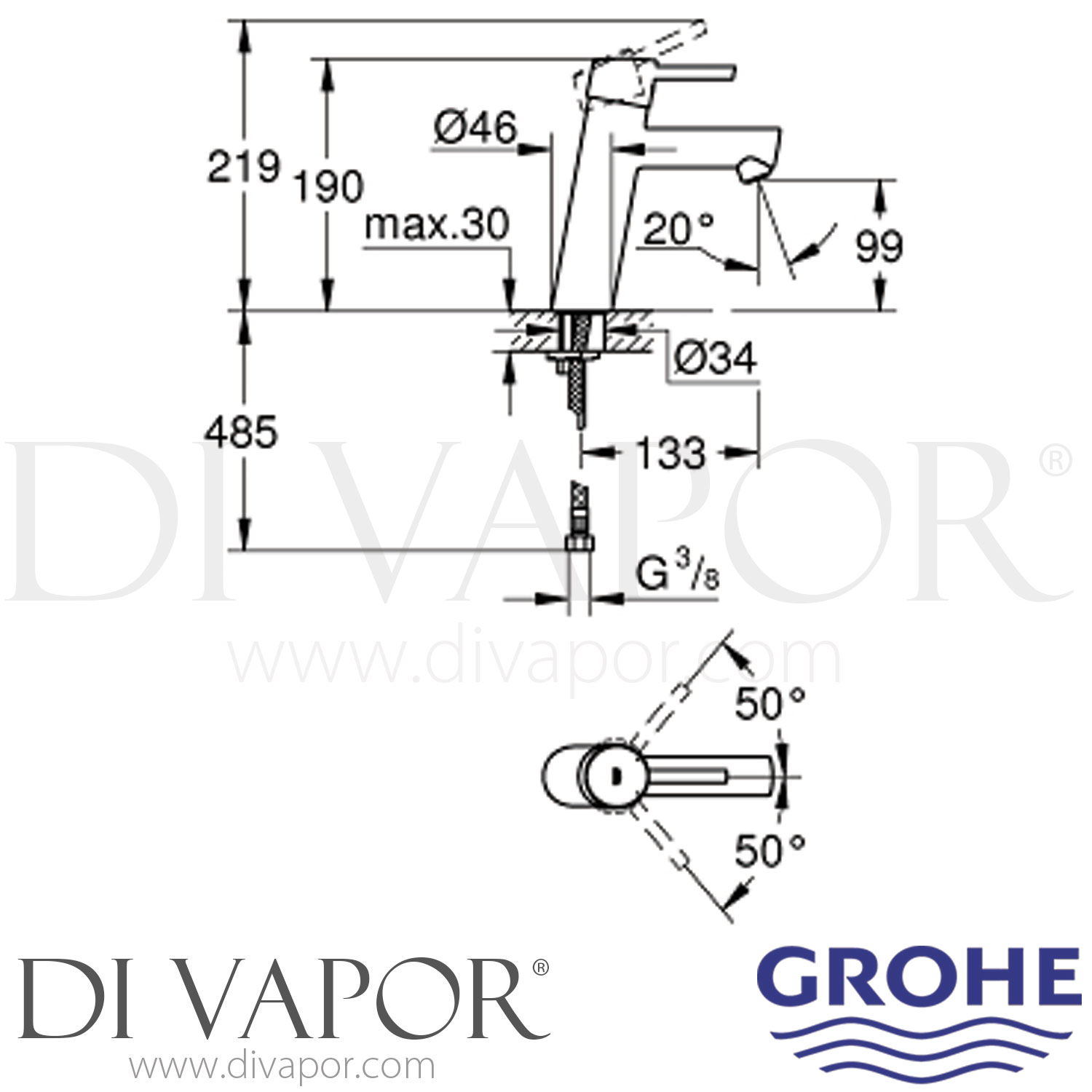

| Spout projection | 133 mm |
| Outlet height | 99 mm |
| Mixer body diameter | 46 mm |
| Mounting-hole reference | 34 mm |
| Maximum mounting-surface thickness | 30 mm |
| Outlet angle | 20 degrees |
Before You Order Check
Check the mixer code against 23451001 and compare the required component with the existing part before ordering. GROHE uses visually similar components across different tap ranges and generations, so the complete product code is important when selecting service parts.
GROHE 46753000 Concetto Chrome Lever Handle for Basin and Bidet MixersGROHE 46753000 is a metal operating lever with a StarLight Chrome finish for the specified Concetto single-lever basin and bidet mixers. It is the external tap handle, separate from the internal ceramic mixing ...
GROHE 46580000 28 mm SilkMove Ceramic Cartridge with Temperature Limiter for Single-Lever MixersThis is a genuine Grohe 46580000 cartridge replacement used to replace faulty cartridges in the aforementioned valves.FAQ - - Question: My tap is constantly dripping. If I replace th...
GROHE 46249000 Shank Mounting Kit for Basin Bidet Bath and Kitchen MixersGROHE 46249000 is a shank mounting kit used to secure selected deck-mounted GROHE taps and mixers to the basin, bidet, bath or worktop mounting surface. GROHE spare-parts documentation also describes 4624900...
