Grohe 23450001 Concetto Single-Lever Basin Mixer (1/​2 Inch) M-Size Tap Spare Parts

SUMMARY

Spares for Grohe 23450001 Concetto Single-Lever Basin Mixer 1/2 Inch M-Size Tap

Grohe 23450001 is the Concetto single-lever basin mixer 1/2 inch M-Size in chrome, designed for single-hole basin installation with flexible water connections and a pull-rod operated pop-up waste. This page identifies the Grohe spares used to service the mixer, its mounting and its waste operating mechanism.

The mixer uses a 28 mm GROHE SilkMove ceramic cartridge to control water flow and temperature through the single metal lever. A temperature limiter is incorporated into the mixer, while the pull-rod arrangement allows the basin waste to be opened and closed from the tap.

Technical Details

- - Brand: Grohe

- - Range: Concetto

- - Category: Basin mixer

- - Article number: 23450001

- - Size: M-Size

- - Installation: Single-hole basin installation

- - Operation: Single lever

- - Finish: Chrome

- - Cartridge: 28 mm GROHE SilkMove ceramic cartridge

- - Temperature limiter: Yes

- - Maximum flow rate: 5 l/min at 3 bar

- - Minimum recommended pressure: 1.0 bar

- - Waste: Pull-rod pop-up waste set 1 1/4 inch

- - Water connections: Flexible hoses with G3/8 connections

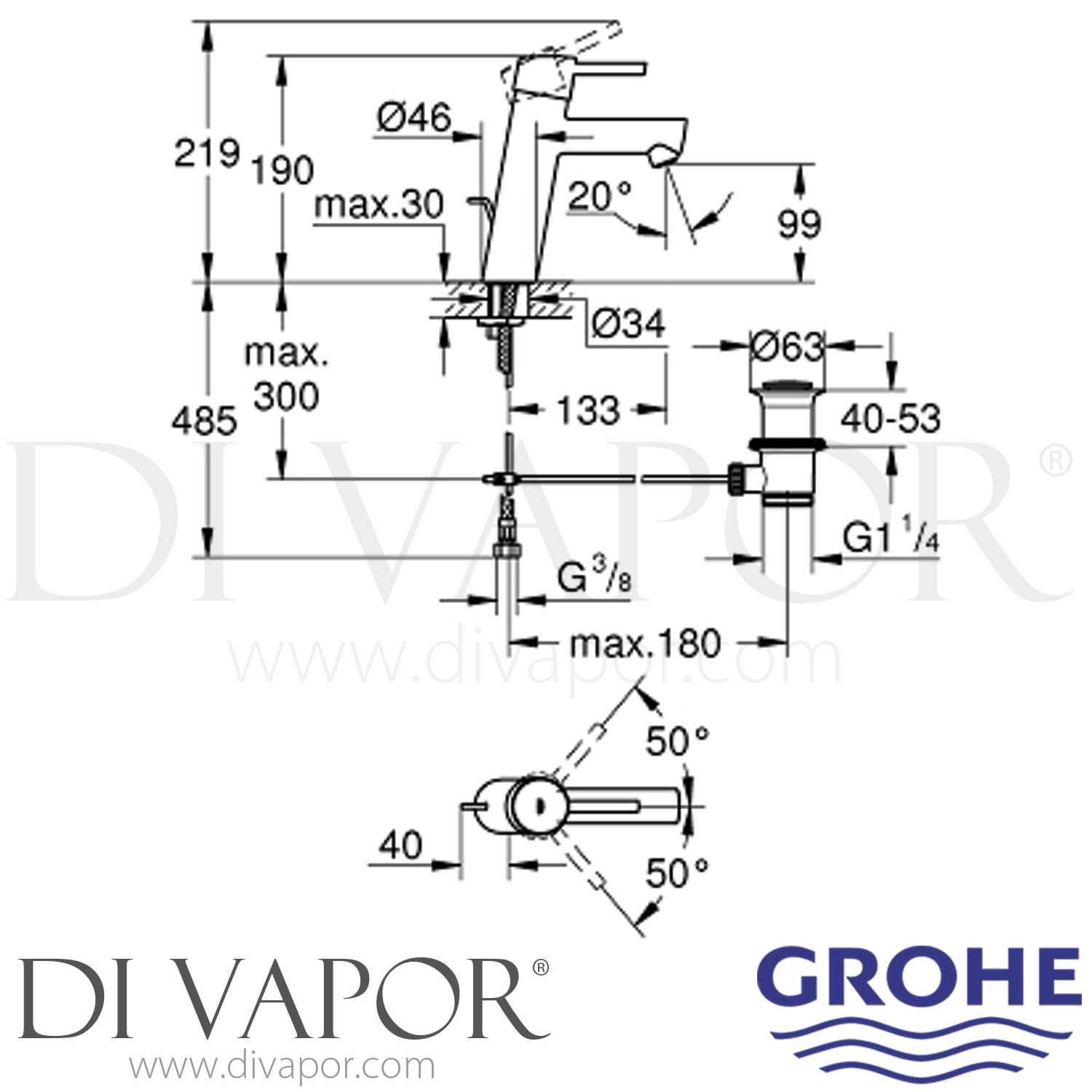

- - Overall mixer height: approximately 219 mm

- - Spout outlet height: approximately 99 mm

- - Spout projection: approximately 133 mm

- - Mixer base diameter: approximately 46 mm

- - Required mounting hole: approximately 34 mm

- - Maximum mounting surface thickness: approximately 30 mm

- - Waste connection: G1 1/4

- - Waste flange diameter: approximately 63 mm

Before you order check

Confirm that the basin mixer is article number 23450001 and compare the component being replaced with the existing part. Pay particular attention to the cartridge, mounting arrangement and waste linkage, as these are separate service components within the mixer assembly.
