Grohe 2338420E Eurodisc Cosmopolitan Single-Lever Basin Mixer S-Size Tap Spare Parts

SUMMARY

Spares for Grohe 2338420E Eurodisc Cosmopolitan Single-Lever Basin Mixer S-Size Tap

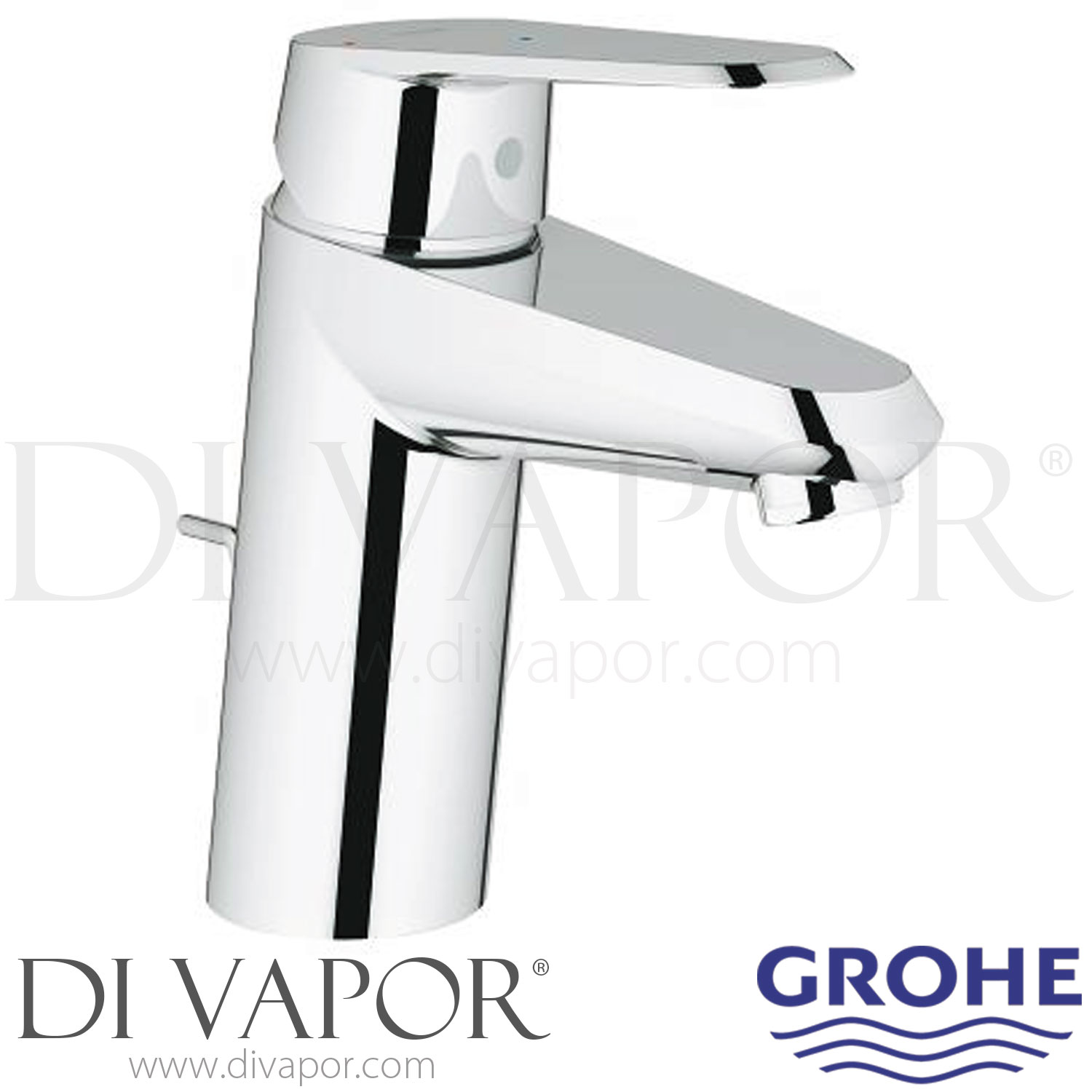

The Grohe 2338420E Eurodisc Cosmopolitan is a single lever S-Size basin mixer designed for single-hole installation. It combines water flow and temperature control through one metal operating lever and incorporates a pop-up basin waste control.

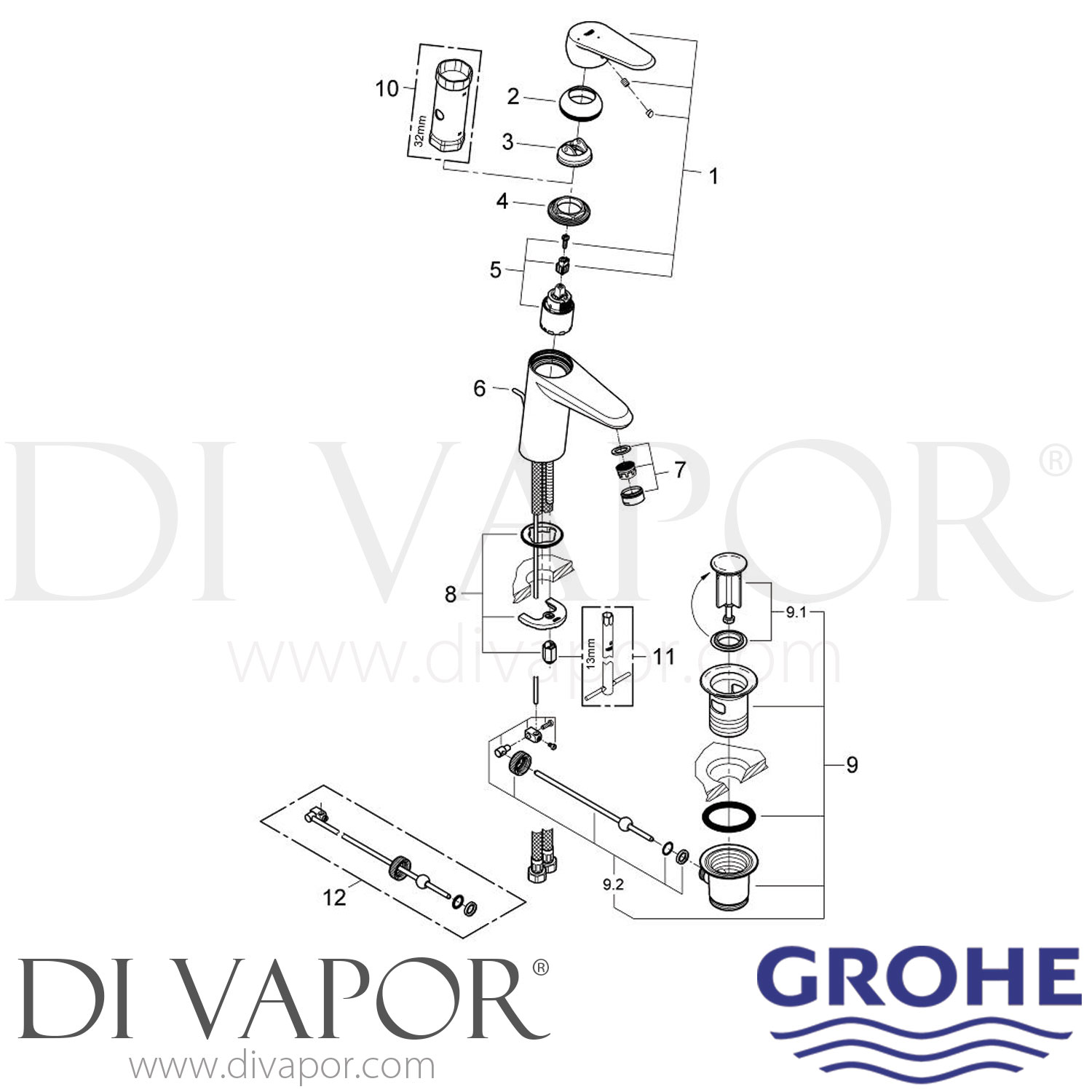

The mixer uses a 35mm GROHE SilkMove ES ceramic cartridge with cold-start operation, helping to avoid unnecessary hot-water demand when the lever is opened from its central position. A temperature limiter and adjustable flow-rate limiter are also incorporated into the mixer. The Grohe tap spare parts listed below cover service components and accessories associated with the 2338420E installation.

Technical Details

- - Brand: Grohe

- - Range: Eurodisc Cosmopolitan

- - Category: Basin mixer

- - Model: 2338420E

- - Size: S-Size

- - Installation: Single-hole

- - Connection size: G3/8

- - Overall height: 205mm

- - Spout projection: 116mm

- - Outlet height: 87mm

- - Tap mounting bore: 34mm diameter

- - Cartridge: 46863000, 35mm GROHE SilkMove ES ceramic cartridge

- - Operation: Single lever with cold-start function

- - Flow control: Adjustable flow-rate limiter

- - Minimum adjustable flow rate: approximately 2.5 litres per minute

- - Temperature limiter: Included

- - Outlet: GROHE EcoJoy mousseur, approximately 5.7 litres per minute

- - Finish: Chrome

- - Waste: Pop-up waste set, G1 1/4

- - Waste flange diameter: 63mm

- - EAN: 4005176936722

Before You Order

Check the model number of the basin mixer and the individual spare part code before ordering. Similar Eurodisc Cosmopolitan mixers can use different cartridges, handles, fixing components and waste parts, so the 2338420E model code should be used to identify the correct service component.
