Grohe 23374003 Eurostyle Single-Lever Basin Mixer (1/​2 Inch) S-Size Spare Parts

SUMMARY

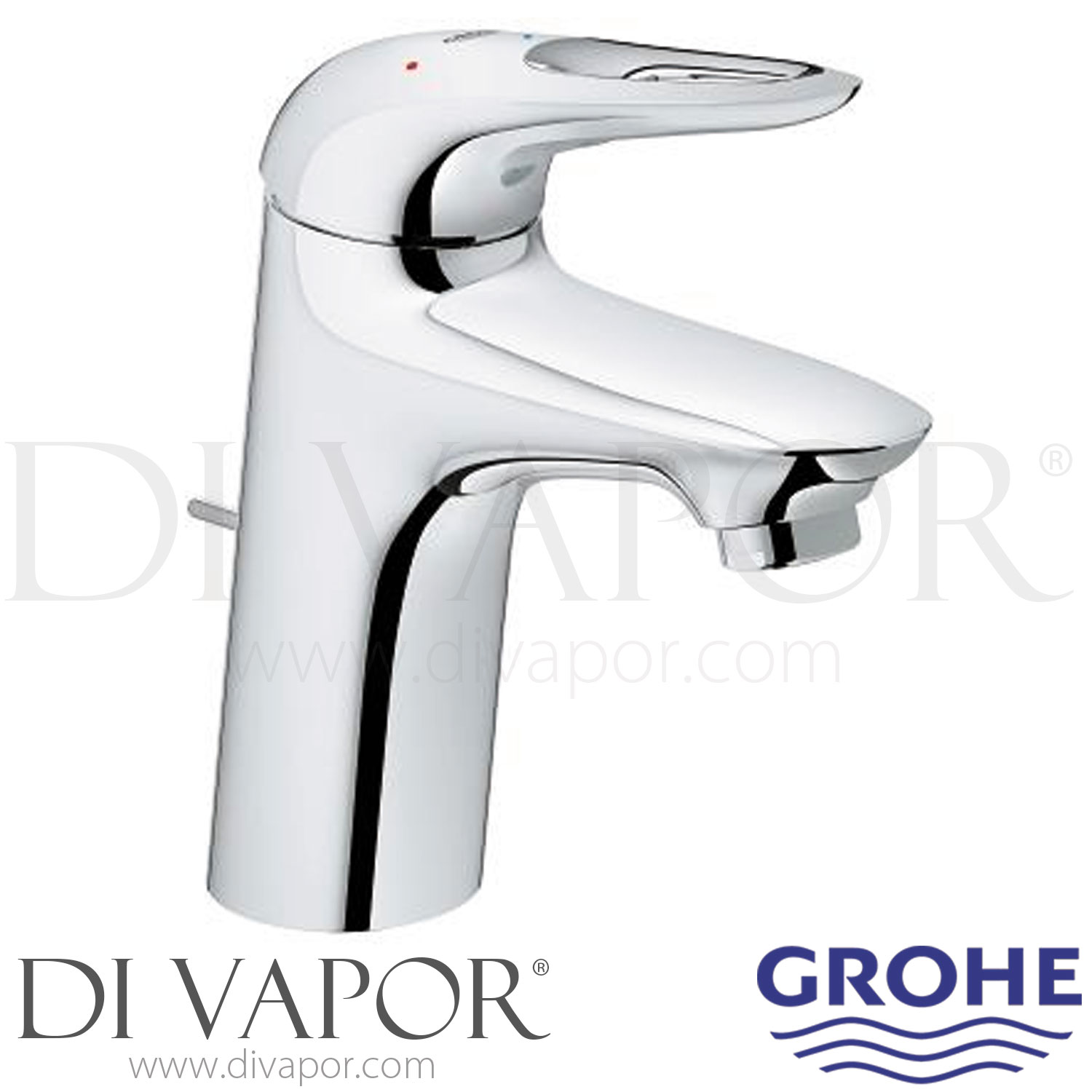

Grohe 23374003 is an Eurostyle single-lever basin mixer in S-Size with a chrome finish, single-hole installation and pop-up waste control. This page covers the service parts used to maintain the 23374003 basin mixer and its waste operating mechanism.

The mixer uses a 35mm GROHE SilkMove ES ceramic cartridge with cold-start energy-saving operation, an adjustable flow limiter and temperature limiter. It also incorporates a 5.7 litre/minute mousseur, GROHE QuickFix installation system and flexible inlet hoses. Matching Grohe spares are available for several of the serviceable components and waste-control parts.

Technical Details

- - Brand: Grohe

- - Range: Eurostyle

- - Category: Basin mixer

- - Product code: 23374003

- - Size: S-Size

- - Installation: Single-hole deck-mounted basin mixer

- - Control: Single lever

- - Cartridge: 35mm ceramic cartridge with cold-start energy-saving function

- - Flow rate: 5.7 litres per minute

- - Spout projection: 110mm

- - Spout outlet height: 82mm

- - Tap hole: 34mm diameter

- - Maximum deck thickness: 30mm

- - Flexible hose connection: G3/8

- - Waste: Pop-up waste set 1 1/4 inch

- - Finish: Chrome

- - EAN: 4005176334153

Before You Order Check

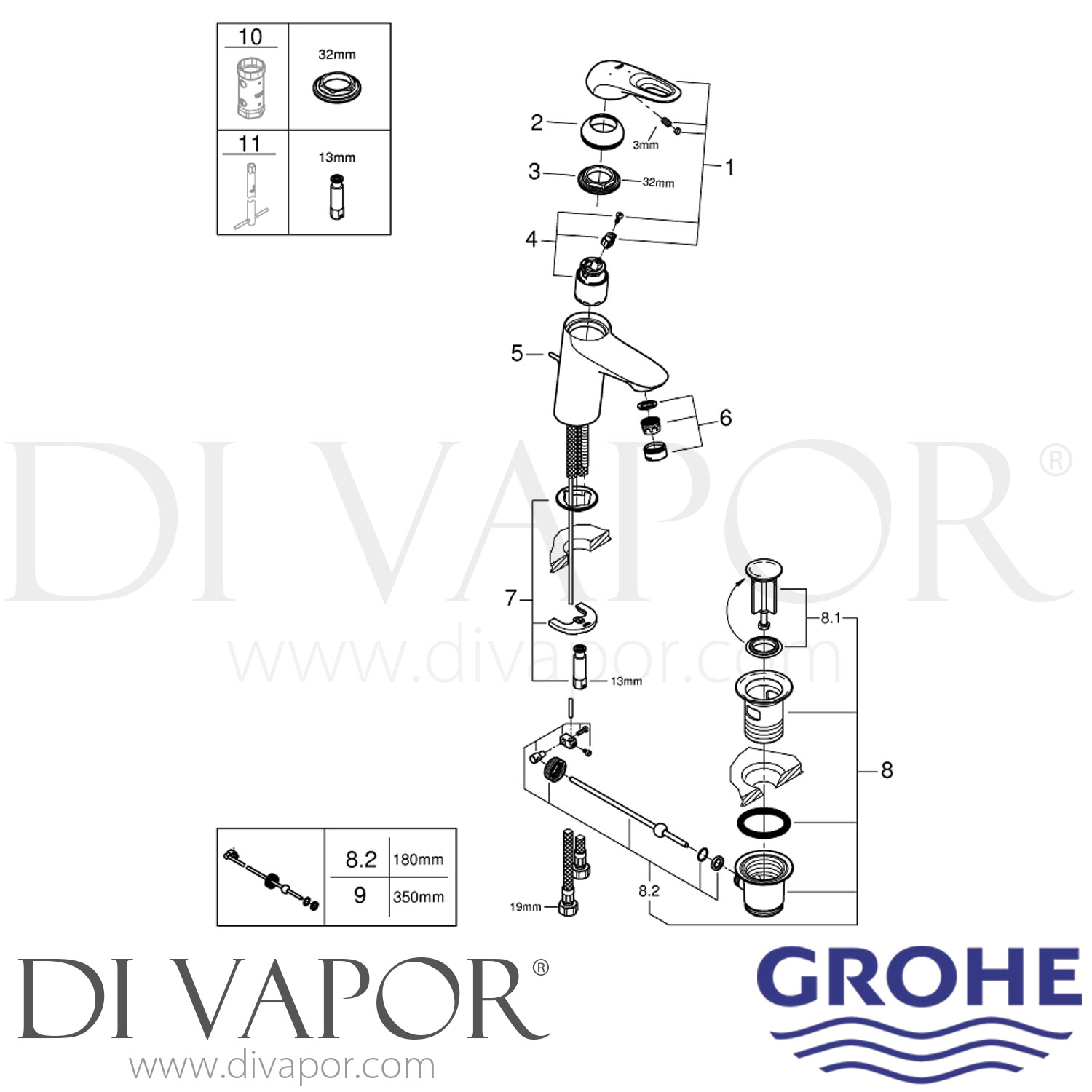

Check the mixer code is 23374003 and compare the required component with the existing part before ordering. The horizontal rods form part of the mechanical pop-up waste linkage, while the 19332000 item is a service tool rather than a fitted mixer component.
