Grohe 23060001 Concetto Single-Lever Basin Mixer (1/2 Inch) S-Size Tap Spare Parts
Send a photo of your item and we'll help confirm it.
Summary
Tap Spares for Grohe 23060001 Concetto Single-Lever Basin Mixer 1/2 Inch S-Size

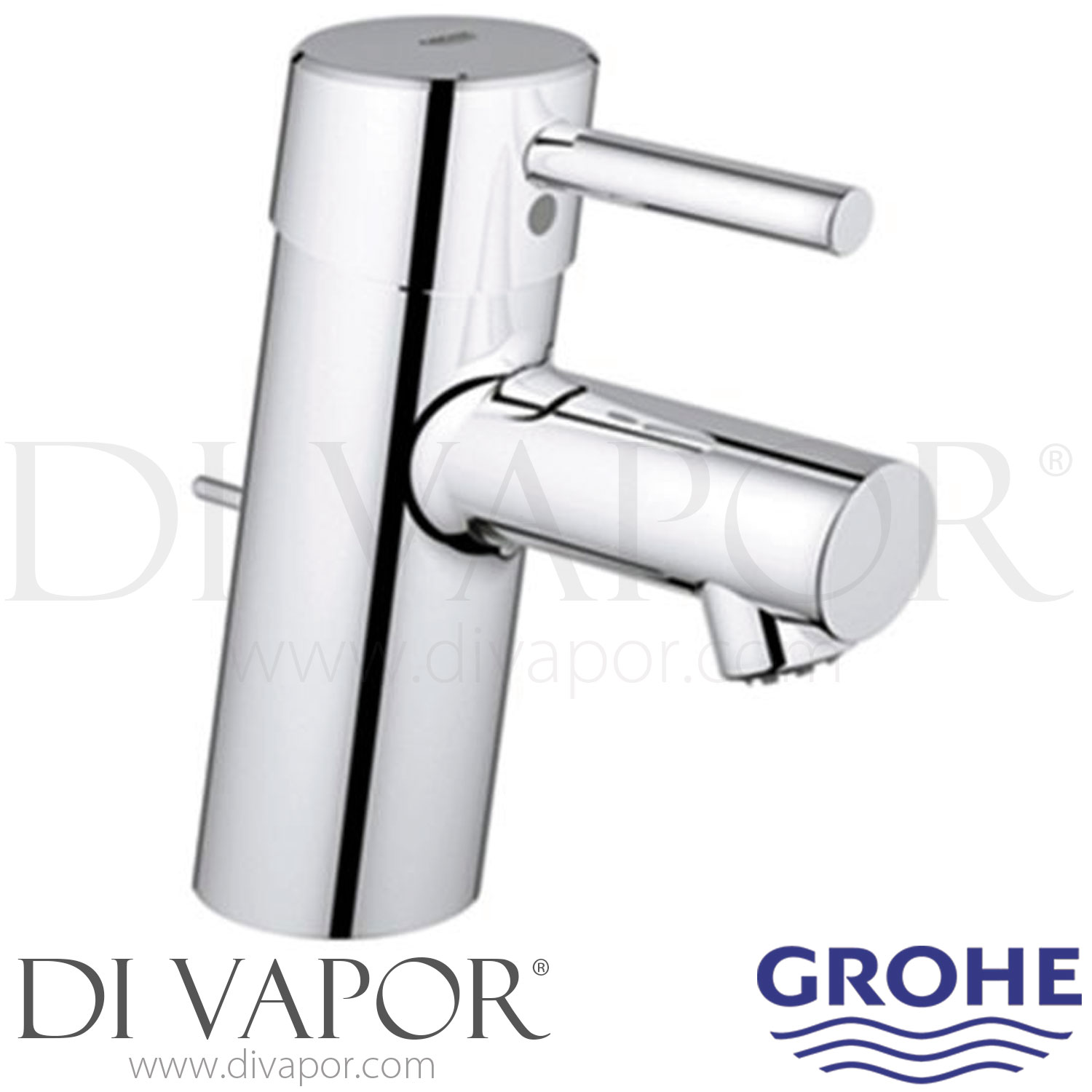

The Grohe 23060001 Concetto is a chrome single-lever basin mixer designed for a single-hole basin installation and use with an open unpressurised storage water heater. This low-pressure S-Size mixer uses a 35 mm ceramic cartridge to control water flow and temperature and is supplied with a 1 1/4 inch pop-up waste arrangement.
The mixer uses GROHE SilkMove cartridge technology and flexible G 3/8 supply connections. Because 23060001 is a low-pressure mixer for an open storage heater, expansion water can drip from the spout while the heater warms; this behaviour is normal for this type of installation and should not automatically be treated as cartridge failure.

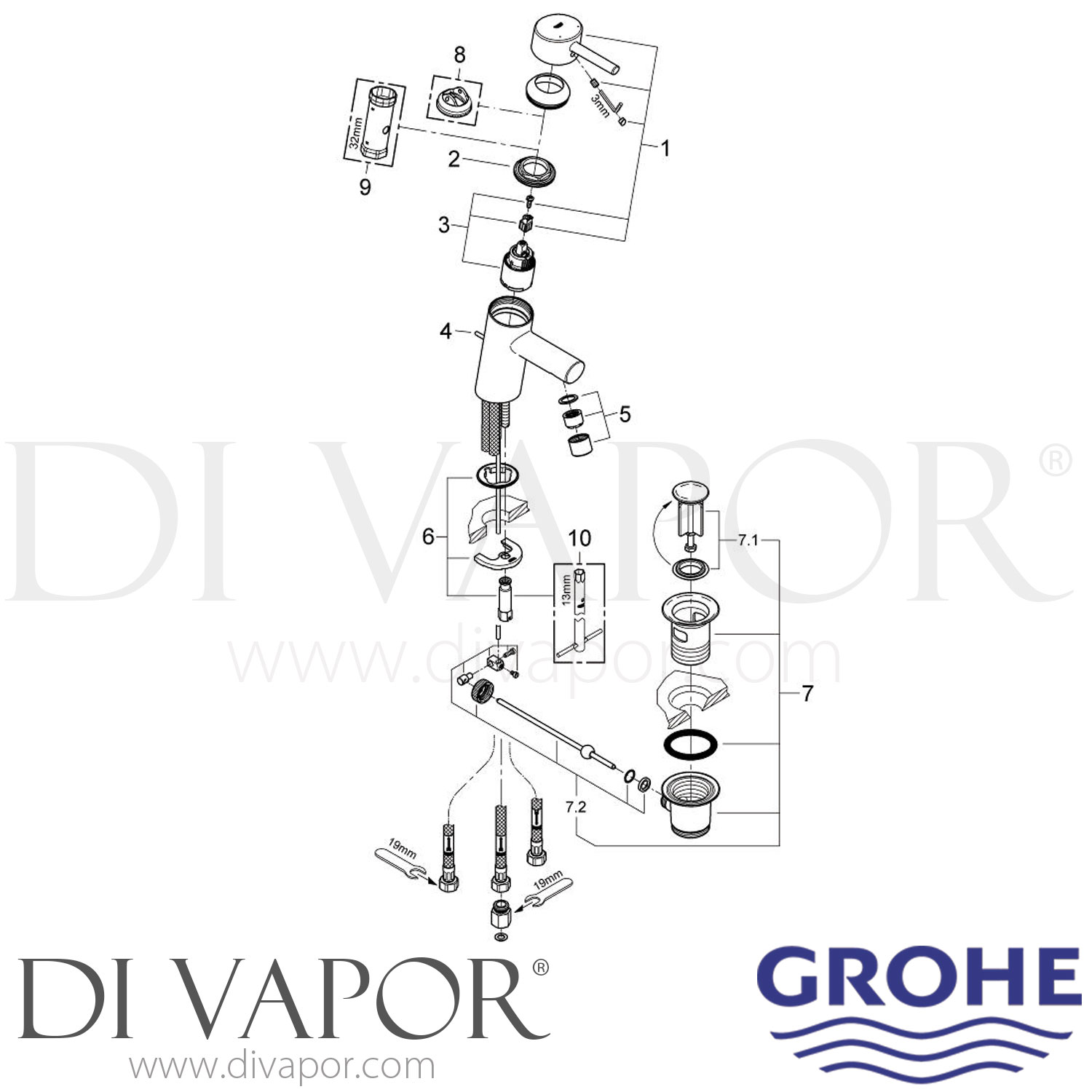

For servicing this basin mixer, the Grohe spare parts listed below cover the principal replaceable components currently available for the 23060001 system, including the low-pressure cartridge, screw coupling, waste operating rod and service tool.

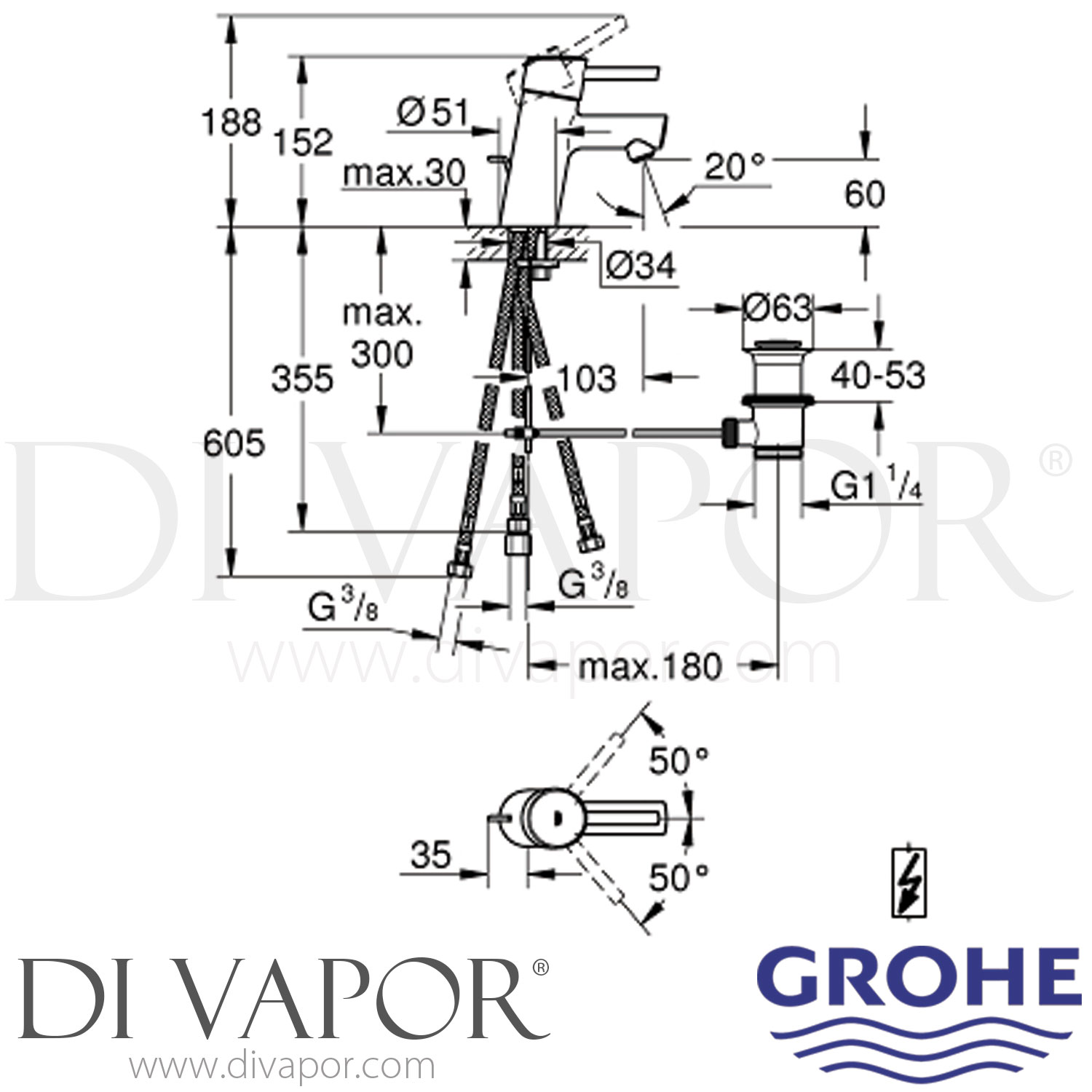

Technical Details
| Brand | Grohe |
|---|---|
| Range | Concetto |
| Category | Basin mixer |
| Product code | 23060001 |
| Size | S-Size |
| Finish | Chrome |
| Installation | Single-hole basin installation |
| Water system | Low pressure for open unpressurised storage water heaters |
| Cartridge | 35 mm ceramic single-lever cartridge |
| Overall mixer height | 188 mm |
| Spout reach | 103 mm |
| Spout outlet height | 60 mm |
| Mounting hole diameter | 34 mm |
| Maximum mounting thickness | 30 mm |
| Supply connections | G 3/8 |
| Waste connection | G 1 1/4 |
| Waste set | 1 1/4 inch pop-up waste |
| Maximum hot-water temperature | 80 C |
| EAN | 4005176888021 |
Before you order check
Confirm that the mixer is Grohe Concetto 23060001 and that it is installed on a low-pressure open storage water-heater system. Visually similar Concetto basin mixers can use different internal components, so check the model code and the spare part being replaced before ordering.
GROHE 46460000 Screw Coupling Cartridge Headnut for Single-Lever MixersGROHE 46460000 is a screw coupling and cartridge-retaining headnut used around the single-lever cartridge assembly in specified GROHE basin, bidet, bath, shower, kitchen, GROHE Blue and GROHE Red mixers. It is...
Grohe 46558000 is a 35mm low-pressure single-lever tap cartridge used in selected Grohe basin and sink mixers.It restores control of water flow and temperature inside the mixer body. A worn cartridge can cause dripping from the spout when the tap is turned off, a stiff or loose l...
GROHE 19332000 34mm and 32mm Socket Box Spanner for Tap and Shower CartridgesGROHE 19332000 is a double-ended tubular socket box spanner for servicing selected GROHE tap cartridges and thermostatic shower mixer assemblies. Its two differently sized hexagonal ends are used for the...
