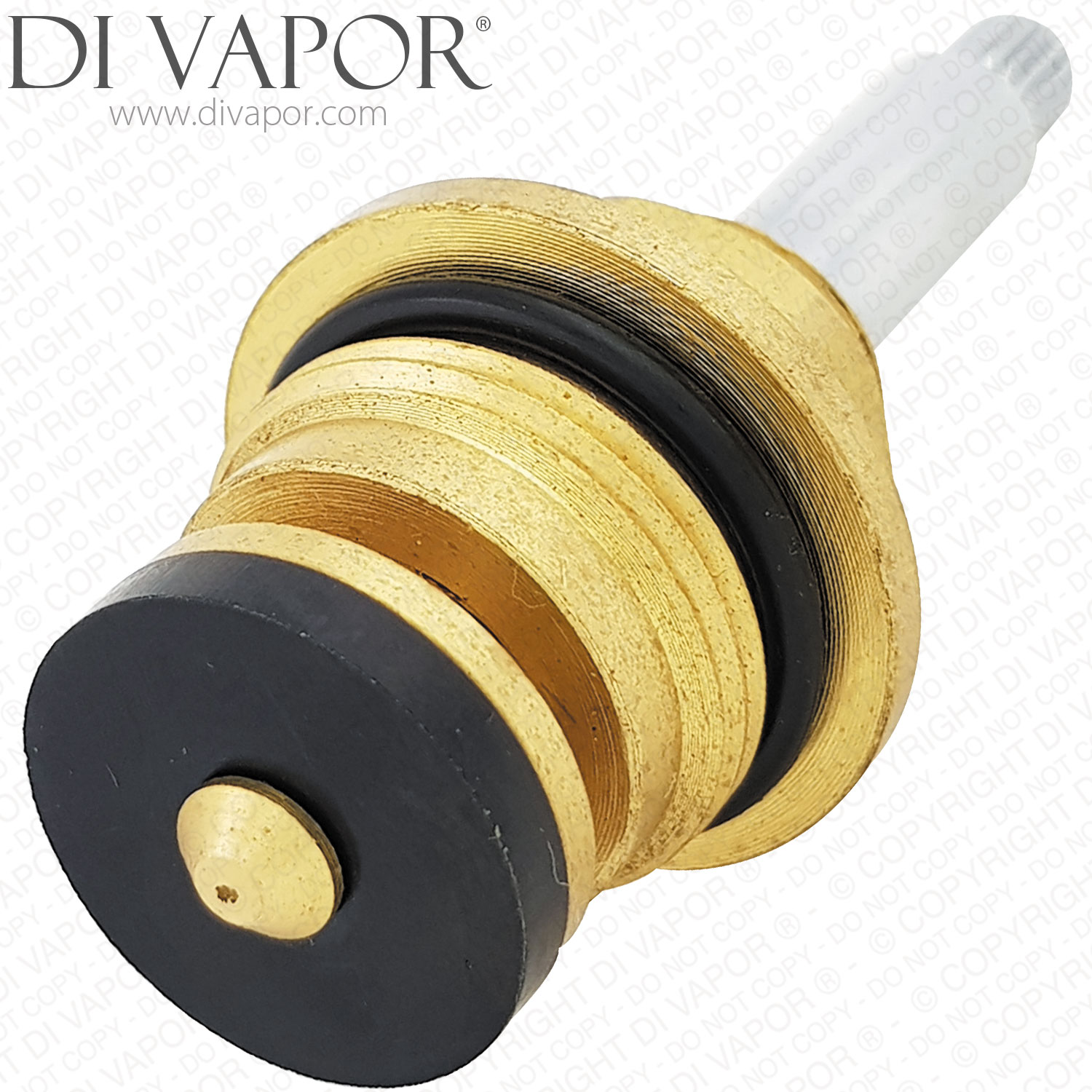

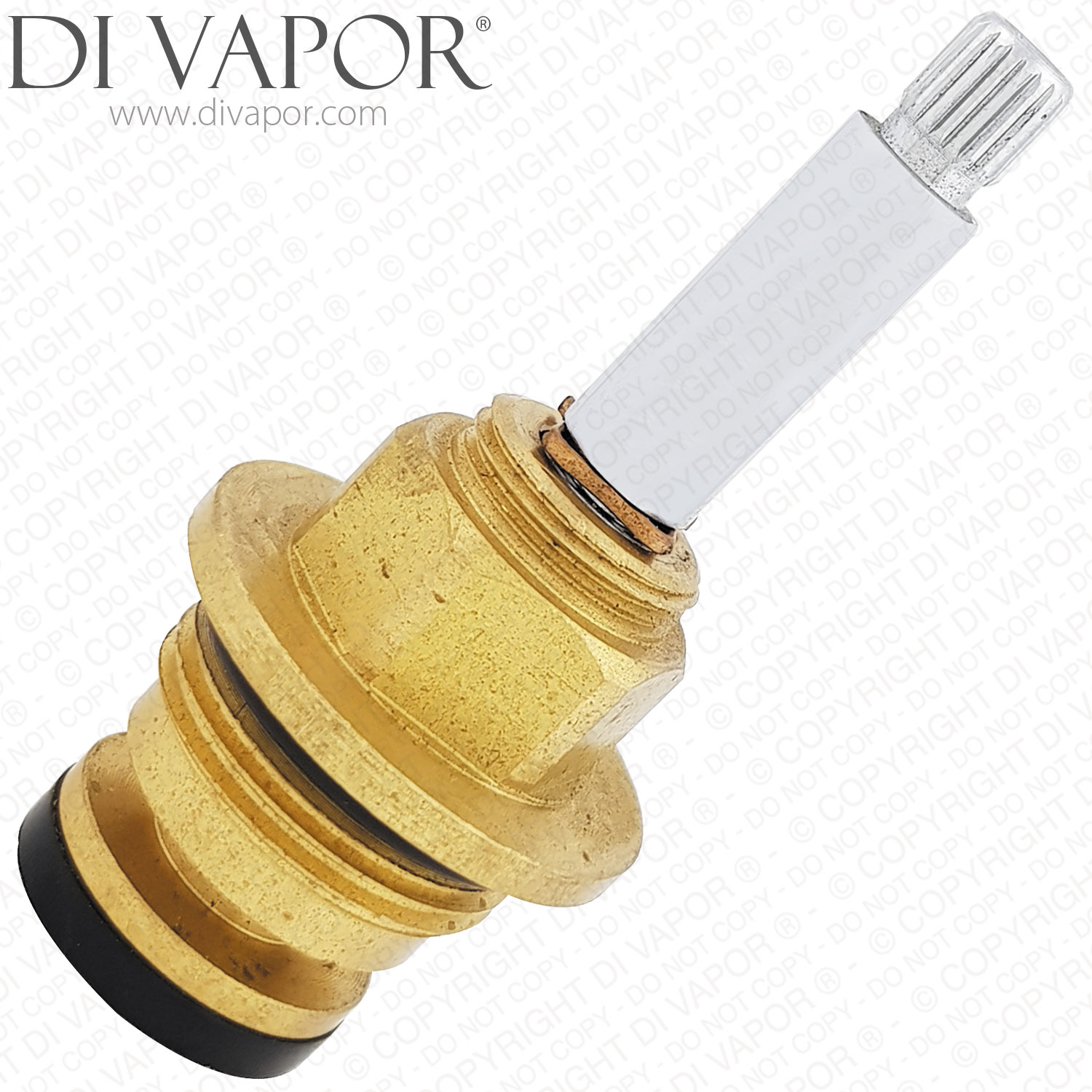

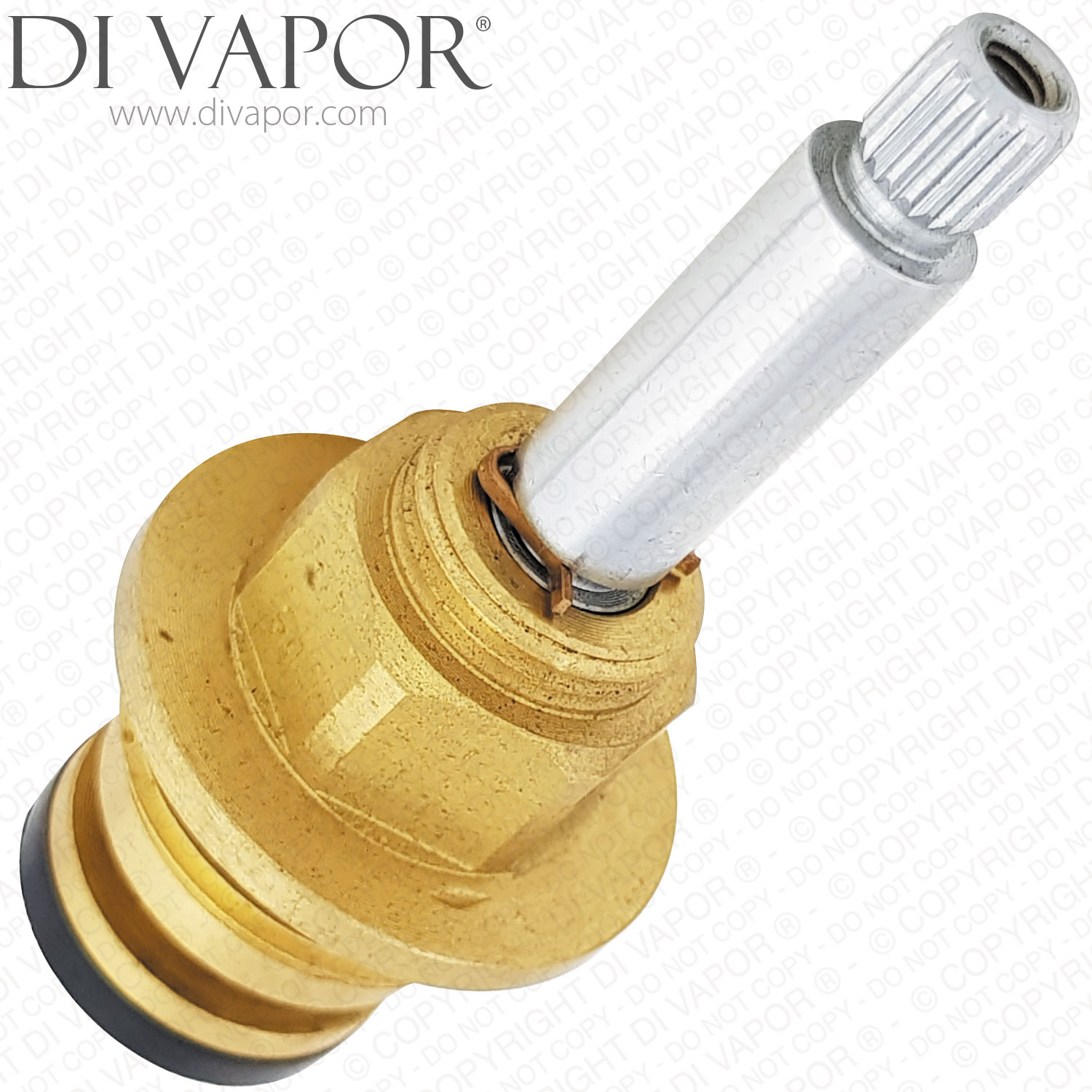

HH9100 3/4 Inch Bath Tap Cartridge

SUMMARY

HH9100 3/4 Inch Bath Tap Cartridge. Sold individually.

Total Length (including bottom seal, excluding protruding rivet): 74mm (fully compressed) to 81mm fully extended.
Spindle Length: 35mm
Diameter at Widest Point: 33.8mm
Top Spline Diameter: 7.6mm
Top Spline Teeth / Notches: 20
Top Thread Diameter (for Shroud): 17.4mm
Lower Fitting Thread: 3/4" BSP (26.2mm)
Nut Diameter: 21mm
Close Direction: Anti-Clockwise Close (Clockwise Open)

Please enquire with us if you have questions regarding spares.
