Quarter Turn Tap Cartridge
Quarter Turn Tap Cartridge1/4 Turn Tap InsertTap CartridgeTap Insert ReplacementTap Inserts

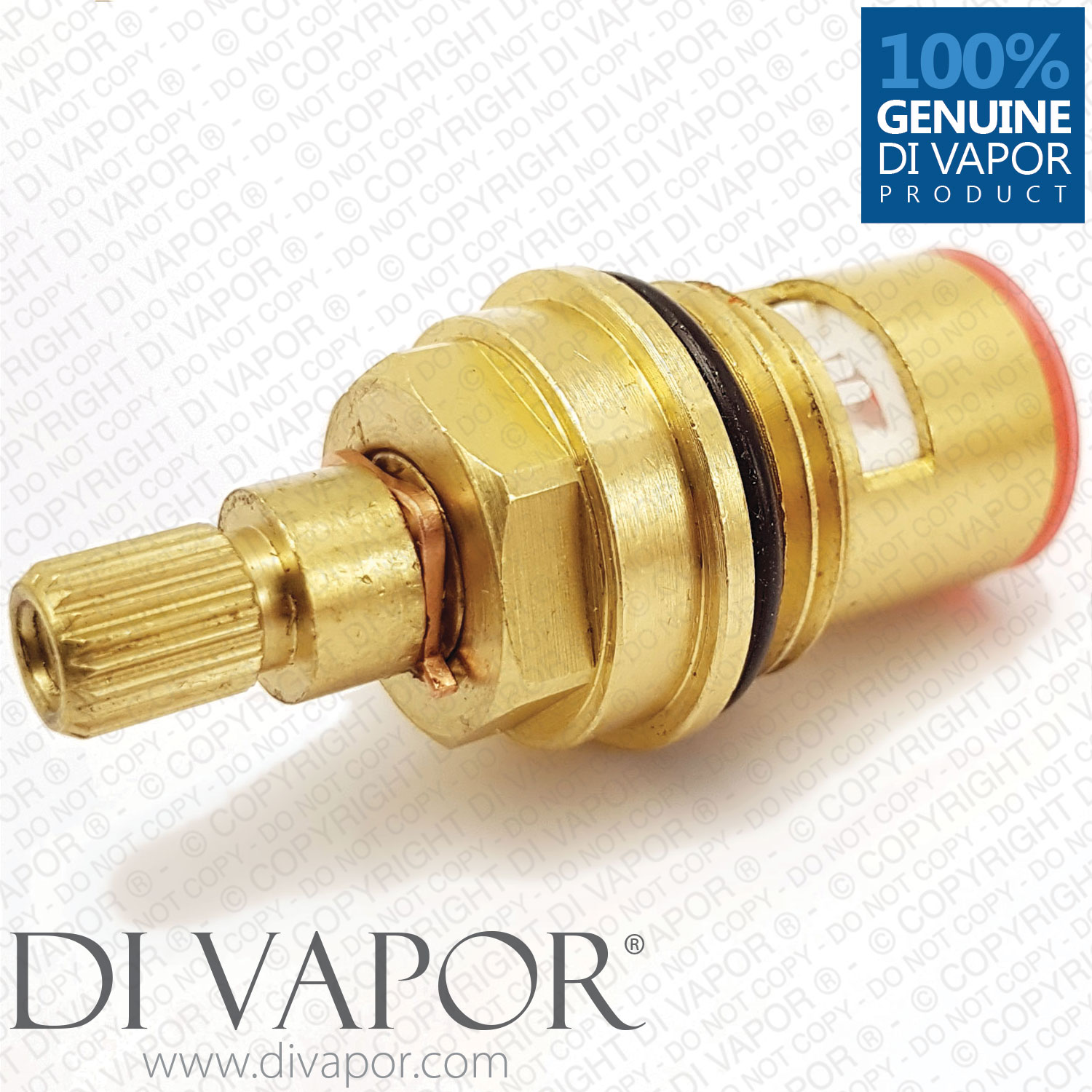

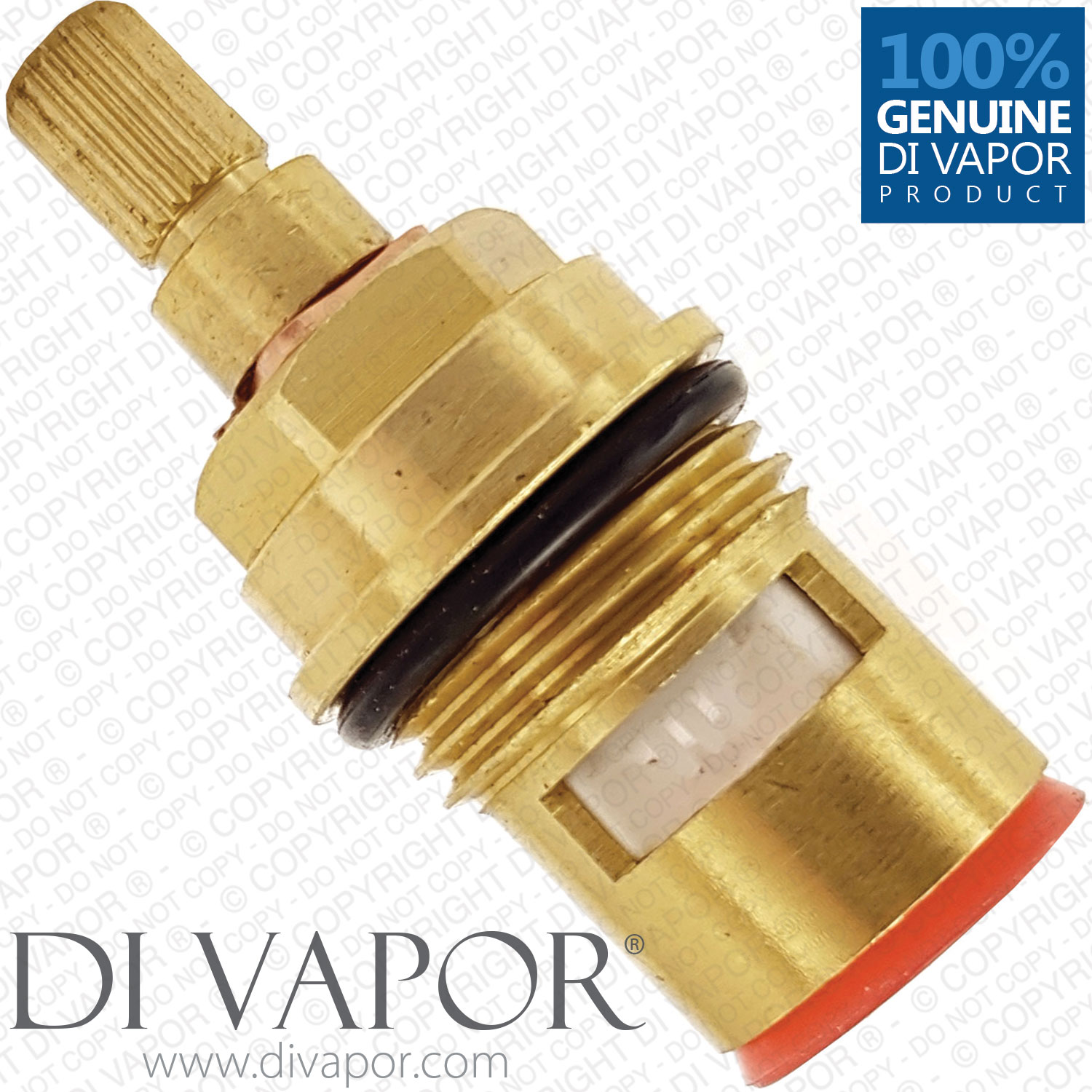

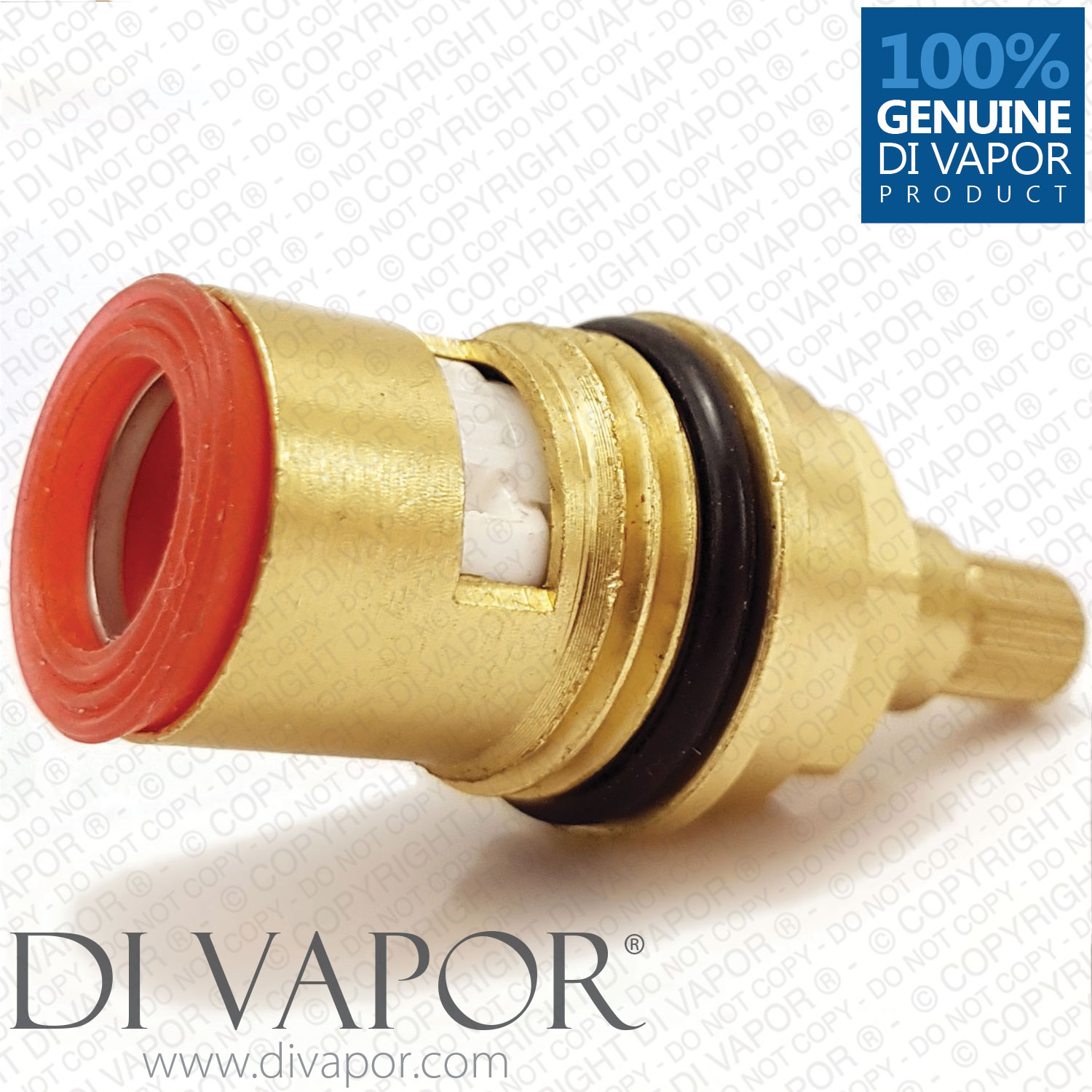

Ceramic Tap Insert Cartridge - 1/2" BSP, 1/4 Turn Anti-Clockwise Close - 54mm Height, 20 Teeth Spline - Hot Side

Part Number: DF8177

SALE: £11.95

You save: £18.04 (60%)
Price includes VAT
Wrong Item? Click to see More
UK Lowest Price Guaranteed
Next Day Delivery Available
Product description


Ceramic Tap Insert Cartridge - 1/2" BSP, 1/4 Turn Anti-Clockwise Close - 54mm Height, 20 Teeth Spline - Hot Side

Total Length (including bottom seal): 53.4mm
Diameter at Widest Point: 23.8mm
Top Spline Diameter: 7.65mm
Top Spline Teeth / Notches: 20
Barrel Diameter: 18.3mm
Lower Thread: 22.5mm

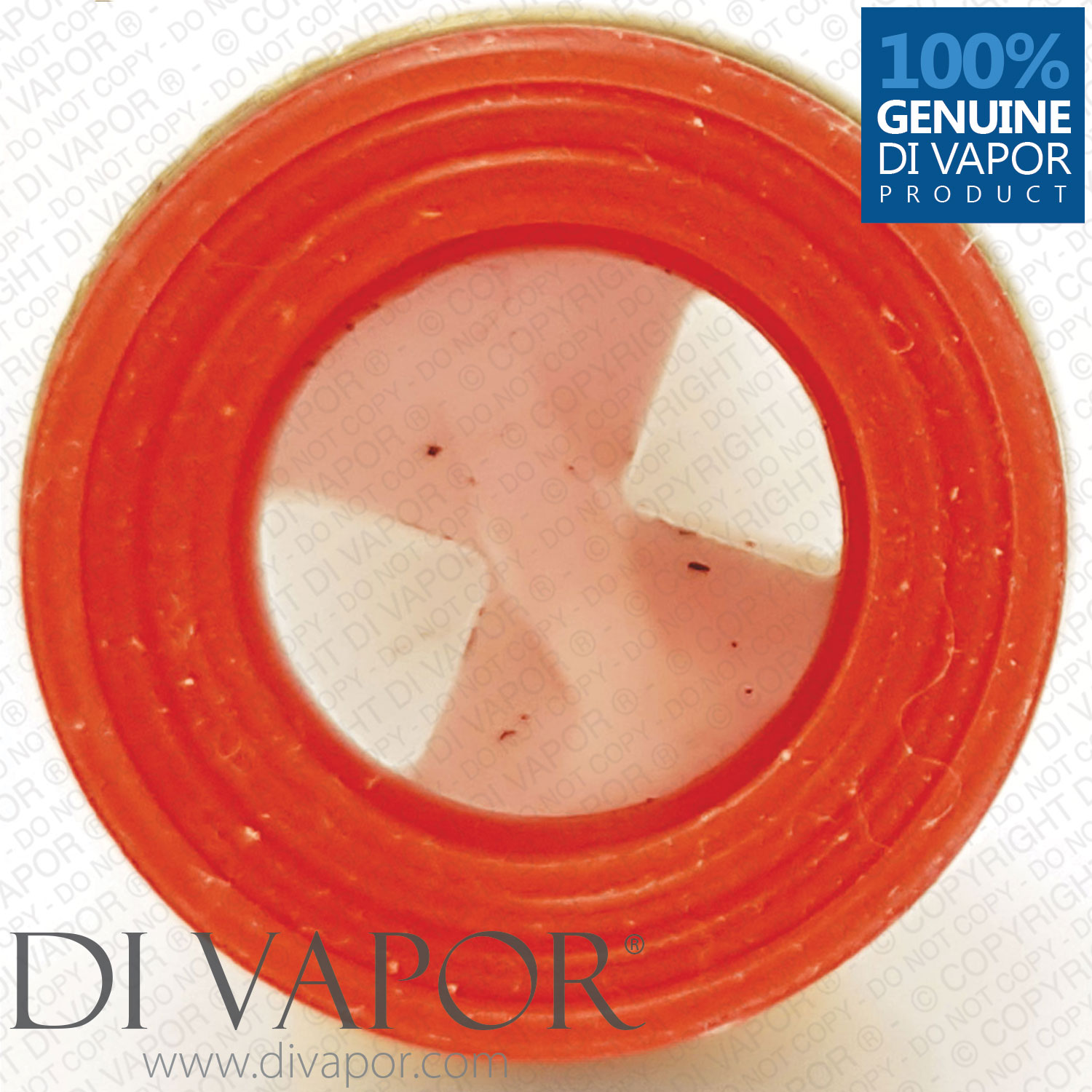

Bottom Seal Colour: Red (for Hot Side)

This is an anti-clockwise close cartridge which means it is a clockwise open cartridge. It is usually used on the left side of taps.

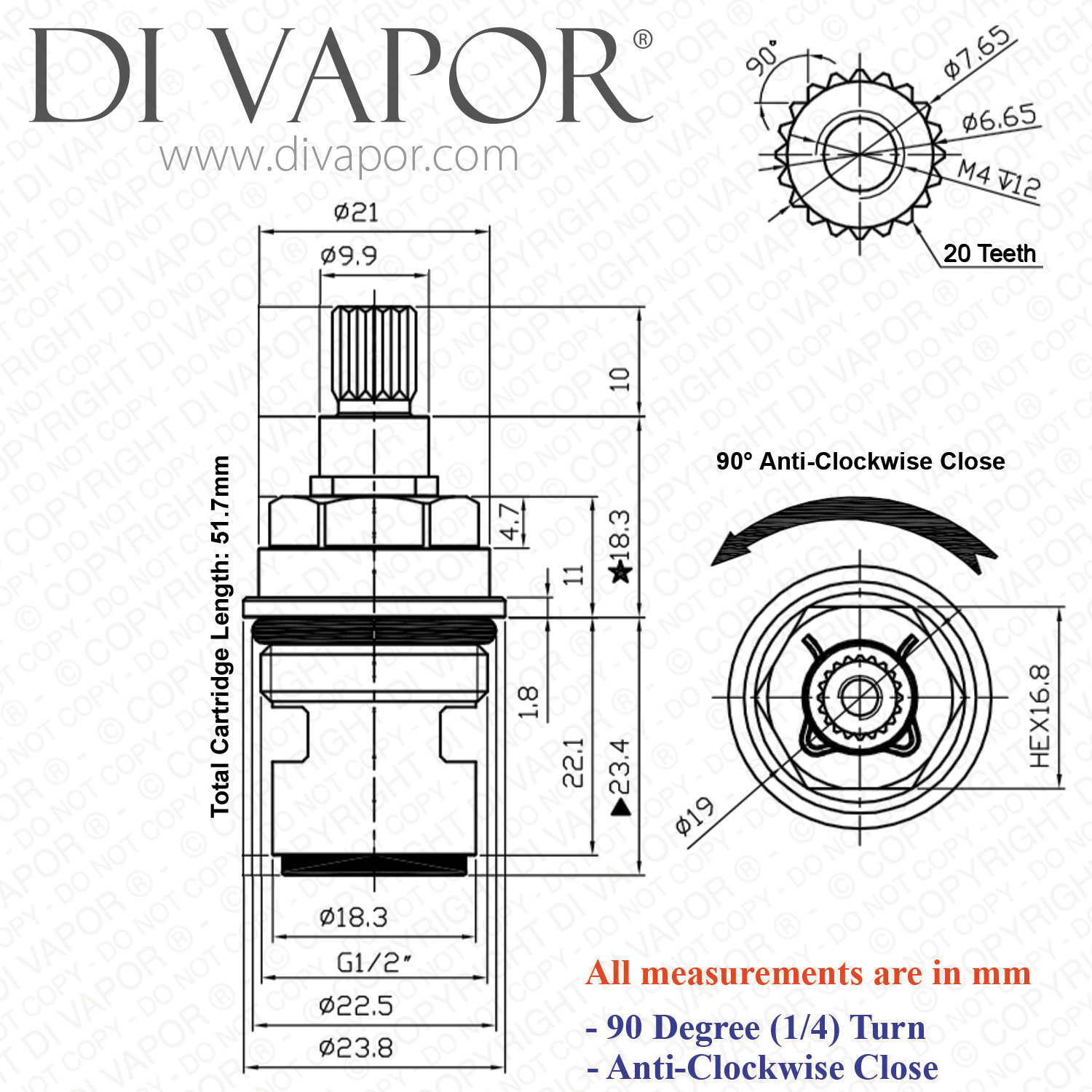

Even if the tap insert cartridge that you have visually looks identical to this one, please measure the tap insert you have and compare the measurements to the ones in the technical diagram in the images (image 2).

This will save you having to return the cartridge if it is wrong. A lot of people make the mistake of not measuring.

The tap insert cartridge that you are replacing doesn't need to look identical to this one. Sometimes there are different markings, but as long as the measurements line up with this cartridge, aesthetic differences make no difference.

If you have any questions or need help in identifying your ceramic tap insert, please contact us.
