Ceramic Tap Gland Cartridge - 1/2" BSP, 1/4 Turn Clockwise Close - 39mm Height, 28 Teeth Spline - Cold Side

Part Number: DF8180
Best UK Price  Next Day Delivery
Dispatches tomorrow if ordered within 18 hrs 30 min
Price: £29.99
Sale: £11.95
You save: £18.04 (60%)
Quantity:
IN STOCK
Tick14 day money-back guaranteeTickEasy Returns if it doesn't fit

Part Details Delivery & Returns Payment & Security
Part Details

Summary

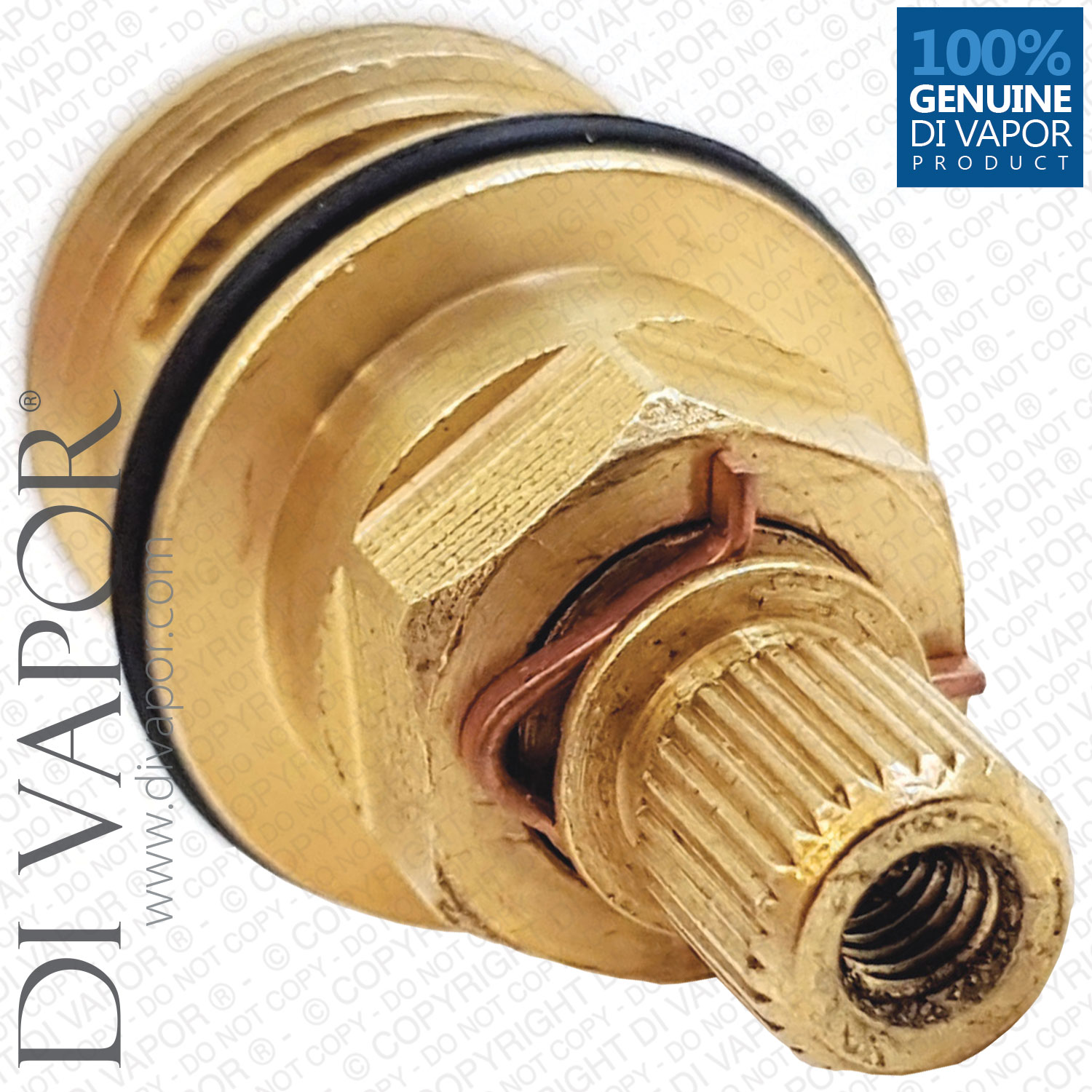

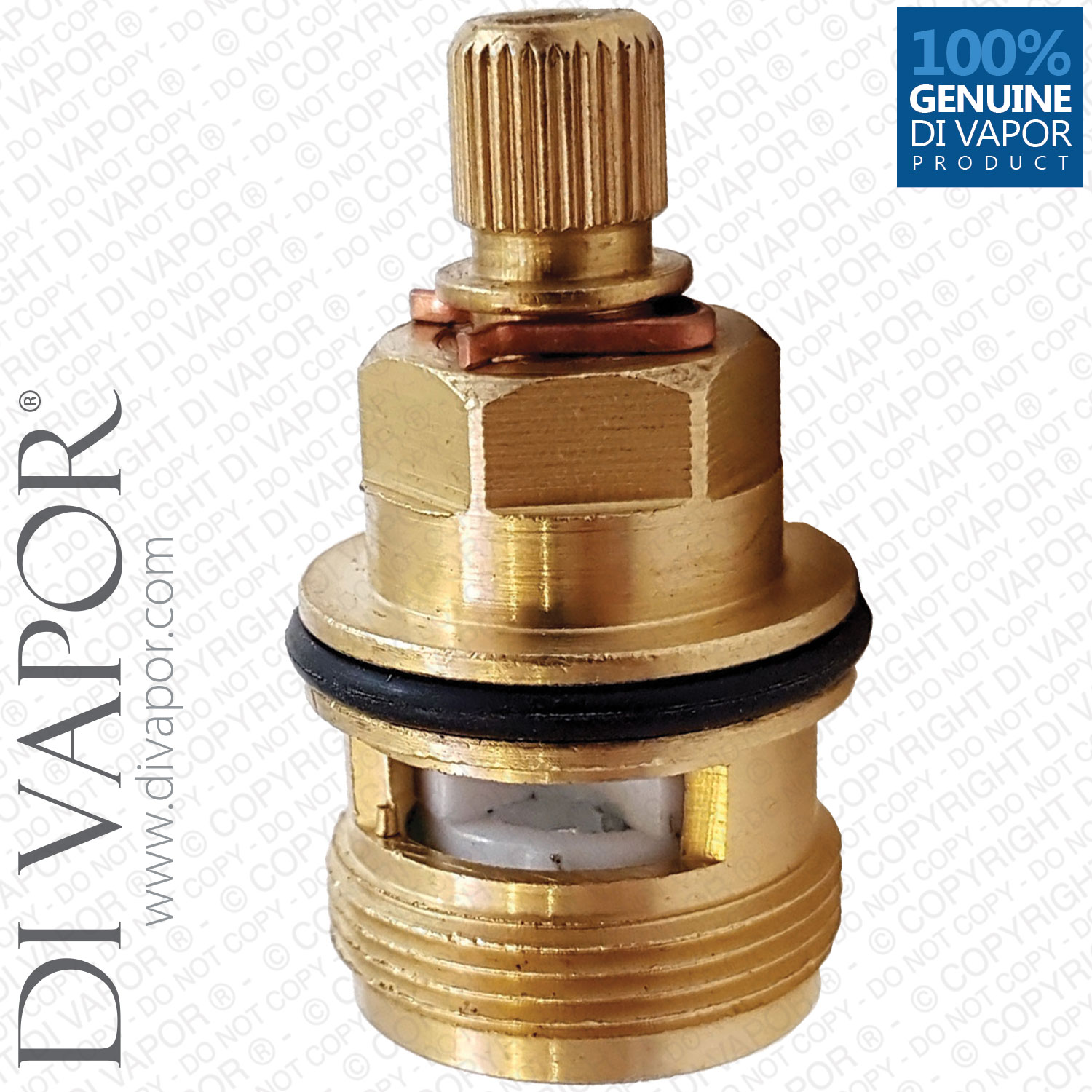

Ceramic Tap Gland Cartridge - 1/2" BSP, 1/4 Turn Clockwise Close - 39mm Height, 28 Teeth Spline - Cold Side

Total Length (including bottom seal): 39.2mm
Diameter at Widest Point: 22mm
Top Spline Diameter: 7.8mm
Top Spline Teeth / Notches: 28
Barrel Diameter: 18.3mm
Lower Thread: 20mm

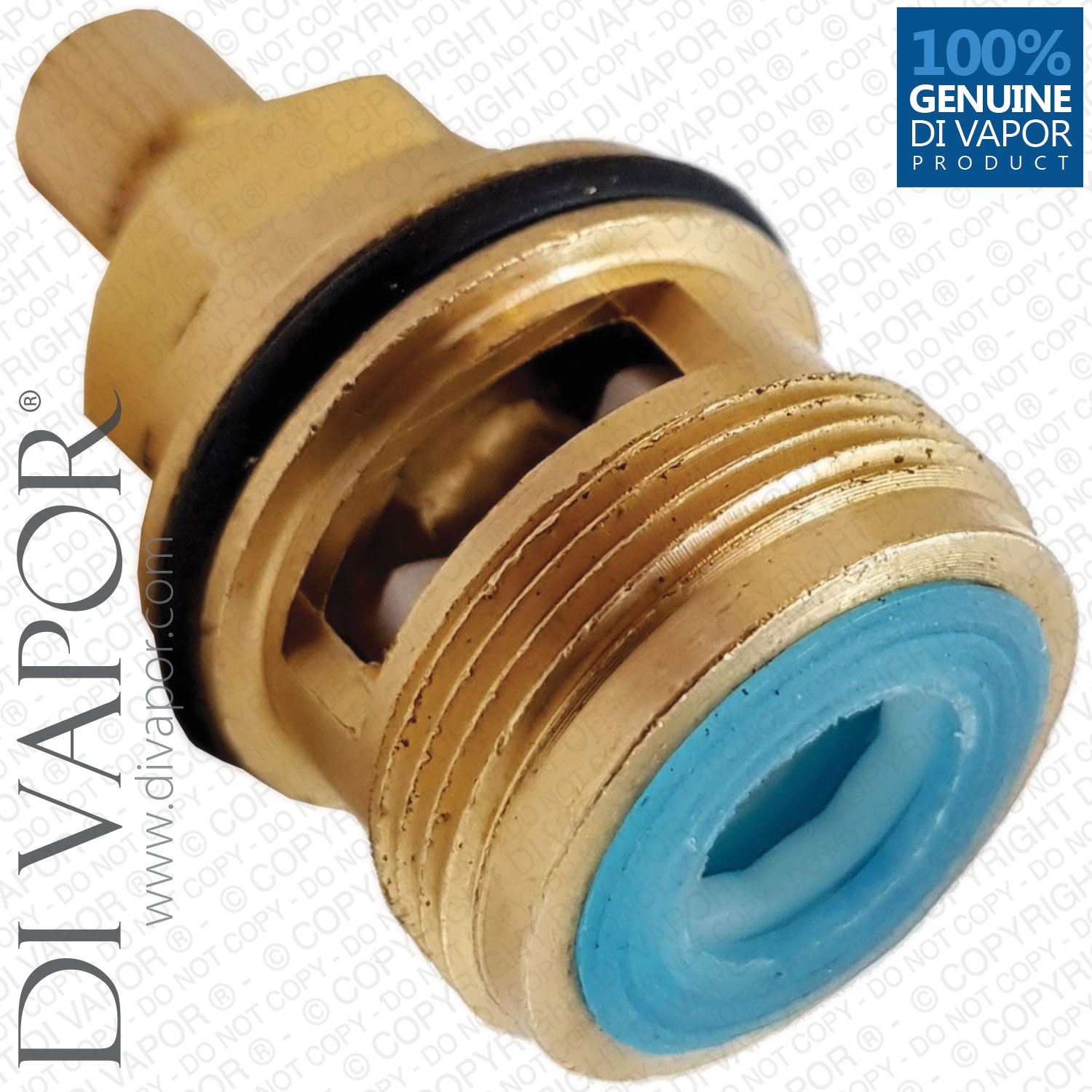

Bottom Seal Colour: Blue (for Cold side)
Close Direction: Clockwise Close (Anti-Clockwise Open)


Tap Spare Part Buying Guide: Ceramic Tap Gland Cartridge Cold


Is your tap leaking and you’re wondering if this ceramic tap gland cartridge is the spare part needed to repair it? This short guide may help you to manually determine if this spare is compatible with your tap.



– Do you have the faulty cartridge with you?

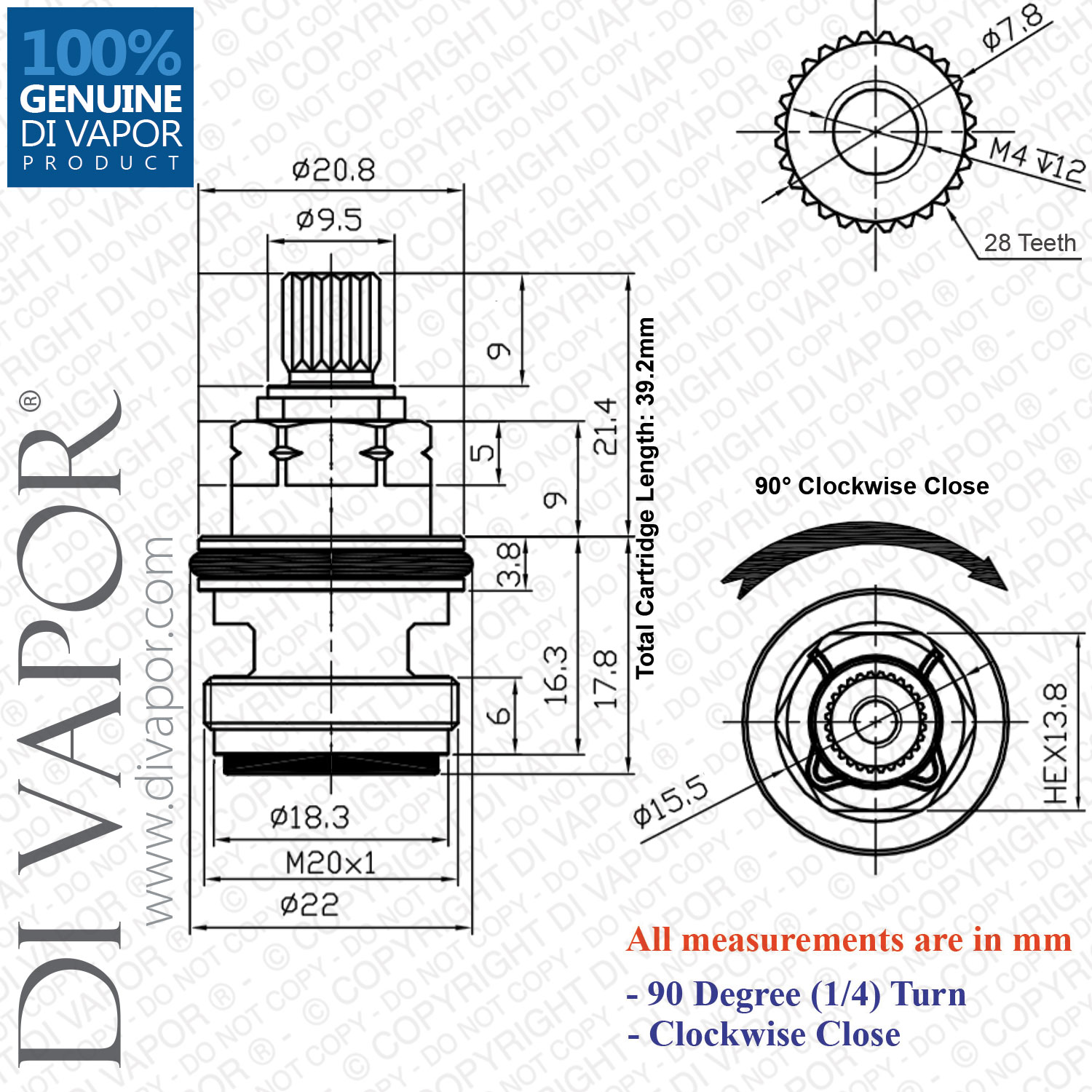

If so, a measurement of the ceramic tap gland cartridge can be taken using any ruler or a measuring tape. Use the information given above and see the second photo in the gallery – this is a diagram of the measurements – to know which part you should measure.

If you know the tap model you have, please use enter the tap brand, model name or spare part number in our search bar.

If you do not know the tap model and don’t have the cartridge with you, please drop us a message. Our friendly and helpful UK spares experts will find the right tap spare part you need.

– How many teeth does the cartridge spline have?
The splines on the tap gland replacement ceramic cartridge must perfectly mate with the splines under the tap handle. This part is what makes it possible to rotate the handle to open and close the tap’s water flow.

Count the spline teeth by marking it with a pen and begin counting from there. This particular tap spare has 28 teeth.

– Hot or cold?
This ceramic tap gland cartridge is for the tap’s cold side. It opens with a quarter turn in an anti-clockwise direction and closes in the opposite. The hot and cold sides are not interchangeable.

The hot side variation of this tap spare is part number DF8179. Please visit the page for FAQs and a very basic tap repair tip.


Need the grease that is so fundamental for tap repair? Please jump to the last section of the page to see what we offer.
