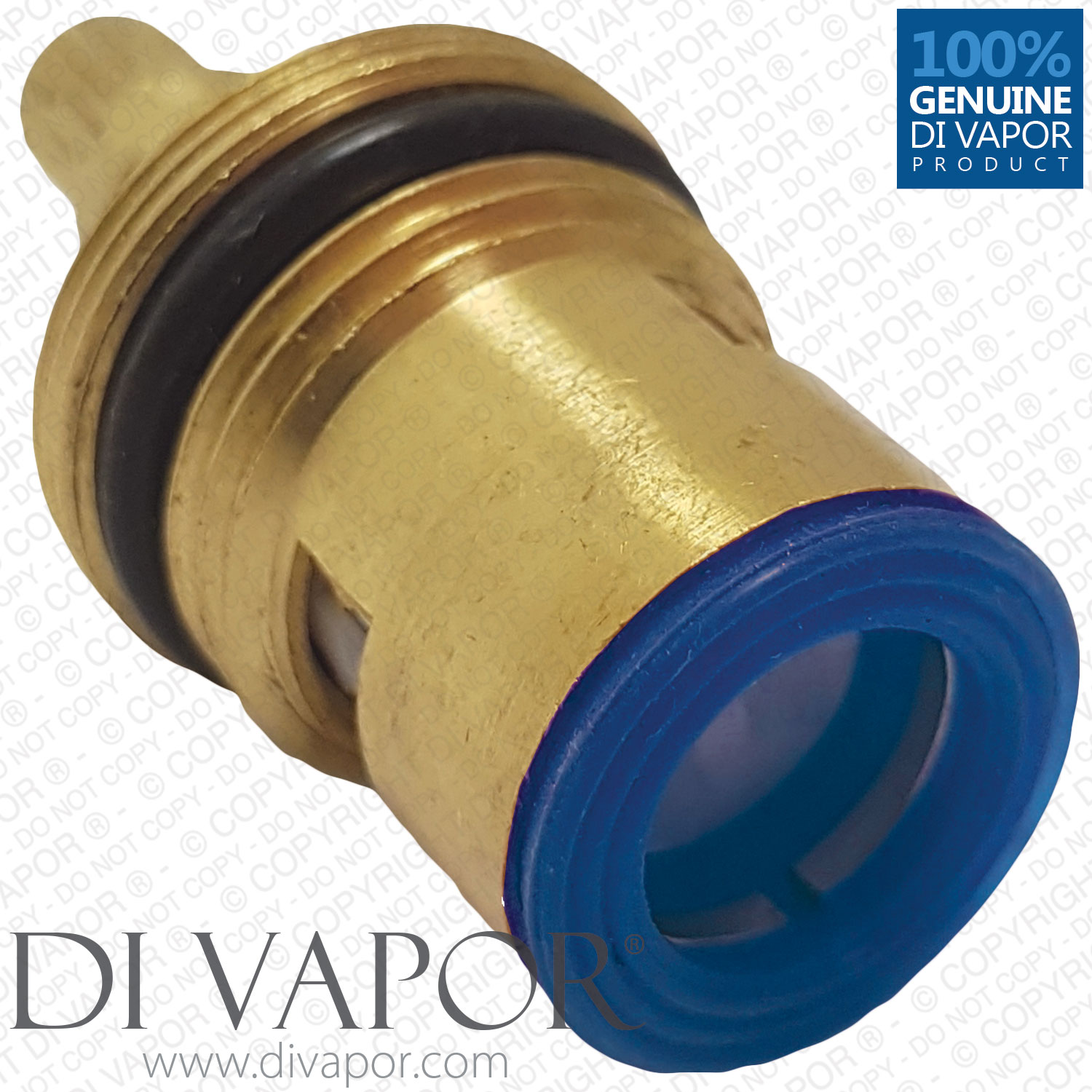

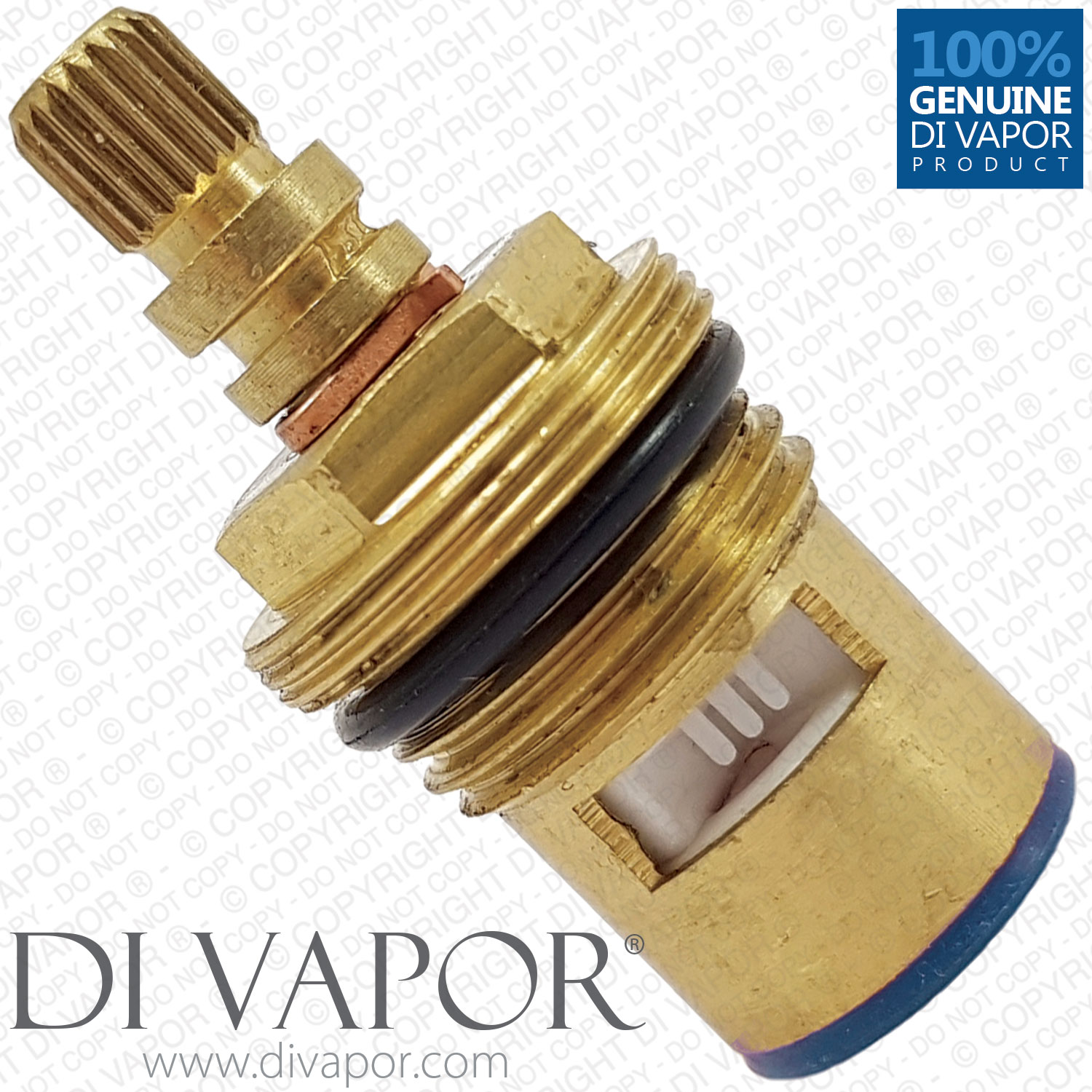

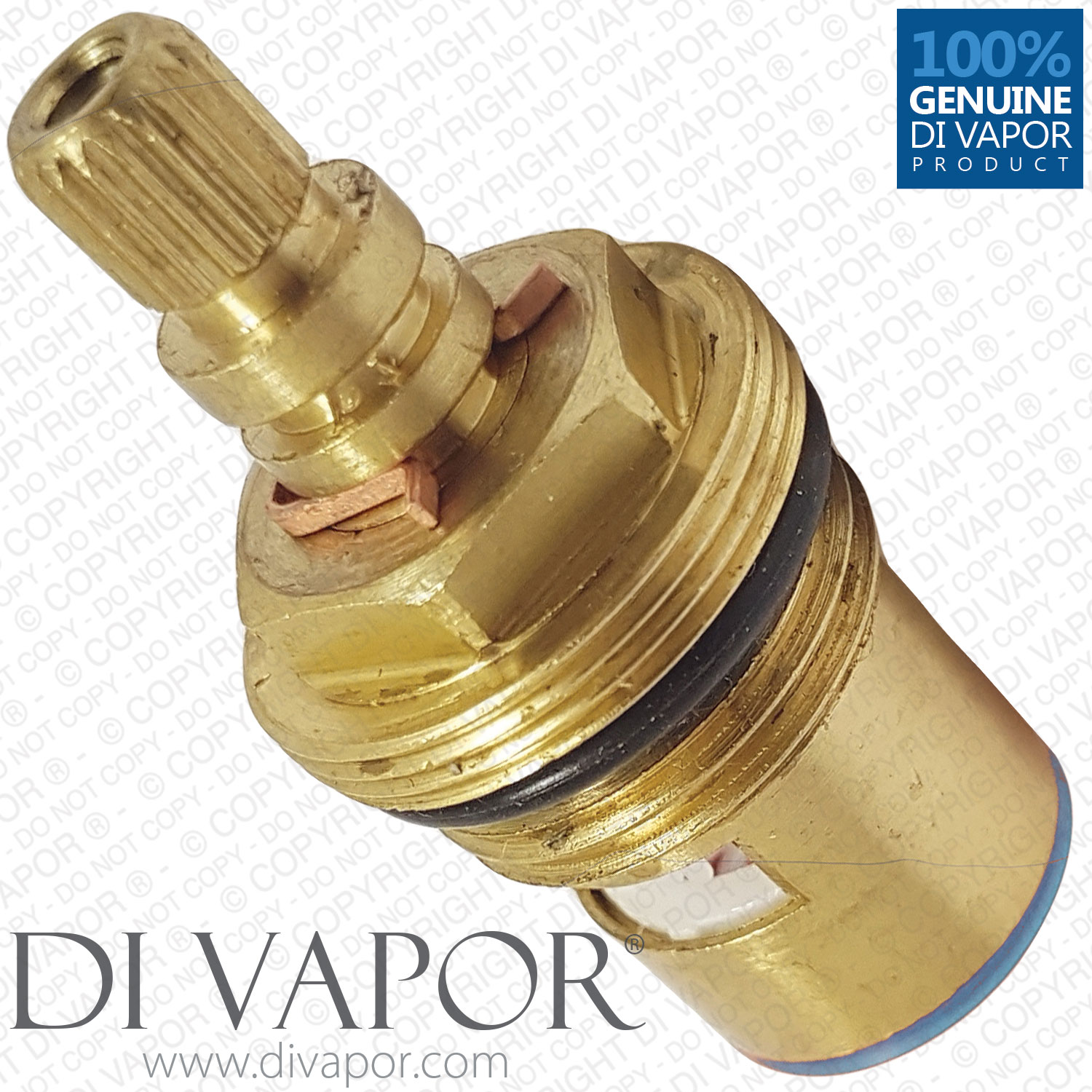

Ceramic Tap Cartridge - 1/2" BSP, 1/4 Turn Clockwise Close - 48mm Height, 20 Teeth Spline - Cold Side

Part Number: DF8174

SALE: £9.95

You save: £20.04 (67%)
Price includes VAT
Wrong Item? Click to see More
UK Lowest Price Guaranteed
Next Day Delivery Available
Product description

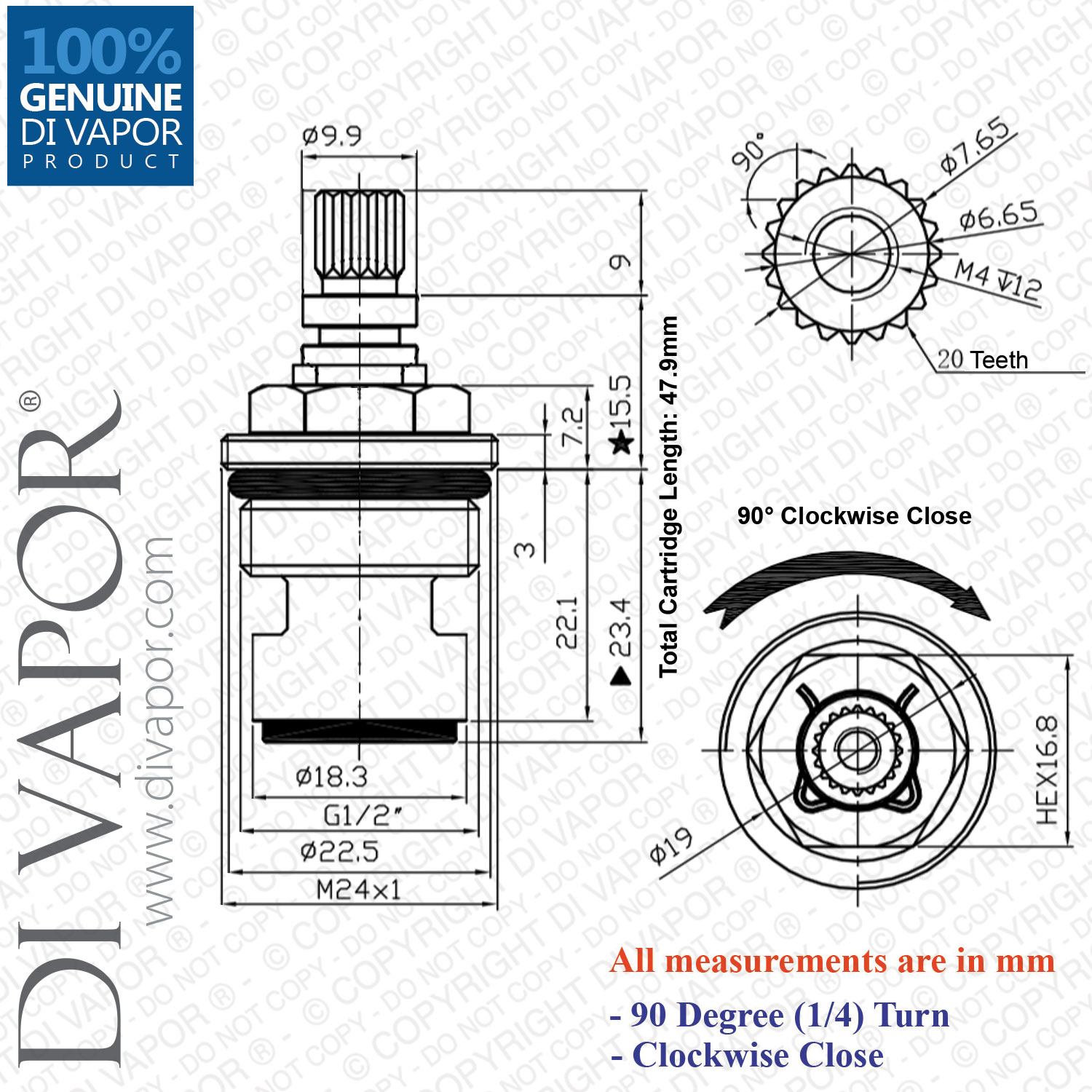

Ceramic Tap Cartridge - 1/2" BSP, 1/4 Turn Clockwise Close - 48mm Height, 20 Teeth Spline - Cold Side

Total Length (including bottom seal): 47.9mm
Diameter at Widest Point: 24mm
Top Spline Diameter: 7.6mm
Top Spline Teeth / Notches: 20
Barrel Diameter: 18.3mm
Lower Thread: 22.5mm

Installation of the cartridge is very simple. The unscrew the existing old cartridge from your tap valve, use a spanner and turn anti-clockwise. Sometimes the cartridge can be stuck in the valve tightly as limescale can build up around the thread and harden. We find that if you use a hammer to gently tap the spanner, it will help to crack the limescale seal and loosen the cartridge.

Remove the old cartridge, make sure the valve is clear of debris and screw the new one in. We recommend that you put silicone grease on the o'ring. This will keep the seal water tight and prevent the o'ring from deteriorating.
