Ceramic Disc Cartridge - 1/2" BSP, 1/4 Turn Clockwise Close - 54mm Height, 28 Teeth Spline - Cold Side
Part number: DF8184
Price: £29.99
Sale: £11.95
You save: £18.04 (60%)
Price includes UK VAT (Region: UK▼)
In stock
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary
Ceramic Disc Cartridge - 1/2" BSP, 1/4 Turn Clockwise Close - 54mm Height, 28 Teeth Spline - Cold Side

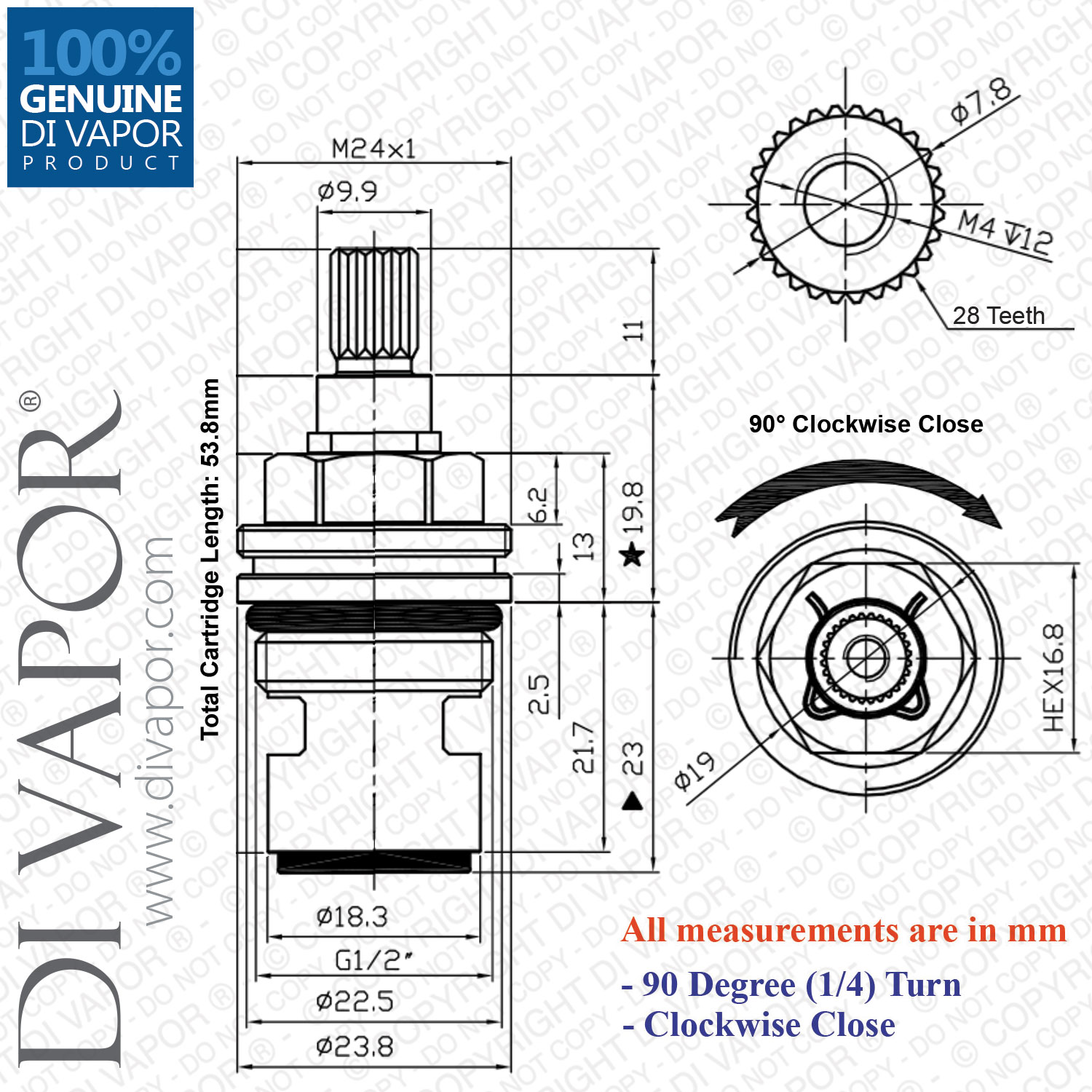

| Total Length (including bottom seal) | 53.8mm |
|---|---|
| Diameter at Widest Point | 23.8mm |
| Top Spline Diameter | 7.8mm |
| Top Spline Teeth / Notches | 28 |
| Barrel Diameter | 18.3mm |
| Lower Thread | 22.5mm |
| Bottom Seal Colour | Blue (for Cold Side) |
| Close Direction | Clockwise Close (Anti-Clockwise Open) |
| Upper Thread (closer to spline) | 24mm |
