Burlington SP76 On/Off Flow Cartridge for Basin Taps - BL-SP76
Send a photo of your item and we'll help confirm it.
Summary
Burlington SP76 On/Off Flow Cartridge for Basin Taps - BL-SP76
The SP76 cartridge is used in the following Burlington valve models: T14-QT.

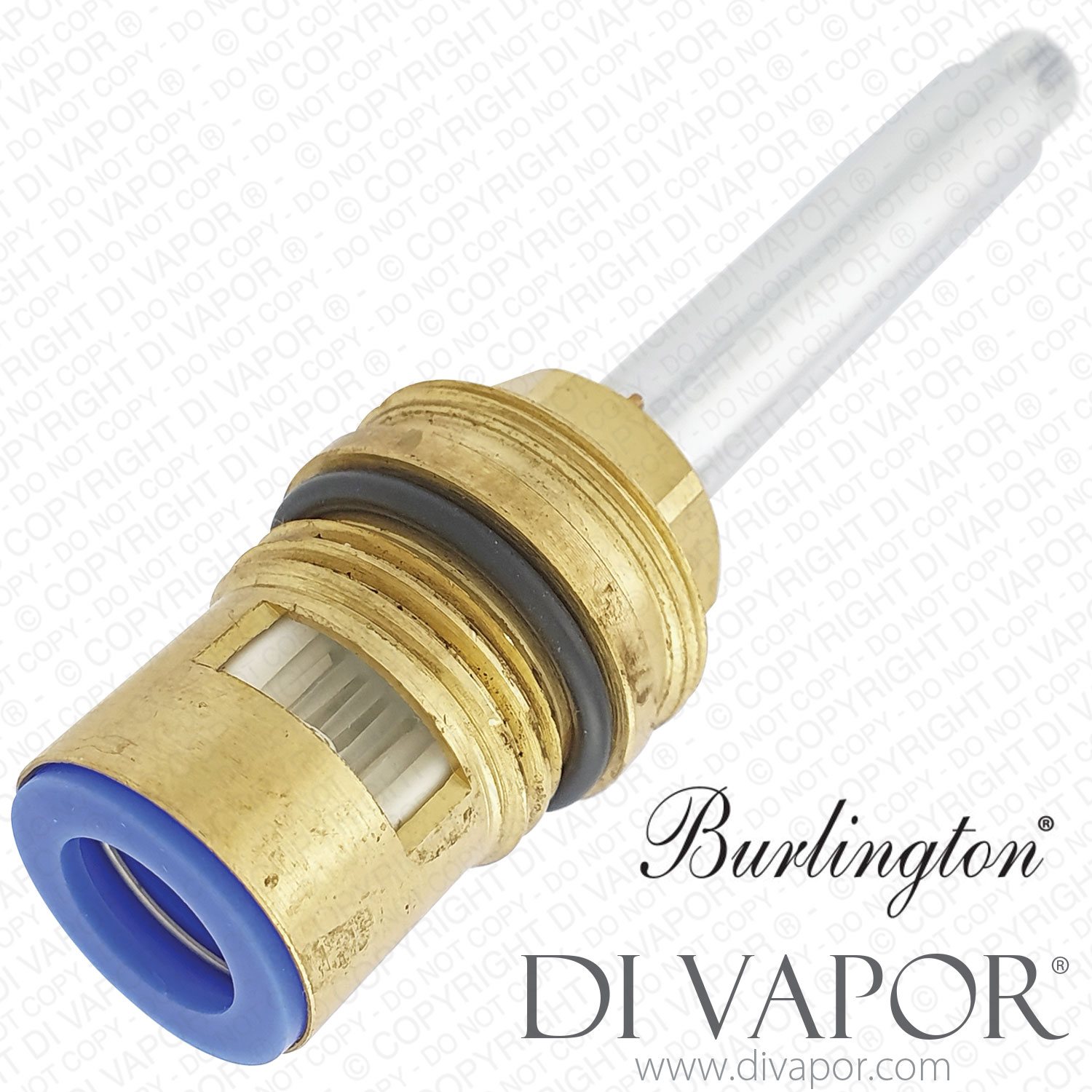

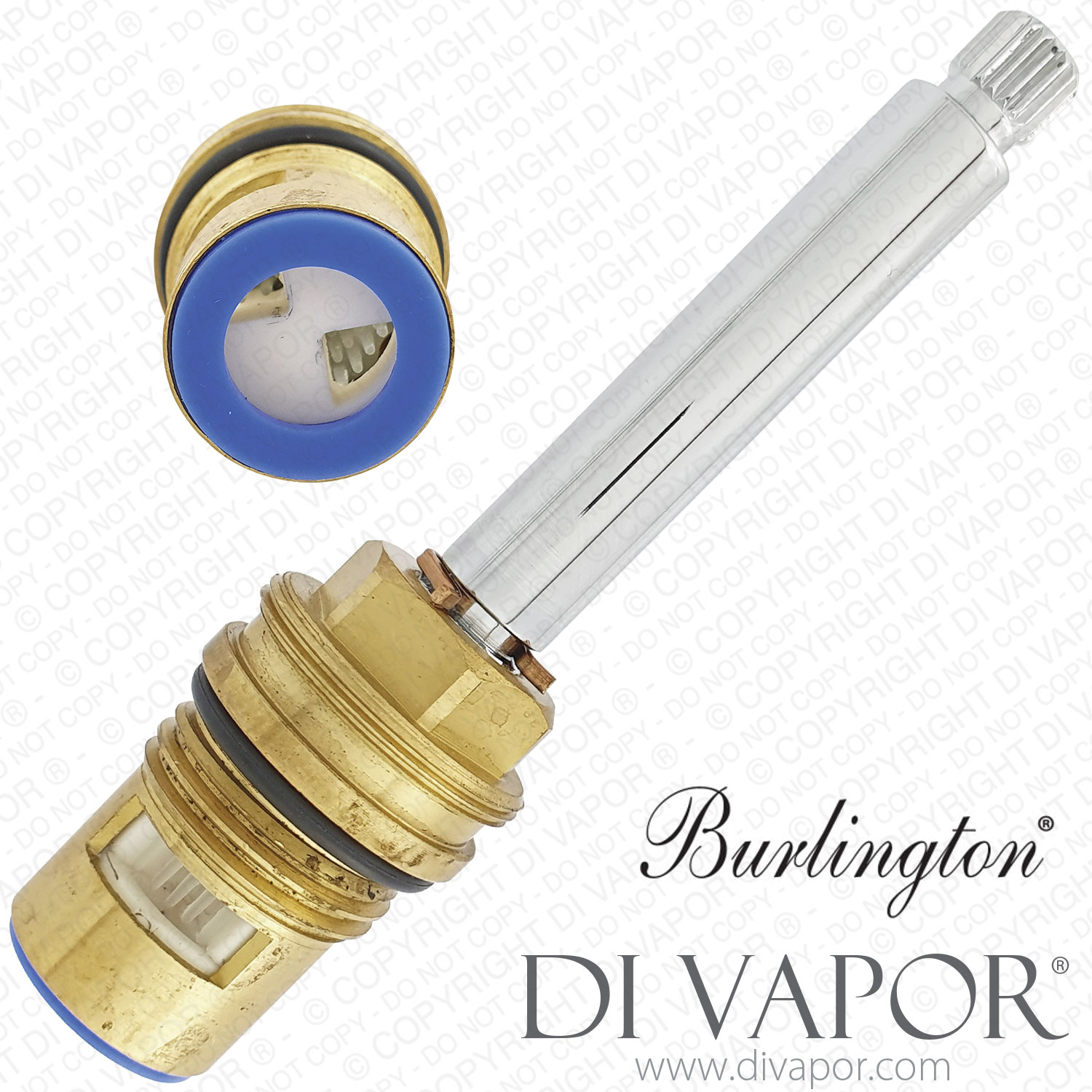

The Burlington SP76 BL-SP76 is a cold-side quarter-turn ceramic on/off flow cartridge for Burlington basin taps using the T14-QT valve arrangement. It controls water flow through the cold tap body and is used where the tap requires a clockwise-close anti-clockwise-open cartridge with a blue bottom seal.
This cartridge is used in Burlington T14-QT three tap hole basin mixer arrangements with pop-up waste. Replacing the cartridge can help restore shut-off and smooth quarter-turn operation where the cold side has become stiff, worn or is allowing water to pass when closed.
Technical Details
| Part Number | BL-SP76 |
|---|---|
| Burlington spare code | SP76 |
| Cartridge type | ceramic on/off flow cartridge |
| Side | cold |
| Total length including bottom seal | 93mm |
| Diameter at widest point | 23.7mm |
| Top spline diameter | 8mm |
| Top spline teeth / notches | 20 |
| Lower thread diameter | 20.5mm (1/2" BSP) |
| Barrel diameter below lower thread | 23.8mm |
| Bottom seal colour | Blue |
| Close direction | Clockwise Close / Anti-Clockwise Open |
| Turn | Quarter Turn (1/4 Turn) 90 degrees |
| Upper thread closer to spline | 23.7mm |
Confirmed Used In
- Burlington T14-QT
- Burlington CLR12-QT BLA | CLR12 BLA-QT Claremont Regent 3 Tap Hole Mixer with Pop-Up Waste Tap Spare Parts
- Burlington KE12 BLA | KE12 BLA-QT Kensington 3 Tap Hole Mixer with Pop-Up Waste Spare Parts
- Burlington BIR12-QT BLA | BIR12 BLA-QT Birkenhead Regent 3 Tap Hole Mixer with Pop-Up Waste Spare Parts
- Burlington KER12 | KER12-QT Kensington Regent 3 Tap Hole Mixer with Pop-Up Waste Spare Parts
Before Ordering
Check the cartridge measurements, spline count, close direction, lower thread size and blue bottom seal against the removed cartridge before ordering. T14 and T14-QT variants can use different internal parts, so use the tap model and removed cartridge details together rather than size alone.
