100mm Ceramic Disc Shower & Tap Valve On/Off Cartridge - 3/4" BSP, Quarter Turn Anti-Clockwise Close - 24 Teeth Spline - Hot Side
Part Number: DF88M55
Price: £59.89
SALE: £39.89
You save: £20.00 (33%)
Price includes VAT
IN STOCK
Product description
SUMMARY
100mm Ceramic Disc Shower & Tap Valve On/Off Cartridge - 3/4" BSP, Quarter Turn Anti-Clockwise Close - 24 Teeth Spline - Hot SidePlease note that there is also a 20 spline (teeth) version of this cartridge.

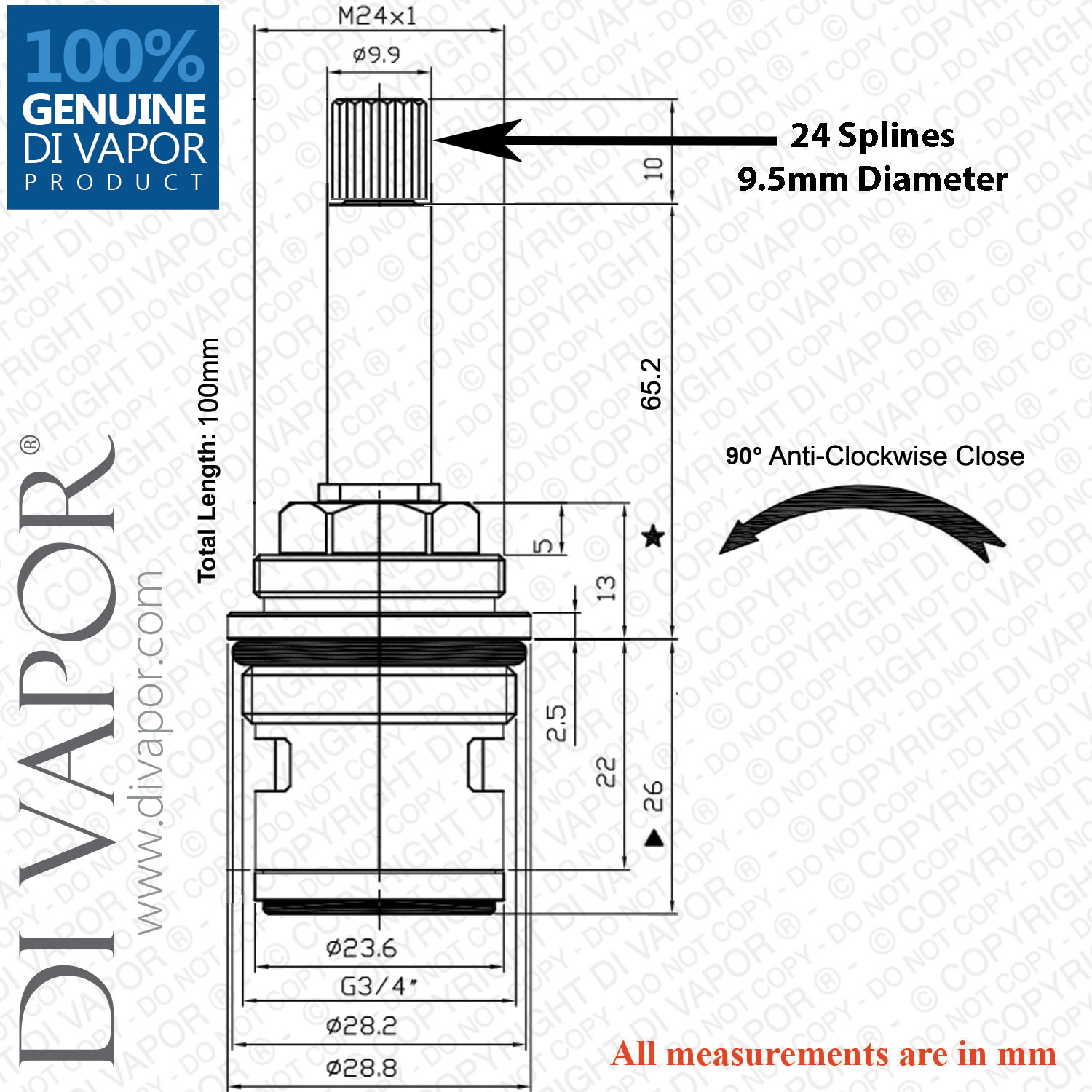

Total Length (including bottom seal): 100mm
Diameter at Widest Point: 28.8mm
Top Spline Diameter: 9.5mm
Top Spline Teeth / Notches: 24
Barrel Diameter: 23.6mm
Lower Thread: 3/4"
Bottom Seal Colour: Red (for Hot Side)
Close Direction: Anti-Clockwise Close (Clockwise Open)
Upper Thread (closer to spline): 24mm
