100mm Ceramic Disc Shower & Tap Valve On/Off Cartridge - 3/4" BSP, Quarter Turn Clockwise Close - 24 Teeth Spline
Part number: DF88M54
Price: £59.89
Sale: £39.89
You save: £20.00 (33%)
Price includes UK VAT (Region: UK▼)
In stock
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary

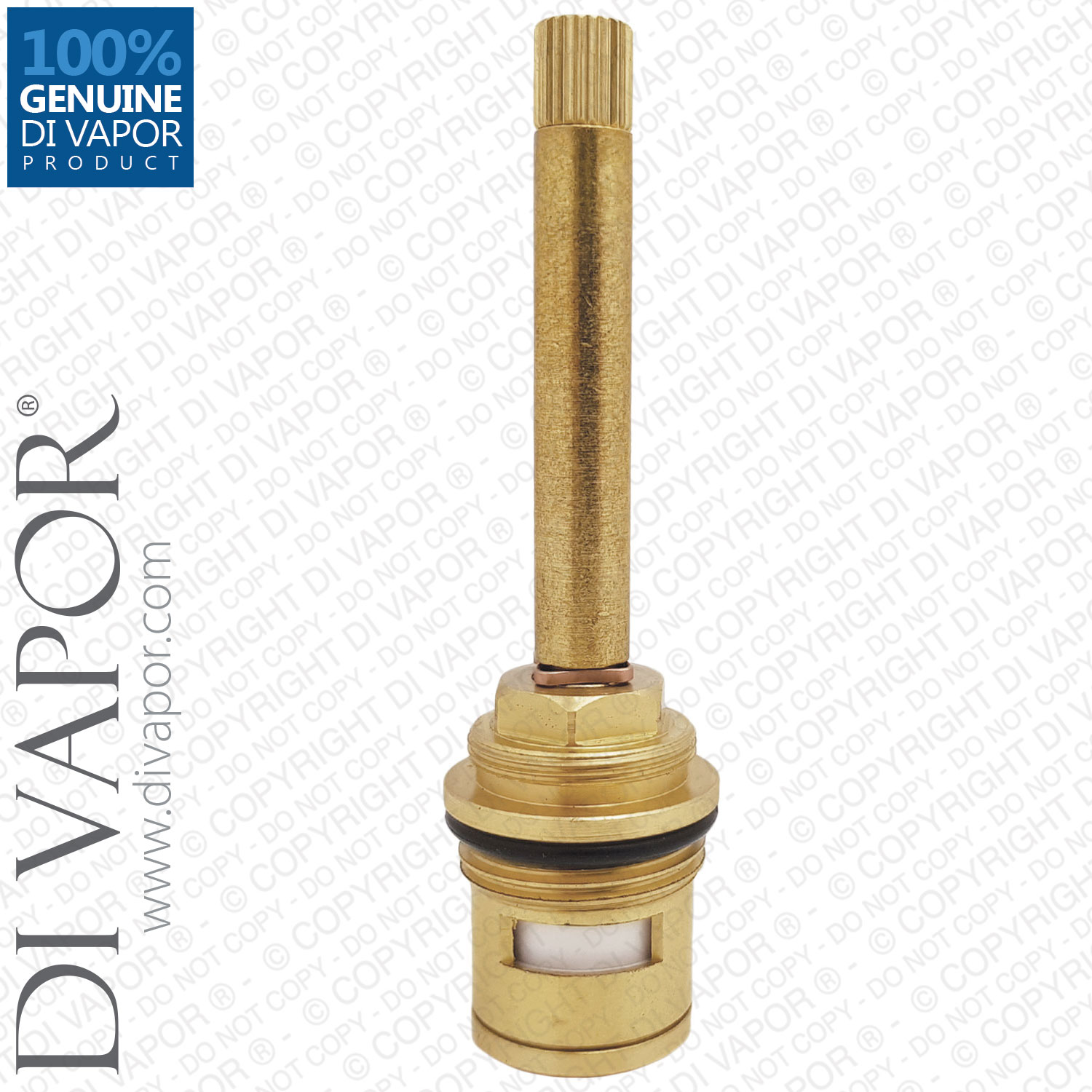

100mm Ceramic Disc Shower & Tap Valve On/Off Cartridge - 3/4" BSP, Quarter Turn Clockwise Close - 24 Teeth Spline
Please note that there is also a 20 spline (teeth) version of this cartridge (see related products below).

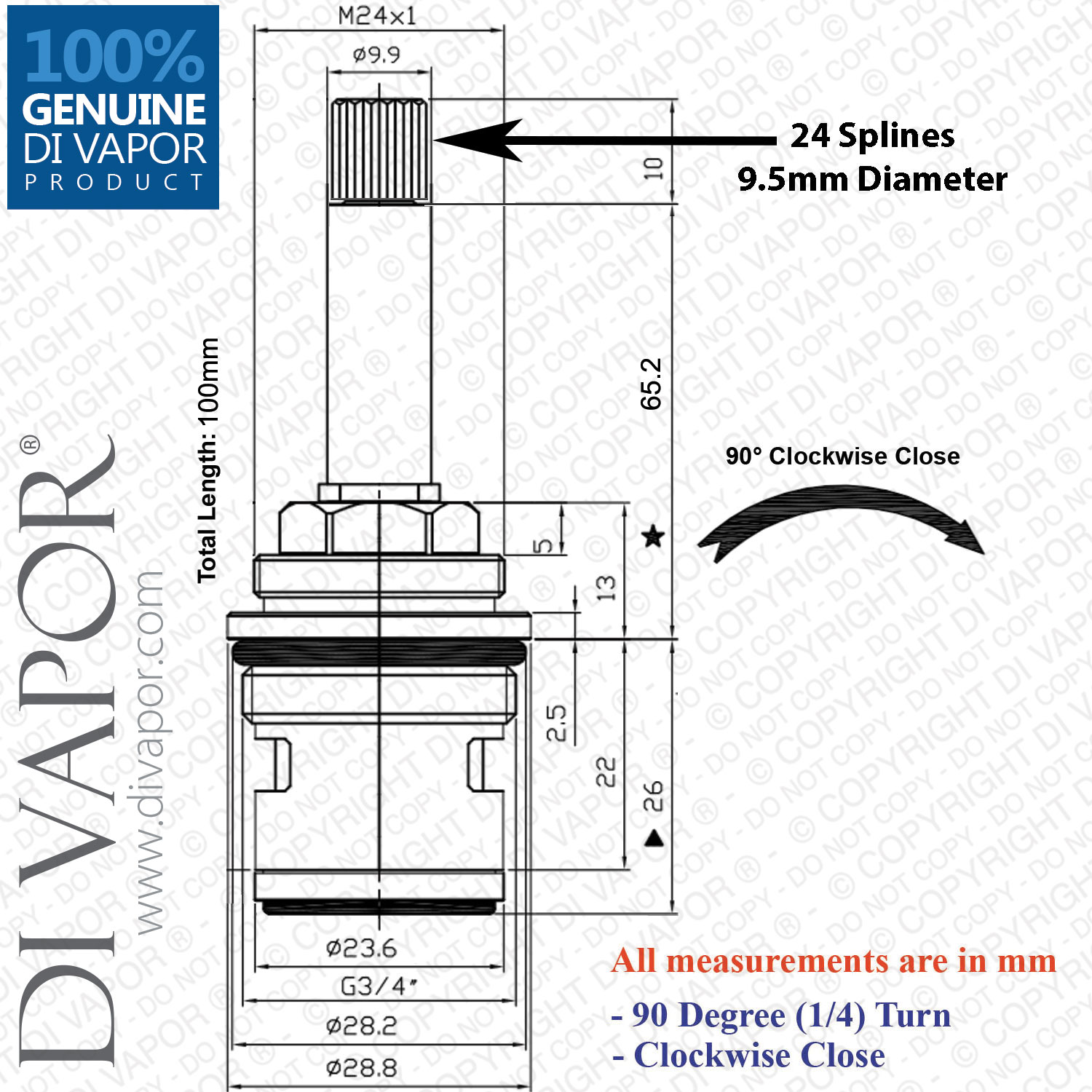

| Total Length (including bottom seal) | 100mm |
|---|---|
| Diameter at Widest Point | 28.8mm |
| Top Spline Diameter | 9.5mm |

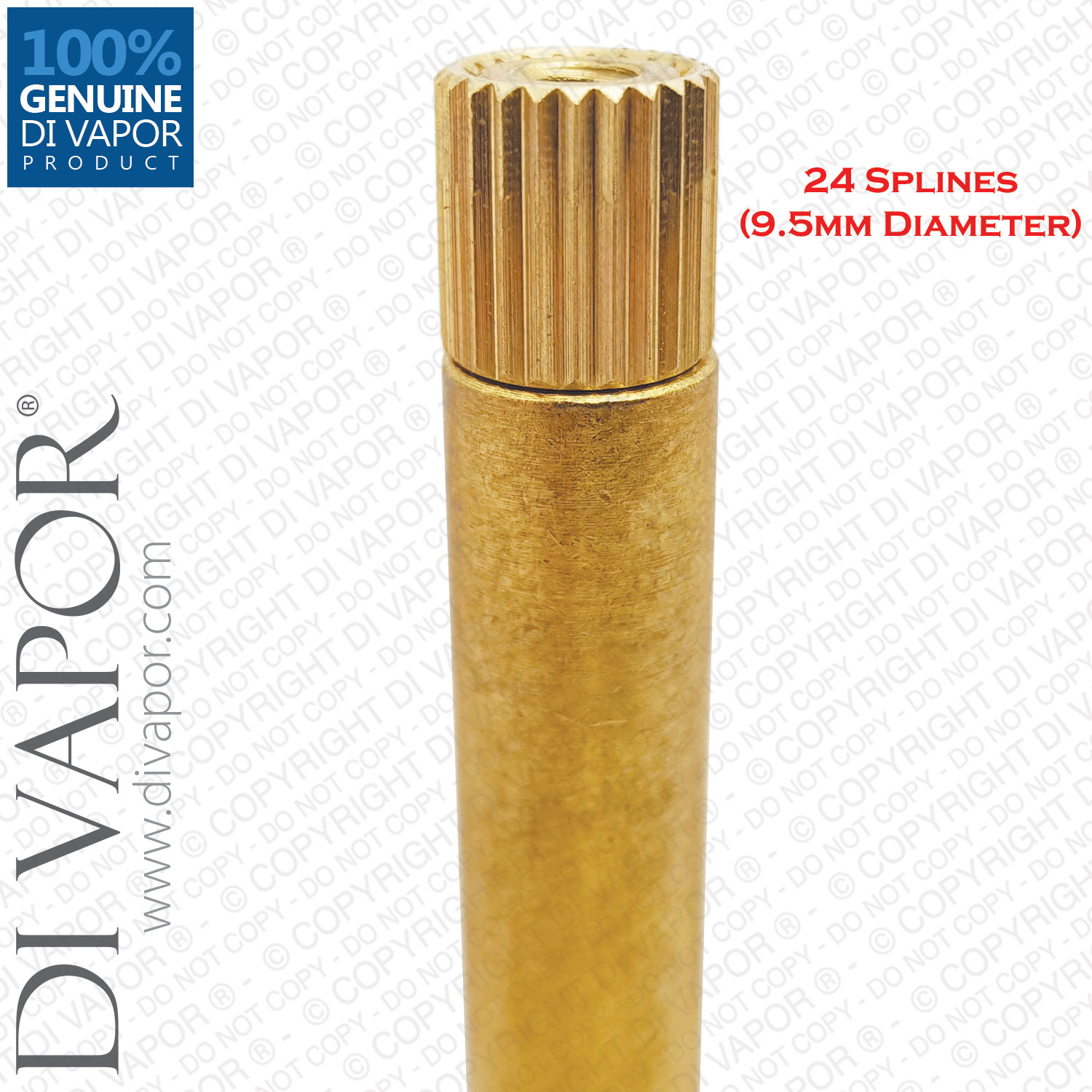

| Top Spline Teeth / Notches | 24 |
| Barrel Diameter | 23.6mm |
| Lower Thread | 3/4" |
| Bottom Seal Colour | Blue (for Cold Side) |
| Close Direction | Clockwise Close (Anti-Clockwise Open) |
| Upper Thread (closer to spline) | 24mm |
