Hansgrohe Select Adaptor for Push Cartridge

SUMMARY

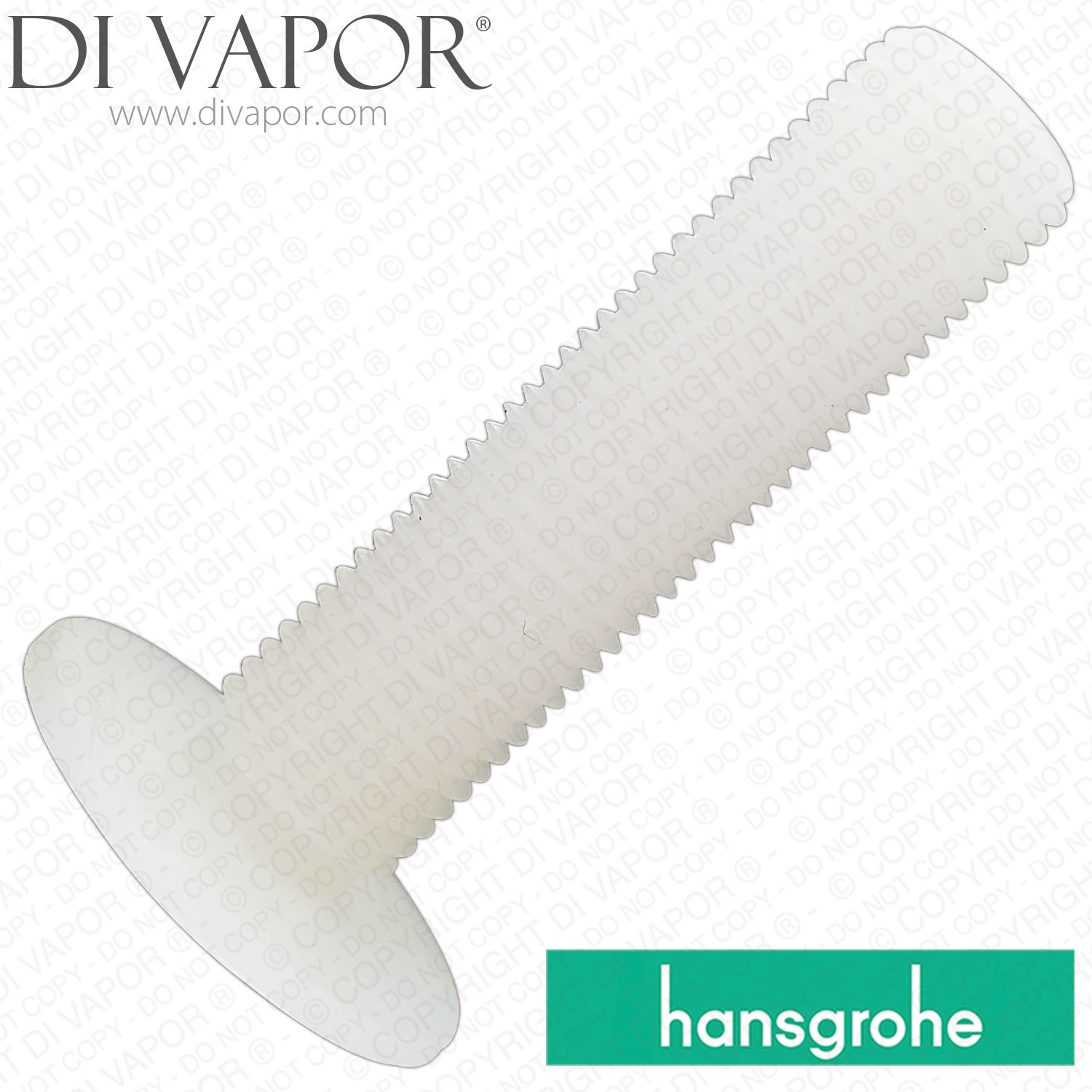

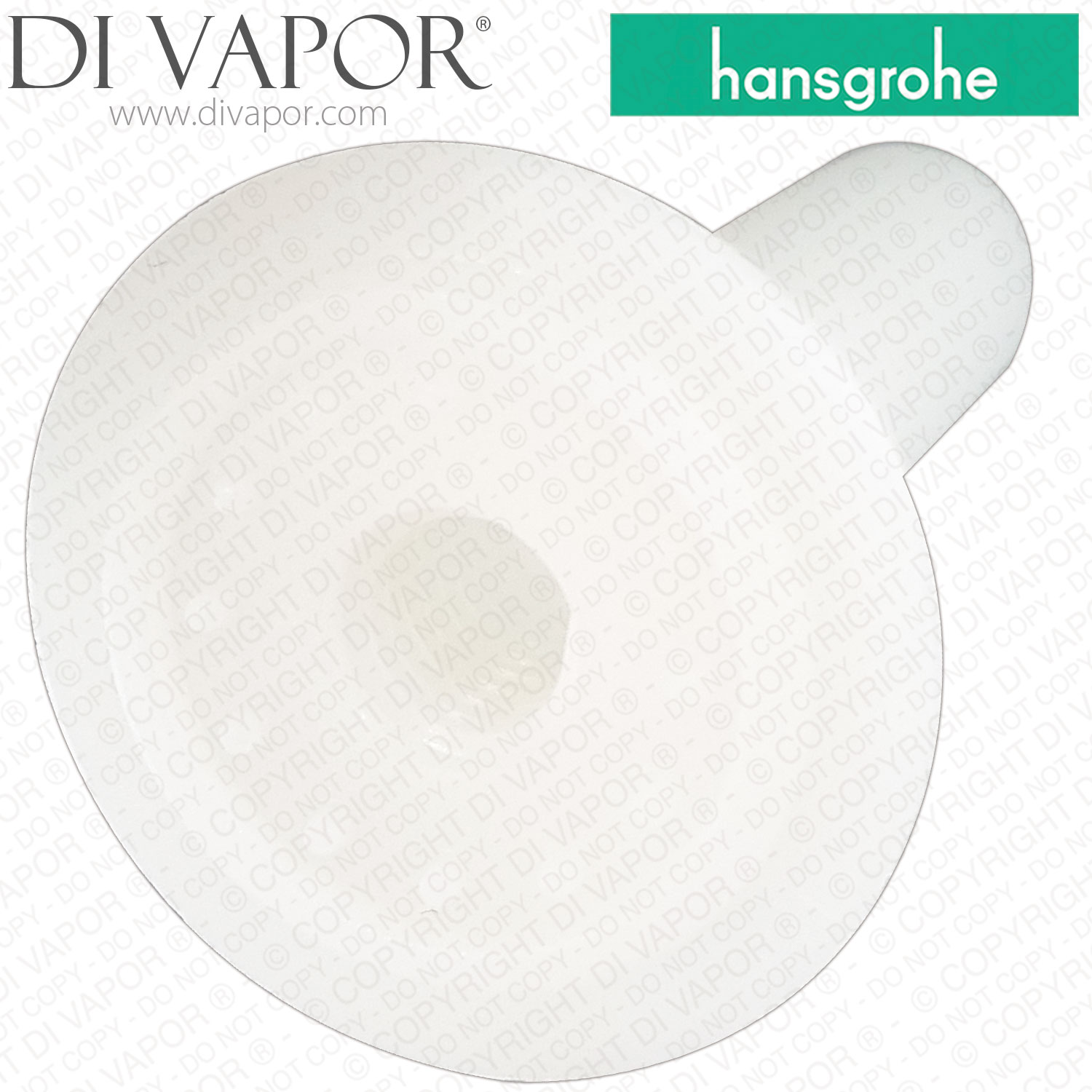

Hansgrohe Select Adaptor for Push Cartridge

This Hansgrohe Select push button adaptor is a mechanical control component used in selected concealed Hansgrohe ShowerSelect and AXOR Select shower valves.

It sits between the visible Select push button and the push-button shut-off unit, transferring button movement to the flow-control cartridge. The adaptor does not itself provide the water seal.

Technical Details

- - Official part type: Select adaptor for button

- - Function: mechanical actuator between the Select button and the shut-off unit

- - Installation location: concealed Select push-button control assembly

- - Supersession: no predecessor or replacement code has been confirmed for 92219000

- - 94806000 and 92361000 are separate control components and must not be treated as alternative codes for this adaptor

Confirmed Model Fitment

- - ShowerSelect S thermostatic mixer for 2 outlets 15743000 - production 05/14 to 02/15, 03/15 to 12/17 and 01/18 to 12/25

- - ShowerSelect thermostatic mixer for 1 outlet 15762000 - production 10/13 to 02/15 and 03/15 to 12/25

- - ShowerSelect thermostatic mixer for 2 outlets 15763000 - production 10/13 to 02/15, 03/15 to 01/18 and 02/18 to 12/25

- - ShowerSelect S mixer for 2 outlets 15748000 - production 05/14 to 12/25

- - ShowerSelect Glass HighFlow thermostatic mixer for multiple outlets 15735400 - production 07/15 to 07/16 and 08/16 to 12/25

- - ShowerSelect thermostatic mixer for 2 outlets with hose connection and shower holder 15765000 - production 05/14 to 02/15 and from 03/15

- - ShowerSelect S thermostatic mixer for 1 outlet 15744000 - production 05/14 to 02/15 and 03/15 to 12/25

- - ShowerSelect Glass valve for 3 outlets 15736400 - production 07/15 to 12/25

- - ShowerSelect mixer for 2 outlets 15768000 - production 05/14 to 12/25

- - ShowerSelect S HighFlow thermostatic mixer for multiple outlets 15742000 - production 05/14 to 02/15, 03/15 to 12/17 and 01/18 to 12/25

- - ShowerSelect S valve for 3 outlets 15745000 - production 05/14 to 04/18 and 05/18 to 12/25

- - ShowerSelect Glass thermostatic mixer for 1 outlet 15737400 - production 07/15 to 12/25

- - ShowerSelect HighFlow thermostatic mixer for multiple outlets 15761000 - production 10/13 to 12/25

- - ShowerSelect S mixer for 1 outlet 15747000 - production 05/14 to 02/15 and 03/15 to 12/25

- - ShowerSelect valve for 3 outlets 15764000 - production 10/13 to 04/18 and 05/18 to 12/25

- - ShowerSelect mixer for 1 outlet 15767000 - production 05/14 to 02/15 and 03/15 to 12/25

- - ShowerSelect Glass thermostatic mixer for 2 outlets 15738400 - production 07/15 to 12/25

- - Hansgrohe ShowerSelect thermostat for concealed installation for 2 functions 15763670 - Matt Black - production 07/19 to 12/25.

- - Hansgrohe ShowerSelect thermostat for concealed installation for 2 functions 15763140 - Brushed Bronze - production 07/19 to 12/25.

- - Hansgrohe ShowerSelect thermostat for concealed installation for 2 functions 15763700 - Matt White - production 07/19 to 12/25.

- - Hansgrohe ShowerSelect thermostat for concealed installation for 2 functions 15763990 - Polished Gold Optic - production 07/19 to 12/25.

- - ShowerSelect finish variant 15763340 - production 11/19 to 12/25

- - Hansgrohe ShowerSelect S Thermostat for Concealed Installation for 2 Functions 15743340 - Brushed Black Chrome - production 06/20 to 12/25.

- - Hansgrohe ShowerSelect S Thermostat for Concealed Installation for 2 Functions 15743140 - Brushed Bronze - production 06/20 to 12/25.

- - Hansgrohe ShowerSelect S Thermostat for Concealed Installation for 2 Functions 15743670 - Matt Black - production 06/20 to 12/25.

- - Hansgrohe ShowerSelect S Thermostat for Concealed Installation for 2 Functions 15743700 - Matt White - production 06/20 to 12/25.

- - Hansgrohe ShowerSelect S Thermostat for Concealed Installation for 2 Functions 15743990 - Polished Gold Optic - production 06/20 to 12/25.

- - Hansgrohe ShowerSelect Valve for Concealed Installation for 3 Functions 15764700 - Matt White - production 10/21 to 12/25.

- - Hansgrohe ShowerSelect Valve for Concealed Installation for 3 Functions 15764670 - Matt Black - production 10/21 to 12/25.

- - Hansgrohe ShowerSelect Valve for Concealed Installation for 3 Functions 15764140 - Brushed Bronze - production 10/21 to 12/25.

- - Hansgrohe ShowerSelect Valve for Concealed Installation for 3 Functions 15764340 - Brushed Black Chrome - production 10/21 to 12/25.

- - Hansgrohe sanibel 5001 14733000 - production from 04/18.

- - Hansgrohe sanibel 5001 14736000 - production from 04/18.

- - Hansgrohe sanibel 5001 14738000 - production from 04/18.

- - ShowerSelect Glass thermostat for 2 functions 15738600 - production 07/15 to 06/22

- - ShowerSelect Glass valve for 3 functions 15736407 - production from 10/18

- - ShowerSelect valve for 3 functions 15764007

- - AXOR ShowerSelect softsquare valve for 3 functions 36773000 - production 04/15 to 09/16

- - AXOR ShowerSelect softsquare valve for 3 functions 36773820 - production from 11/16

- - AXOR ShowerSelect softsquare valve for 3 functions 36773300 - production from 11/16

- - AXOR ShowerSelect softsquare valve for 3 functions 36773830 - production 11/16 to 12/19

- - AXOR ShowerSelect softsquare valve for 3 functions 36773800 - production from 11/16

- - AXOR ShowerSelect round valve for 3 functions 36727000 - production from 10/16

- - AXOR ShowerSolutions round thermostat for 2 functions 36723000 - production from 07/17

- - AXOR One Shut-Off Valve for Concealed Installation 45771000 - production from 10/15.

- - AXOR One Shut-Off Valve for Concealed Installation 45771340 - production from 11/16.

- - AXOR One Shut-Off Valve for Concealed Installation 45771990 - production from 11/16.

- - AXOR One Shut-Off Valve for Concealed Installation 45771330 - production from 11/16.

- - AXOR One Shut-Off Valve for Concealed Installation 45771250 - production from 11/16.

- - AXOR One Shut-Off Valve for Concealed Installation 45771300 - production from 11/16.

- - AXOR One Shut-Off Valve for Concealed Installation 45771820 - production from 11/16.

- - AXOR One Shut-Off Valve for Concealed Installation 45771140 - production from 11/16.

- - AXOR One Shut-Off Valve for Concealed Installation 45771950 - Brushed Brass - production from 11/16.

- - AXOR One Shut-Off Valve for Concealed Installation 45771310 - Brushed Red Gold - production from 11/16.

- - AXOR One Shut-Off Valve for Concealed Installation 45771800 - Stainless Steel Optic - production from 11/16.

- - AXOR One Shut-Off Valve for Concealed Installation 45771130 - Polished Bronze - production 11/16 to 12/19.

- - AXOR One Shut-Off Valve for Concealed Installation 45771830 - Polished Nickel - production 11/16 to 12/19.

- - AXOR One Shut-Off Valve for Concealed Installation 45771930 - Polished Brass - production 11/16 to 12/19.

- - AXOR One Shut-Off Valve for Concealed Installation 45771260 - Brushed Chrome - production 11/16 to 12/19.

- - AXOR One Shut-Off Valve for Concealed Installation 45771020 - Polished Chrome - production 11/16 to 12/19.

- - AXOR ShowerSelect Valve for Concealed Installation Square for 3 Functions 36717000 - Chrome - production 04/15 to 09/16.

- - AXOR ShowerSelect Valve for Concealed Installation Square for 3 Functions 36717000 - Chrome - production from 10/16.

- - AXOR ShowerSelect Valve for Concealed Installation Square for 3 Functions 36717340 - Brushed Black Chrome - production from 10/16.

- - AXOR ShowerSelect Valve for Concealed Installation Square for 3 Functions 36717350 - production 07/19 to 04/20.

- - AXOR ShowerSelect Valve for Concealed Installation Softsquare for 3 Functions 36773000 - production from 10/16.

- - AXOR ShowerSelect Valve for Concealed Installation Softsquare for 3 Functions 36773140 - production from 11/16.

- - AXOR ShowerSelect Valve for Concealed Installation Softsquare for 3 Functions 36773330 - production from 11/16.

- - AXOR ShowerSelect Valve for Concealed Installation Softsquare for 3 Functions 36773340 - production from 11/16.

- - AXOR ShowerSelect Valve for Concealed Installation Softsquare for 3 Functions 36773950 - production from 11/16.

- - AXOR ShowerSelect Valve for Concealed Installation Softsquare for 3 Functions 36773990 - production from 11/16.

- - AXOR ShowerSelect Valve for Concealed Installation Softsquare for 3 Functions 36773310 - production from 11/16.

- - AXOR ShowerSelect Valve for Concealed Installation Softsquare for 3 Functions 36773250 - production from 11/16.

- - AXOR ShowerSelect Valve for Concealed Installation Softsquare for 3 Functions 36773020 - production 11/16 to 12/19.

- - AXOR ShowerSelect Valve for Concealed Installation Softsquare for 3 Functions 36773930 - production 11/16 to 12/19.

- - AXOR ShowerSelect Valve for Concealed Installation Softsquare for 3 Functions 36773260 - production 11/16 to 12/19.

- - AXOR ShowerSelect Valve for Concealed Installation Softsquare for 3 Functions 36773130 - production 11/16 to 12/19.

- - AXOR ShowerSelect Valve for Concealed Installation Round for 3 Functions 36727000 - production 04/15 to 09/16.

- - AXOR ShowerSelect Valve for Concealed Installation Round for 3 Functions 36727820 - production from 04/17.

- - AXOR ShowerSelect Valve for Concealed Installation Round for 3 Functions 36727930 - production 04/17 to 12/20.

- - AXOR ShowerSelect Thermostat for Concealed Installation Square for 1 Function 36714000 - Chrome - production 05/15 to 10/16.

- - AXOR ShowerSelect Thermostat for Concealed Installation Square for 1 Function 36714000 - Chrome - production from 11/16.

- - AXOR ShowerSelect Thermostat for Concealed Installation Square for 1 Function 36714250 - Brushed Gold Optic - production from 03/17.

- - AXOR ShowerSelect Thermostat for Concealed Installation Square for 1 Function 36714140 - Brushed Bronze - production from 04/17.

- - AXOR ShowerSelect Thermostat for Concealed Installation Square for 1 Function 36714310 - Brushed Red Gold - production from 03/17.

- - AXOR ShowerSelect Thermostat for Concealed Installation Square for 1 Function 36714300 - Polished Red Gold - production from 03/17.

- - AXOR ShowerSelect Thermostat for Concealed Installation Softsquare for 1 Function 36705000 - production 05/15 to 08/16.

- - AXOR ShowerSelect Thermostat for Concealed Installation Softsquare for 1 Function 36705000 - production from 09/16.

- - AXOR ShowerSelect Thermostat for Concealed Installation Softsquare for 1 Function 36705300 - production from 11/16.

- - AXOR ShowerSelect Thermostat for Concealed Installation Softsquare for 1 Function 36705820 - production from 11/16.

- - AXOR ShowerSelect Thermostat for Concealed Installation Softsquare for 1 Function 36705950 - production from 11/16.

- - AXOR ShowerSelect Thermostat for Concealed Installation Softsquare for 1 Function 36705310 - production from 11/16.

- - AXOR ShowerSelect Thermostat for Concealed Installation Softsquare for 1 Function 36705330 - production from 11/16.

- - AXOR ShowerSelect Thermostat for Concealed Installation Softsquare for 1 Function 36705340 - production from 11/16.

- - AXOR ShowerSelect Thermostat for Concealed Installation Softsquare for 1 Function 36705250 - production from 11/16.

- - AXOR ShowerSelect Thermostat for Concealed Installation Softsquare for 1 Function 36705990 - production from 11/16.

- - AXOR ShowerSelect Thermostat for Concealed Installation Softsquare for 1 Function 36705140 - production from 11/16.

- - AXOR ShowerSelect Thermostat for Concealed Installation Softsquare for 1 Function 36705800 - production from 11/16.

- - AXOR ShowerSelect Thermostat for Concealed Installation Softsquare for 1 Function 36705830 - production 11/16 to 12/19.

- - AXOR ShowerSelect Thermostat for Concealed Installation Softsquare for 1 Function 36705930 - production 11/16 to 12/19.

- - AXOR ShowerSelect Thermostat for Concealed Installation Softsquare for 1 Function 36705260 - production 11/16 to 12/19.

- - AXOR ShowerSelect Thermostat for Concealed Installation Softsquare for 1 Function 36705020 - production 11/16 to 12/19.

- - AXOR ShowerSelect Thermostat for Concealed Installation Softsquare for 1 Function 36705130 - production 11/16 to 12/19.

- - AXOR ShowerSelect Thermostat for Concealed Installation Round for 1 Function 36722000 - Chrome - production from 05/15.

- - AXOR ShowerSelect Thermostat for Concealed Installation Round for 1 Function 36722820 - Brushed Nickel - production from 04/17.

- - AXOR ShowerSelect Thermostat for Concealed Installation Round for 1 Function 36722930 - Polished Brass - production from 04/17.

- - AXOR ShowerSelect Thermostat HighFlow for Concealed Installation Square for 1 Function and Additional Outlet 36716000 - production from 05/15.

- - AXOR ShowerSelect Thermostat HighFlow for Concealed Installation Square for 1 Function and Additional Outlet 36716340 - Brushed Black Chrome - production from 10/16.

- - AXOR ShowerSelect Thermostat HighFlow for Concealed Installation Softsquare for 1 Function and Additional Outlet 36706000 - production 05/15 to 08/16.

- - AXOR ShowerSelect Thermostat HighFlow for Concealed Installation Softsquare for 1 Function and Additional Outlet 36706000 - production from 09/16.

- - AXOR ShowerSelect Thermostat HighFlow for Concealed Installation Softsquare for 1 Function and Additional Outlet 36706330 - production from 11/16.

- - AXOR ShowerSelect Thermostat HighFlow for Concealed Installation Softsquare for 1 Function and Additional Outlet 36706950 - production from 11/16.

- - AXOR ShowerSelect Thermostat HighFlow for Concealed Installation Softsquare for 1 Function and Additional Outlet 36706250 - production from 11/16.

- - AXOR ShowerSelect Thermostat HighFlow for Concealed Installation Softsquare for 1 Function and Additional Outlet 36706300 - production from 11/16.

- - AXOR ShowerSelect Thermostat HighFlow for Concealed Installation Softsquare for 1 Function and Additional Outlet 36706820 - production from 11/16.

- - AXOR ShowerSelect Thermostat HighFlow for Concealed Installation Softsquare for 1 Function and Additional Outlet 36706310 - production from 11/16.

- - AXOR ShowerSelect Thermostat HighFlow for Concealed Installation Softsquare for 1 Function and Additional Outlet 36706140 - production from 11/16.

- - AXOR ShowerSelect Thermostat HighFlow for Concealed Installation Softsquare for 1 Function and Additional Outlet 36706340 - production from 11/16.

- - AXOR ShowerSelect Thermostat HighFlow for Concealed Installation Softsquare for 1 Function and Additional Outlet 36706990 - production from 11/16.

- - AXOR ShowerSelect Thermostat HighFlow for Concealed Installation Softsquare for 1 Function and Additional Outlet 36706800 - production from 11/16.

- - AXOR ShowerSelect Thermostat HighFlow for Concealed Installation Softsquare for 1 Function and Additional Outlet 36706020 - production 11/16 to 12/19.

- - AXOR ShowerSelect Thermostat HighFlow for Concealed Installation Softsquare for 1 Function and Additional Outlet 36706260 - production 11/16 to 12/19.

- - AXOR ShowerSelect Thermostat HighFlow for Concealed Installation Softsquare for 1 Function and Additional Outlet 36706930 - production 11/16 to 12/19.

- - AXOR ShowerSelect Thermostat HighFlow for Concealed Installation Softsquare for 1 Function and Additional Outlet 36706830 - production 11/16 to 12/19.

- - AXOR ShowerSelect Thermostat HighFlow for Concealed Installation Softsquare for 1 Function and Additional Outlet 36706130 - production 11/16 to 12/19.

- - AXOR ShowerSelect Thermostat HighFlow for Concealed Installation Round for 1 Function and Additional Outlet 36726000 - Chrome - production from 05/15.

- - AXOR ShowerSelect Thermostat HighFlow for Concealed Installation Round for 1 Function and Additional Outlet 36726820 - Brushed Nickel - production from 04/17.

- - AXOR ShowerSelect Thermostat HighFlow for Concealed Installation Round for 1 Function and Additional Outlet 36726930 - Polished Brass - production from 04/17.

- - AXOR ShowerSelect Thermostat for Concealed Installation Square for 2 Functions with Wall Outlet and Shower Holder 36712000 - production from 06/16.

- - AXOR ShowerSelect Thermostat for Concealed Installation Square for 2 Functions with Wall Outlet and Shower Holder 36712330 - production from 11/16.

- - AXOR ShowerSelect Thermostat for Concealed Installation Square for 2 Functions with Wall Outlet and Shower Holder 36712990 - production from 11/16.

- - AXOR ShowerSelect Thermostat for Concealed Installation Square for 2 Functions with Wall Outlet and Shower Holder 36712300 - production from 11/16.

- - AXOR ShowerSelect Thermostat for Concealed Installation Square for 2 Functions with Wall Outlet and Shower Holder 36712020 - production 11/16 to 12/19.

- - AXOR ShowerSelect Thermostat for Concealed Installation Square for 2 Functions with Wall Outlet and Shower Holder 36712930 - production from 11/16.

- - AXOR ShowerSelect Thermostat for Concealed Installation Square for 2 Functions with Wall Outlet and Shower Holder 36712830 - production 11/16 to 12/19.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Square for 2 Functions 36715000 - production 05/15 to 09/16.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Square for 2 Functions 36715000 - production from 07/17.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Square for 2 Functions 36715310 - production from 11/16.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Square for 2 Functions 36715250 - production from 11/16.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Square for 2 Functions 36715820 - production from 11/16.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Square for 2 Functions 36715330 - production from 11/16.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Square for 2 Functions 36715950 - production from 11/16.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Square for 2 Functions 36715300 - production from 11/16.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Square for 2 Functions 36715140 - production from 11/16.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Square for 2 Functions 36715340 - production 11/16 to 04/21 and from 05/21.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Square for 2 Functions 36715990 - production from 11/16.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Square for 2 Functions 36715800 - production from 11/16.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Square for 2 Functions 36715020 - production 11/16 to 12/19.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Square for 2 Functions 36715830 - production 11/16 to 12/19.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Square for 2 Functions 36715930 - production 11/16 to 12/19.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Square for 2 Functions 36715260 - production 11/16 to 12/19.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Square for 2 Functions 36715350 - production 07/19 to 04/20.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Square for 2 Functions 36715130 - production 11/16 to 12/19.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Softsquare for 2 Functions 36707000 - production 04/15 to 09/16.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Softsquare for 2 Functions 36707000 - production from 10/16.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Softsquare for 2 Functions 36707950 - production from 11/16.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Softsquare for 2 Functions 36707300 - production from 11/16.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Softsquare for 2 Functions 36707330 - production from 11/16.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Softsquare for 2 Functions 36707820 - production from 11/16.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Softsquare for 2 Functions 36707250 - production from 11/16.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Softsquare for 2 Functions 36707310 - production from 11/16.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Softsquare for 2 Functions 36707990 - production from 11/16.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Softsquare for 2 Functions 36707140 - production from 11/16.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Softsquare for 2 Functions 36707340 - production from 11/16.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Softsquare for 2 Functions 36707670 - production from 10/16.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Softsquare for 2 Functions 36707800 - production from 11/16.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Softsquare for 2 Functions 36707020 - production 11/16 to 12/19.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Softsquare for 2 Functions 36707260 - production 11/16 to 12/19.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Softsquare for 2 Functions 36707930 - production 11/16 to 12/19.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Softsquare for 2 Functions 36707830 - production 11/16 to 12/19.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Softsquare for 2 Functions 36707130 - production 11/16 to 12/19.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Round for 2 Functions 36723000 - production 05/15 to 09/16.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Round for 2 Functions 36723000 - production from 07/17.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Round for 2 Functions 36723300 - production from 11/16.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Round for 2 Functions 36723250 - production from 11/16.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Round for 2 Functions 36723330 - production from 11/16.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Round for 2 Functions 36723310 - production from 11/16.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Round for 2 Functions 36723820 - production from 11/16.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Round for 2 Functions 36723950 - production from 11/16.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Round for 2 Functions 36723340 - production from 11/16.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Round for 2 Functions 36723140 - production 11/16 to 06/17.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Round for 2 Functions 36723140 - production from 07/17.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Round for 2 Functions 36723990 - production from 11/16.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Round for 2 Functions 36723800 - production from 11/16.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Round for 2 Functions 36723670 - production from 07/22.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Round for 2 Functions 36723930 - production 11/16 to 12/20.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Round for 2 Functions 36723830 - production 11/16 to 12/19.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Round for 2 Functions 36723260 - production 11/16 to 12/19.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Round for 2 Functions 36723020 - production 11/16 to 12/19.

- - AXOR ShowerSolutions Thermostat for Concealed Installation Round for 2 Functions 36723130 - production 11/16 to 12/19.

Before You Order

Match the exact shower-control article number and construction period before ordering. Do not identify this adaptor from appearance or partial dimensions alone.

A loose or non-responsive Select button can indicate an adaptor or control-path fault. Where water continues dripping from the shower head or outlet after the control is turned off, inspect the shut-off unit because this adaptor is not the sealing cartridge.

Related Spares You May Need

- - Hansgrohe 95758000 Shut Off Unit - Push Button On / Off Cartridge - the water-control cartridge actuated by the Select adaptor

- - Hansgrohe 98368000 28mm Nut - retaining nut used with the adaptor and shut-off unit in many confirmed Select assemblies; check the exact exploded diagram before ordering

FAST DELIVERY

• Delivery of this item is priced as a 'small packet'. UK delivery costs £5.95 incl. VAT.
• For all in-stock spare parts the typical UK delivery timescale is 2-5 working days.
• If you need a part urgently then we can provide a next-day (delivered Mon-Fri) UK delivery service for all in-stock small parcels ordered before 3.00pm, Monday - Friday.
• Next day delivery is available to select at an additional charge during the checkout.
• We delivery WORLDWIDE. For more information about international deliveries, read our delivery page.

RETURNS

• If you need to return a part then please telephone Di Vapor on 0121 705 0866 with the reasons for the return within 14 days of receiving the goods.
• For more information please see our terms and conditions.
