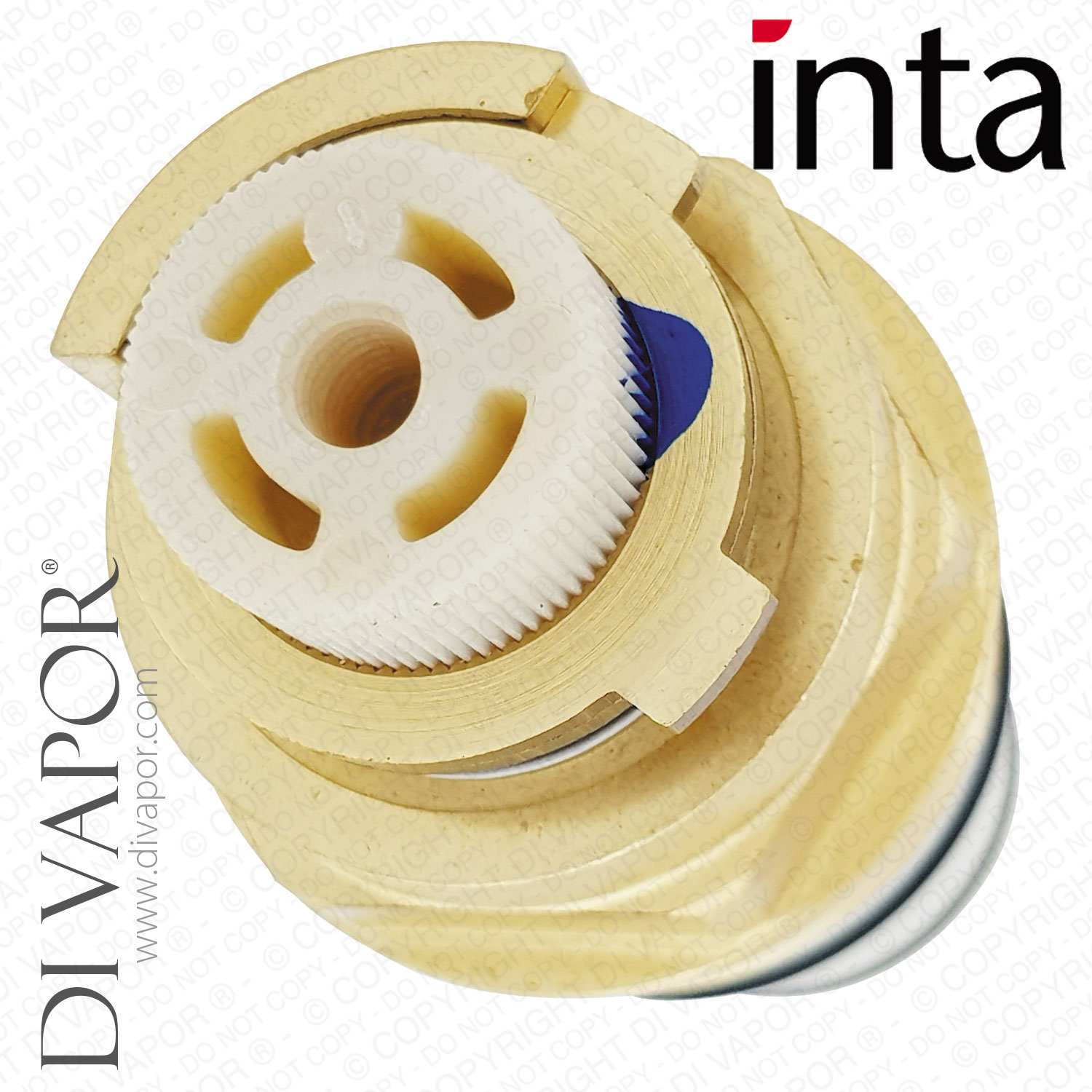

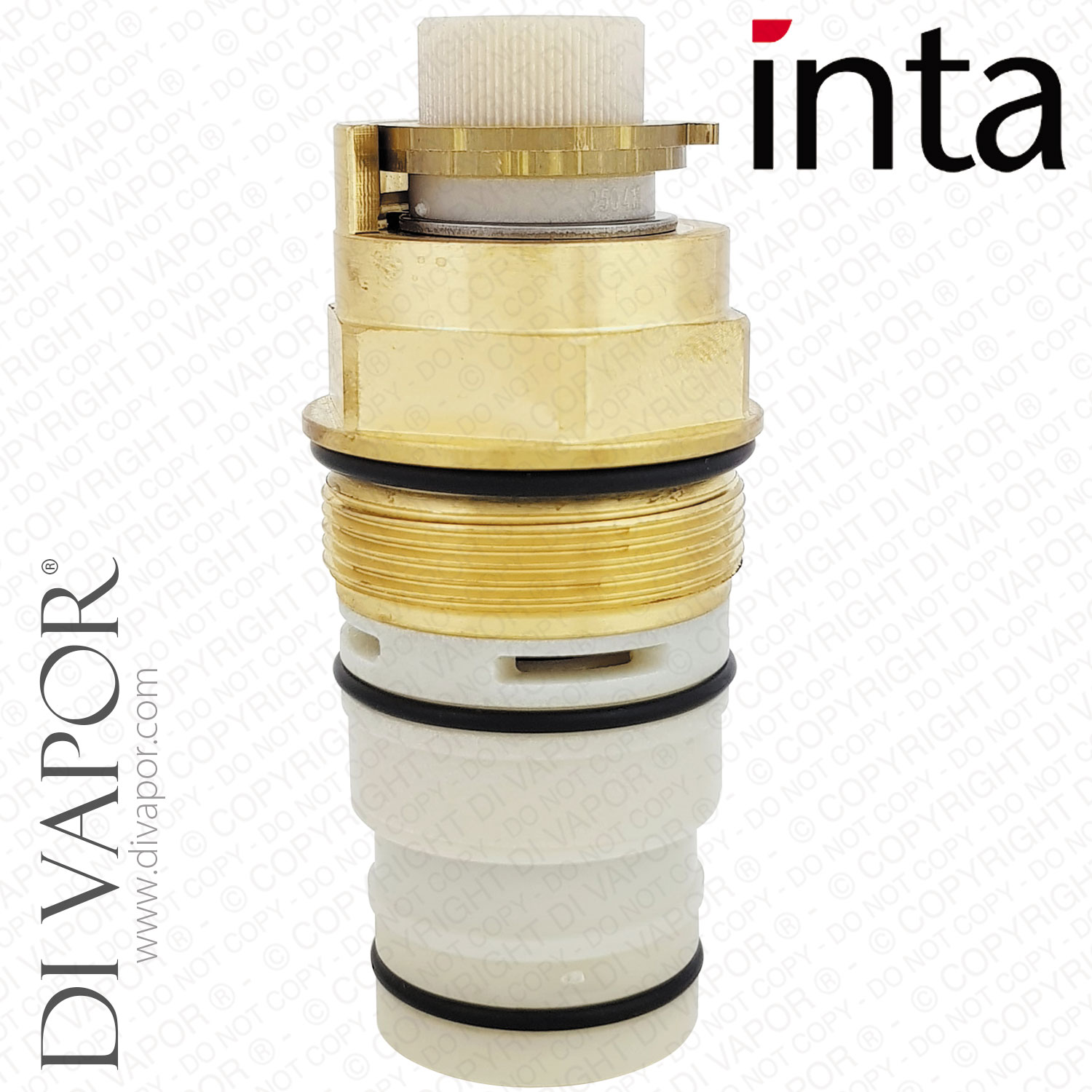

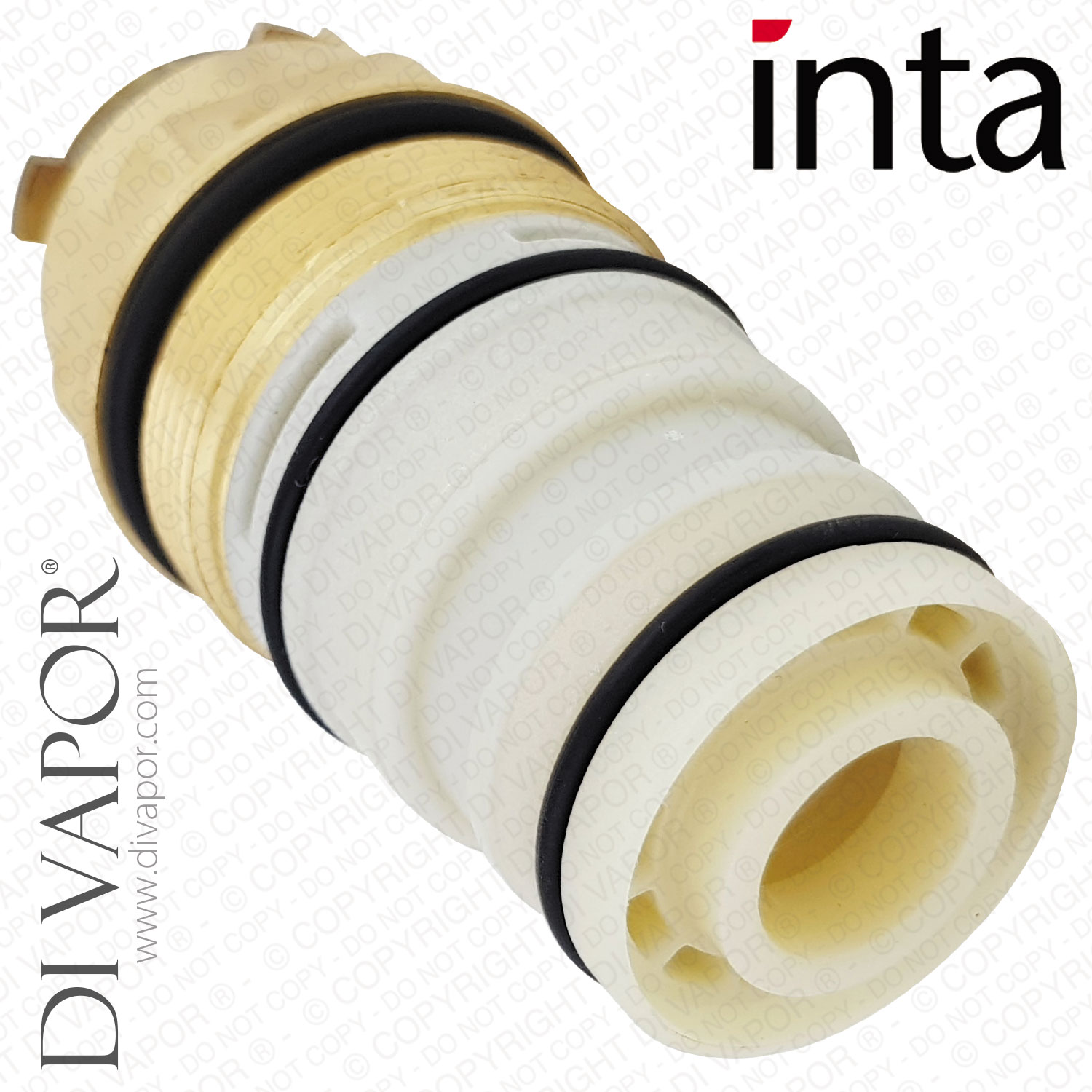

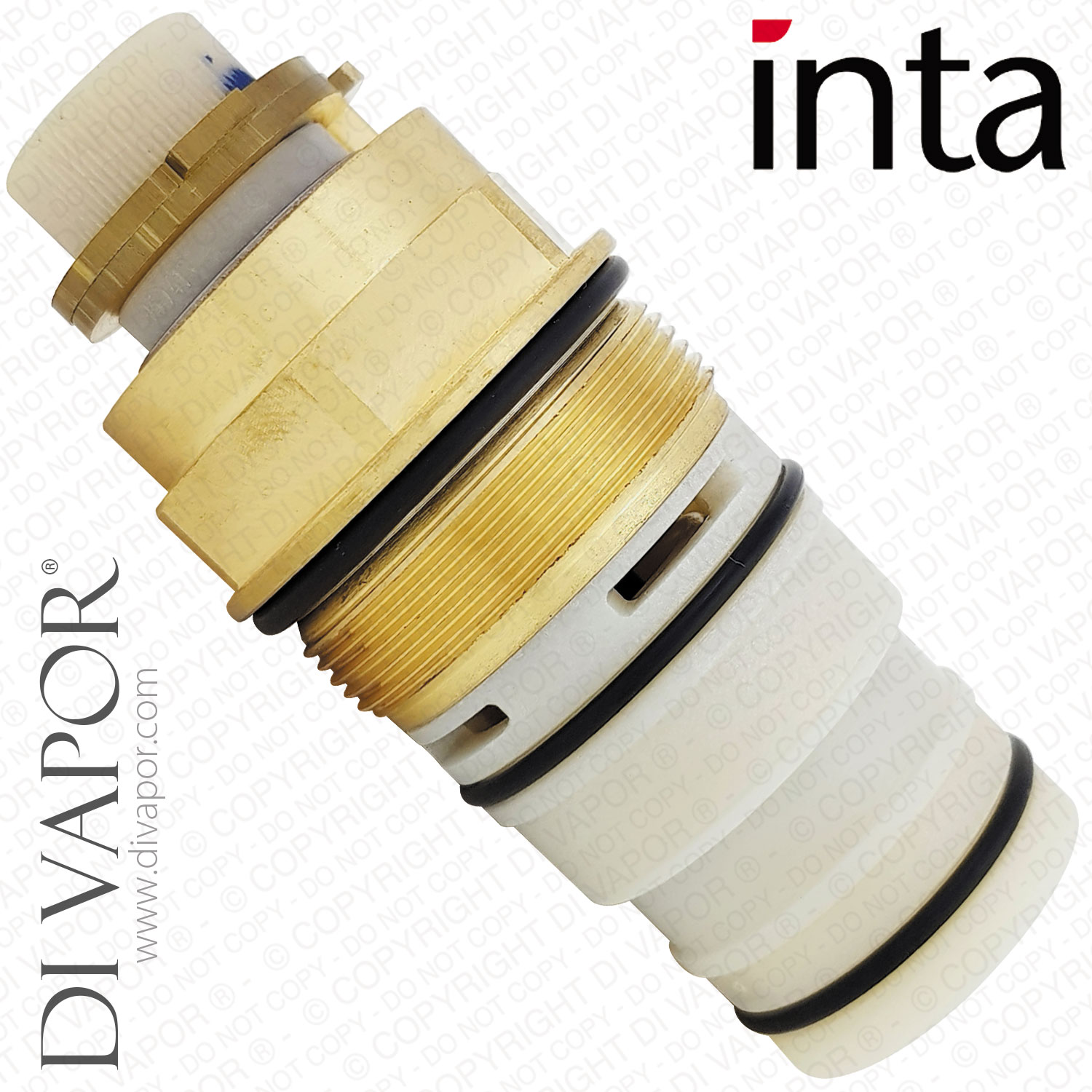

Inta BO91077.1 Thermostatic Cartridge

SUMMARY

Inta BO91077.1 Thermostatic Cartridge for Inta SF1014CP Sola and Inta IT1001CP, IT1003CP Intatherm Thermostatic Sequential Basin Mixer

Spare Part Overview: Inta BO91077.1

The Inta BO91077.1 thermostatic cartridge is the spare part used for taps in hospital and healthcare settings. The cartridge has the capability to prevent scalding. Please read below for more information about the cartridge and the replacement process.

Please leave us a message if you have any questions about this spare part or need help in identifying shower or tap parts.

You can also reach us on WhatsApp at number 07754 173340. Di Vapor’s super friendly spares experts will gladly respond to your queries.

Inta BO91077.1 is a threaded cartridge. This means the cartridge screws into the tap body for removal and replacement. Its measurements are:
Total Length (including bottom seal): 101.5mm
Diameter: 41.7mm

Number of O-Rings: 3
Number of Filters: 0

This Inta spare part is used in:
- (IT1001CP) Inta Intatherm Thermostatic Sequential Basin Tap
- (SF1014CP) Inta Sola Thermostatic Sequential Basin Tap

- Markwik HTM64 Hospital Taps from before 2010


If the Inta tap you have is not in the list of compatible taps, please browse through our Inta Spares index or message us and we will identify the required spares for you. *Our contact details are given in the subheading above.


When should the Inta BO91077.1 be replaced?
Taps that leak or have a problem with temperature regulation will usually require a replacement Inta BO91077.1. Sometimes loud or rattling noises can be another indicator of a broken tap thermostatic cartridge.

– Good condition O-rings seal passing water in the cartridge. Worn-out O-rings give rise to leaks.

– The Inta tap should be able to smoothly manipulate water temperature with the turn of the handle. If the opposite happens, the BO91077.1 may have (or is about to) stopped functioning.

– If you hear noises every time the tap is in use, it might be a sign of an airlock (in gravity or pumped systems) or there is something wrong with the Inta BO91077.1 thermostatic cartridge.

In these three scenarios, replacing the BO91077.1 Inta thermostatic cartridge can fix the tap and get it running like new, like normal.


How do I replace the Inta BO91077.1 thermostatic cartridge?
This is the process for BO91077.1 cartridge replacement on the Inta IT1001CP and SF1014CP.

1. Isolate or shut off the tap’s hot and cold water supplies.

2. Pop out the handle’s indice button. You can use your fingernail or a flat screwdriver to remove the indice. Be careful not to scratch the tap’s finish when using tools.

3. Undo the handle retaining screw.

4. Lift the handle to separate it from the tap unit.

5. Use a 36 A/F socket to unscrew the faulty cartridge from the valve.

6. Install and screw in the replacement Inta BO91077.1. Tighten it until 15Nm maximum torque.

7. Commission the mixer tap. 43℃ (109.4℉) is the tap’s maximum mixed water temperature.


The Inta BO91077.1 thermostatic cartridge replacement part will be dispatched on the same business day for purchases made before 3:00 PM.
