Bristan CR SHXDIV/FF E10009 Thermostatic Cartridge

SUMMARY

Bristan Thermostatic Cartridge CR SHXDIV/FF E10009 (CR SHXDIVFF C).

This cartridge is used in the Bristan Carre exposed fixed head bar shower mixer valve.

Used in:

- CR SHXDIVFFC

Bristan CR SHXDIV/FF E10009: What You Need to Know

Shopping for a replacement Bristan E10009? This thermostatic cartridge can be fitted not only in Bristan Carre but also in other shower valves. There are some things you need to know to ensure you get the right shower spare part.

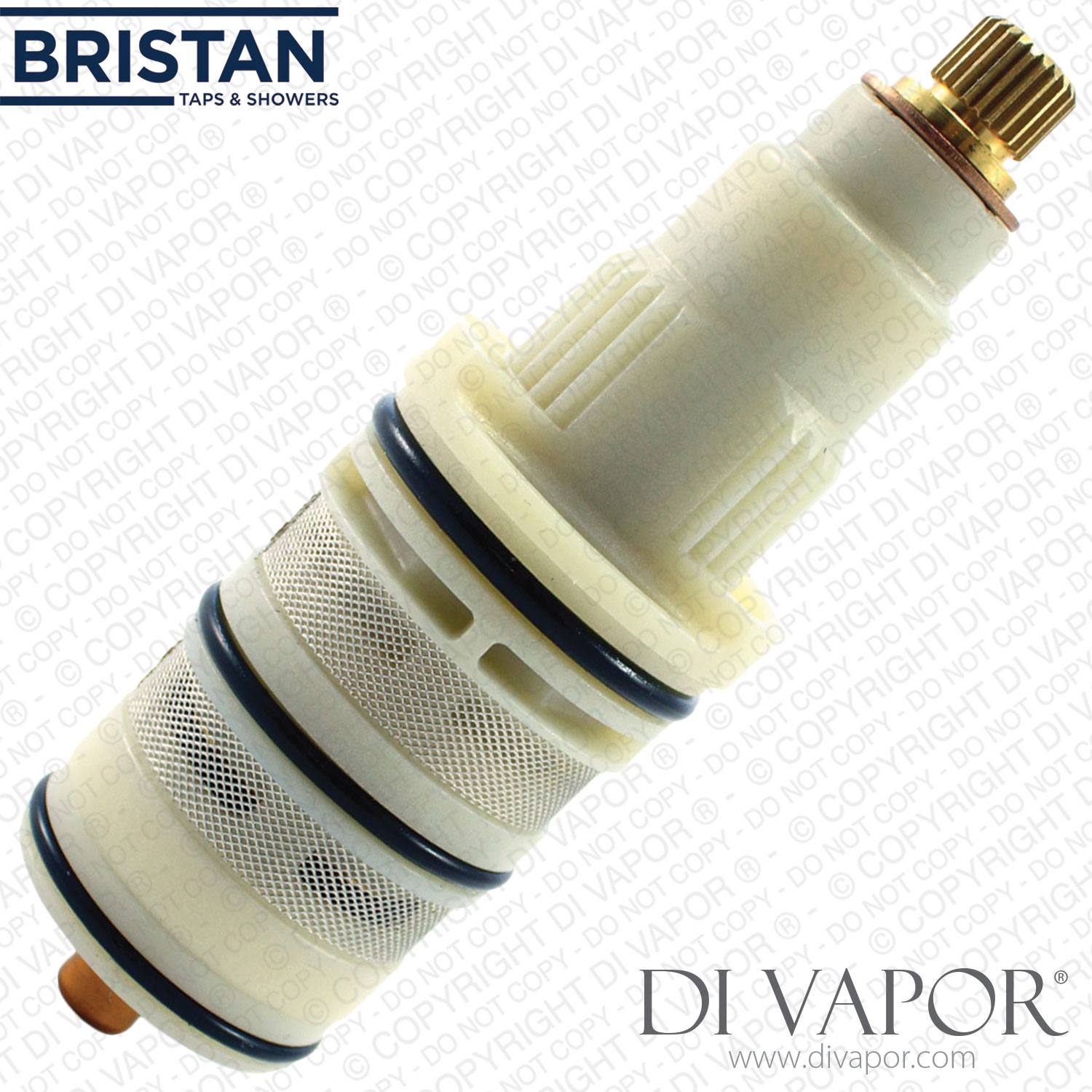

Bristan CR SHXDIV/FF E10009 is a non-threaded, white polymer thermostatic cartridge with three O-rings and 24 splines. Shower valves, whether the Bristan Carre or another bar valve, suffering from difficulties in temperature adjustment, water flow and a stiff handle may require this replacement thermostatic cartridge.

There are two basic questions to answer that can help you determine if the Bristan E10009 is the source of your shower’s problem.

1. Is the shower receiving a constant feed of hot and cold water?

2. Is the water pressure okay?

If you’ve answered yes to these two, chances are the Bristan CR SHXDIV/FF E10009 may have turned faulty.


Is the Bristan E10009 Thermostatic Cartridge Suitable for My Shower?
The Bristan CR SHXDIV/FF E10009 will 100 per cent fit in the Bristan Carre shower mixer bar. If your shower is of a different make and model, one thing can aid you in discovering whether or not the spare part is what you need to buy: measurements.

Bristan E10009 Technical Information:
Cartridge Length: 103.65mm
Diameter: 34.5mm (at the widest point)
Diameter at Top O'Ring: 32.2mm
Diameter at Bottom O'Ring: 30mm
Diameter of top Spindle (which the temperature handle connects onto): 9.5mm

Number of Teeth on Handle Splindle: 24
Type: Push fit
Cartridge Material: Plastic nylon with brass spindle and Vernet France 0165 copper thermostat element
Number of O-rings: 3
Tiers of Splines: 1
Number of Gauze Filters: 2

All you need to do is get the broken thermostatic cartridge out of the shower valve and measure it with a ruler. Then, compare its measurements to those of the Bristan CR SHXDIV/FF E10009.

While comparing, keep in mind the importance of the number of spline notches. The spline on top of the Bristan E10009 thermostatic cartridge mates with the spline of the shower valve handle. Ergo, both spline notch count must be the same. This replacement part has 24 spline notches.

In counting the splines: marking one of the teeth will help you recognize where to stop counting.


Other spares for the Bristan Carre:
– E20209 On/Off Flow Diverter Cartridge


Should you need further confirmation on the compatibility of the Bristan CR SHXDIV/FF E10009, please do not hesitate to contact us. Here are our contact details.
+ Find a Spare Part Service Page
+ WhatsApp (07754 173340)
Di Vapor’s spares experts are super friendly and willing to help with your spares needs!
Weekend messages will be attended to first on Monday.

Bristan E10009 Thermostatic Cartridge Installation

Have a Bristan Carre shower mixer bar? This is how you can remove and replace the Bristan thermostatic cartridge CR SHXDIV/FF E10009.

In order to prevent unwanted injuries from accidental water flow, please make sure you switch off the shower’s hot and cold water supply before starting the Bristan E10009 replacement process.

1. Pop out the small circular cover cap from the side of the Bristan Carre bar shower.

2. There is a screw which you can now access. Loosen the screw until you can pull the handle from the valve.

3. Before removing the temperature stop ring, remember its orientation. You can take a photo of the part before removing it. This will come in handy during reassembly.

*About the Bristan CR SHXDIV/FF E10009 temperature cartridge stop ring: The ring serves as a temperature limiter, hence the importance of returning it in the same position during reassembly.

4. Unscrew the cartridge retaining lock nut. This will free the faulty Bristan E10009 from the valve. Pull the cartridge out.

5. Install the replacement Bristan CR SHXDIV/FF E10009 in the Carre shower bar and follow steps one to four in reverse order.
