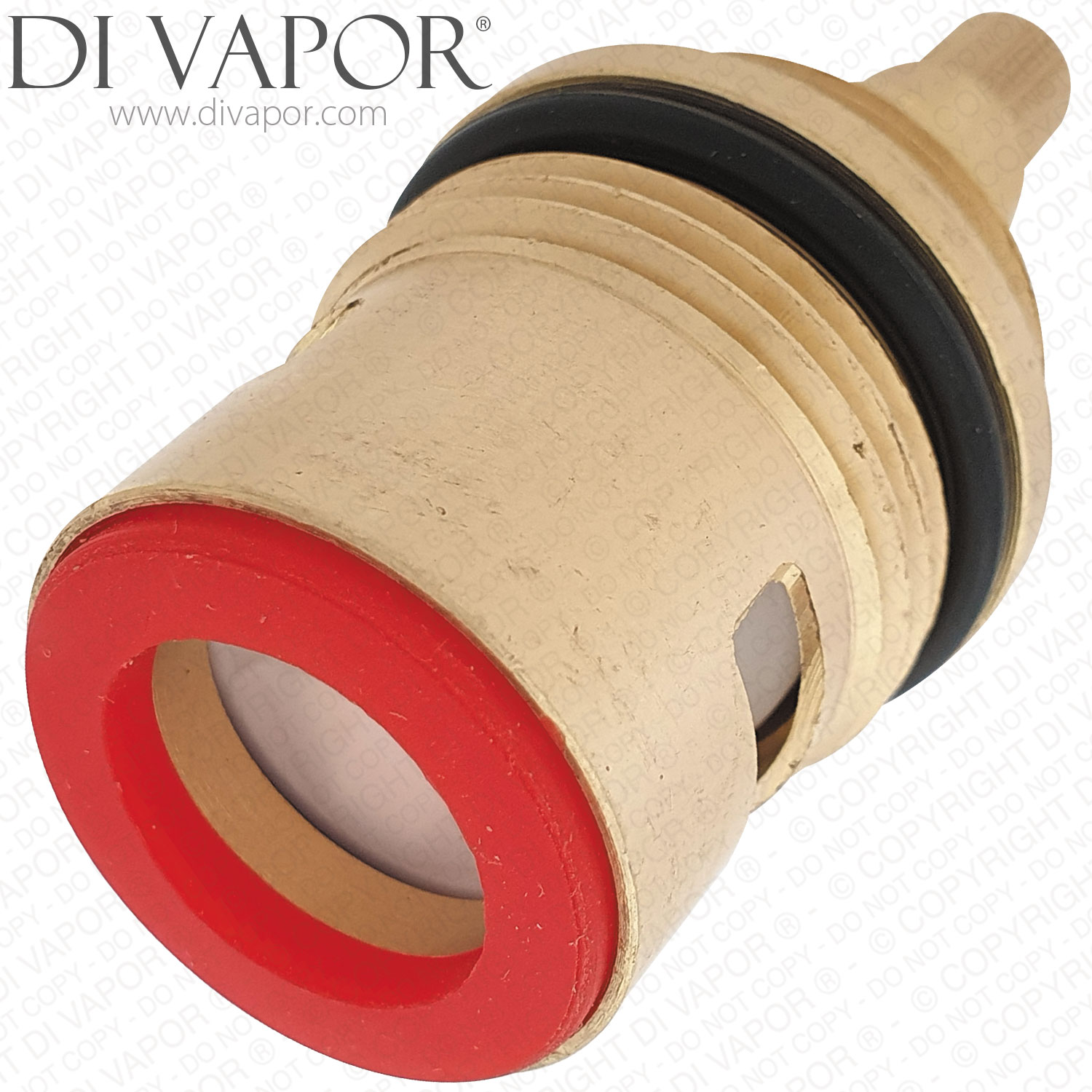

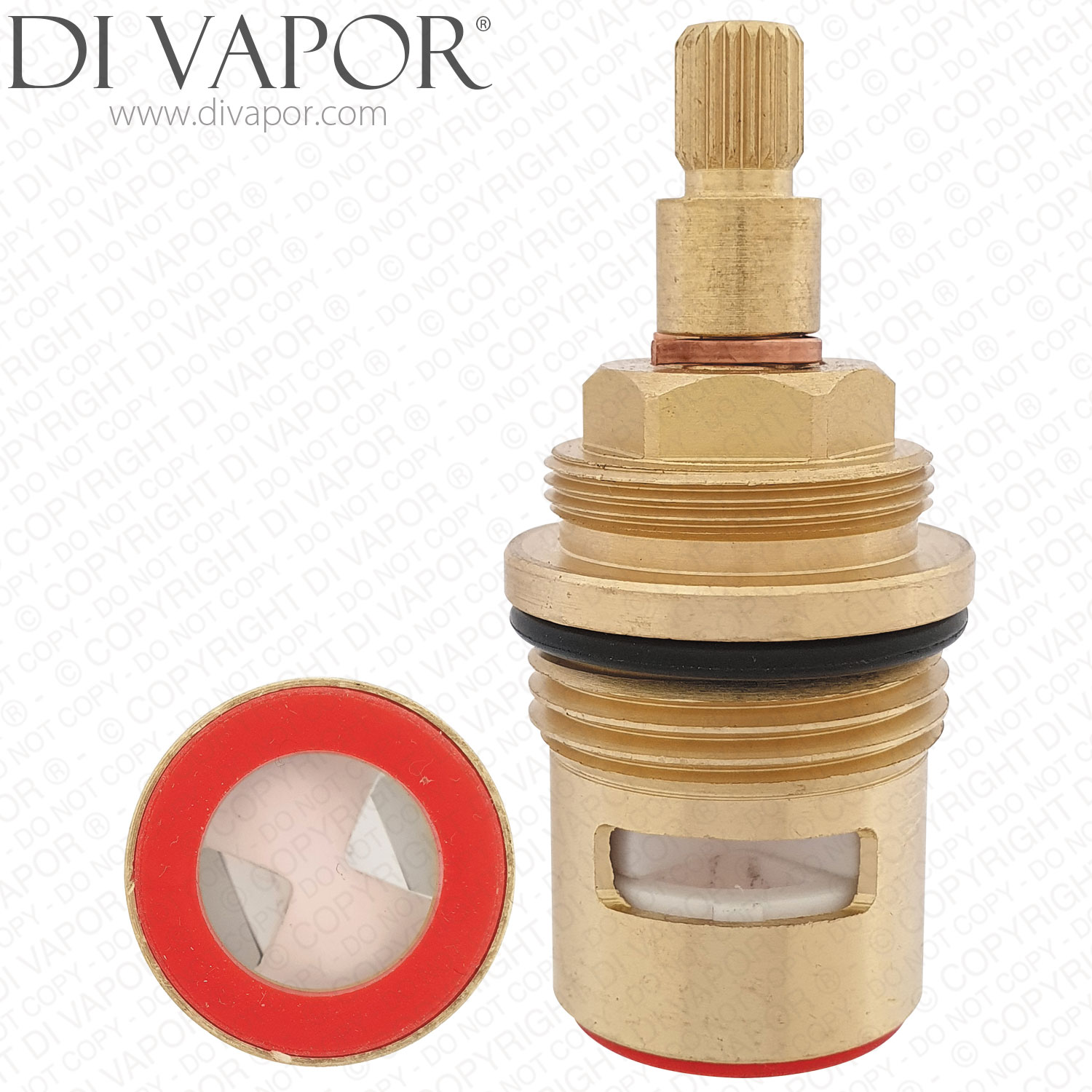

Vado ION-VALVE/CD/HT-3/4 Inch Hot Ceramic Disc Valve Flow Cartridge | Ion | Photon | Phase Shower Bath Mixers

SUMMARY

Vado 3/4 Inch ION-VALVE/CD/HT-3/4 Hot Ceramic Disc Valve Flow Cartridge which is used on Vado's Ion, Photon and Phase shower bath Mixers. This cartridge is designed for the hot tap.

Sold without the white plastic spline adapter as this is no longer supplied by Vado.

This flow cartridge has a gland which the on off handle screws onto.

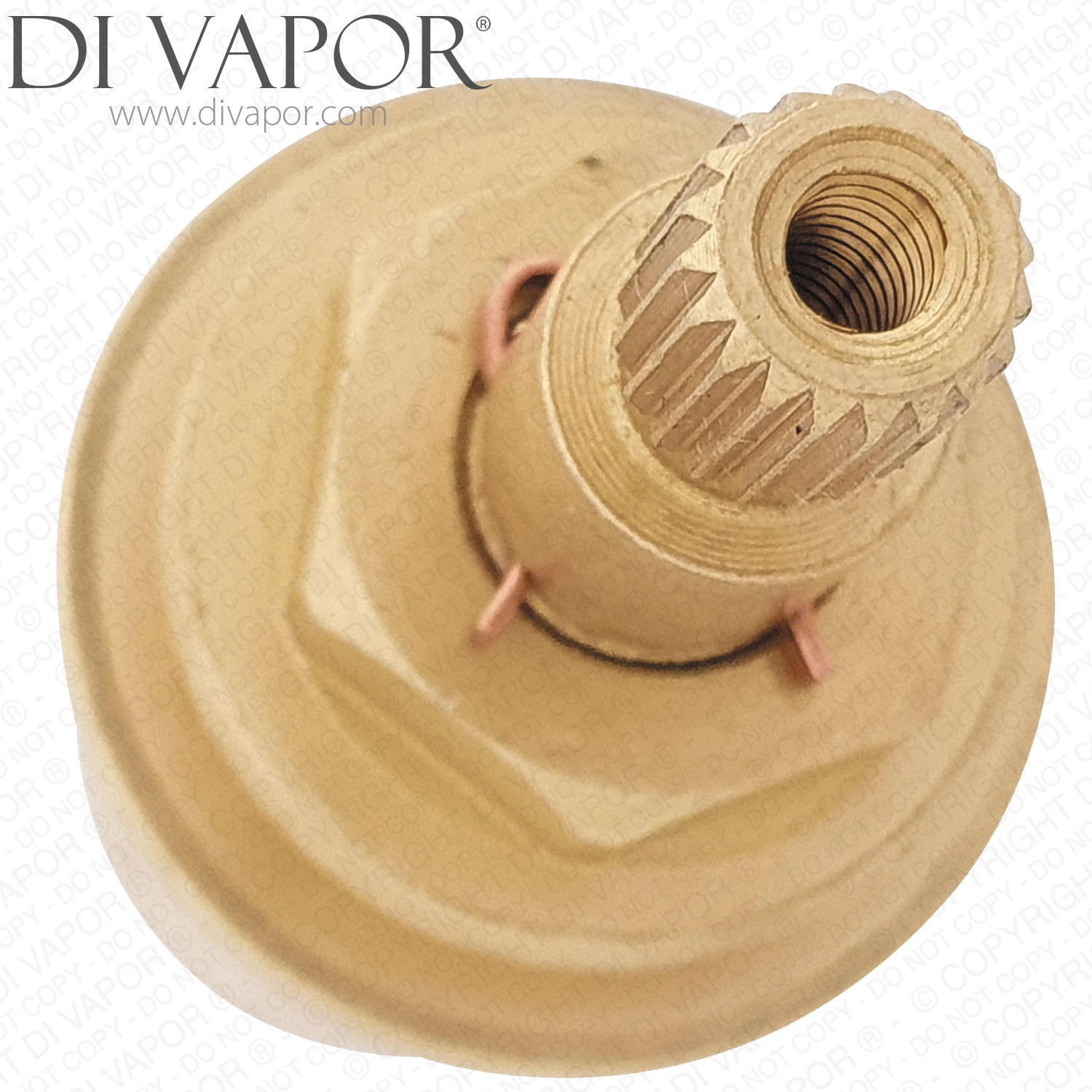

The plastic spindle connects onto a metal spindle which also has teeth on it.

3/4" ceramic disc valve hot suits:
- Vado ION-130 Ion 2 hole bath shower with shower kit
- Vado ION-137 Ion 2 hole bath filler
- Vado PHO-130 Photon 2 hole bath shower mixer deck mounted with shower kit
- Vado PHO-137 Photon 2 hole bath filler deck mounted
- Vado PHA-130 Phase 2 hole bath shower mixer single lever deck mounted without shower kit
- Vado PHA-137 Phase 2 hole bath filler deck mounted

Technical specifications of the ION-VALVE/CD/HT-3/4 ceramic disk CD flow cartridge:
Total Length (excluding the screw at the bottom): 65mm
Width at Widest Point: 29mm
Material: Brass and plastic spindle
Number of Teeth on plastic Spline: 21
Width of plastic spindle: 12.3mm
Colour: Brass and red and white
